LG 32SM5J 32" Full HD Smart Digital Signage Display with WebOS 6.0
LG webOS Standard Signage
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
Compatible with AV Control System
The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
Smart Signage Platform
Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point
The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.
-
| Category |
Details |
| PANEL |
|
| Screen Size |
32" |
| Panel Technology |
IPS |
| Native Resolution |
1,920 × 1,080 (FHD) |
| Brightness |
400 nit (Typ.) |
| Contrast Ratio |
1,100:1 |
| Dynamic CR |
1,000,000:1 |
| Viewing Angle (H × V) |
178 × 178 |
| Response Time |
10 ms (G to G) |
| Surface Treatment (Haze) |
1% |
| Operation Hours (Hours/Day) |
24/7 |
| Orientation |
Portrait / Landscape |
| CONNECTIVITY |
|

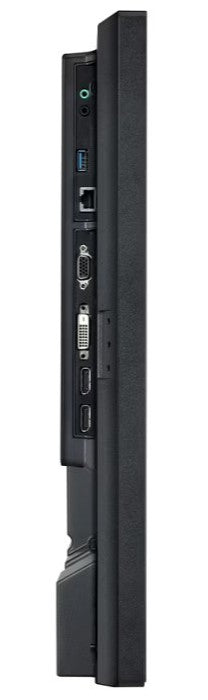

| Input |
HDMI (3, HDCP 2.2), USB 2.0 (Type A) |
| Output |
Audio Out (Off / Fixed / Variable) |
| External Control |
RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type) |
| MECHANICAL SPECIFICATION |
|
| Bezel Color |
Black |
| Bezel Width |
13 mm (T/R/L), 18 mm (B) |
| Monitor Dimension (W × H × D) |
729.4 mm × 428.9 mm × 55.5 mm |
| Weight (Head) |
5.7 kg |
| Monitor Dimension with Stand (W × H × D) |
729.4 mm × 481 mm × 154.2 mm |
| Weight (Head + Stand) |
6.5 kg |
| VESA™ Standard Mount Interface |
200 x 200 mm |
| KEY FEATURE |
|
| Key Feature |
Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC, SI Sever Setting, webRTC, Pro:Idiom |
| ENVIRONMENT CONDITIONS |
|
| Operation Temperature |
0°C to 40°C |
| Operation Humidity |
10% to 80% |
| POWER |
|
| Power Supply |
AC 100-240 V~, 50/60 Hz |
| Power Type |
Built-In Power |
| POWER CONSUMPTION |
|
| Typ. / Max. |
55 W / 75 W |
| BTU (British Thermal Unit) |
187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.) |
| SOUND |
|
| Speaker |
Yes (10 W × 2 EA) |
| CERTIFICATION |
|
| Safety |
CB / NRTLE |
| EMC |
FCC Class "A" / CE |
| ErP / Energy Star |
No / Yes |
| SOFTWARE COMPATIBILITY |
|
| Software Compatibility |
SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare |
| ACCESSORY |
|
| Basic |
Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender |
| Optional |
Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S) |
-
