Brightness(Typ.) : 500 cd/m²
Surface Treatement (Haze) : 25%
Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
New High Haze UHD
Standard Signage
Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
| PANEL | |
|---|---|
| Screen Size | 43" |
| Panel Technology | IPS |
| Back Light Type | Edge |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | 500nit (Typ.) |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 |
| Color gamut | BT709 95% |
| Viewing Angle(H x V) | 178 X 178 |
| Color Depth | 8bits + FRC, 1.07Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment(Haze) | 25% |
| Life time | 50,000Hrs (Min.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portrait / Landscape | Yes / Yes |
| CONNECTIVITY | |
|---|---|

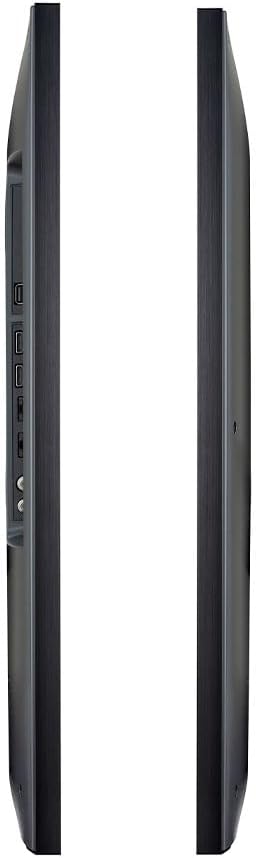

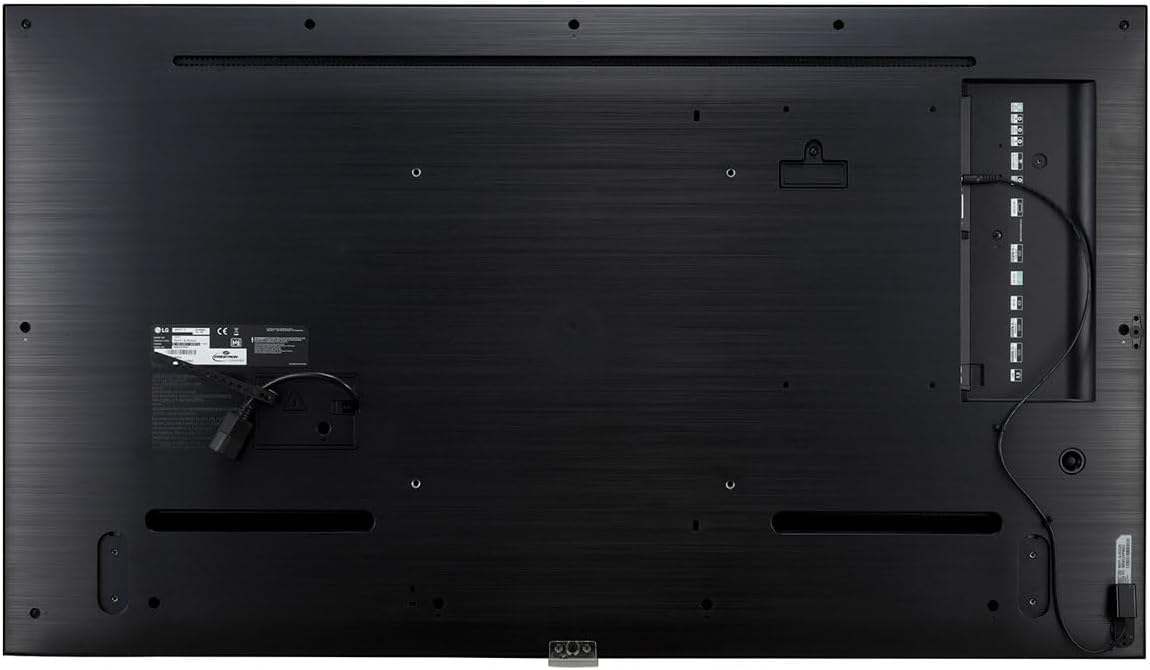

| Input | HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1) |
| Output | HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack) |
| MECHANICAL SPECIFICATION | |
|---|---|
| Bezel Color | Black |
| Bezel Width | T/R/L: 8.4mm, B: 14.4mm |
| Weight(Head) | 11.2Kg |
| Weight(Head+Stand) | 11.8Kg |
| Packed Weight | 13.7Kg |
| Monitor Dimension(W x H x D) (with LG Logo) | 962.5 x 568.0 x 39.9mm |
| Monitor Dimensions with Stand(W x H x D) | 962.5 x 613.1 x 290.0mm |
| Carton Dimensions(W x H x D) (Box outer size) | 1060.0 x 660.0 x 152.0mm |
| VESATM Standard Mount Interface | 200 x 200 |
| KEY FEATURE | |
|---|---|
| Key features | Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom |
| ENVIRONMENT CONDITIONS | |
|---|---|
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| POWER | |
|---|---|
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| POWER CONSUMPTION | |
|---|---|
| Typ. | 80W |
| Max. | 120W |
| BTU (British Thermal Unit) | 273 BTU/Hr(Typ.), 410 BTU/Hr(Max.) |
| Smart Enegy Saving(~70%) | 56W |
| DPM | 0.5W |
| Power off | 0.5W |
| SOUND | |
|---|---|
| Speaker | Yes |
| CERTIFICATION | |
|---|---|
| Safety | CB / NRTLEMC |
| EMC | FCC Class "A" / CE / KC |
| ErP / Energy Star | Yes (NewErP) / Yes |
