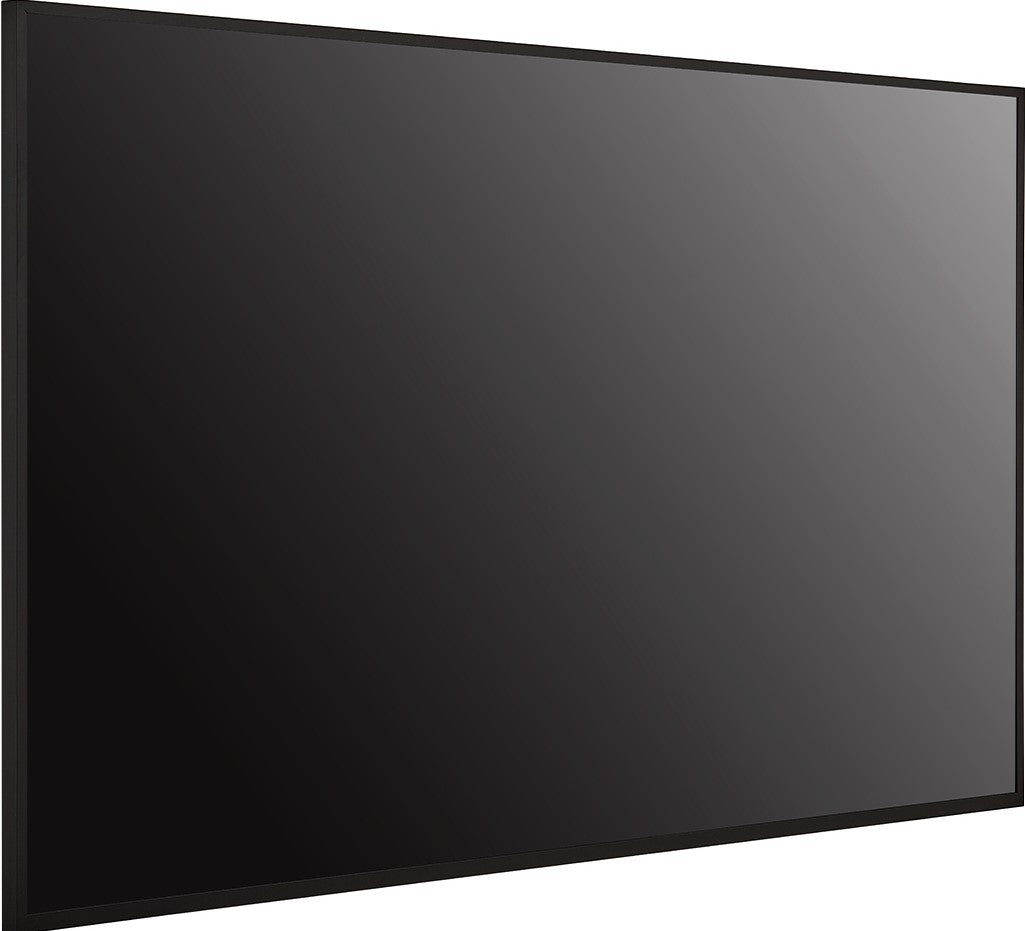

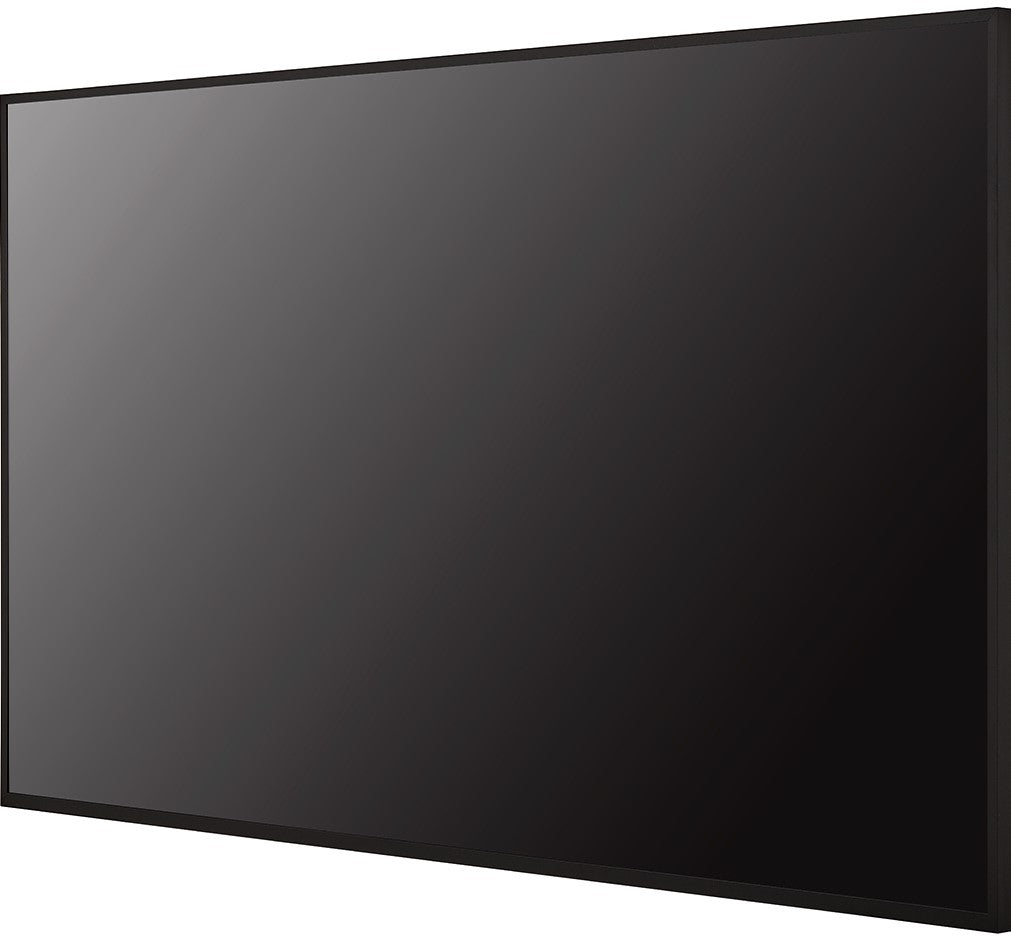

LG 43UH5N-E 43" 4K Ultra HD Large Format Digital Signage Display

UHD Signage Display with LG webOS Platform and Advanced Security
* All images in this page are for illustrative purposes only.

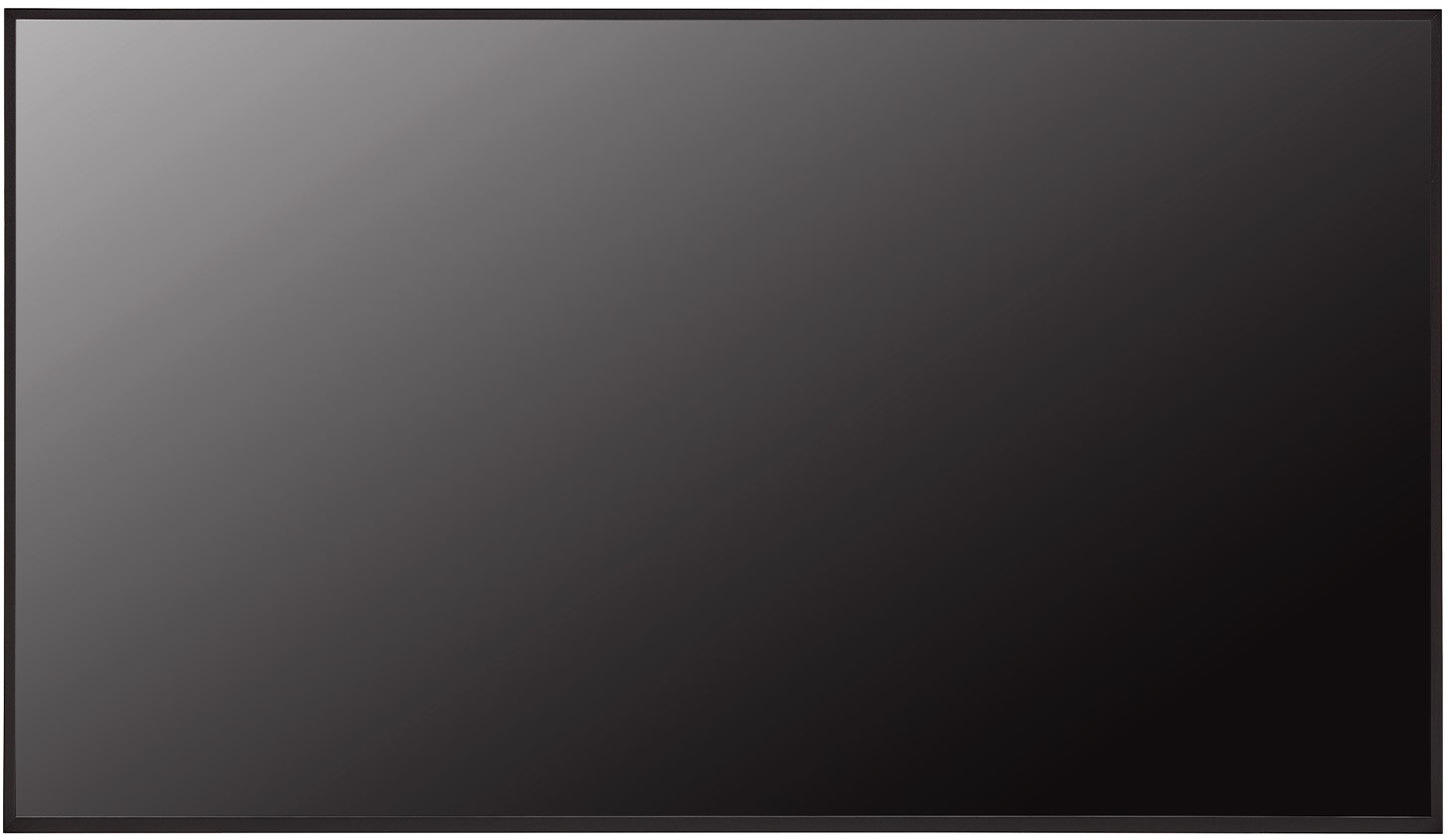

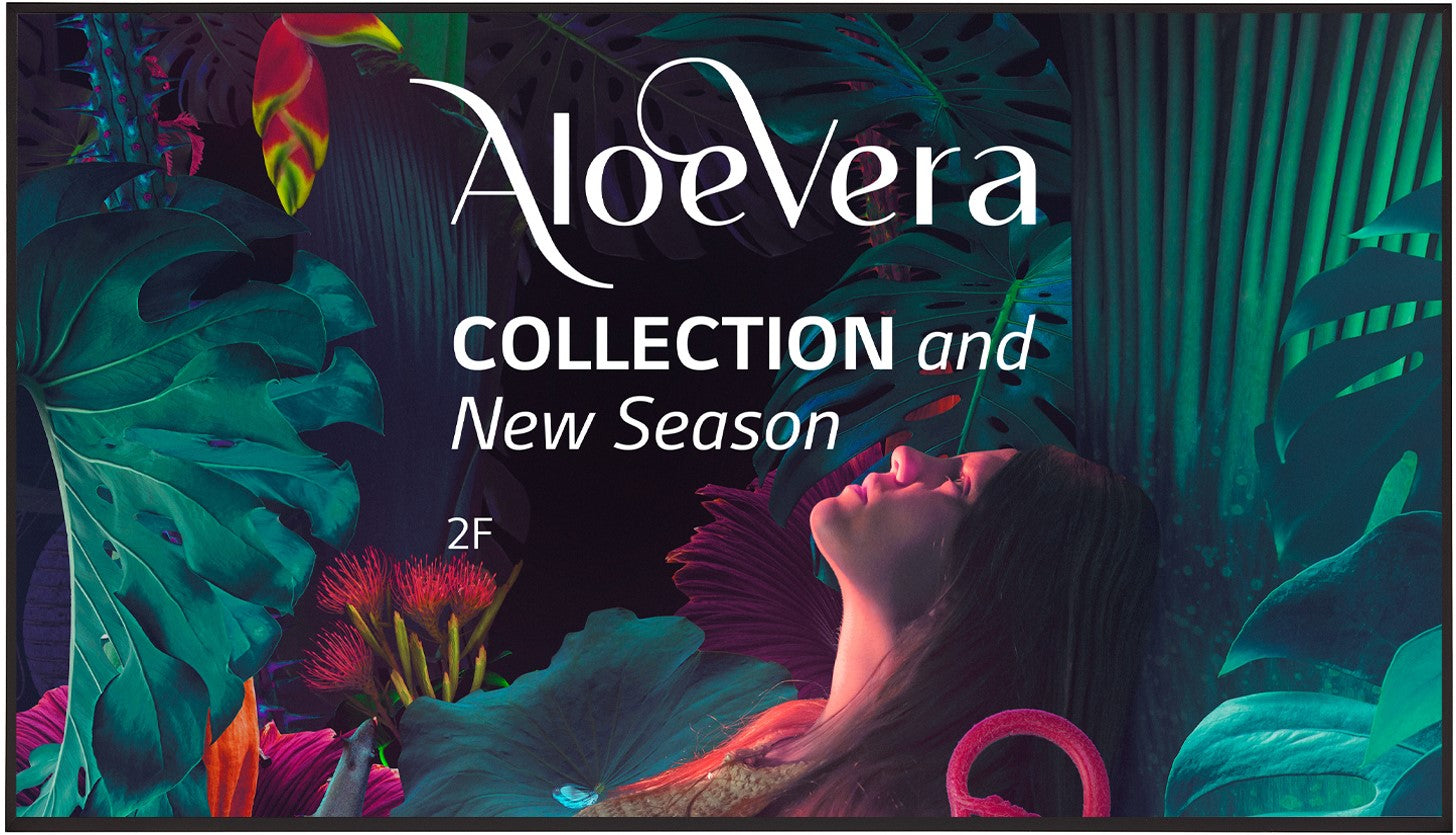

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Stylish interior with Art Frame
Enhance the sophistication of your space with the Art Frame featuring bezels accessories, providing an artistic touch to the UH5N-E for a more refined interior. Bezels accessories empower customers to utlize their UH5N-E to seamlessly blend with their interior, transforming it into a chic decorative centerpiece.

* Bezel accessories are sold separately at an additional cost. For more information, please contact LG Sales.

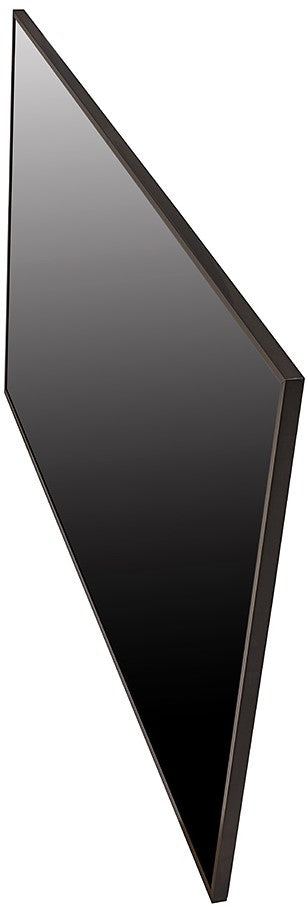

Design For space utilization

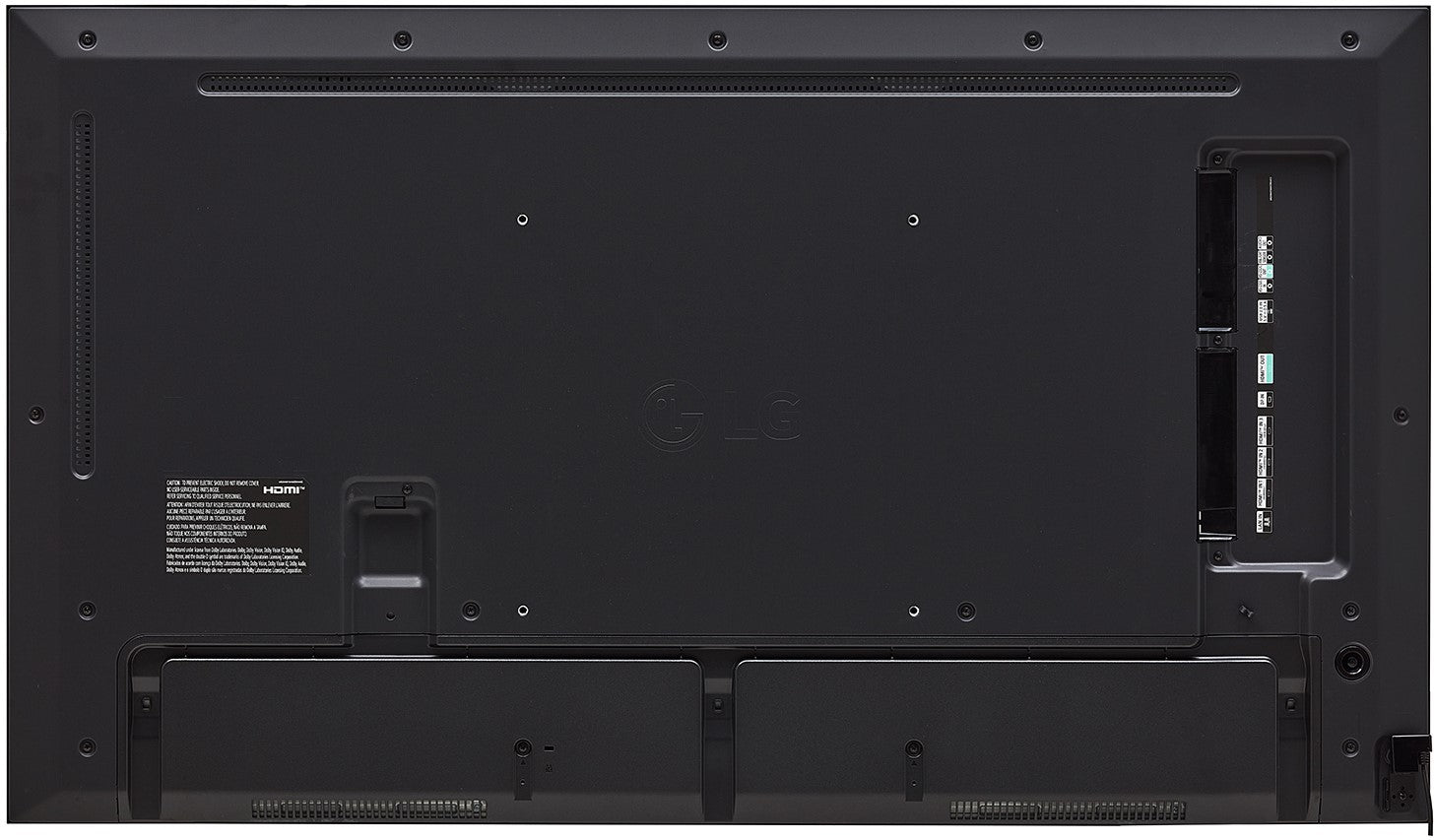

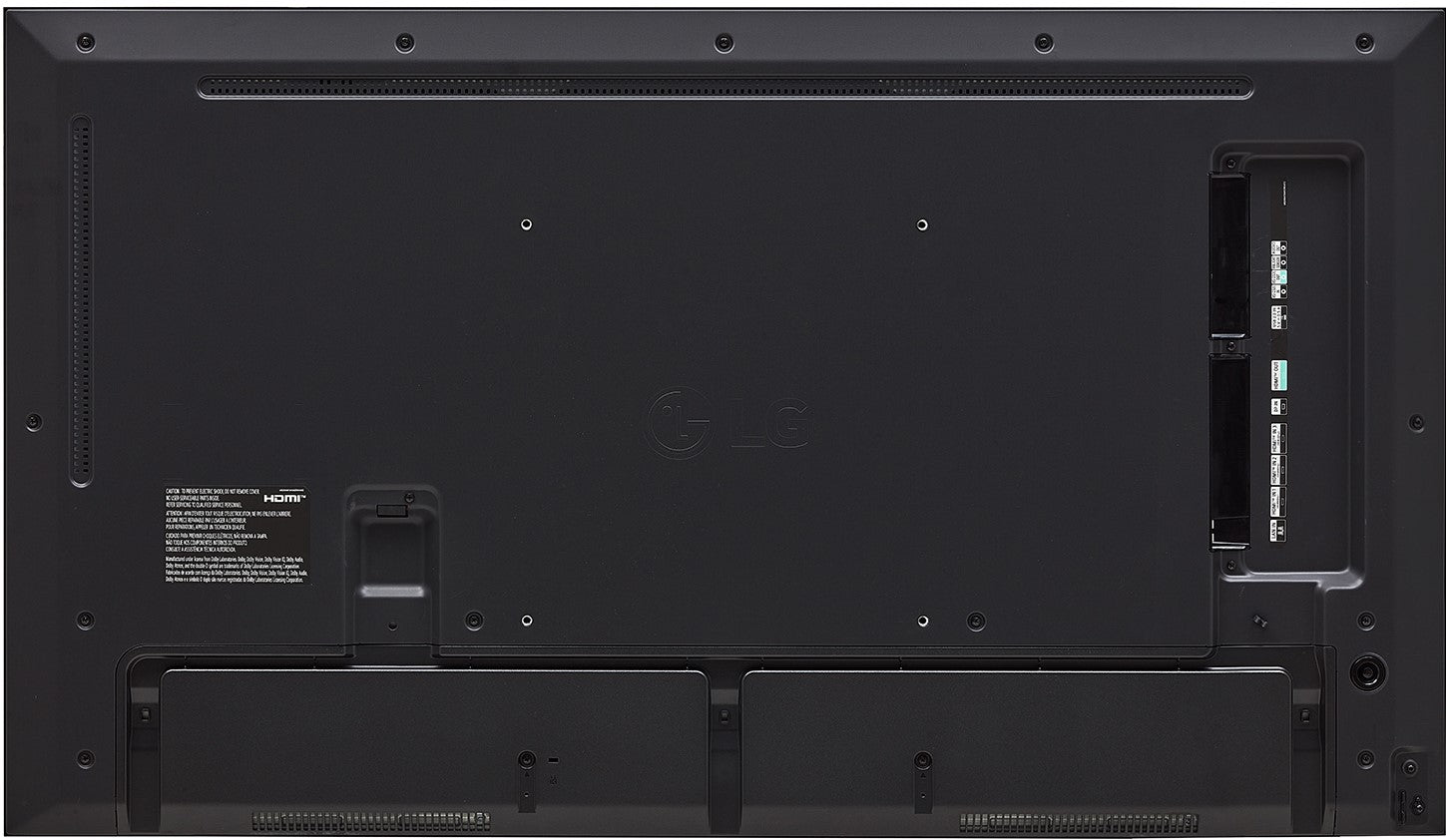

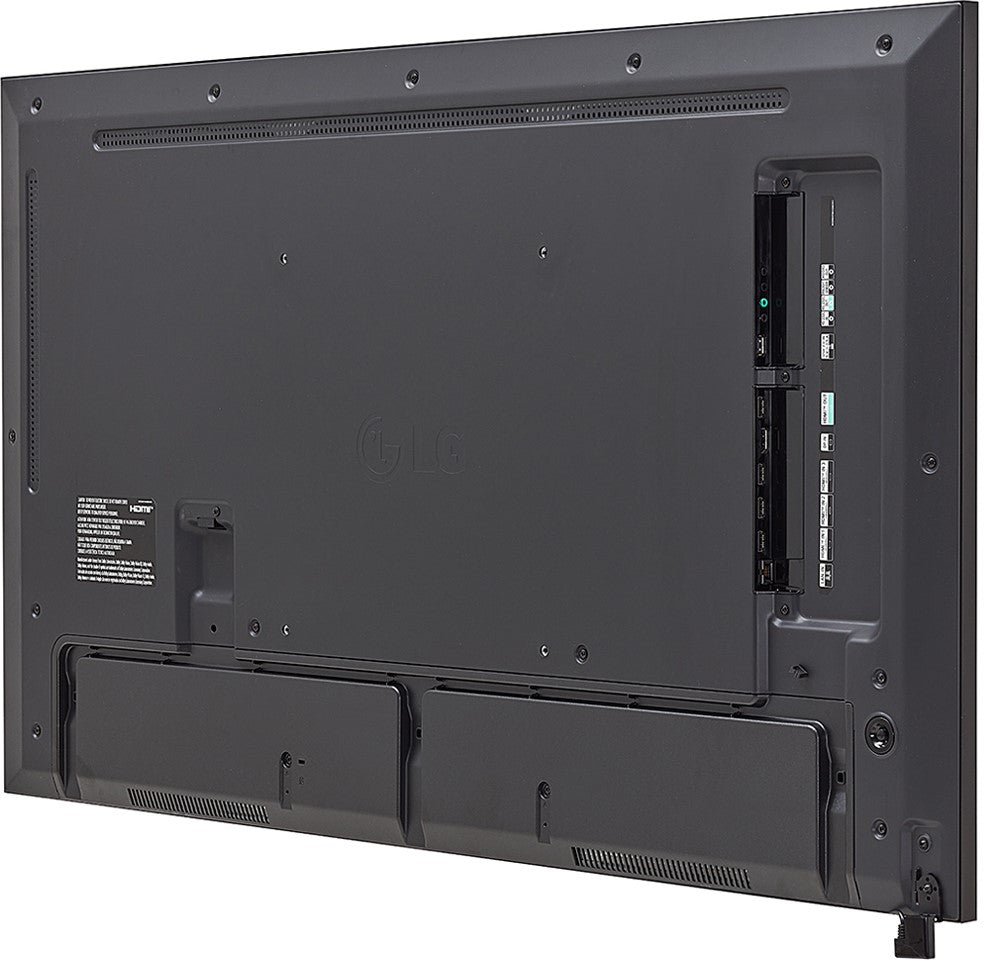

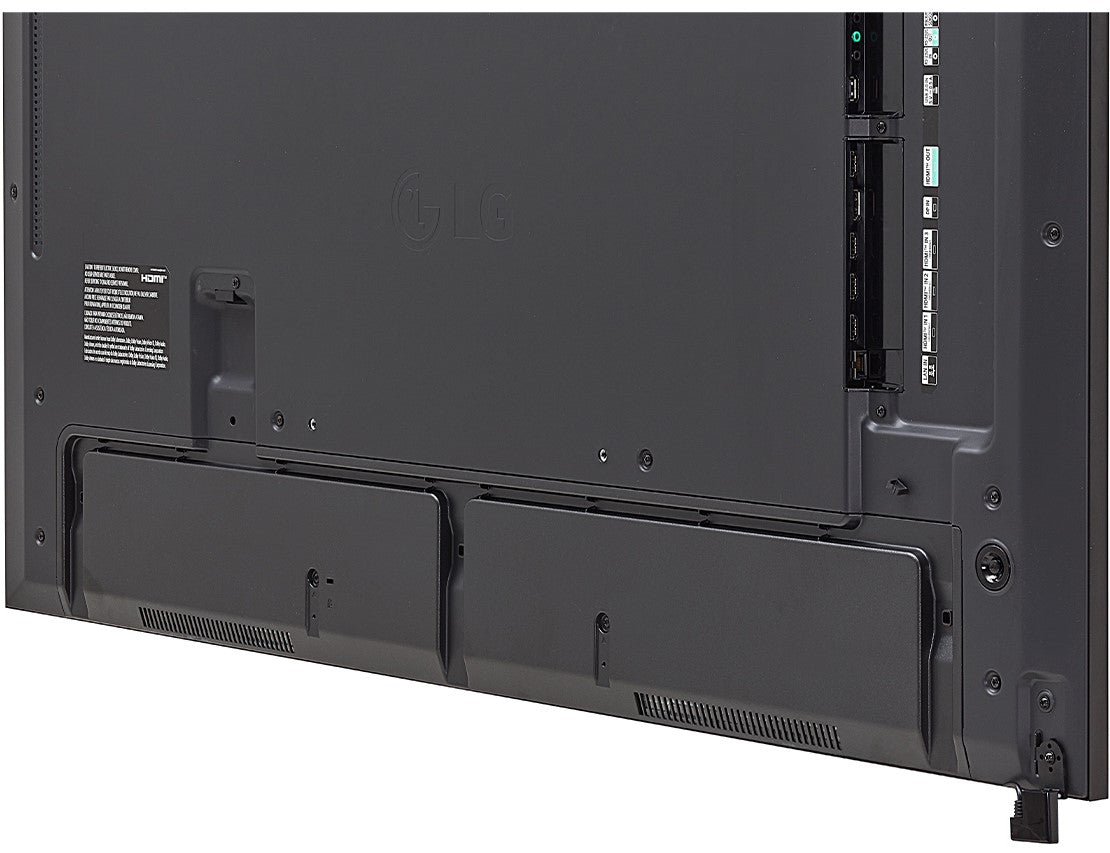

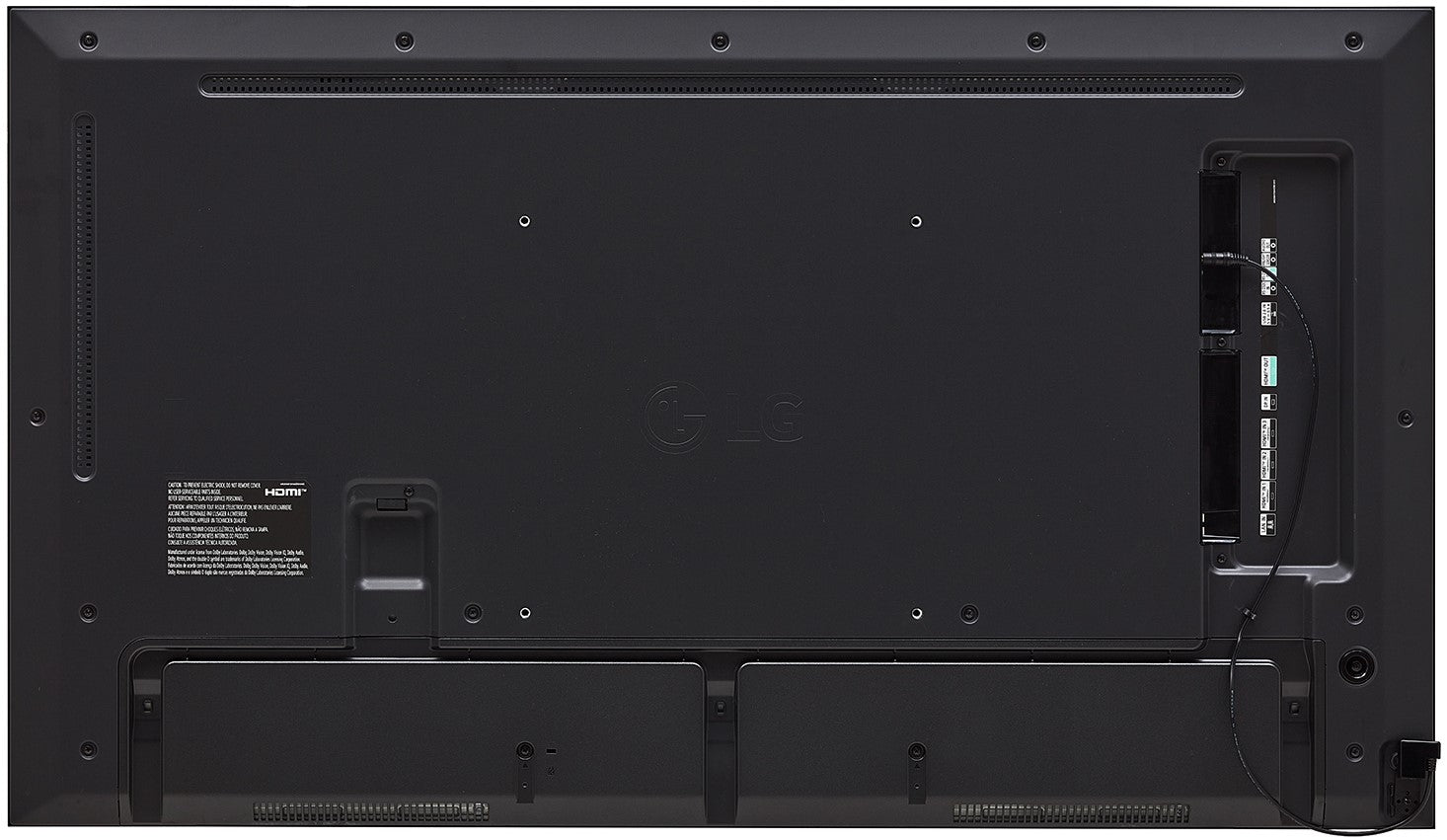

Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability
Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Category	Specification
Panel
Screen Size	43"
Panel Technology	IPS
Back Light Type	Edge
Aspect Ratio	16:9
Native Resolution	3,840 x 2,160 (4K UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	500 nit
Contrast Ratio	1,000:1
Dynamic CR	1,000,000:1
Color Gamut	BT709 95%
Viewing Angle (H x V)	178 × 178
Color Depth	10bit(D), 1.07 Billion colors
Response Time	Tr: 8ms / Tf: 10ms
Surface Treatment (Haze)	28%
Life Time (Min.)	50,000 Hrs
Operation Hours (Hours/Days)	24 / 7
Portrait / Landscape	Yes / Yes
Mechanical Specification
Bezel Color	Black
Bezel Width	8.9 mm (T/R/L), 12.9 mm (B)
Weight (Head)	11.1 kg
Packed Weight	12.8 kg
Monitor Dimensions (W × H × D)	963 x 556.2 x 29.7 mm (without IR)
Carton Dimensions (W × H × D)	1,055 x 660 x 142 mm
Handle	No
VESA™ Standard Mount Interface	200 × 200 mm
Key Features
Internal Memory	16 GB
Built-in Wi-Fi	Yes
Sensors	Temperature, Auto Brightness, Acceleration (Gyro)
Local Key Operation	Yes
Built-in Speaker	Yes
webOS Version	6.0
Local Contents Scheduling	Yes
Group Manager	Yes
USB Plug & Play	Yes
Fail Over	Yes
Image Features	Booting Logo Image, No Signal Image
Sync Options	RS-232C Sync, Local Network Sync
PIP / PBP	PIP, PBP (4)
Screen Share	Yes
Video Tag	4
Play via URL	Yes
Rotation	Screen Rotation, External Input Rotation
Gapless Playback	Yes
Tile Mode Setting	Max. 15 × 15
Setting Data Cloning	Yes
SNMP	Yes
ISM Method	Yes
Auto Set ID	Yes
Status Mailing	Yes
Control Manager	Yes
3rd Party Compatibility	Cisco Certi, Crestron Connected®
Smart Energy Saving	Yes
PM Mode	Yes
Wake on LAN	Yes
Network Ready	Yes
Beacon	Yes
HDMI-CEC	Yes
SI Server Setting	Yes
webRTC	Yes
Pro	Yes
Environment Conditions
Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %
Power
Power Supply	AC 100-240 V ~, 50/60 Hz
Power Type	Built-In Power
Power Consumption	Typ. 80W / Max. 120W
Smart Energy Saving (70%)	56W
DPM	0.5W
Power off	0.5W
BTU	273 BTU/Hr (Typ.), 409 BTU/Hr (Max)
Certification
Safety	CB / NRTL
EMC	FCC Class “B" / CE / KC
ePEAT (US Only)	Yes
ErP / Energy Star	Yes (NewErP) / Yes
ISTA6	Yes (~Sep. 23y, US Suffix Only)
Carbon Trust	Yes (CO2 Reducing (TBD))
OPS Compatibility
OPS Type Compatible	No
OPS Power Built In	No
Software Compatibility
SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare

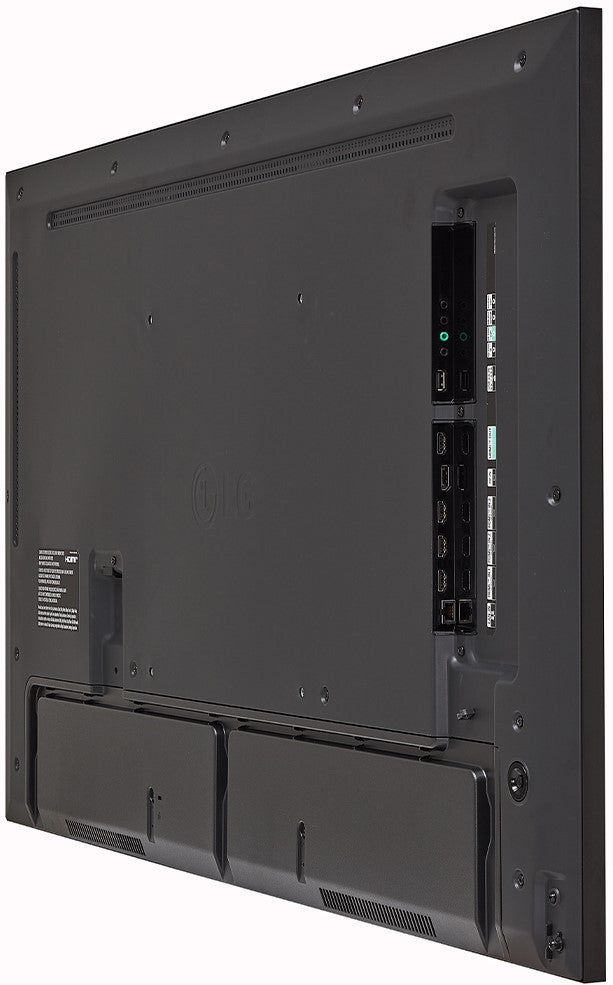

Connectivity
Input	HDMI In (3), DP In, RS-232C In, RJ45 (LAN) In, IR In, USB In 2.0
Output	HDMI Out, Audio Out, RS-232C Out, Daisy Chain (Input HDMI, DP / Output HDMI)
Language	English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic
Accessory
Basic	Remote Controller (2 batteries), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (2), AC Cord Holder (1)
Optional	Slim Wall Mount (WB21LMA/B), Wall Mount (LSW240A/B), Wall Mount Adapter (AM-B220S)
Special Feature
Tilt (Facedown)	Yes (Max 30º degree, 40ºC temperature)

Standard Warranty for LG Products
The estimated standard warranty for LG products varies.
Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.

Warranty for LG Monitors

Labour : 24 Months
Parts : 24 Months
NOTE: The manufacturer warranty period is the same for consumer and commercial usage.

Warranty Terms and Conditions:
Replacement Unit or Parts may be new or remanufactured service exchanges that are equivalent to new in performance and reliability.
The LG warranty does not cover any of the following actions:
a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the product.
c) Misuse, including failure to use the product for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper or insufficient ventilation or any other cause beyond the reasonable control of LG.
The LG manufacturer warranty is only valid when accompanied by the original invoice, sales receipt or confirmation from LGE UK of the warranty period.

If the serial number is defaced, missing or illegible, the warranty with LGE UK is null and void. In this case you should contact the dealer from whom the product was purchased.
During the repair process it is possible that any stored data may be lost so it is strongly recommended that you backup any important data and media files before requesting a service. LG will not be responsible for any data corruption or loss however so caused during the repair process or failure of the customer to ensure that all data is properly backed up.
