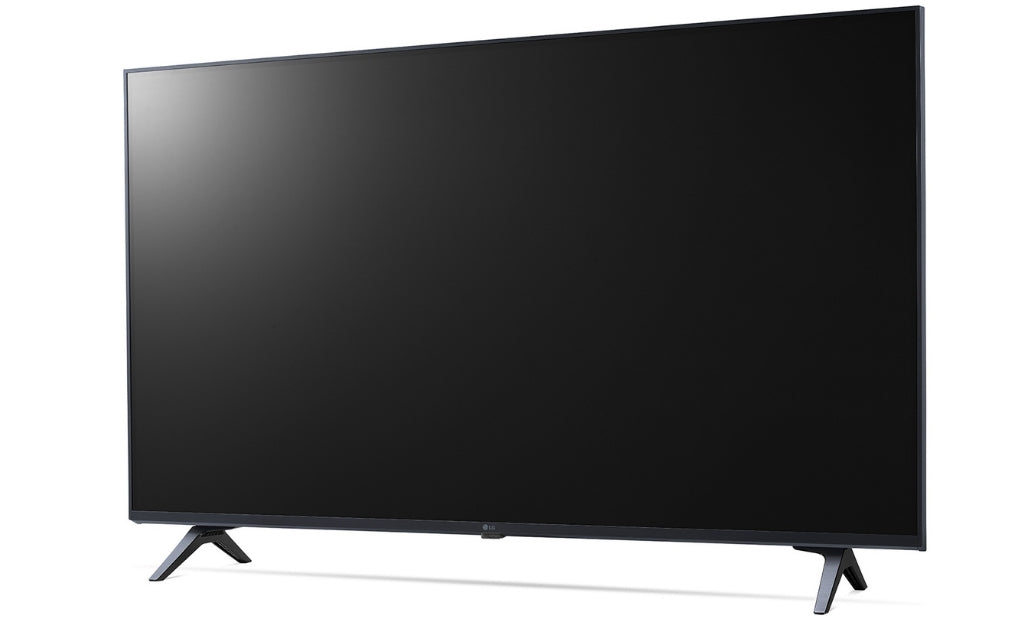

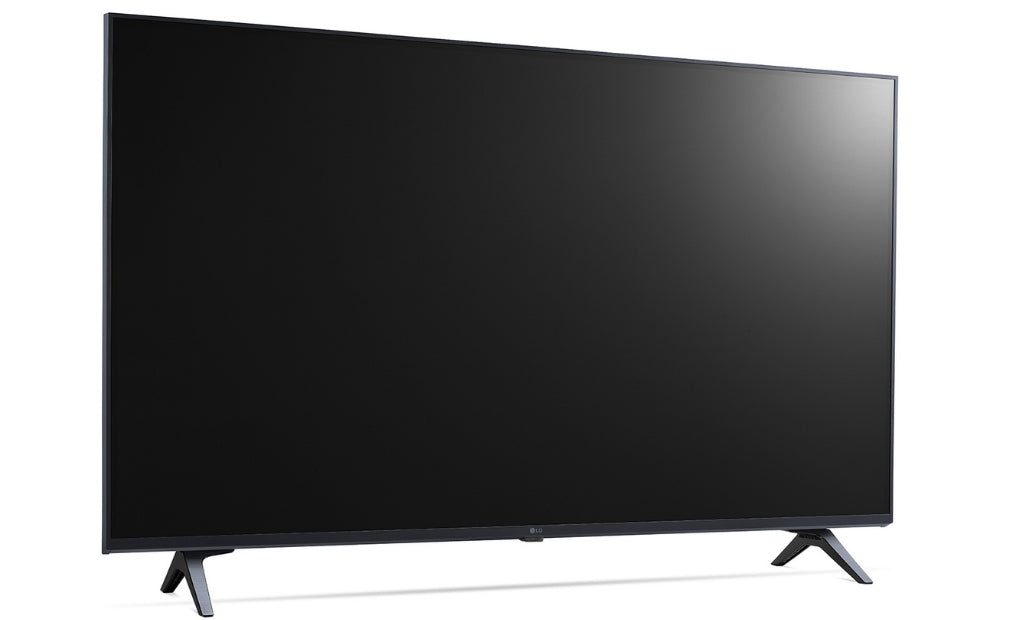

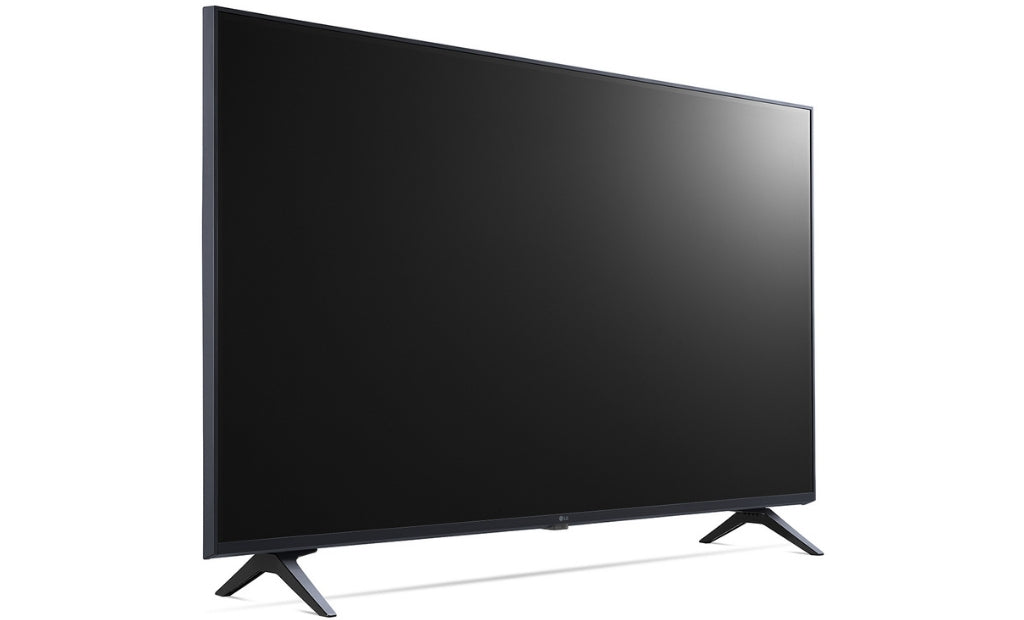

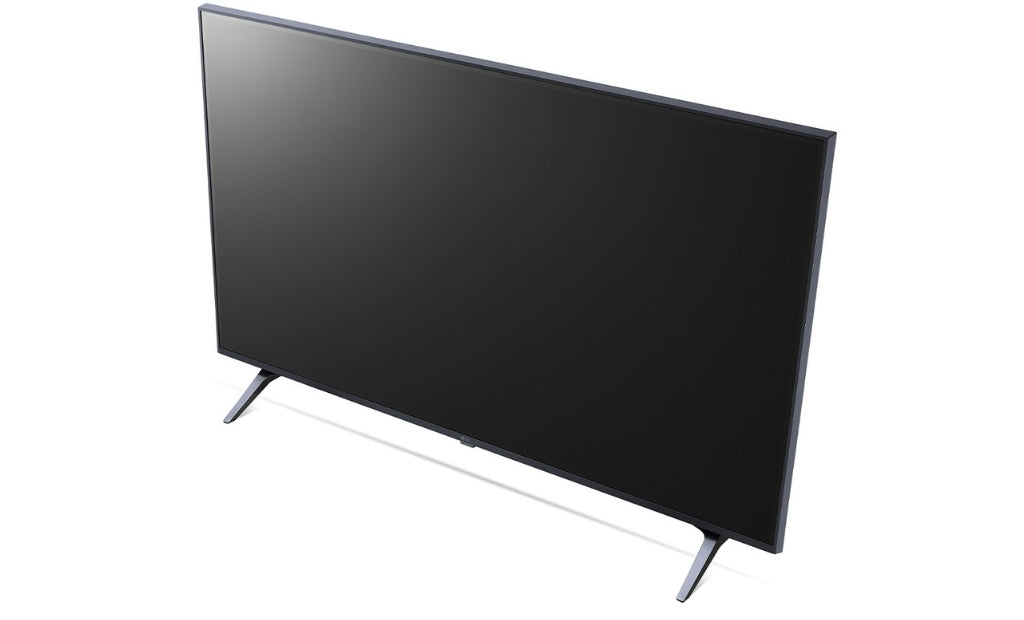

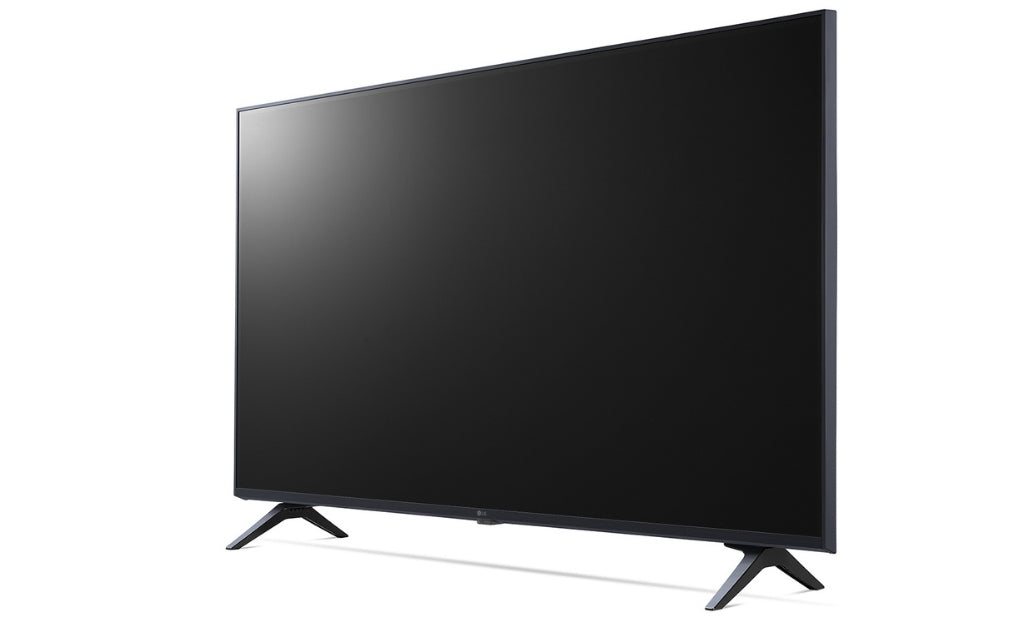

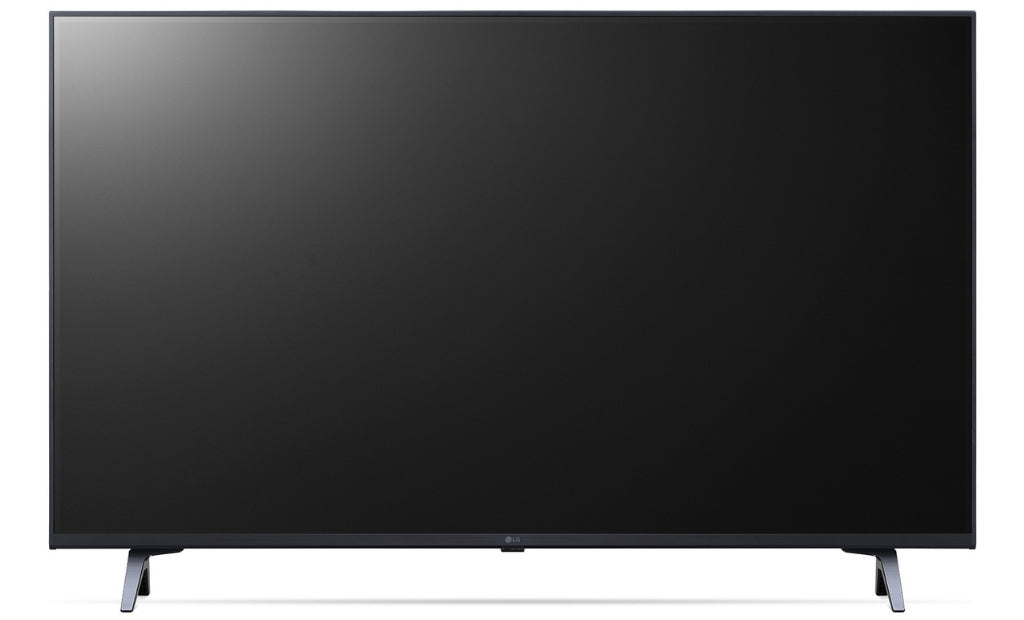

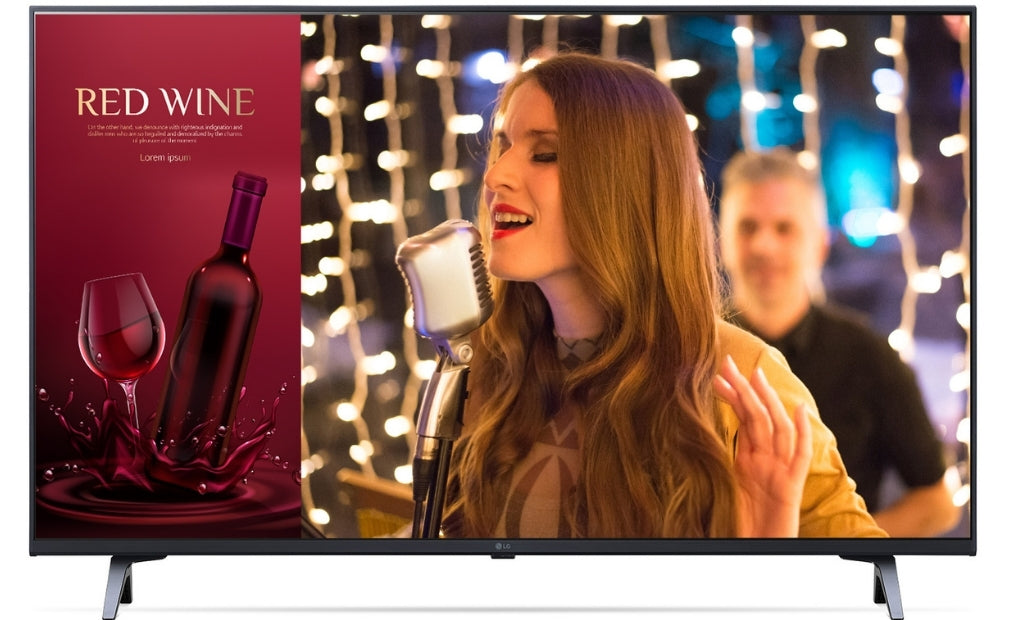

LG 43UN640S 43" 4K Ultra HD Smart Commercial Signage TV

LG TV Signage with Essential Function
* All images in this web page are for illustrative purposes only.

Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

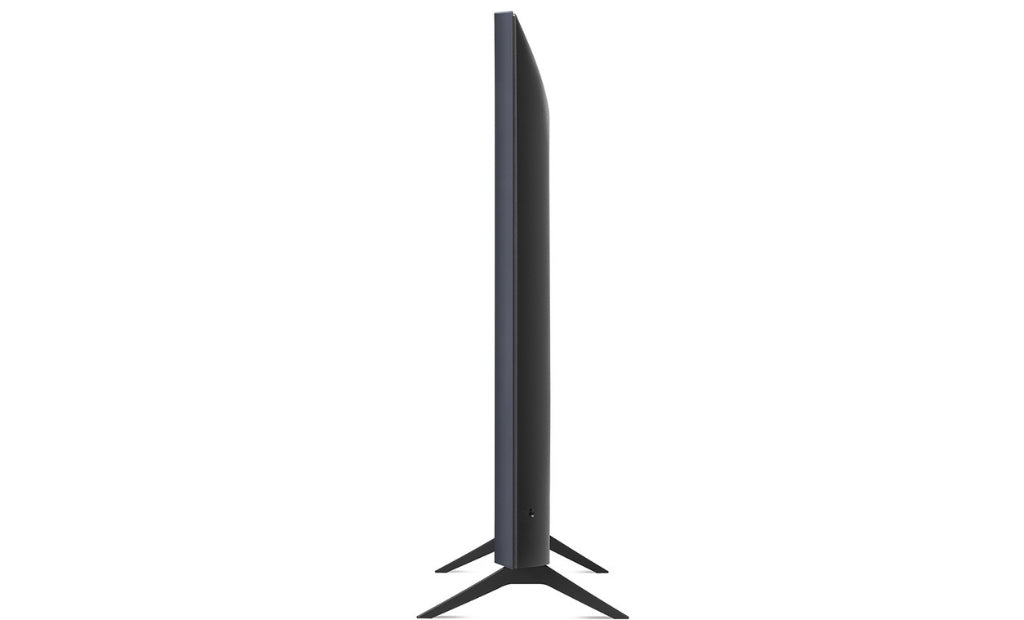

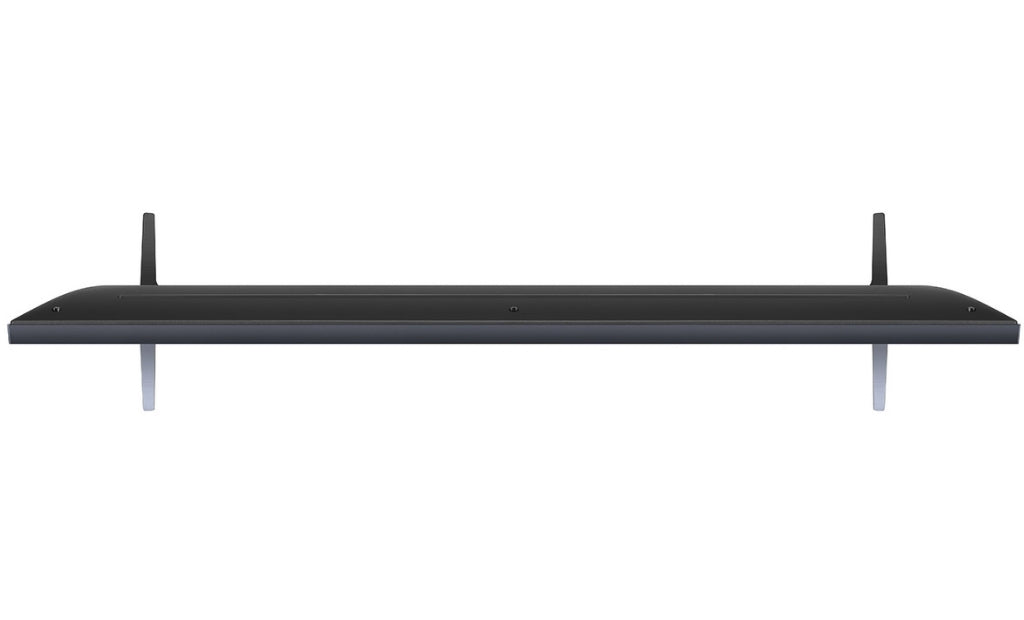

Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

* 'LG Conventional' refers to LG UT640S series.

High-Performance with LG webOS22
LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.**

* SoC : System On Chip
** GUI : Graphical User Interface

Embedded Content &
Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

* LG SuperSign CMS is sold separately

Easy Group Control
The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

Compatible with AV Control Systems
The UN640S series supports Crestron Connected® * for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

Compatible with Video Conference System
For effective visual meeting, the UN640S series supports its compatibility* with Cisco solutions that offers powerful and integrated control** for a smarter video conference.

* Cisco compatibility will be certified in Q3 of 2023.
** Using an HDMI cable connection (HDMI cable is optional)

Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.

Real-time Promotion &
Content Sharing
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point
UN640S series operates as a virtual router which can be an wireless access point for mobile devices.

Easy Menu Setup for Vertical Needs
UN640S series increases users' convenience by organizing frequently used menus* by industry.

* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Category	Specification
Design
Front Color	Ashed Blue

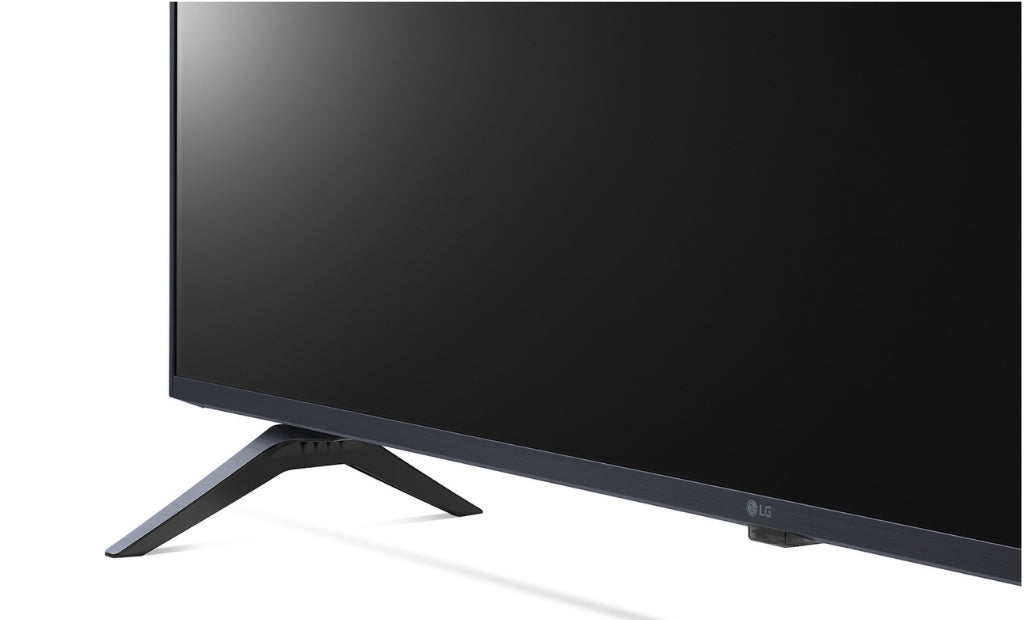

Stand Type	2 pole
Display
Inch	43”
Resolution	3,840 x 2,160 (4K UHD)
Video
HDR (Dolby Vision / 10 Pro / HLG)	No / Yes / Yes
Audio
Audio Output	20 W
LG Sound Sync	Yes
Broadcasting System
Digital	DVB-T2 / C / S2
Analog (NTSC / SECAM / PAL)	SECAM / PAL
Teletext (Auto Teletext)	Yes
Smart Function	webOS22, Web Browser, Mood Display, Wi-Fi, Bluetooth, SoftAP, Screen Share, DIAL, Bluetooth Audio Playback, HDMI-ARC (HDMI2)
Hospitality Feature	USB Cloning, WOL, SNMP, Simplink (HDMI-CEC) (1.4), IR Out (RS-232C, HDMI), Multi IR Code, Hotel Mode / PDM / Installer Menu, Welcome Screen (Splash Image), Insert Image, One Channel Map, External Speaker Out, Moving Picture Playback (SD/HD/Plus HD), Port Block, Lock Mode (Limited), RJP (Remote Jack Pack) Compatibility, Energy Saving Mode
Vertical Function	Vertical Setup, Fail Over, Play via URL, NTP Server Setting, CISCO Certi. Compatibility (23Y Q3) (TBD), Crestron Certi. Compatibility, DPM (Digital Power Management), Time Scheduler, RTC (Real Time Clock), NTP Sync Timer, BEACON, Embedded CM (Contents Manager), Embedded GM (Group Manager)
SuperSign SW Compatibility	Control+ (Free Version), CMS (Premium), LG ConnectedCare
Dimension
VESA Compatible	200 × 200 mm
W x H x D / weight (with stand)	967 × 622 × 216 mm / 8.9 kg
W x H x D / weight (without stand)	967 × 564 × 57.1 mm / 8.8 kg
W x H x D / weight (Shipping)	1,055 × 660 × 142 mm / 11.0 kg

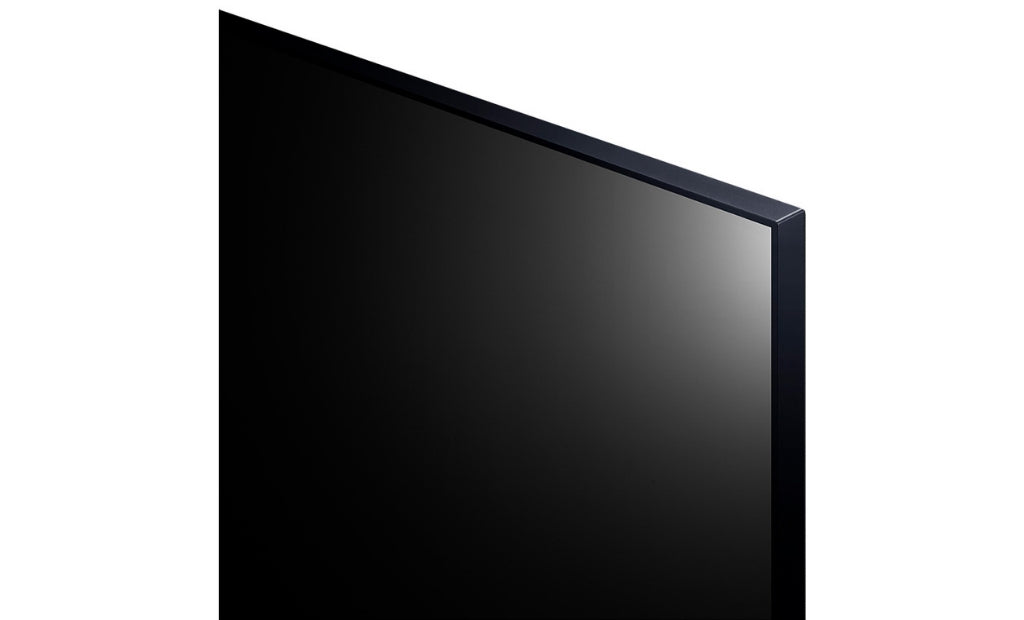

On Bezel Width (L/R/U/B)	12.8 / 12.8 / 12.8 / 19.9 mm
Off Bezel Width (L/R/U/B)	6.9 / 6.9 / 6.9 / 18.4 mm
Power
Power Supply (Voltage, Hz)	AC 100-240 V ~, 50-60 Hz
Power Consumption (Typ. / Max.)	82 W / 119 W
Standby Power Consumption	Under 0.5 W
Accessory
Remote type	S-con
Power Cable	1.5 m / Detached / Straight Type
Required Listing (Certification)
Safety	CB, CU TR
EMC	CE
SDR Grade	G
SDR On mode	54 W
HDR Grade	G
HDR On mode	74 W
