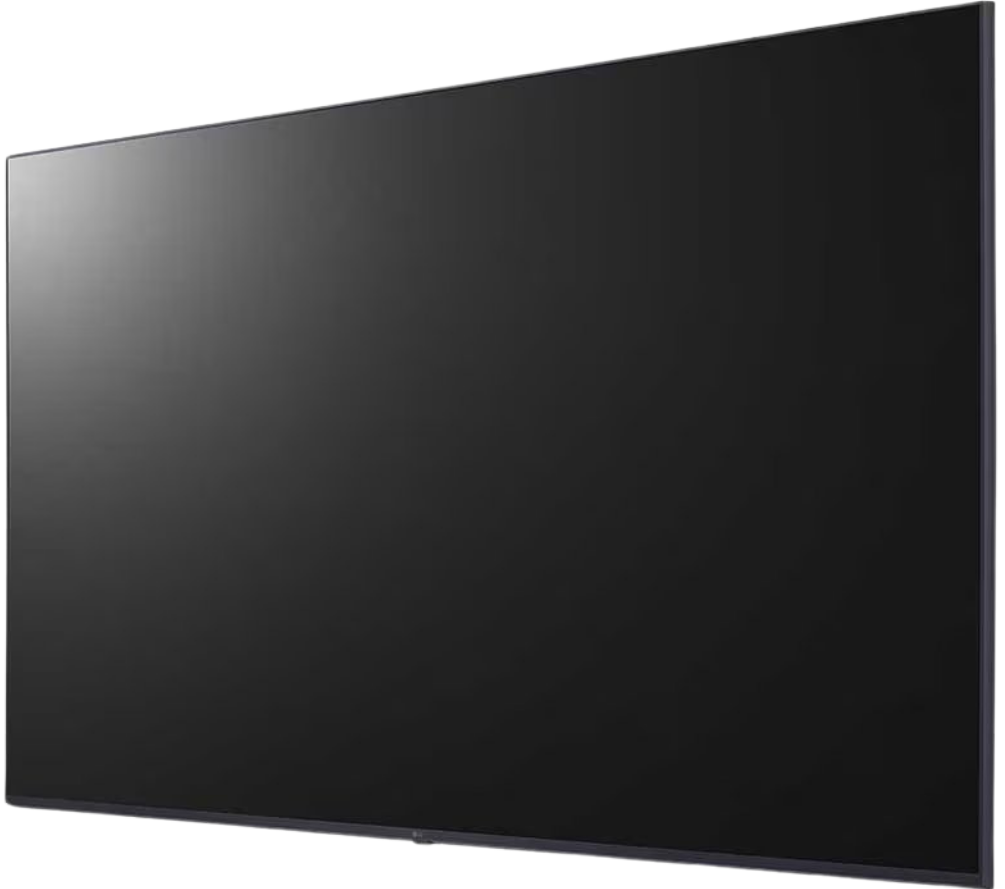

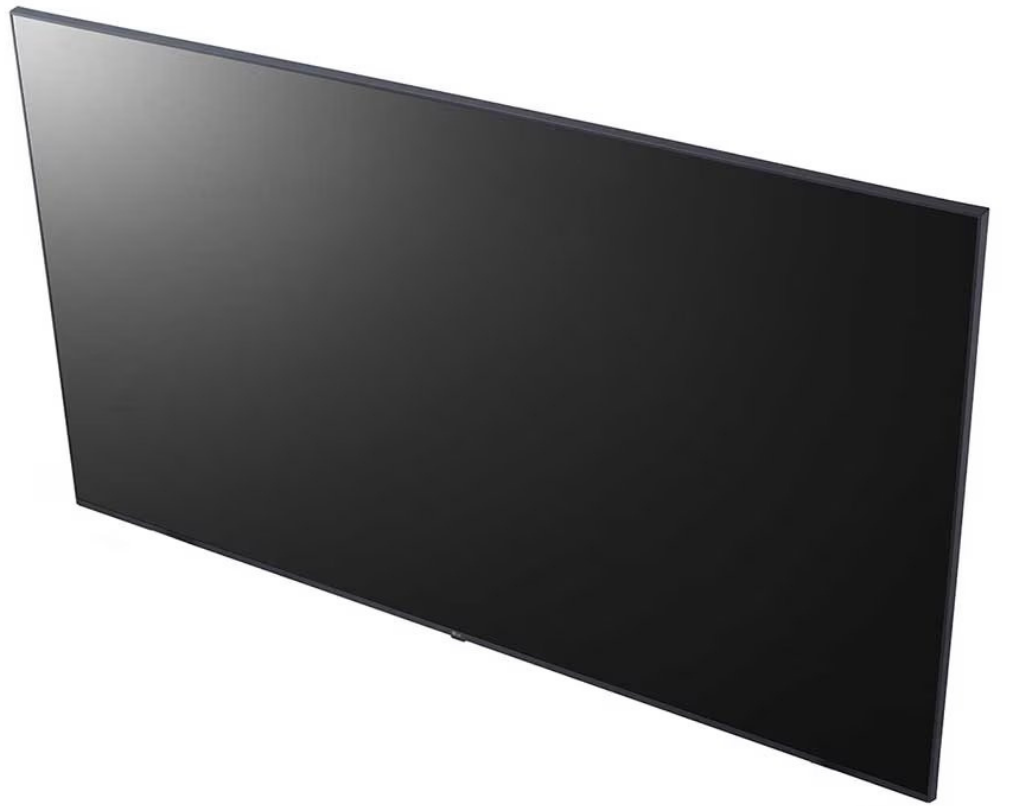

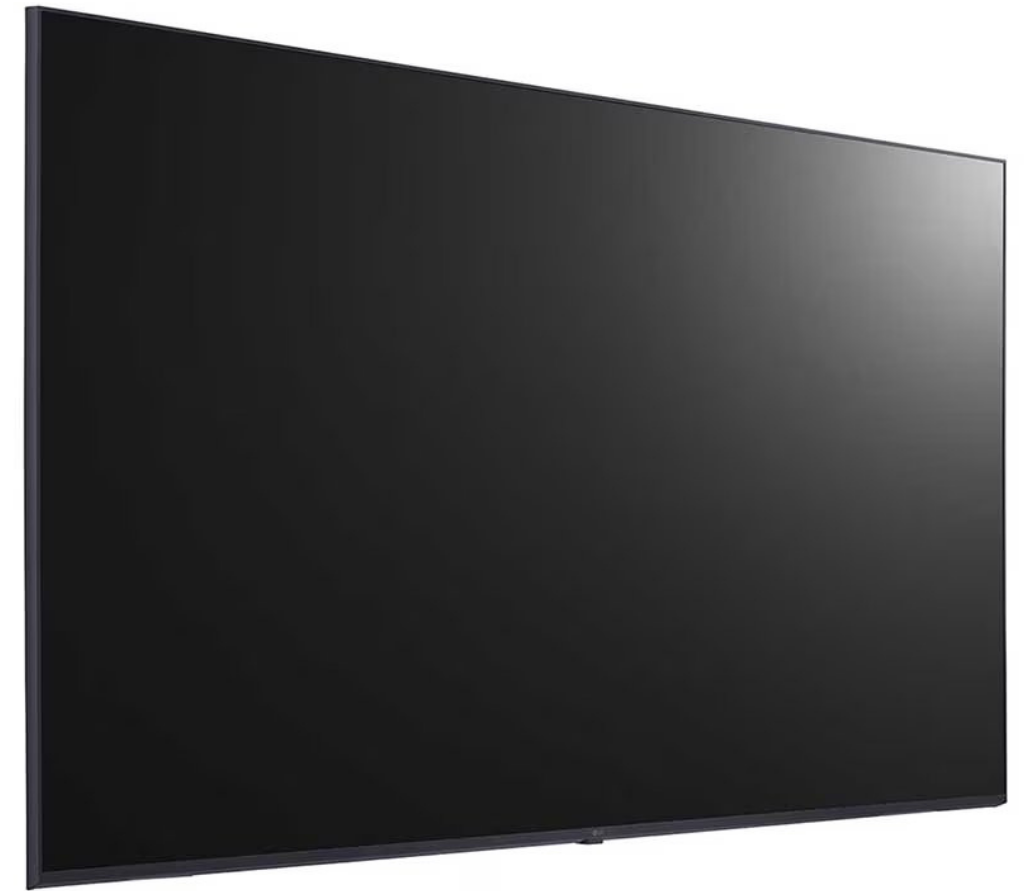

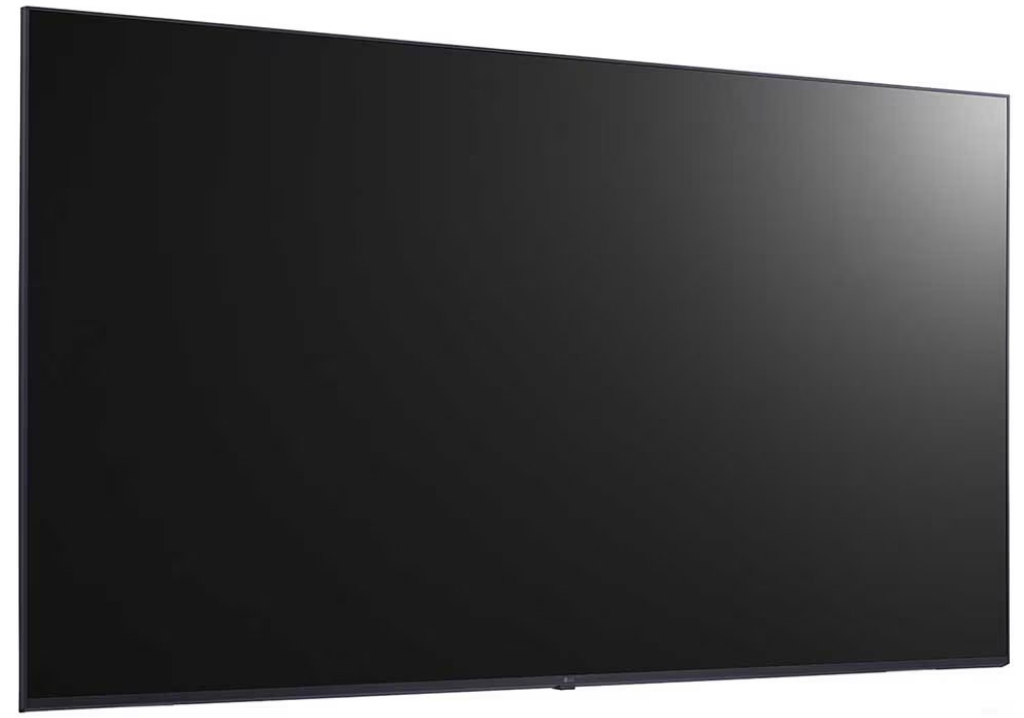

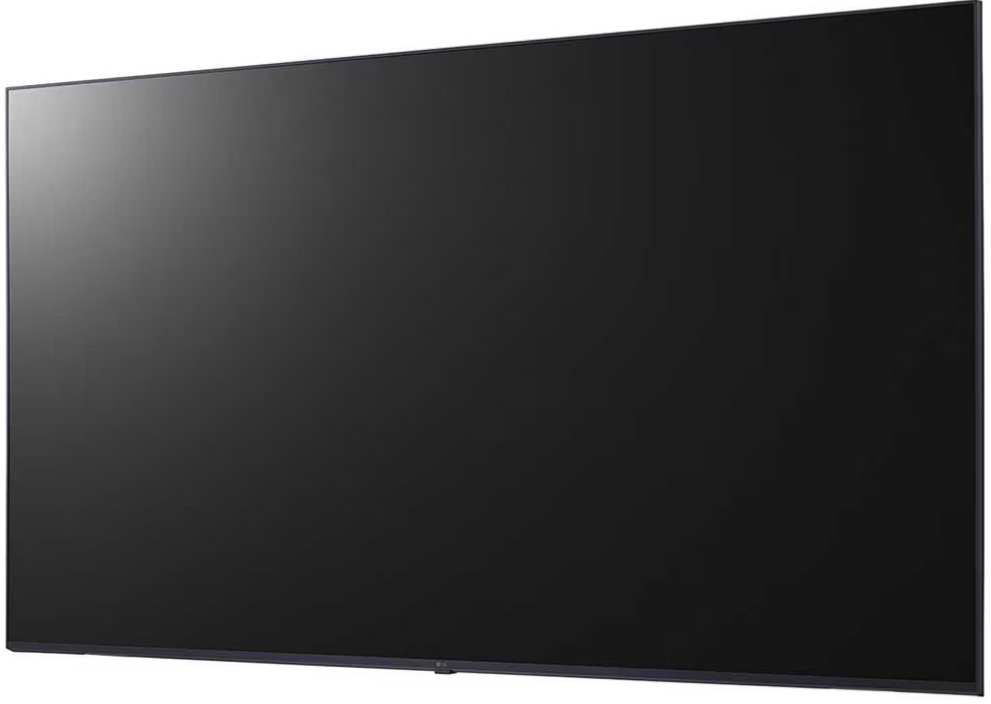

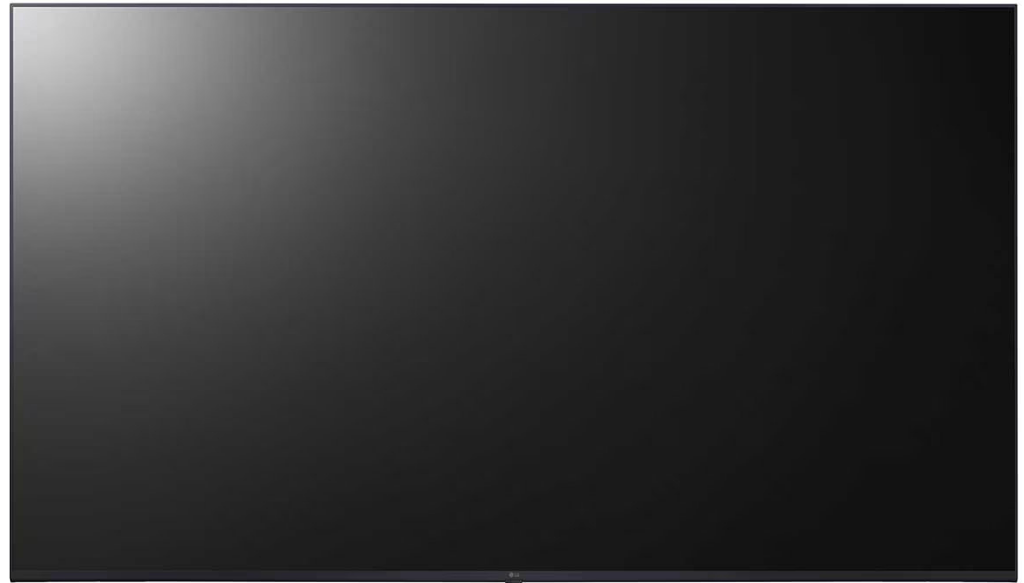

LG 50UL3J-E 50" 4K Ultra HD Smart Digital Signage Display with webOS 6.0 & Built-in Speakers

LG webOS™ UHD Signage

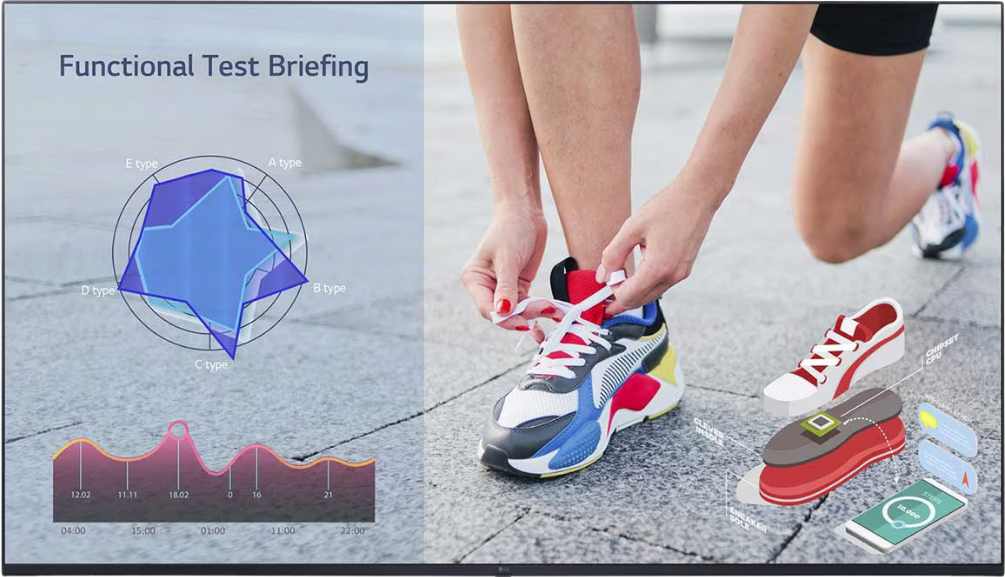

Superb Picture Quality with Ultra HD Resolution
Ultra-HD resolution (3,840 x 2,160) and LG's IPS screen technology combine to deliver content with rich color and detail for a realistic image. IPS screens also provide a wide viewing angle for off-axis viewing.

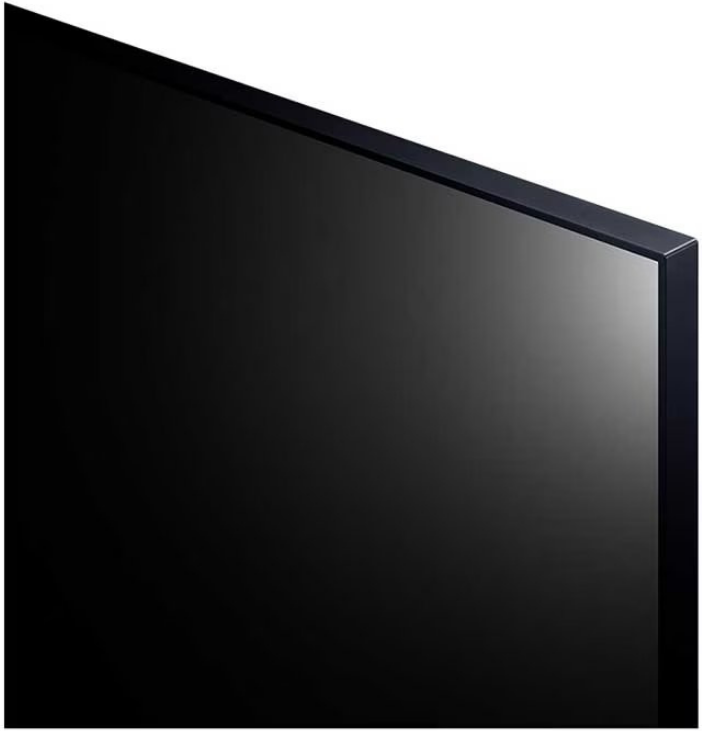

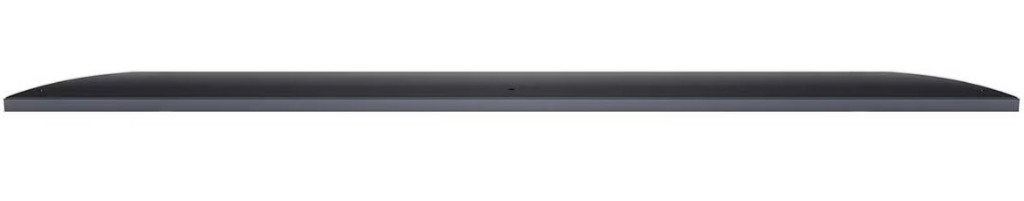

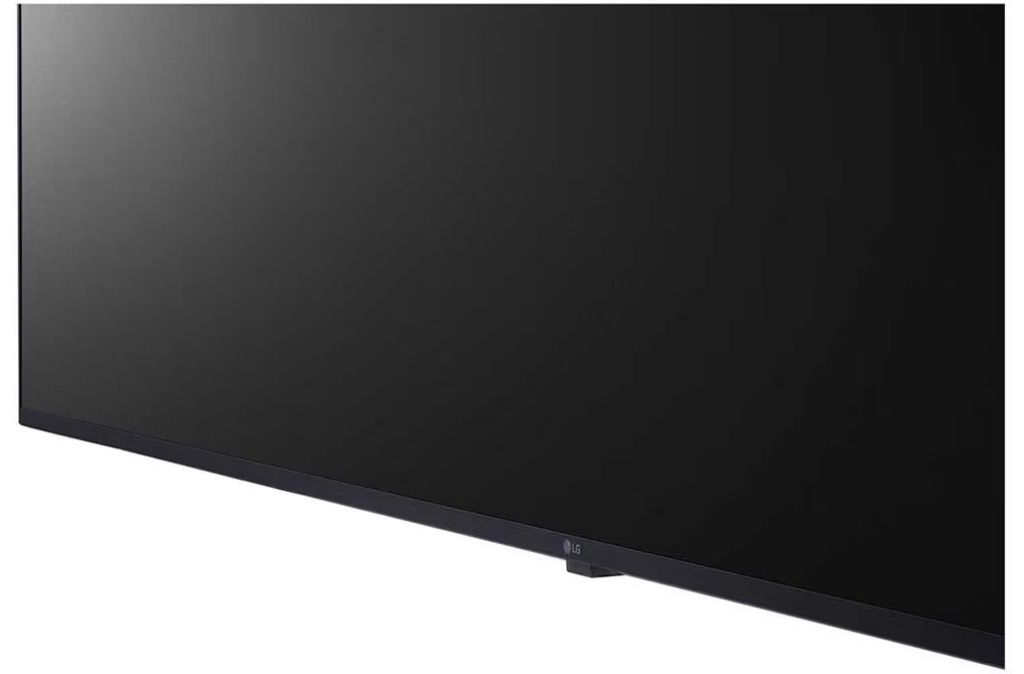

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS™ 6.0
The UL3J series features LG's webOS™ 6.0 with an upgraded in SoC* and web engine, providing smooth execution of several tasks. LG webOS™ smart signage platform provides enhanced user convenience with an intuitive GUI.**

Various Sensor Connection
LG webOS™ smart signage platform helps to provide value-added solutions* by supporting simple connections with external sensors** via USB plug-in, such as GPI0, NFC/RFID, temperature sensors, and more.

Compatible with LG's Wireless Screen Sharing Solution, LG One:Quick Share***
LG 0ne:Quick Share is a USB wireless screen sharing solution. Its USB dongle button and embedded Wi-Fi* allow you to share a PC screen to the display and adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you display a meeting agenda and notes before the meeting starts.

Remote Monitoring and Control
A user-friendly web-based monitoring solution enables the user to have full access to the display anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It also allows the user to monitor the display, make adjustments and control the unit remotely in real-time.

Compatible with AV Control Systems
For added efficiency, the UL3J series supports Crestron Connected®* for compatibility with professional AV controls to achieve virtually seamless integration and control**.

Video Conference System Compatibility
For compelling video conferencing, the UL3J series is compatible with Cisco® solutions that offer robust and integrated control* for an intelligent video conference.

Easy Menu Setup for Vertical Needs
UL3J series organizes commonly used menus* by industry, making it convenient for users.

Built-in Speaker
Built-in speakers eliminate the need for external speakers and deliver clear, crisp sound.

Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update firmware under the same network.

Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Service
Maintenance is easy and fast with the optional LG ConnecedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that support the stable operation of clients' businesses.

Epeat Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method to evaluate the effect of a product on the environment. UL3J is EPEAT Bronze certified* display which means that it meets all the required criteria in Computers and Displays category.

Category	Details
PANEL
Screen Size (Inch)	50"
Panel Technology	IPS
Backlight Type	Direct
Aspect Ratio	16:9
Native Resolution	3840 x 2160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	400 nits
Contrast Ratio	1200:1
Dynamic Contrast Ratio	1,000,000:1
Color Gamut	DCI 80%
Viewing Angle	178° x 178°
Color Depth	10bit, 1.07 Billion colors
Response Time	Tr: 8ms / Tf: 10ms
Surface Treatment (Haze)	3%
Lifetime	30,000 Hours
Operation Hours (Hours/Days)	16/7
Portrait / Landscape	Yes / Yes
SOUND
Built-in Speaker	Yes
CONNECTIVITY
HDMI 1.4 In	3, HDCP2.2/1.4
RS-232C In	3.5mm Stereo (4-pin)
RJ45 (LAN)	Yes
USB 2.0 Type A	Yes (x2)
Audio Out	Yes
RS-232C Out	3.5mm Stereo (4-pin)
MECHANICAL
Bezel Color	Navy Blue (Near Black)
Bezel Width (Off Bezel)	T/R/L: 7.3mm, B: 18.4mm
Bezel Width (On Bezel)	T/R/L: 12.8mm, B: 19.9mm
Weight	25.8 lbs / 11.7 kg
Shipping Weight	32.2 lbs / 14.6 kg
Dimensions (W x H x D)	47.8 x 25.6 x 2.2 in / 1215 x 651 x 57.1 mm
Shipping Dimensions (W x H x D)	47.8 x 30.5 x 6.0 in / 1215 x 775 x 152 mm
Handle	No
Stand	No
VESA<sup>TM</sup> Standard Mount Interface	200 x 200
FEATURES
Internal Memory	8GB
Built-in Wi-Fi	Yes
Temperature Sensor	Yes
Auto Brightness Sensor	Yes
Local Key Operation	Yes (Power On/Off only)
Fanless Design	Yes
webOS™ ver.	webOS™ 6.0
Local Contents Scheduling	Yes
Group Manager	Yes
USB Plug & Play	Yes
Fail over	Yes
Booting Logo Image	Yes
No Signal Image	Yes
RS-232C Sync	Yes
Local Network Sync	Yes
Screen Share	Yes
Video Tag	Yes (4, Max One HDMI input)
Play via URL	Yes
Screen Rotation	Yes
External Input Rotation	Yes
Gapless Playback	Yes
Setting Data Cloning	Yes
SNMP	Yes
ISM Method	Yes
Auto Set ID	Yes
Status Mailing	Yes
Control Manager	Yes
Crestron Connected	Yes
Smart Energy Saving	Yes
PM mode	Yes
Wake on LAN	Yes
Network Ready	Yes
Beacon	Yes
HDMI-CEC	Yes
SI Server Setting	Yes
webRTC	Yes
Pro:Idiom	Yes
POWER & ENVIRONMENT
Operation Humidity	10% to 80%
Power Supply	100 to 240 Vac, 50/60 Hz
Power Type	Built-In Power
Power Consumption (Typ.)	105 W
Power Consumption (Max.)	150 W
Smart Energy Saving (70%)	66 W
DPM	0.5 W
Power off	0.5 W
Operation Temperature	32°F to 104°F / 0°C to 40°C
Operation Temperature (Portrait Scene)	32°F to 95°F / 0°C to 35°C
CERTIFICATION
FCC Class "A" (Regulatory)	Yes
CE (Regulatory)	Yes
ErP / Energy Star (Environmental)	Yes / Yes
ePEAT (US only) (Environmental)	Yes
LG SOFTWARE & SERVICES*
SuperSign CMS	Yes
SuperSign Control / Control+	Yes / Yes
SuperSign White Balance	Yes
SuperSign Media Editor	Yes
Signage 365 Care	Yes
WARRANTY & ACCESSORIES
Warranty	3 Year Limited
Onscreen Display Languages	English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
Accessories	Remote Control (w/ 2 batteries), Power Cord, Regulation Book, Phone to D-Sub9 Adapter, Cable Holder
