UHD Digital Signage with webOS™
Share your messaging or advertisements on this slim UHD Digital Signage with LG's webOS™ Smart Signage Platform.
Superb Picture Quality with Ultra HD Resolution
Ultra-HD resolution (3,840 x 2,160) and LG's IPS screen technology combine to deliver content with rich color and detail for a realistic image. IPS screens also provide a wide viewing angle for off-axis viewing.
High-Performance with LG webOS™ 6.0
The UL3J series features LG's webOS™ 6.0 with an upgraded in System on Chip (SoC) and web engine, providing smooth execution of several tasks. LG webOS™ smart signage platform provides enhanced user convenience with an intuitive Graphic User Interface (GUI).

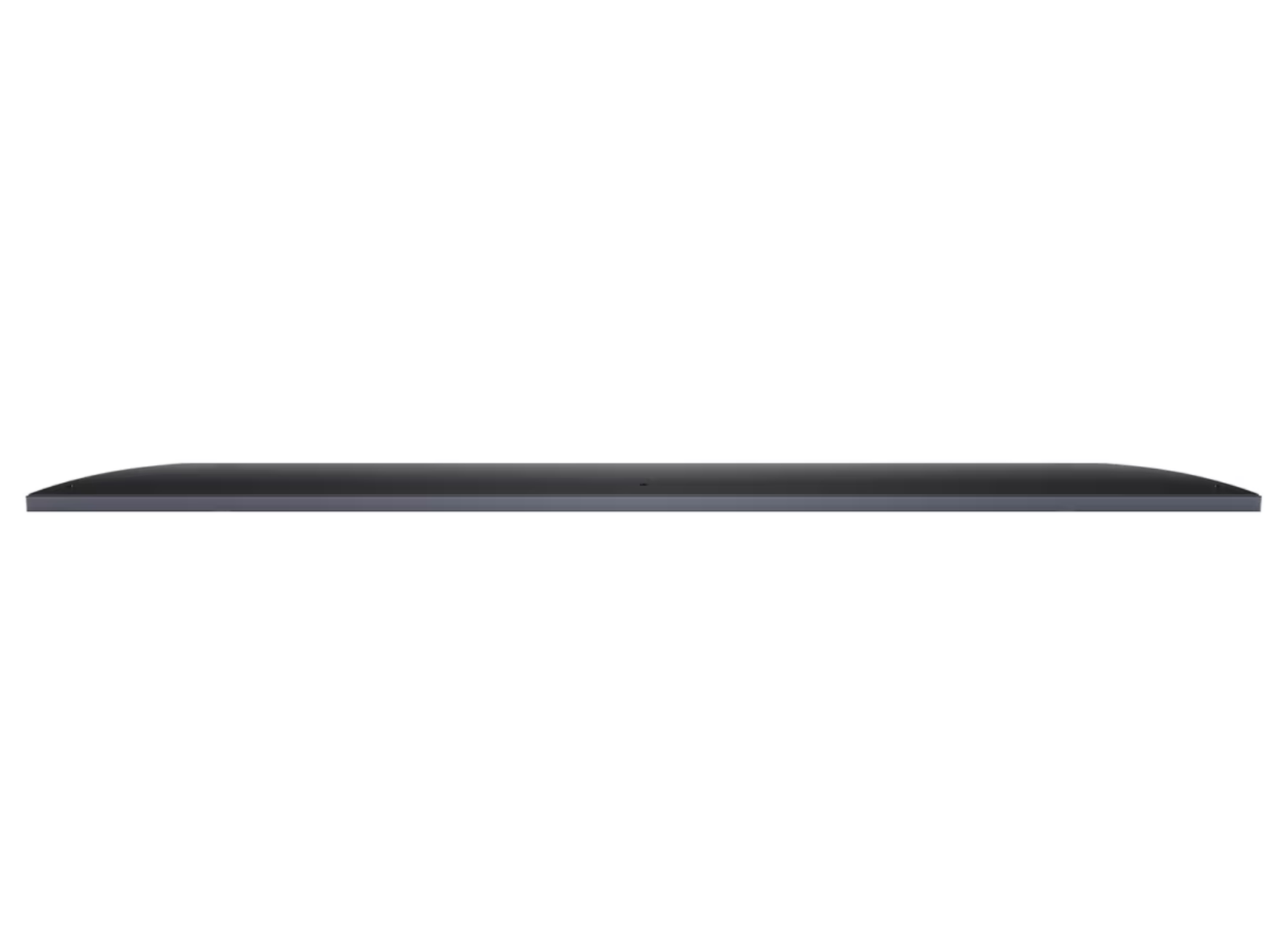

Sophisticated Slim Design
A sleek, sophisticated design provides an immersive viewing experience and enhances the overall room décor. Its thin bezel size and thickness* also saves space and enables easy installation.
*Compared to LG's UL3G series.
Remote Monitoring and Control
A user-friendly web-based monitoring solution enables the user to have full access to the display anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It also allows the user to monitor the display, make adjustments and control the unit remotely in real-time.
Easy Menu Setup For Vertical Needs
UL3J series organizes commonly used menus by industry, making it convenient for users. Preset support for corporate, government, retail & meeting rooms.
Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update firmware under the same network.
Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.
Compatible with LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share (sold separately) is a USB wireless screen sharing solution. Its USB dongle button and embedded Wi-Fi* allow you to share a PC screen to the display and adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you display a meeting agenda and notes before the meeting starts.
*Users need to set up Soft AP enables at the Network Menu of the Signage....
Compatible with AV Control Systems
For added efficiency, the UL3J series supports Crestron Connected®* for compatibility with professional AV controls to achieve virtually seamless integration and control**.
*Initial display setting is required for Crestron Connected® compatibility.
**Network based control.
Video Conference System Compatibility
For compelling video conferencing, the UL3J series is compatible with Cisco® solutions that offer robust and integrated control* for an intelligent video conference.
*Using an HDMI cable connection (HDMI cable not included).
LG ConnectedCare Services
Maintenance is easy and fast with the optional LG ConnecedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that support the stable operation of clients' businesses.
| Screen Size (Inch) | 50" | Panel Technology | VA |
| Back Light Type | Direct | Aspect Ratio | 16:9 |
| Native Resolution | 3,840 × 2,160 (UHD) | Refresh Rate | 60Hz |
| Brightness | 400nit (Typ.) | Contrast Ratio | 5,000:1 |
| Dynamic CR | 1,000,000:1 | Color Gamut | DCI 80% |
| Viewing Angle (H x V) | 178x178 | Color Depth (Number of Colors) | 1.07G (8bits + FRC) |
| Response Time | 6ms (G to G) | Surface Treatment (Haze) | 2% |
| Life time | 30,000Hrs (Min) | Operation Hours (Hours/Day) | 16/7 |
| Portait / Landscape | Yes / Yes | HDMI In | 3, HDCP 2.2/1.4 |
| RS232C In | 4 Pin Phone-jack | RJ45(LAN) In | Yes |
| USB In | USB 2.0 (2, Type A) | Audio Out | Yes |
| RS232C Out | 4 Pin Phone-jack | Bezel Color | Ashed Blue |
| Bezel Width | Off : 7.3/7.3/7.3/18.4 mm On : 12.8/12.8/12.8/19.9 mm | Weight (Head) | 11.7 kg |
| Packed Weight | 14.4 kg | Monitor Dimensions (W x H x D) | 1,121 x 651 x 57.1 mm |
| VESA Standard Mount Interface | 200 x 200 mm | Carton Dimensions (W x H x D) | 1,215 x 775 x 152 mm |
| Internal Memory (eMMC) | 16 GB | Wi-Fi/BT (Built-in) | Yes |
| Temperature Sensor | Yes | Auto Brightness Sensor | Yes |
| Local Key Operation | Power On/Off Only | OS Ver. (webOS) | webOS 6.0 |
| Local Contents Scheduling | Yes | Group Manager | Yes |
| USB Plug & Play | Yes | Fail over | Yes |
| Booting Logo Image | Yes | No Signal Image | Yes |
| RS232C Sync | Yes | Local Network Sync | Yes |
| Screen Share | Yes | Video Tag | 4, Max One HDMI Input |
| Play via URL | Yes | Screen Rotation | Yes |
| External Input Rotation | Yes | Gapless Playback | Yes |
| Tile Mode Setting | Yes | Setting Data Cloning | Yes |
| SNMP | Yes | ISM Method | Yes |
| Auto Set ID | Yes | Status Mailing | Yes |
| Control Manager | Yes | Cisco Certification | TBD, ~`23.7 |
| Smart Energy Saving | Yes | PM mode | Yes |
| Wake on LAN | Yes | Network Ready | Yes |
| Beacon | Yes | HDMI-CEC | Yes |
| SI Server Setting | Yes | webRTC | Yes |
| Pro:Idiom | Yes | Operation Temperature | 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
| Operation Humidity | 10 % to 80 % | Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power | Power Consumption Typ. | 90 W |
| Power Consumption Max. | 130 W | BTU (British Thermal Unit) | 307 BTU/Hr(Typ.), 444 BTU/Hr(Max.) |
| DPM | 0.5 W | Power off | 0.5 W |
| Smart Enegy Saving(~70%) | 63 W | Safety | CB / NRTL |
| EMC | FCC Class "A" / CE | ERP / Energy Star | Yes / Yes |
| SuperSign CMS | Yes | SuperSign Control+ | Yes |
| SuperSign WB | Yes | Connected Care | Yes |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski | Accessory Basic | Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
