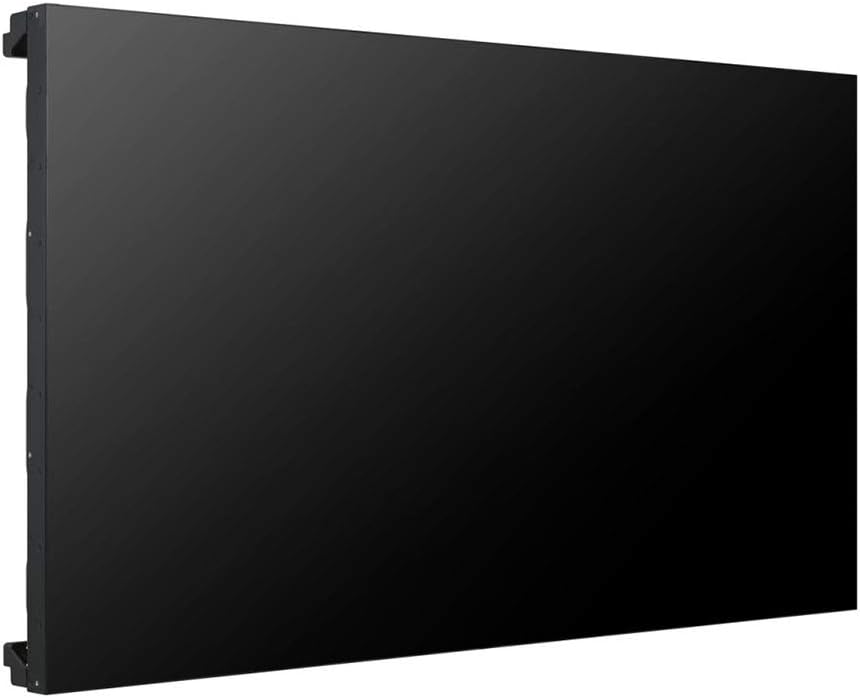

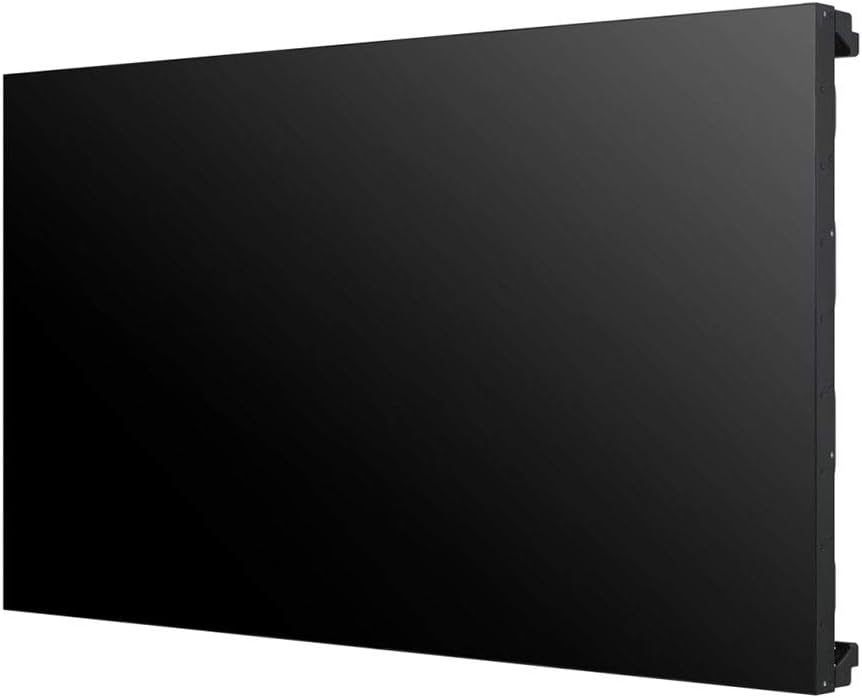

Incredible Immersion with Ultra-Narrow Bezel
The VL5F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.
Achieving Incredible Immersion
Seamless Large Screens with Ultra-Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
Image Gap Reduction
The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Vivid and Dynamic Picture Quality
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with no distortion.
Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
User Convenience
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.
Intuitive GUI
The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.
| Category | Feature |
|---|---|
| Brand | LG |
| SKU | 10271143 |
| Manufacturer Part # | 55VL5F |
| EAN | 8806098600267 |
| FEATURES | Brightness(Typ.): 500 cd/m², Bezel: 2.25 mm (T/L), 1.25 mm (B/R), Depth: 93.1 mm, Interface: HDMI (2)/DP/DVI-D/USB/RS232C/RJ45/Audio/IR |
| DESIGN | VESA mounting: Yes, Bezel width (top): 2.25 mm, Bezel width (bottom): 1.25 mm, Product colour: Black, Panel mounting interface: 600 x 400 mm, Product design: Digital signage flat panel, Orientation: Horizontal/Vertical |
| WEIGHT & DIMENSIONS | Height: 684.2 mm, Width: 1213.4 mm, Depth: 93.1 mm, Weight: 23.2 kg |
| PACKAGING CONTENT | Remote control included: Yes |
| LOGISTICS DATA | Harmonized System (HS) code: 85285210 |
| TECHNICAL DETAILS | Sustainability certificates: ENERGY STAR |
| COMPUTER SYSTEM | Computer system: No |
| OPERATIONAL CONDITIONS | Operating temperature (T-T): 0 - 40 °C, Operating relative humidity (H-H): 10 - 80 |
| PORTS & INTERFACES | USB ports quantity: 1, Audio (L/R) out: 1, Wi-Fi: No, Ethernet LAN: Yes, DisplayPorts quantity: 2, RS-232C: Yes, DVI-D ports quantity: 1, HDMI ports quantity: 2, Audio (L/R) in: 1, DisplayPorts in: 1, DisplayPorts out: 1, Ethernet LAN (RJ-45) ports: 1, DVI port: Yes, USB port: Yes |
| PERFORMANCE | Purpose: Commercial |
| POWER | AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 130 W, Energy efficiency class (SDR): G, Energy efficiency scale: A to G, Energy consumption (SDR) per 1000 hours: 135 kWh |
| DISPLAY | Touchscreen: No, Panel life: 50000 h, Viewing angle, vertical: 178°, Native aspect ratio: 16:9, Contrast ratio (dynamic): 500000:1, Display diagonal: 139.7 cm (55"), Contrast ratio (typical): 1200:1, Response time: 8 ms, Display technology: LED, Display brightness: 500 cd/m², Viewing angle, horizontal: 178°, Display resolution: 1920 x 1080 pixels, HD type: Full HD |
| PACKAGING DATA | Package height: 239 mm, Package depth: 828 mm, Package width: 1337 mm, Package weight: 30.5 kg |
