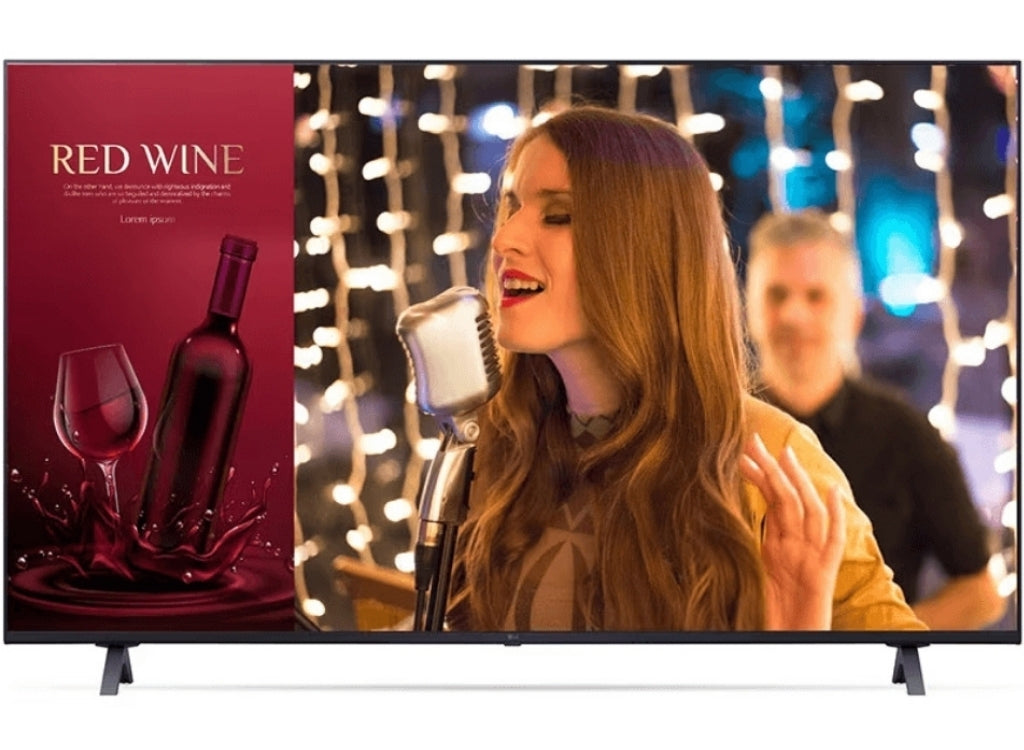

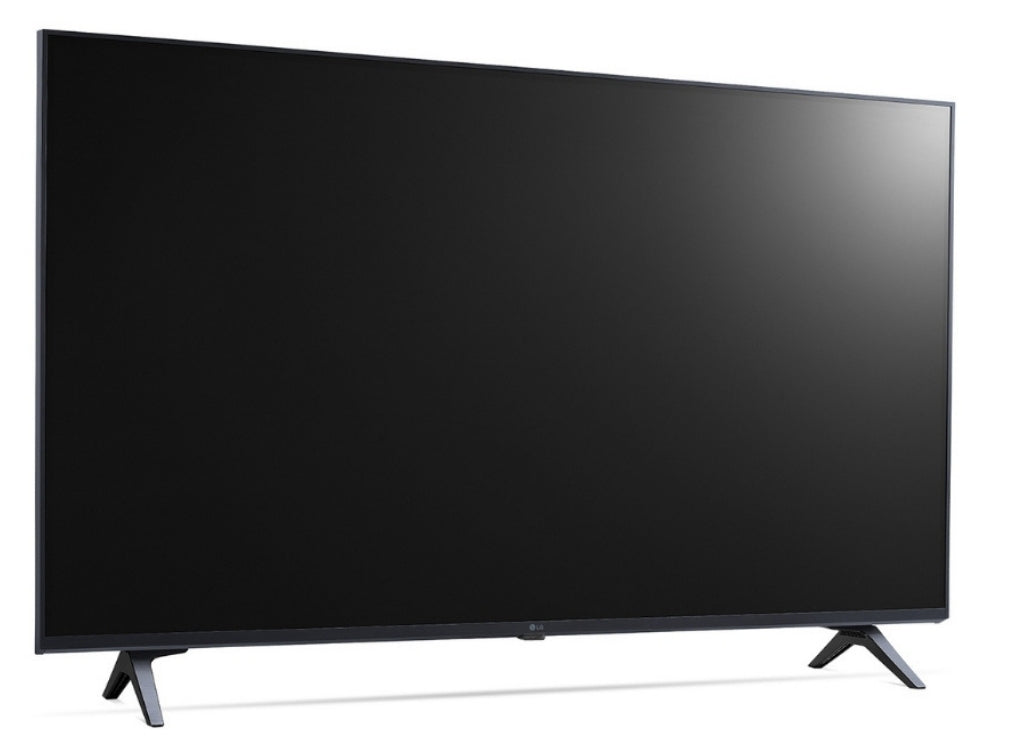

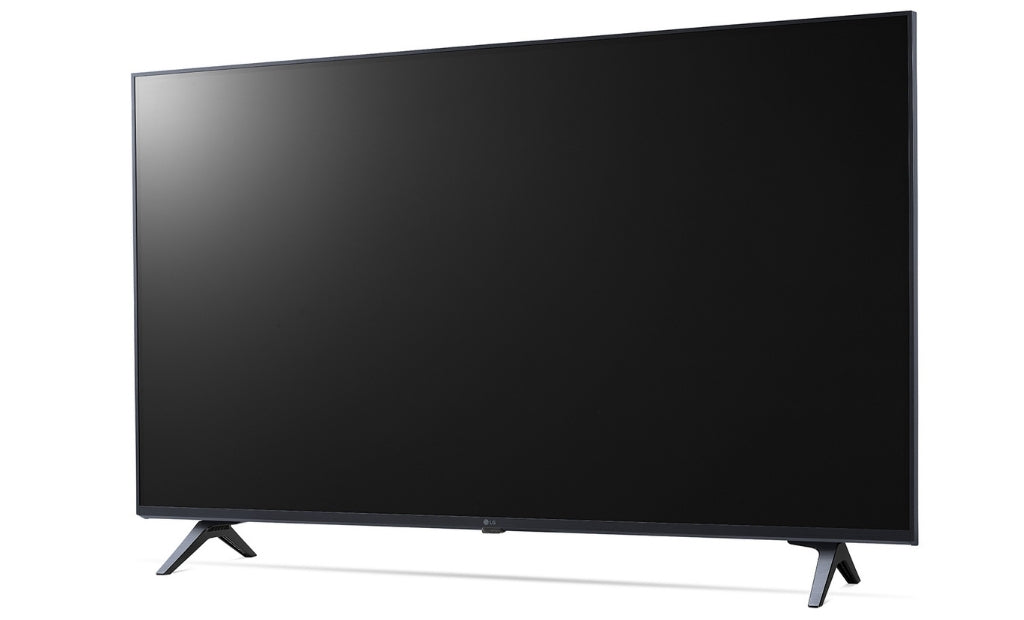

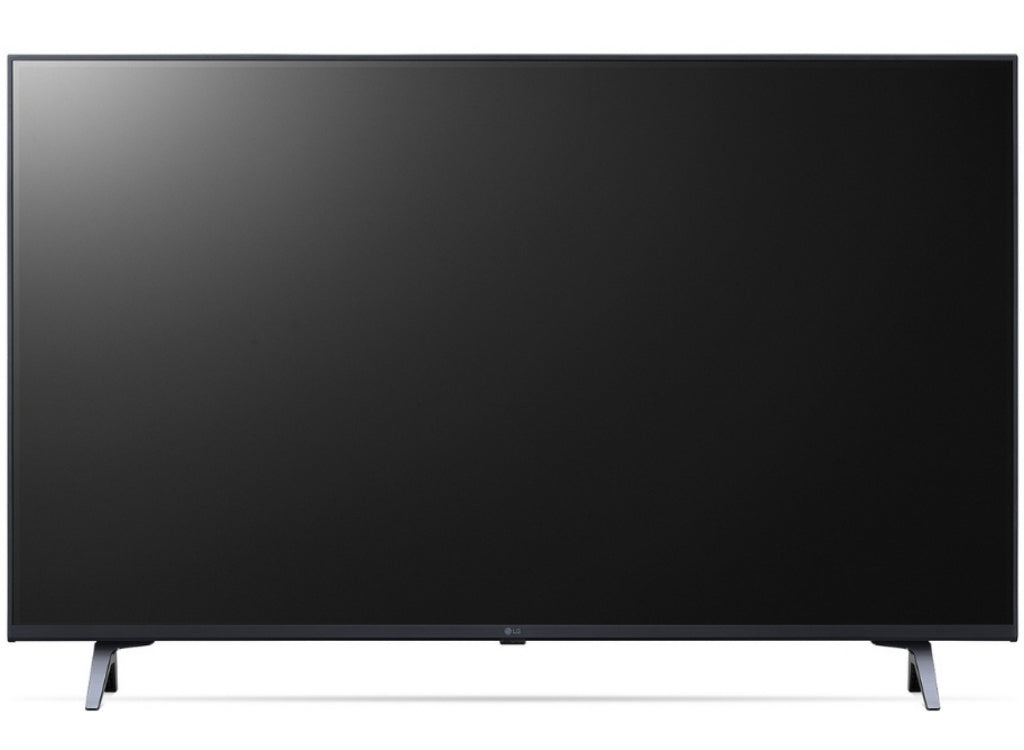

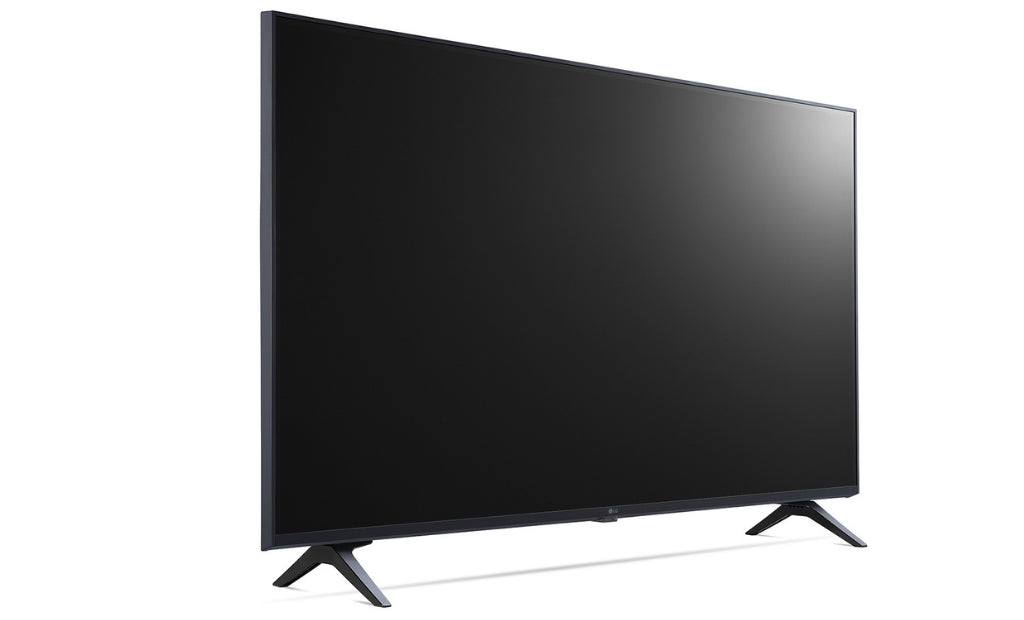

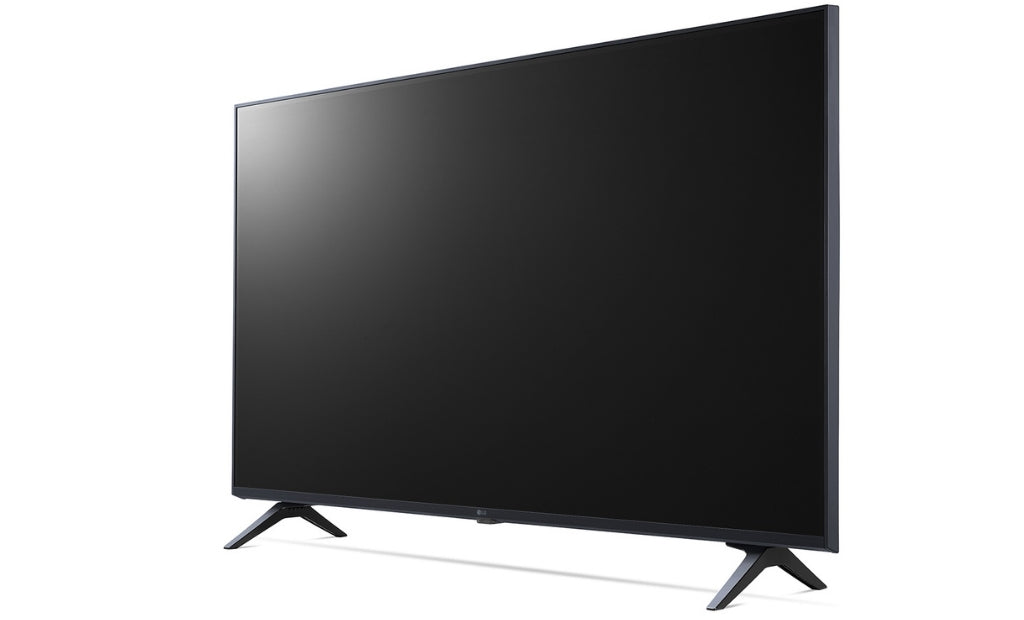

LG 65UN640S 65" 4K Ultra HD Smart Commercial Signage TV

LG TV Signage with
Essential Function

Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

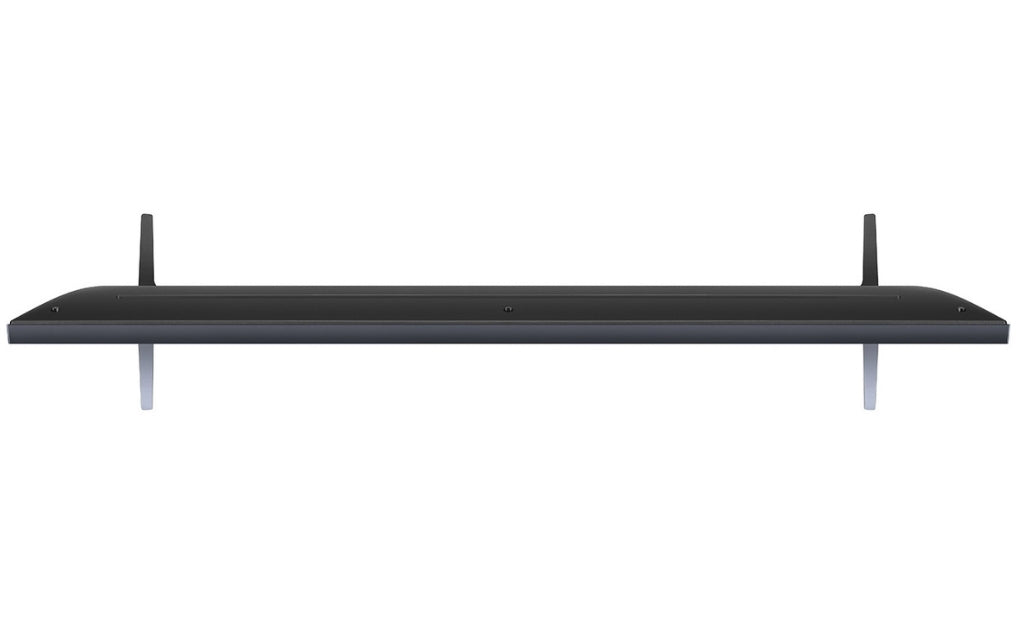

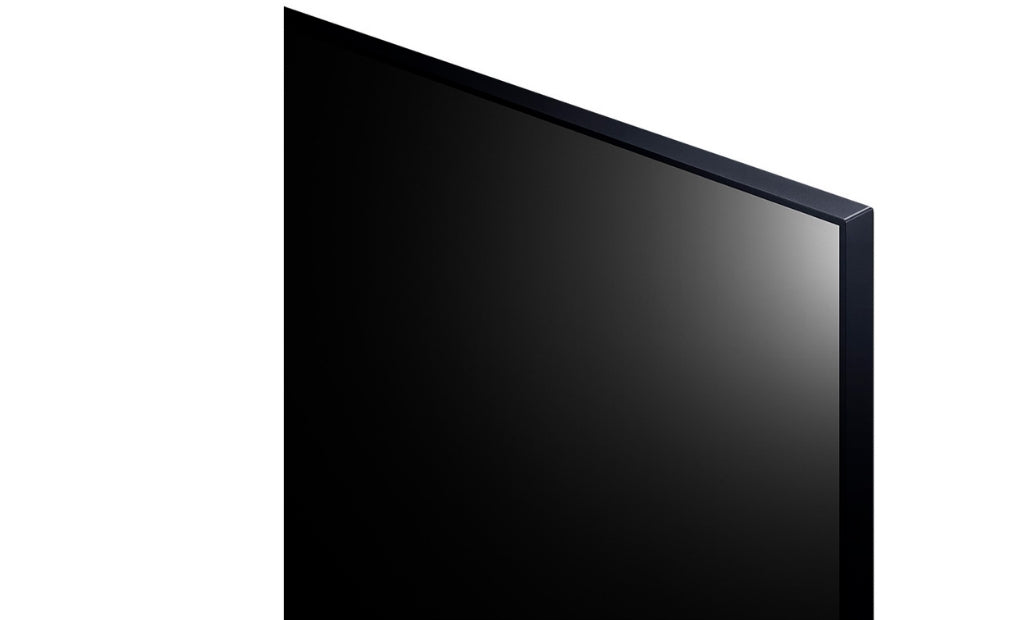

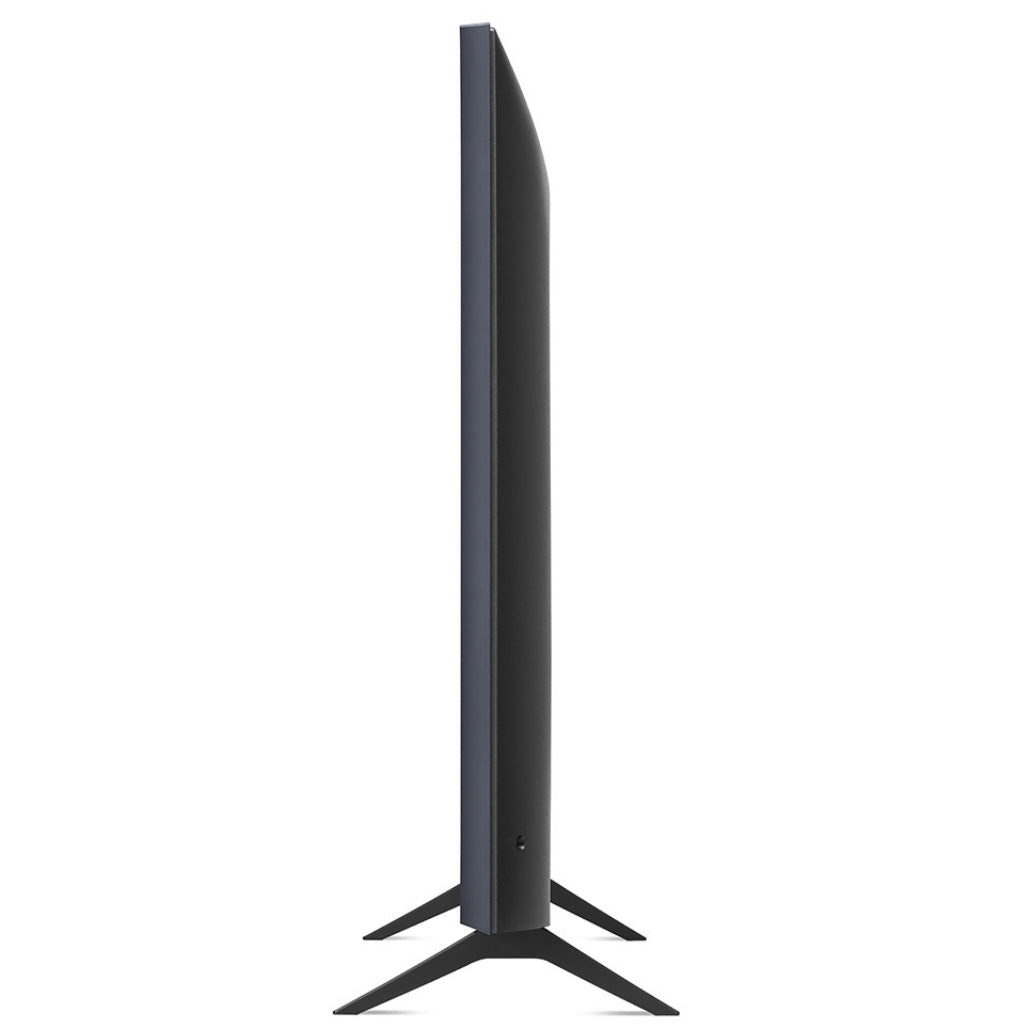

Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

* 'LG Conventional' refers to LG UT640S series.

High-Performance with
LG webOS22
LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.**

Embedded Content &
Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

Easy Group Control
The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

Compatible with AV Control Systems
The UN640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.

Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing
Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point
UN640S series operates as a virtual router which can be an wireless access point for mobile devices.

Easy Menu Setup for Vertical Needs
UN640S series increases users' convenience by organizing frequently used menus* by industry.

* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room
Real-Time LG ConnectedCare Service

Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Category	Details
DISPLAY
Size (Inch)	65”
Resolution	4K Ultra HD (3,840 x 2,160)
VIDEO
HDR_HDR 10 Pro	Yes
HDR_HLG (Hybrid Log Gamma)	YES
AUDIO
LG Sound Sync	Yes
Speaker (Audio Output)	20W
BROADCASTING SYSTEM
Digital	DVB-T2/C/S2
Analog (NTSC / SECAM / PAL)	SECAM / PAL
Teletext (Auto Teletext)	YES
SMART FUNCTION
webOS version	webOS 22
Web Browser	YES
Mood Display	YES
Wi-Fi	YES
Bluetooth	YES
Soft AP	YES
Screen Share	YES
DIAL	YES
Bluetooth Audio Playback	YES
HDMI-ARC	YES (HDMI2)
HOSPITALITY FEATURE
USB Cloning	YES
WOL	YES
SNMP	YES
Diagnostics	YES (Self Diagnostics(USB))
HTNG-CEC (Version)	YES (1.4)
Simplink(HDMI-CEC) (Version)	YES (1.4)
IR Out	YES (RS-232C, HDMI)
Multi IR Code	YES
Hotel Mode / PDM / Installer Menu	YES
Welcome Screen (Splash Image)	YES
Insert Image	YES
One Channel Map	YES
External Speaker Out	YES
Moving Picture Playback	YES
RJP (remote jack pack) Compatibility	YES
Energy Saving mode	YES
VERTICAL FUNCTION(CORPORATE/RETAIL)
Vertical Setup	YES
Fail Over	YES
Play Via URL	YES
NTP Server Setting	YES
Crestron Certi. Compatibility	YES
DPM (Digital Power management)	YES
Time scheduler	YES
RTC (Real Time Clock)	YES
NTP sync timer	YES
BEACON	YES
Embedded CM (contents manager)	YES
Embedded GM (Group manager)	YES
SUPERSIGN SW COMPATIBILITY
Control Plus	YES (Free ver)
CMS(Premium)	YES
LG Connected Care	YES
CONNECTIVITY
HDMI In	2.0 (3)
USB (Ver.)	2.0 (1)
RF In	YES (2ea)
Digital Audio Out (Optical)	YES
External Speaker Out(3.5mm Phone jack)	YES
Headphone Out	YES
CI Slot	YES (CI+ 1.4 ECP)
RJ45 (Usage Purpose)	1 (LAN)
RS-232C (D-Sub 9pin / Phone jack)	YES (Phone jack)
LG SVC only (Phone jack type)	YES
MECHANICAL
VESA Compatible	300 x 300 mm
Kensington Lock	YES
DIMENSIONS/WEIGHT
Dimension with Stand (W x H x D)	1454 x 899 x 271
Dimension without Stand (W x H x D)	1454 x 838 x 57.7
Dimension in Shipping (W x H x D)	1600 x 970 x 172
Bezel Width (L/R/U/B, On Bezel)	12.8/12.8/12.8/19.9
Bezel Width (L/R/U/B, Off Bezel)	6.8/6.8/6.8/18.4
Weight with Stand	21.8
Weight without Stand	21.5
Weight in Shipping	27.8
POWER
Power Supply (Voltage, Hz)	AC 100~~240V 50~~60Hz
Power Consumption(Max)	164W
Power Consumption(Typ)	144W
Standby Power Consumption	Under 0.5W
STANDARD
Safety	CB, CU
TREMC

Standard Warranty for LG Products
The estimated standard warranty for LG products varies.
Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.

Warranty for LG Monitors

Labour : 24 Months
Parts : 24 Months
NOTE: The manufacturer warranty period is the same for consumer and commercial usage.

Warranty Terms and Conditions:
Replacement Unit or Parts may be new or remanufactured service exchanges that are equivalent to new in performance and reliability.
The LG warranty does not cover any of the following actions:
a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the product.
c) Misuse, including failure to use the product for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper or insufficient ventilation or any other cause beyond the reasonable control of LG.
The LG manufacturer warranty is only valid when accompanied by the original invoice, sales receipt or confirmation from LGE UK of the warranty period.

If the serial number is defaced, missing or illegible, the warranty with LGE UK is null and void. In this case you should contact the dealer from whom the product was purchased.
During the repair process it is possible that any stored data may be lost so it is strongly recommended that you backup any important data and media files before requesting a service. LG will not be responsible for any data corruption or loss however so caused during the repair process or failure of the customer to ensure that all data is properly backed up.
