LG webOS UHD Signage
All images on this web page are for illustrative purposes only.
LG’s Wireless Screen Sharing Solution, LG One: Quick Share
LG One: Quick Share is a wireless screen-sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share a personal PC screen with the display with its USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, and notes before the meeting starts.
Users need to set up Soft AP enabled at the Network Menu of the Signage.
Users can enable Office Meeting Mode at the EZ Setting Menu of the Signage.
LG One: Quick Share needs to be purchased separately.
Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real-time.
Compatible with AV Control Systems
The UL3J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
The initial setting from the display is required for Crestron Connected® compatibility.
Network-based control
Compatible with Video Conference System
For effective visual meetings, the UL3J series supports its compatibility with Cisco solutions that offer powerful and integrated control* for a smarter video conference.
Using an HDMI cable connection (HDMI cable is optional)
Wireless Access Point
UL3J series operates as a virtual router which can be a wireless access point for mobile devices.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

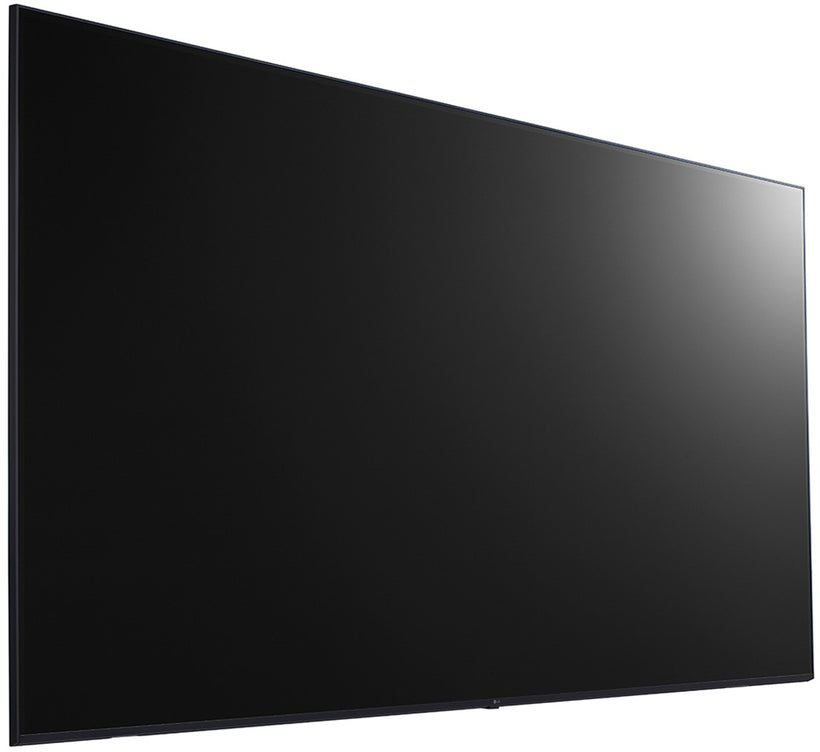

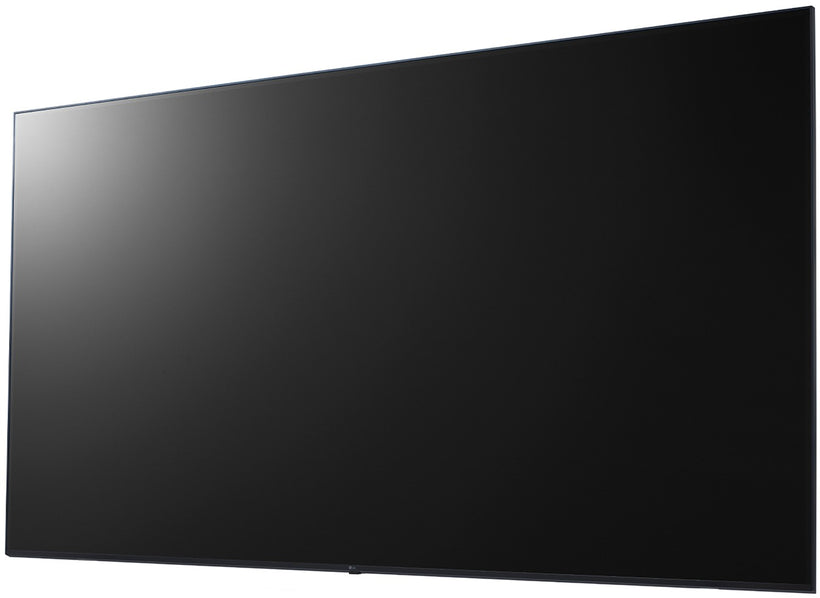

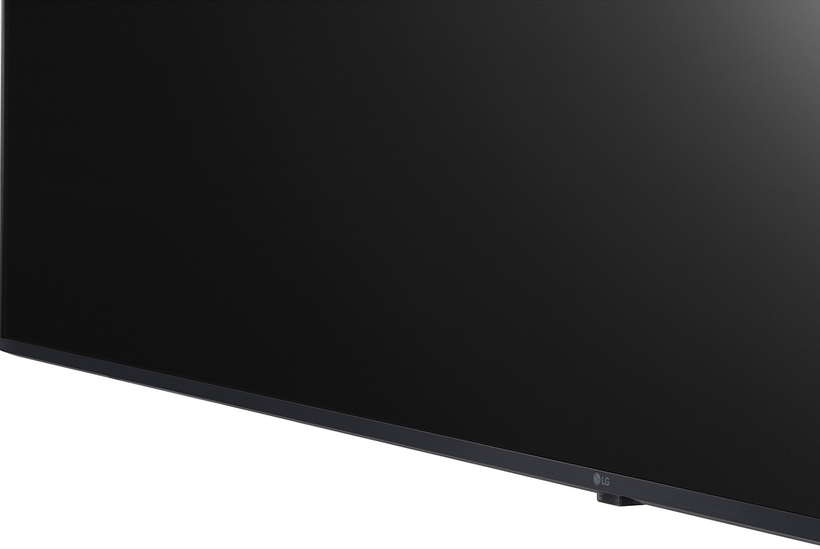

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Compared to LG's UL3G series
High Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on the UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
SoC: System On Chip
GUI: Graphical User Interface
Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
e.g. showing specific promotional information according to weather changes to store visitors
External sensors need to be purchased separately and tested for compatibility with the webOS platform.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
The availability of the 'LG ConnectedCare service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
EPEAT Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL3J is an EPEAT Bronzecertified* display which means that it meets all the required criteria in the Computers and Displays category.
ENERGY STAR® Certified
-
| Tech Spec |
|
| Screen Size |
75” |
| Panel Technology |
IPS |
| Native Resolution |
3,840 X 2,160 (UHD) |
| Brightness (Typ.) |
330 nit |
| Contrast Ratio |
1,200 : 1 |
| Dynamic CR |
1,000,000 : 1 |
| Color gamut |
DCI 80 % |
| Viewing Angle (H x V) |
178 × 178 |
| Color Depth |
1.07 Billion colors (8bit + FRC) |
| Response Time |
8ms (G to G) |
| Surface Treatment |
1% |
| Operation Hours (Hours / Days) |
16 / 7 |
| Portrait / Landscape |
Yes / Yes |
| Mechanical Specification |
|
| Bezel Color |
Ashed Blue |
| Bezel Width |
Off : 7.9/7.9/7.9/18.4 |
|
On : 13.9/13.9/13.9/19.9 |
| Weight (Head) |
31.4 kg |
| Monitor Dimensions (W × H × D) |
1,678 x 964 x 59.9 mm |
| Carton Dimensions (W × H × D) |
1,820 x 1,115 x 200 mm (Box outer size) |
| Handle |
No |
| VESA™ Standard Mount Interface |
400 × 400 mm |
| Environment Conditions |
|
| Operation Temperature |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
| Operation Humidity |
10 % to 80 % |
| Power |
|
| Power Supply |
AC 100-240V~, 50/60Hz |
| Power Type |
Built-In Power |
| Power Consumption |
Typ./Max. 155 W / 220 W |
| BTU (British Thermal Unit) |
528.882 BTU/Hr (Typ.), 750.671 BTU/Hr (Max.) |
| Certification |
|
| Safety |
CB / NRTL |
| EMC |
FCC Class "A" / CE |
| ErP |
Yes (New ErP) |
| Software Compatibility |
|
| SuperSign CMS |
Yes |
| SuperSign Control / Control+ |
Yes |
| SuperSign WB |
Yes |
| SuperSign Media Editor |
Yes |
| LG ConnectedCare |
Yes |
| Connectivity |
|
| Input |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
| Output |
Audio |
| External Control |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
| Accessory |
|
| Basic |
Remote Controller (include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
-
