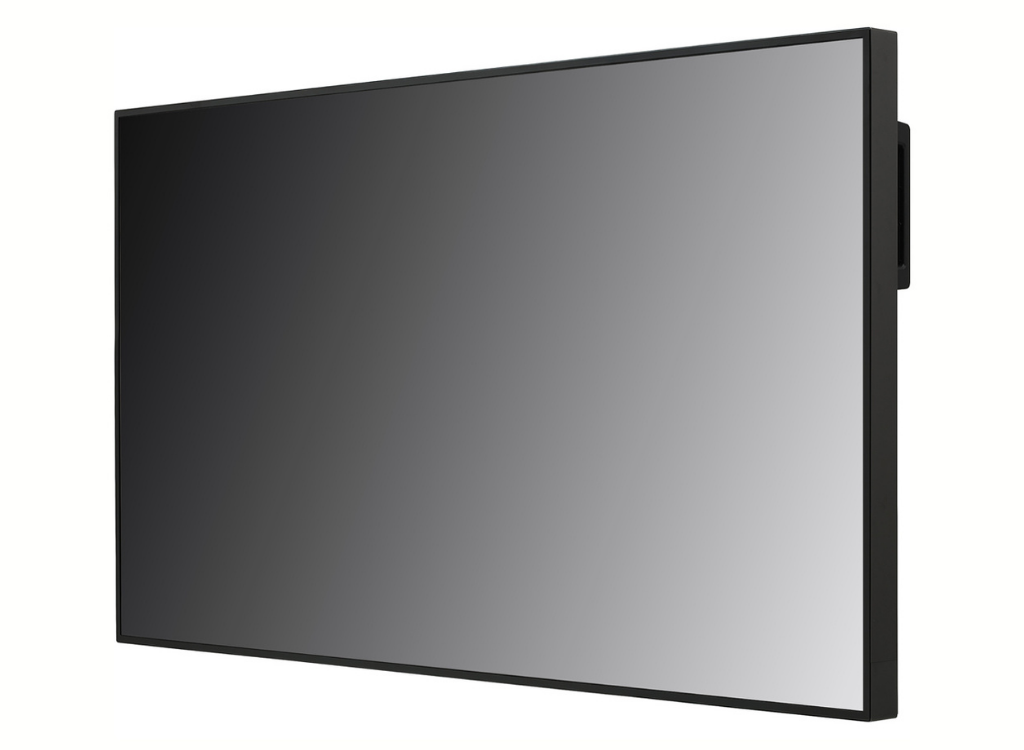

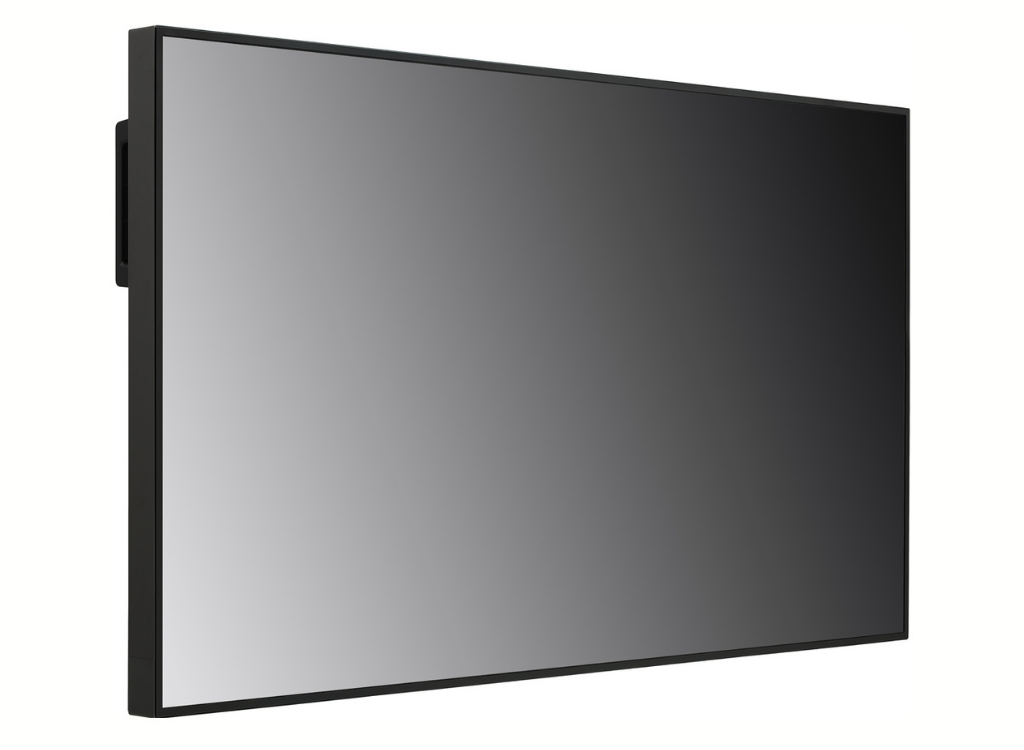

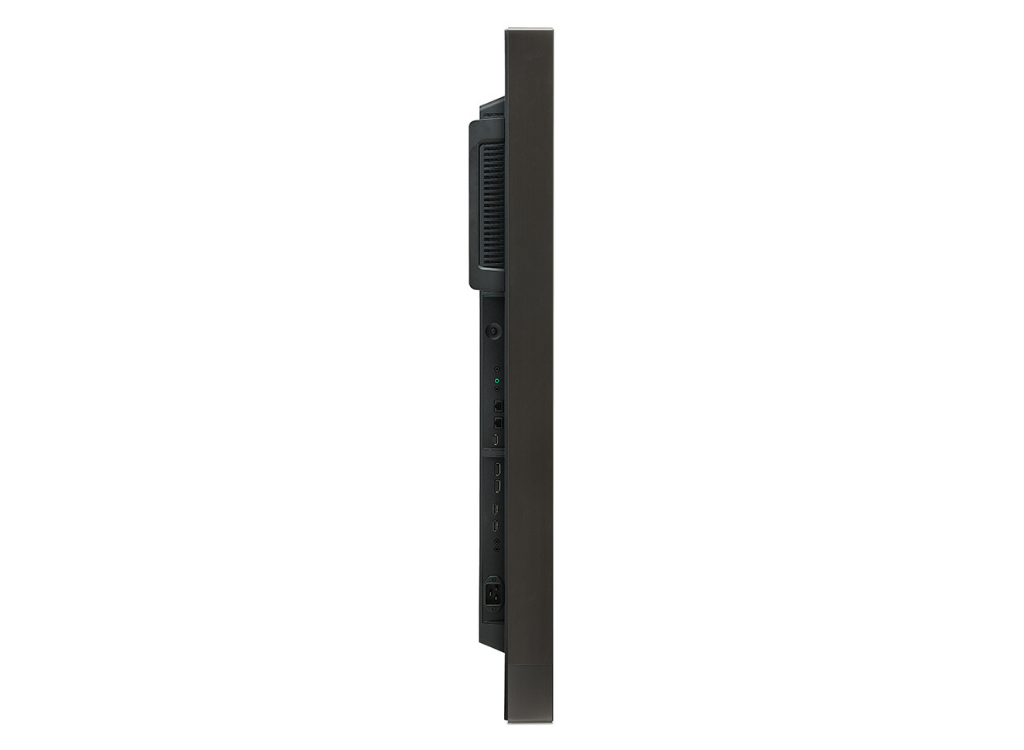

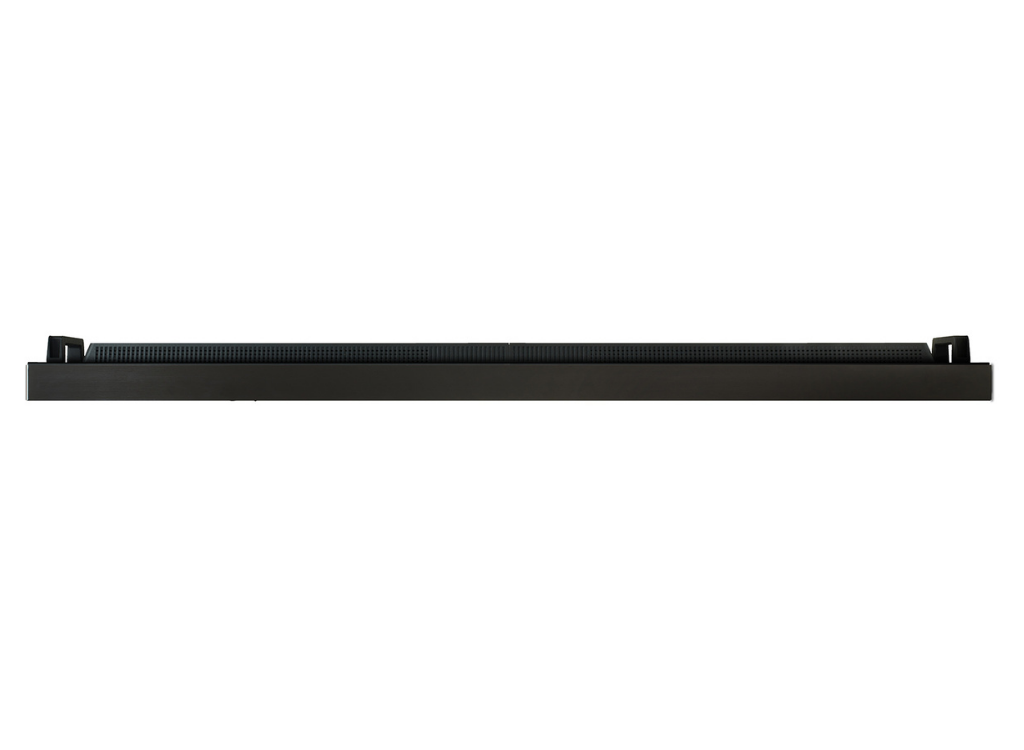

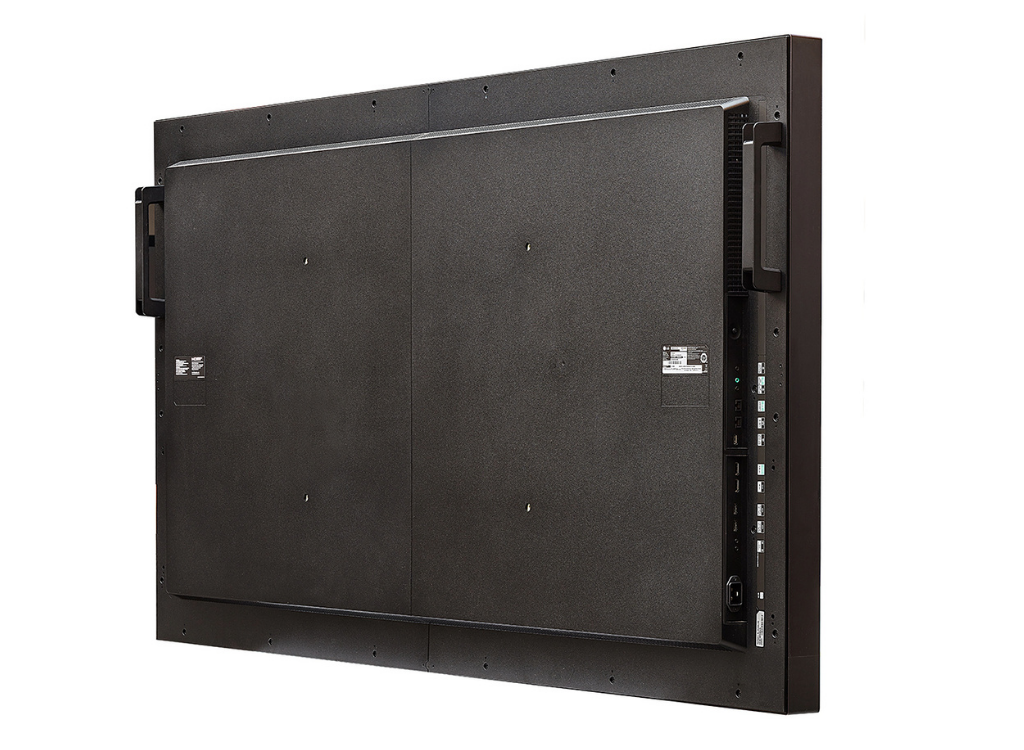

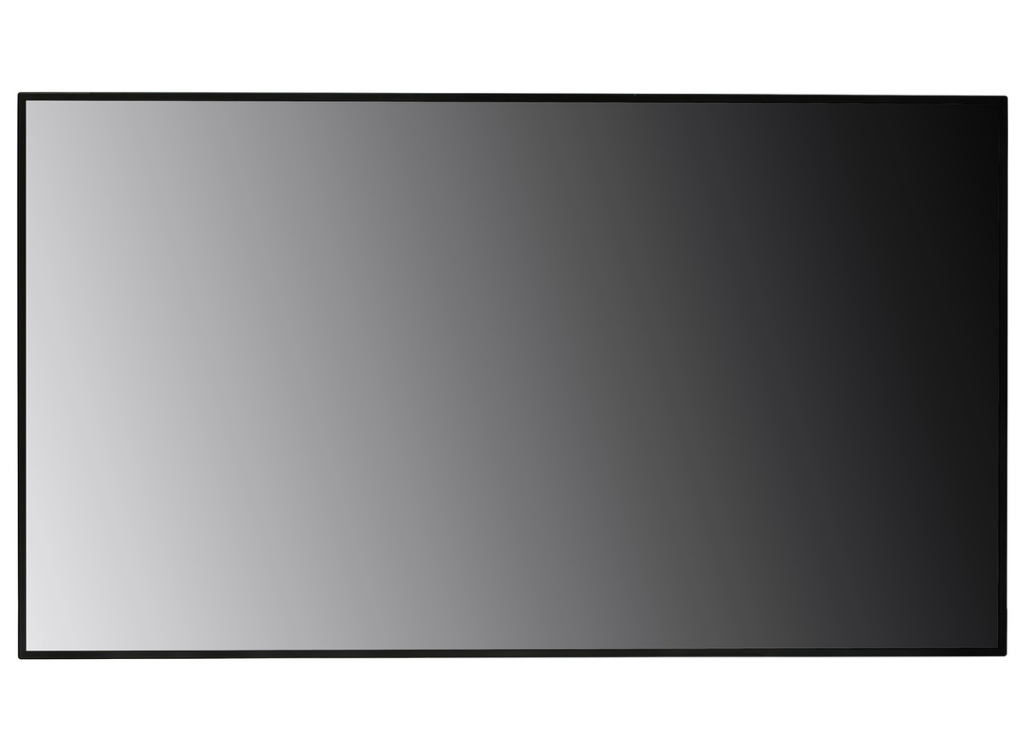

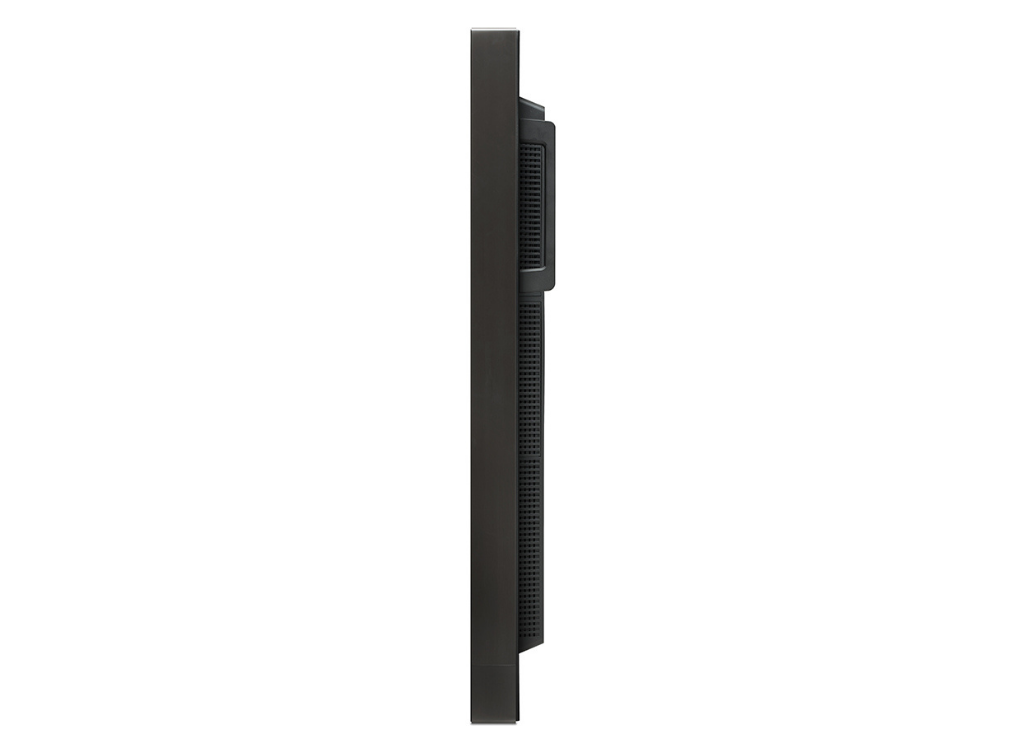

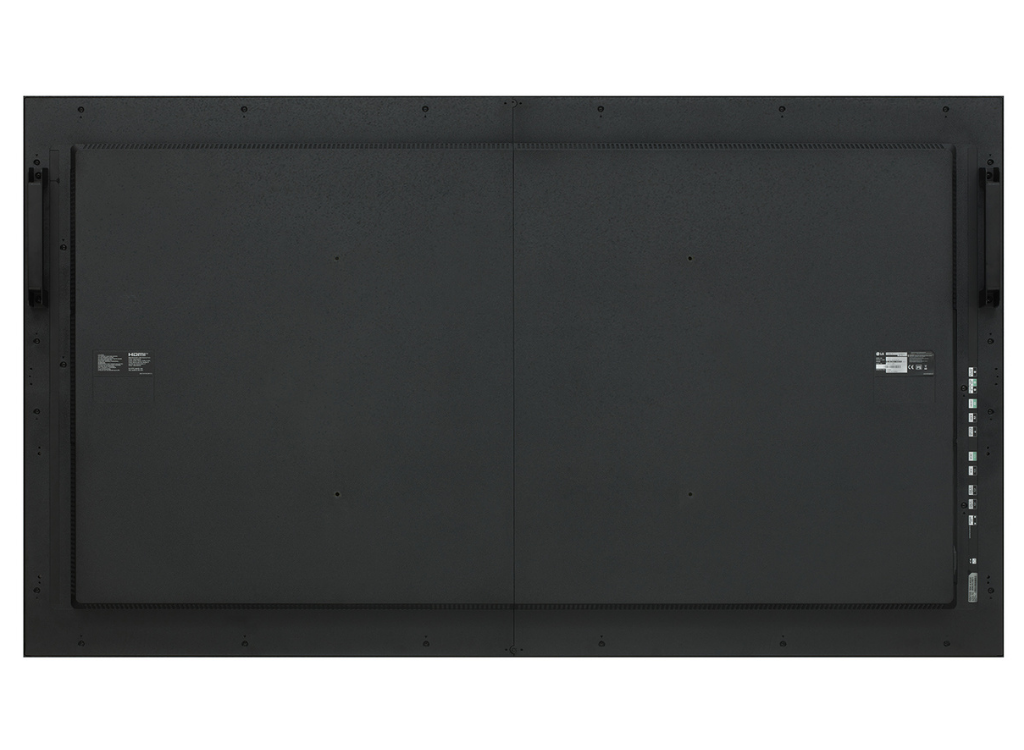

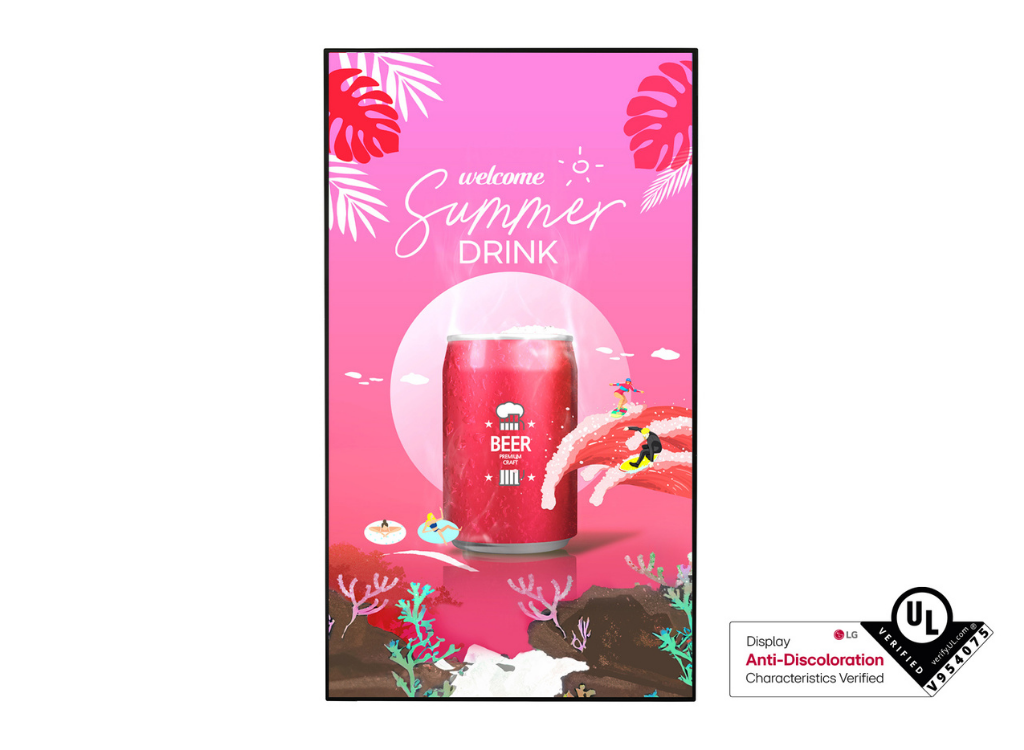

LG 75XS4P-B 75" Full HD 4000 cd/m² Ultra High Brightness Window Signage Display

SKU: 75XS4P-B Manufacturer: LG

Product description

  • Description
  • Specifications
  • Downloads
  • High-Brightness 4K Window-Facing Signage for 24/7 Retail Visibility

    Attract Passing Customers with a Bright Display Presented Through a Window


    Window-facing Display

    LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.


    World’s First UL Verification for Display Anti-Discoloration Characteristics
    By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.


    Brightness Beyond the Window

    A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.


    Optimized Design for Space Utilization

    With its compact size and slim design, the XS4P integrates smoothly into any store's interior. Its bezel is thinner than conventional models, enabling closer installation to windows and offering an improved visual experience for customers. Additionally, standard UHD signage can be attached to the back of the XS4P, allowing it to function as a double-sided display.


    High-performance with

    webOS 6.0
    Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.


    Remotely Managed, Real-time Mastery (Content Manager)

    A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.


    Wide Range of Operating Temperature

    The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.


    Conformal Coating

    The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.


    Upgraded Quiet Mode

    The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.


    Convenient Operation

    The XS4P features LAN Daisy Chain functionality, enabling the control of multiple displays with a single master remote, offering significant convenience. Moreover, with Wi-Fi, Bluetooth, and Beacon capabilities, content and software can be distributed to the XS4P, allowing store managers to effortlessly provide coupons and information to multiple devices in real-time.
    * Exclusively available for 75XS4P


    Professional Content Partners

    Pairing the XS4P Series with LG SW solutions would enhance its utilization.
    * Sold separately


    Convenient Installation with Calculated Precision

    The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

  • INFO
    Product Outdoor Year Y24
    Month M06
    PANEL
    Screen Size (Inch) 75" Panel Technology IPS, M+
    Back Light Type Direct Aspect Ratio 16:9
    Native Resolution 3840x2160 (UHD) Refresh Rate 60Hz
    Brightness 4,000nit (Typ), 3,200nit(Min) Contrast Ratio 1200:1 (Typ)
    Dynamic CR 500,000:1 Color gamut NTSC 68%
    Viewing Angle (H x V) 178 x 178 Color Depth (Number of Colors) 10bit(D), 1.07Billion colors
    Response Time 8ms (G to G) Surface Treatment (Haze) 3%
    Life time 50,000 Hrs (Typ) Operation Hours (Hours/Day) 24/7
    Portait / Landscape Yes / Yes
    CONNECTIVITY (JACK INTERFACE)
    HDMI IN Yes(2), HDCP2.2 / 1.4 DP IN Yes(1), HDCP2.2 / 1.3
    RS232C IN Yes(1) (4pin phone jack) RJ45(LAN) IN Yes(1)
    IR IN Yes(1) USB IN USB2.0 Type A (1)
    DP Out Yes(1), Input DP/HDMI External Speaker Out Yes(1, L/R, 10W+10W), (4pin phone jack)
    RS232C Out Yes(1) RJ45(LAN) Out Yes(1)
    IR Out Sharing RS232C Out
    MECHANICAL
    Bezel Color Black Bezel Width Even bezel : 13.8mm
    Weight (Head) 39.6kg Packed Weight 50kg
    Monitor Dimensions (W x H x D) 1679.2 x 957.6 x 104mm Carton Dimensions (W x H x D) 1816 x 1106 x 285mm
    Handle Yes VESA™ Standard Mount Interface 600 x 400
    HW FEATURE
    Internal Memory (eMMC) 16GB Wi-Fi/BT (Built-in) Yes
    Temperature Sensor Yes Auto Brightness sensor Yes
    Acceleration(Gyro) Sensor Yes Local Key Operation Yes
    FAN (Built-in) Yes
    SW FEATURE
    OS Ver. (webOS) webOS6.0 Local Contents Scheduling Yes
    Group Manager Yes USB Plug & Play Yes
    Fail over Yes Booting Logo Image Yes
    No Signal Image Yes RS232C Sync Yes
    Local Network Sync Yes Backlight Sync Yes
    PIP Yes PBP Yes(2)
    Video Tag Yes(4 | Ext. Source (x2), Video (x4)) Play via URL Yes
    Screen Rotation Yes External Input Rotation Yes
    Gapless Playback Yes Tile Mode Setting Yes (Max. 15x15)
    Setting Data Cloning Yes SNMP Yes
    ISM Method Yes Auto Set ID Yes
    Status Mailing Yes Control Manager Yes
    Smart Energy Saving Yes PM mode Yes
    Wake on LAN Yes Network Ready Yes
    Beacon Yes HDMI-CEC Yes
    SI Server Setting Yes webRTC Yes
    Pro:Idiom Yes
    ENVIRONMENT CONDITIONS
    Operation Temperature 0 °C to 40°C (w/o Direct Sunlight) 0 °C to 30°C (Direct Sunlight) Operation Humidity 10 % to 80 %
    POWER
    Power Supply AC 100-240V~, 50/60Hz Power Type Built-In Power
    POWER CONSUMPTION
    Typ. 750W (Full White) 405W (IEC 62087) Max. 790W
    BTU (British Thermal Unit) 2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max) Smart Enegy Saving (70%) 400W
    DPM 0.5W↓ Power off 0.5W↓
    CERTIFICATION
    Safety CB / NRTL EMC FCC Class "A" / CE / KC / VCCI
    ErP / Energy Star Yes / No
    SOFTWARE COMPATIBILITY
    SuperSign CMS Yes SuperSign Control+ Yes
    Connected Care Yes
    LANGUAGE
    OSD English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
    ACCESSORY
    Basic Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender, IR Sheet Optional Double sided Bracket (Landscape&Portrait : WM-B640S)
  • Description Downloads
    Datasheet Downloads

Technical Highlights

Display size / Screen sizes
75"
Resolution
Ultra HD (4K)
Panel type
IPS Panel
Screen type
Flat
Brightness
4000 cd/m2
Response time
8ms
Screen ratio
16:9
Refresh rate
60Hz
Display orientation
Landscape & Portrait
Operating hours
24/7
Operating system
WebOS
Player features
Built-in OS
VESA patterns
600x400
Warranty
3 Year Warranty
