LG 86BH5F-M 86" Stretch Digital Signage Display
SKU: 86BH5F-M
£2,933.20 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ultra Stretch 58:9 Widescreen Digital Display

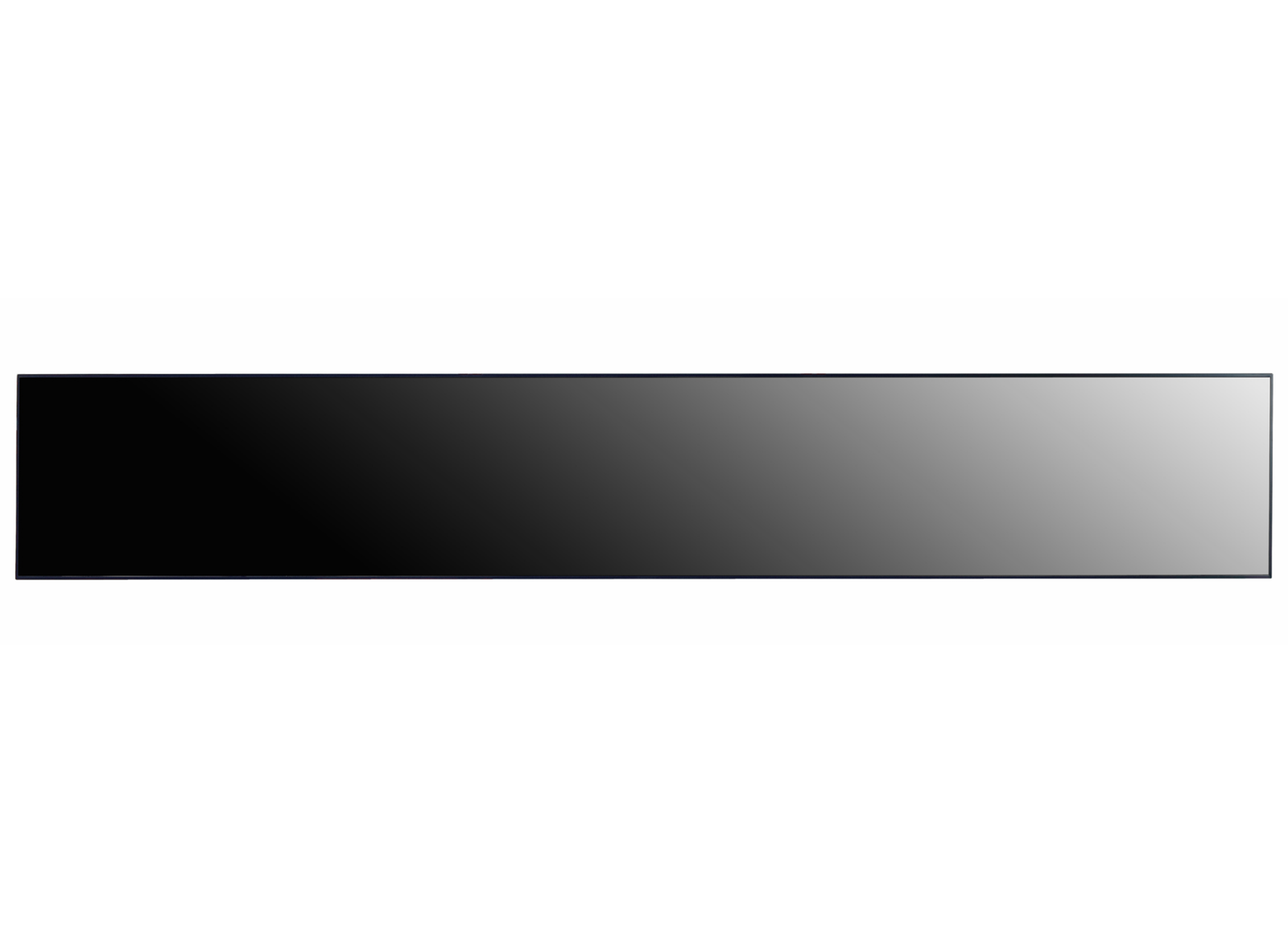

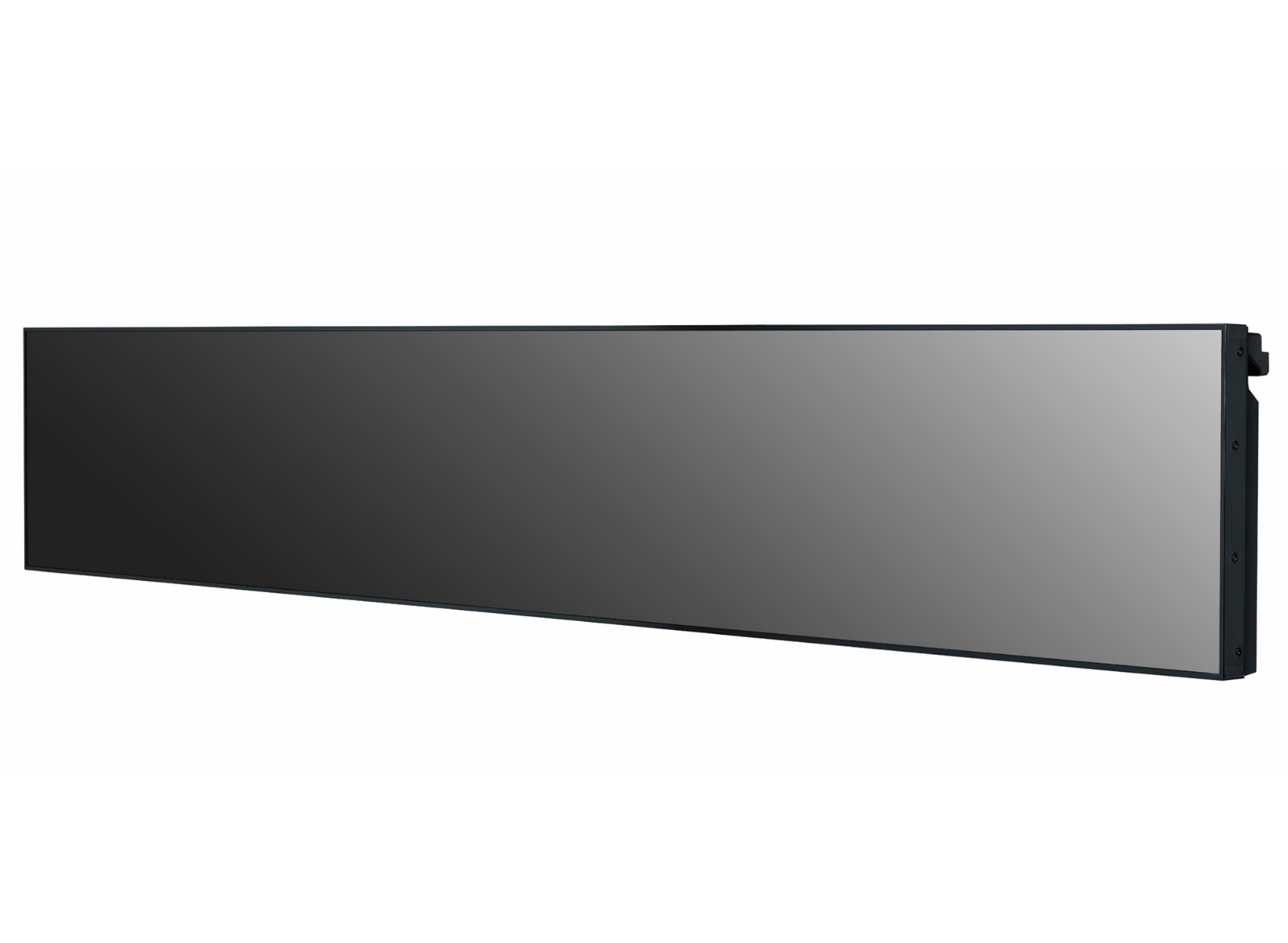

86" Widescreen Stretch Display
The LG 86" Ultra Stretch is suitable for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format.

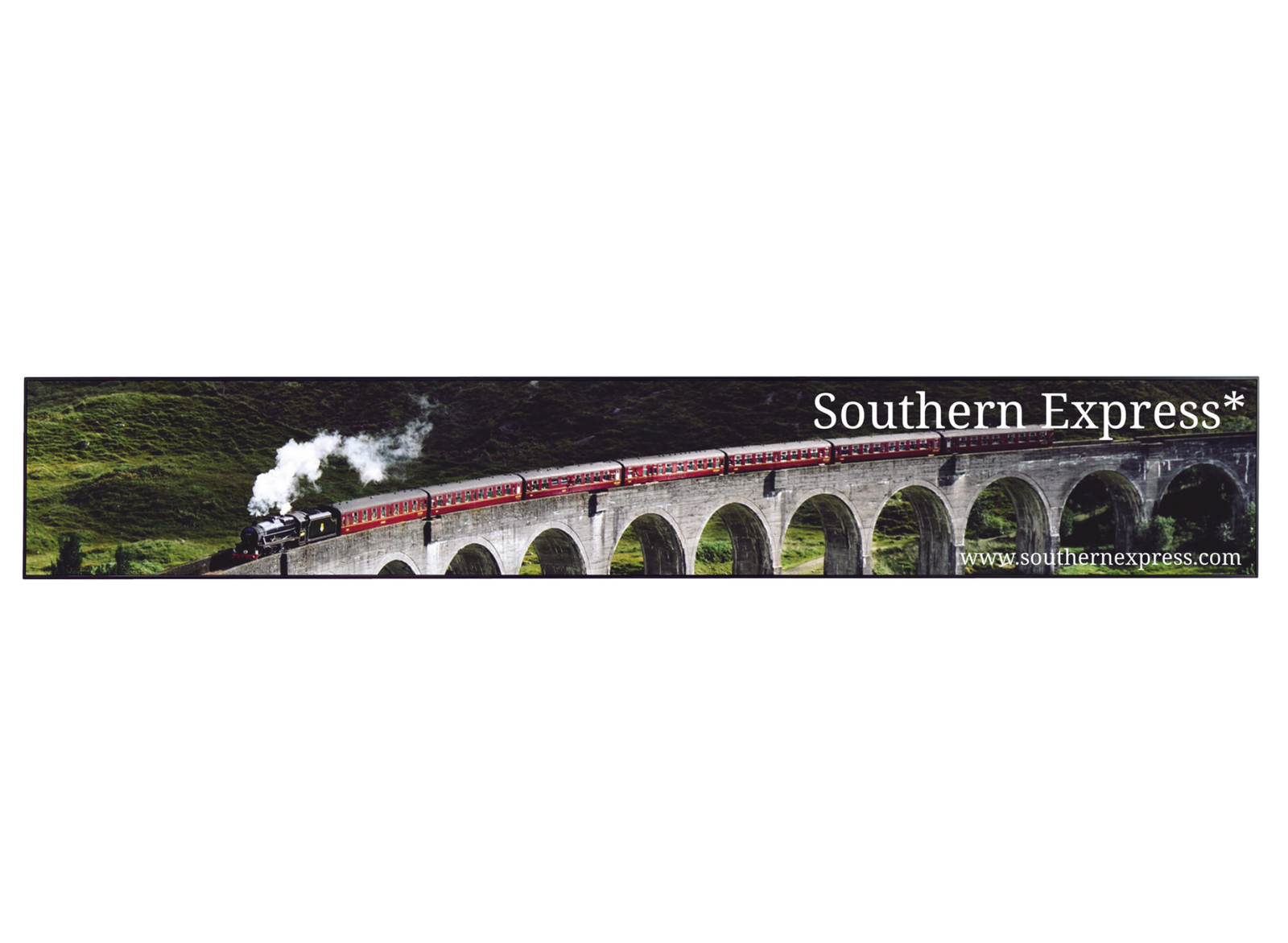

58:9 Extended Wide Format
The 86BH5F is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The LG 86" Ultra Stretch is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses. -
Panel Screen Size 86" Panel Technology IPS Aspect Ratio 58:9 Brightness (Typ.) 500 cd/m² Contrast Ratio 1,100:1 Viewing Angle 178 x 178 Response Time 8 ms (G to G) Surface Treatment 3% Lifetime 50,000 Hrs Operation Hours 24 / 7 Orientation Landscape / Portrait Mechanical Specification Bezel Color Black Bezel Width 4.4 mm (L/R), 5.9 mm (T/B) Weight (Head) 20.5 kg Packed Weight 38.2 kg Monitor Dimensions 2158.3 x 348.5 x 81.7 mm Carton Dimensions 2290 x 599 x 228 mm Handle Yes VESA Mount 600 x 200 mm Environment Conditions Operation Temperature 0 °C to 40 °C Operation Humidity 10% to 80% Power Power Supply 100-240V~, 50/60Hz Power Type Built-In Power Power Consumption 220 W / 240 W Smart Energy Saving 100 W Certification Safety CB / NRTL EMC FCC Class "A" / CE / KC ErP Yes (EU Only) Media Player Compatibility OPS Compatible Yes (Piggyback) Software Compatibility CMS SuperSign CMS Control Software SuperSign Control / Control+ LG ConnectedCare Yes Connectivity Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio External Control RS232C In/Out, RJ45 In/Out, IR In Accessories Basic Remote Controller, Power Cord, DP Cable, RS-232C Cable Optional OPS Kit (KT-OPSF) -
Description Downloads Datasheet Download
