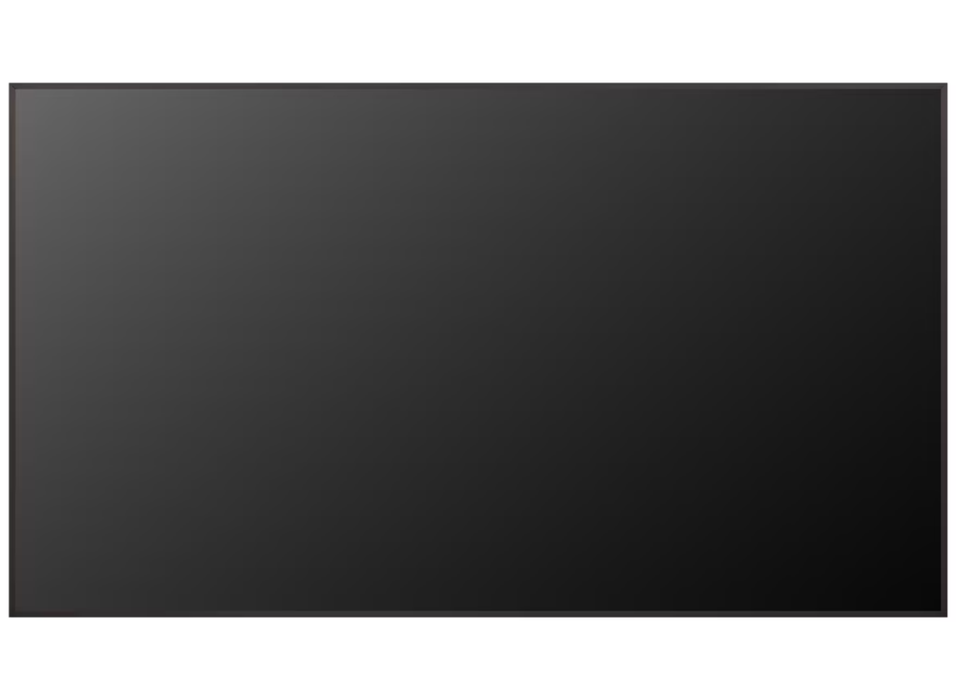

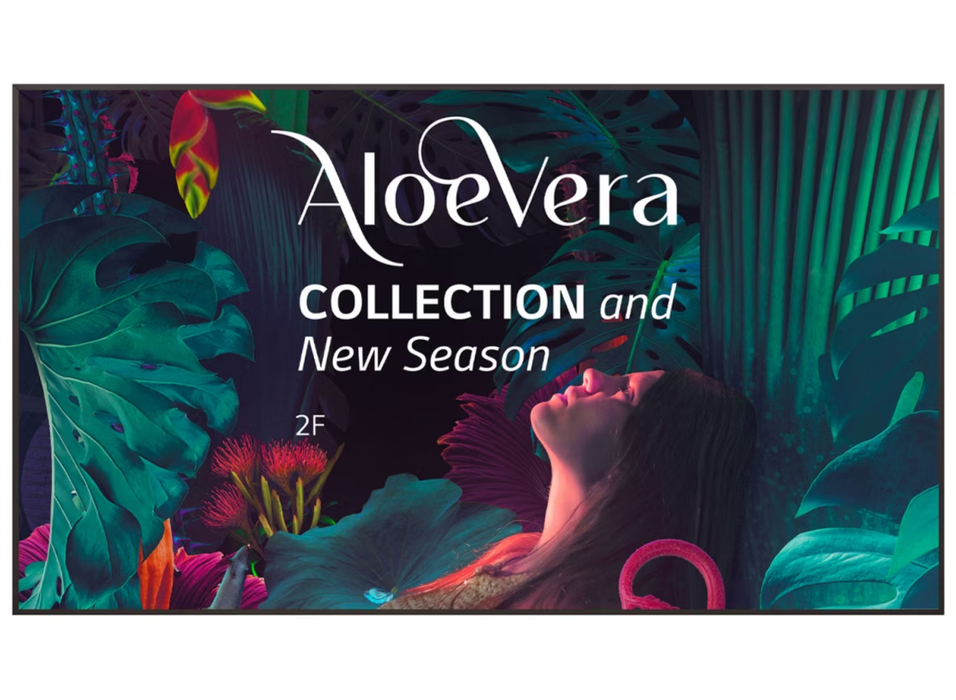

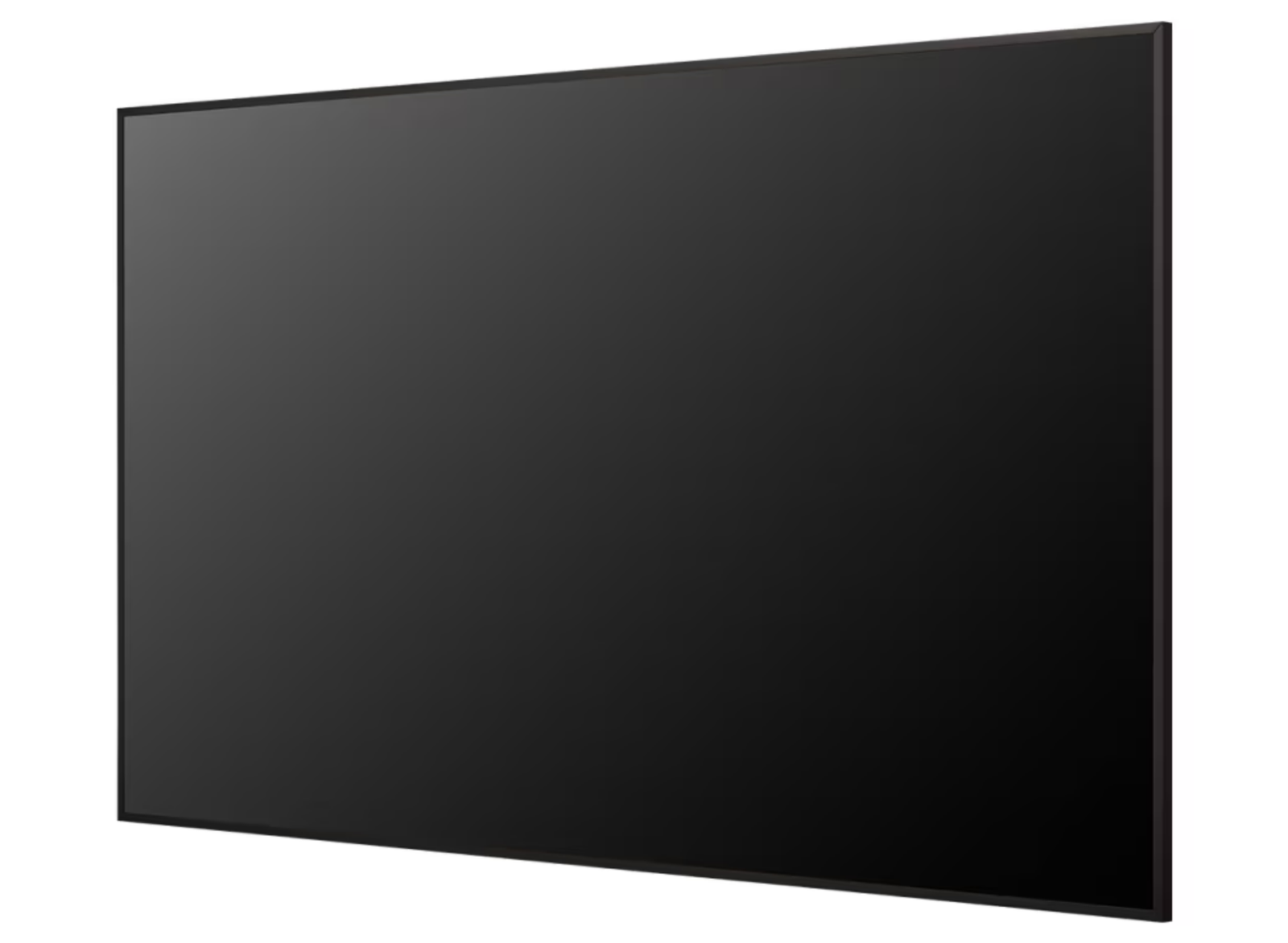

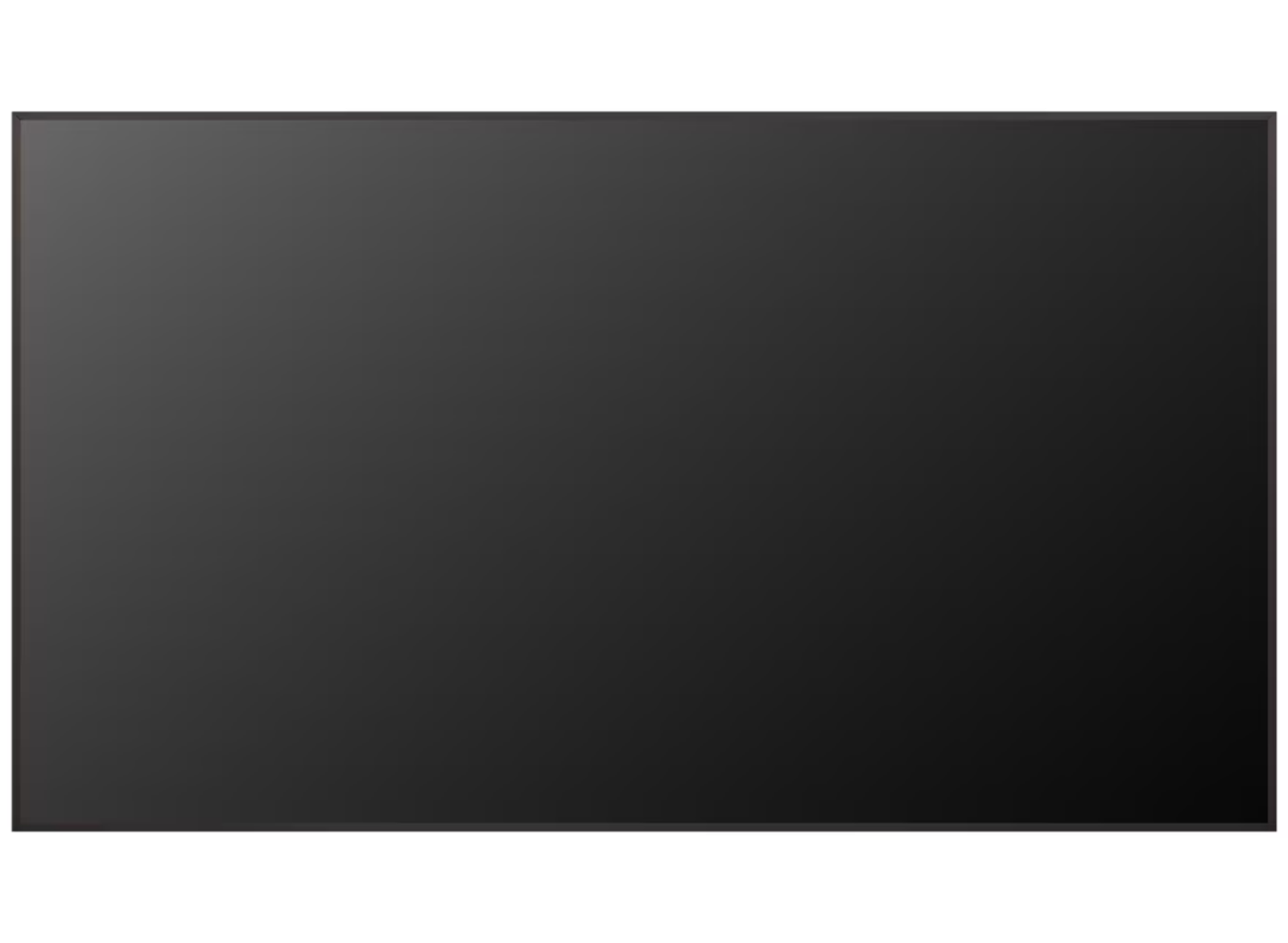

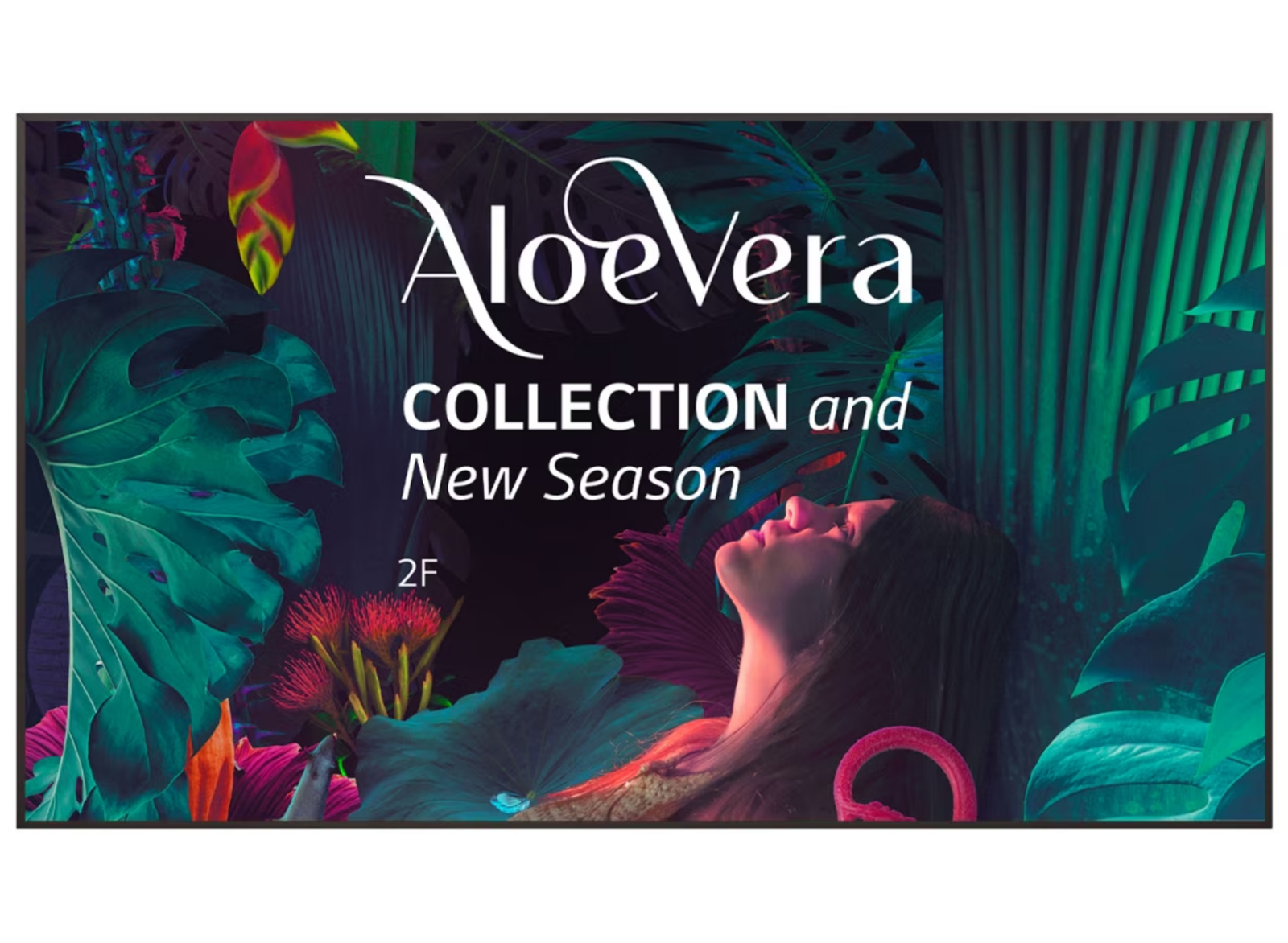

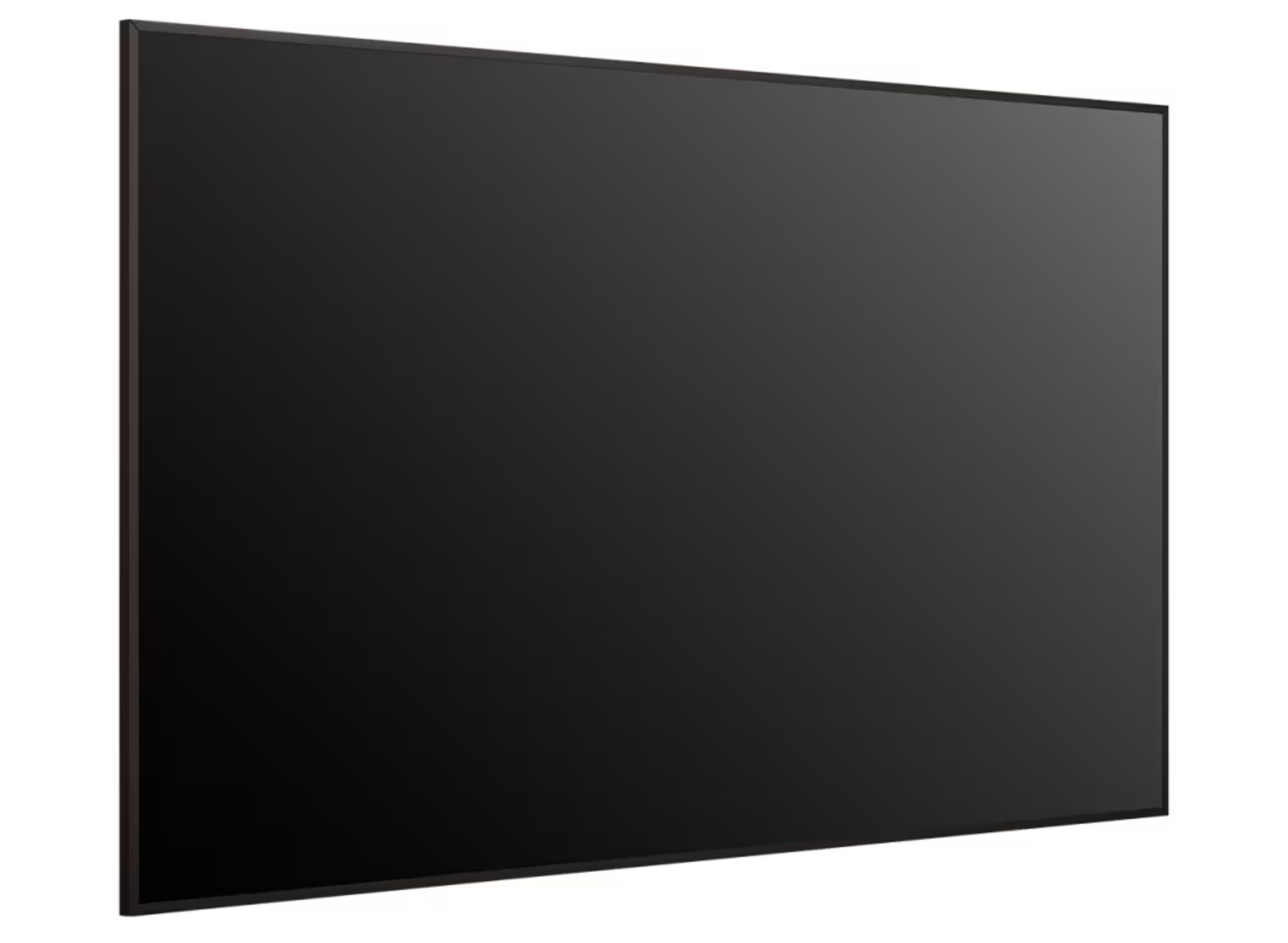

LG 86UH5N-M 86" 4K UHD Large Format Digital Signage Display
SKU: 86UH5N-M
£2,070.38 (Excl. VAT)
£2,070.38 (Excl. VAT)
Large UHD Signage Display with Slim Design

Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

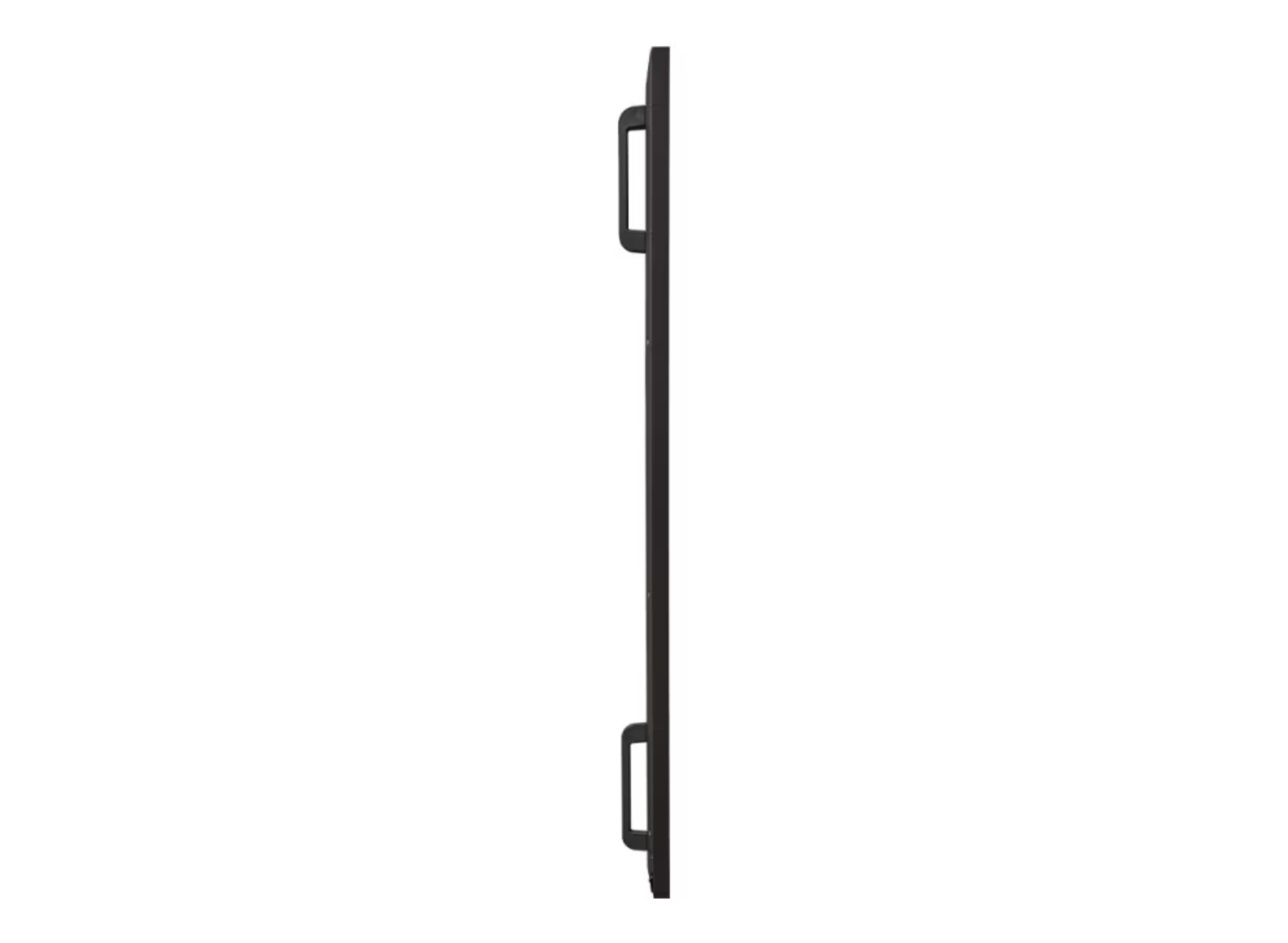

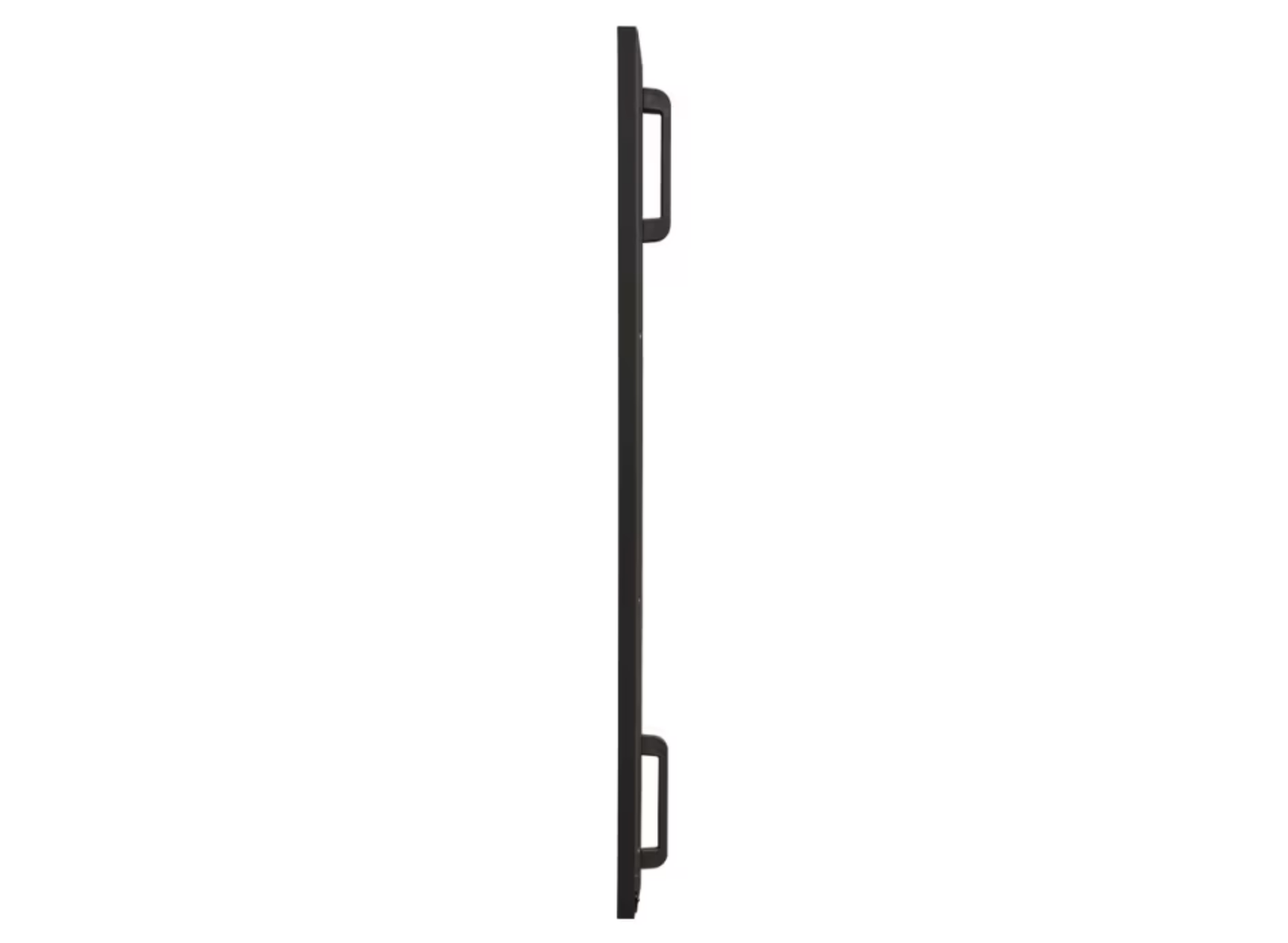

Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

Versatile Operation with
Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Carbon Footprint Verification
The cradle-to-grave carbon footprint of UH5N-M has been verified by the Carbon Trust.
| Product Overview | |||
| Product Name | LG 86UH5N-M 86" 4K UHD Large Format Digital Signage Display | Product Summary | Large UHD Signage Display with Slim Design |
| Eye-catching Large Screen | A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation. | Sturdy Design with Fire Flame Resistance | The outer cover is designed to resist fire flame spread, making it suitable for installation in public spaces. |
| Slim Depth with Even Bezel | Slim depth with uniform bezel thickness on all four sides for symmetric portrait and landscape styling. | Versatile Operation with Multi-USB | Supports two USB ports for content operation while using other connected devices like mouse or keyboard. |
| High Resolution Display | 4K UHD resolution with anti-glare coating improves visibility and legibility in bright environments. | Convenient webOS Platform | High-performance SoC with webOS platform provides app tools, intuitive UI, and easy sensor and partner app integration. |
| Durability that Provides Reliability | Protected against rust and dust with conformal coating and IP5x certification for stable business use. | Enhanced Security Features | Includes LG EKP, ISO/IEC 15408 Common Criteria EAL2 certification, and advanced data protection. |
| SuperSign Solutions | Integrated content management solution with versions such as SuperSign Cloud. | Carbon Footprint Verification | Cradle-to-grave carbon footprint of UH5N-M has been verified by the Carbon Trust. |
| Panel | |||
| Screen Size (Inch) | 86" | Panel Technology | IPS |
| Back Light Type | Edge | Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) | Refresh Rate | 120Hz |
| Brightness (Typ.) | 500nit (Typ.) | Contrast Ratio | 1,200:1 |
| Dynamic CR | 1,000,000:1 | Color gamut | BT709 95% |
| Viewing Angle (H x V) | 178 x 178 | Color Depth (Number of Colors) | 8bit(D), 1.07Billion colors |
| Response Time | 8ms (G to G) | Surface Treatment (Haze) | 25% |
| Life time | 50,000Hrs (Min.) | Operation Hours (Hours/Day) | 24/7 |
| Portait / Landscape | Yes / Yes | ||

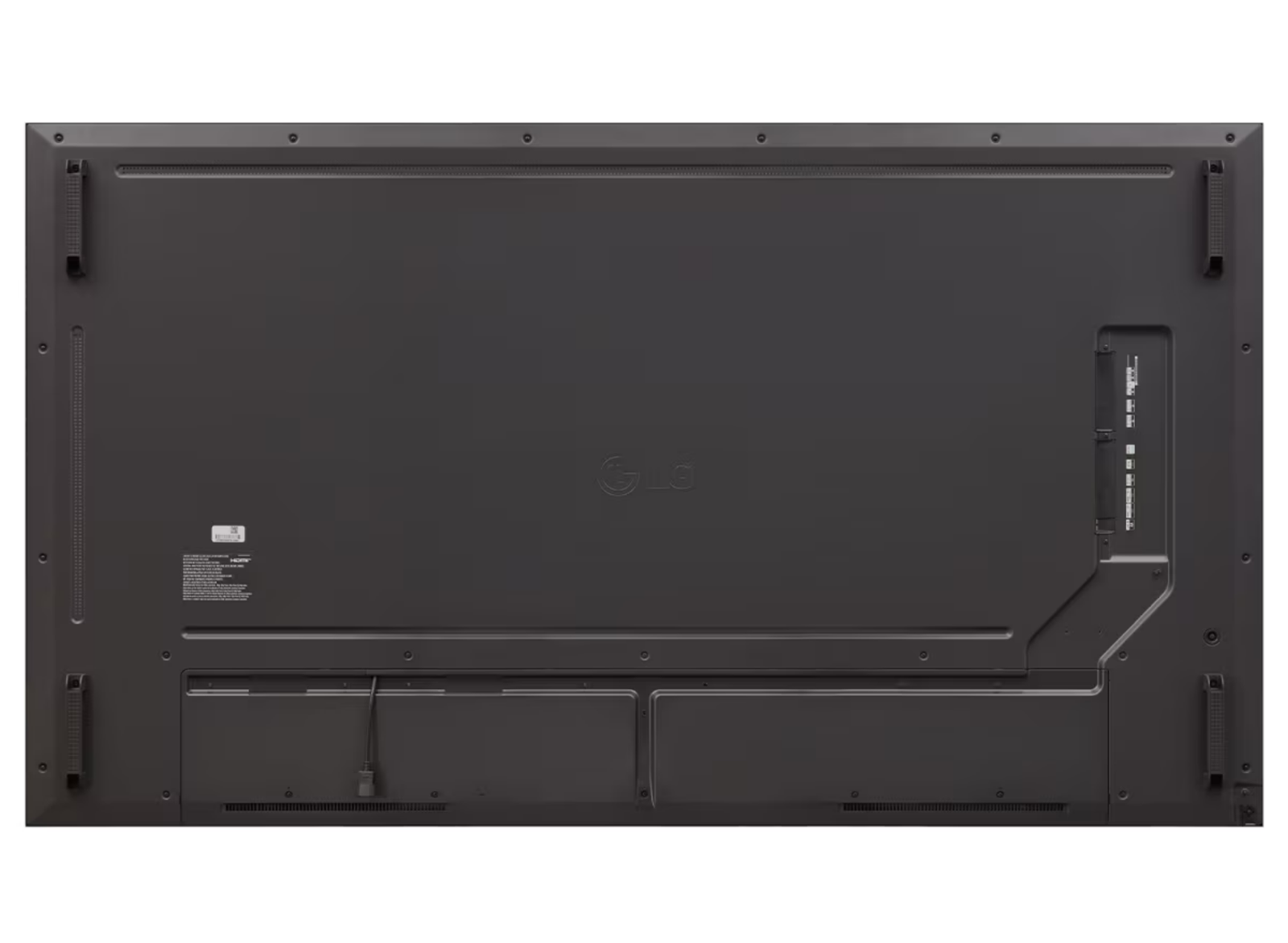

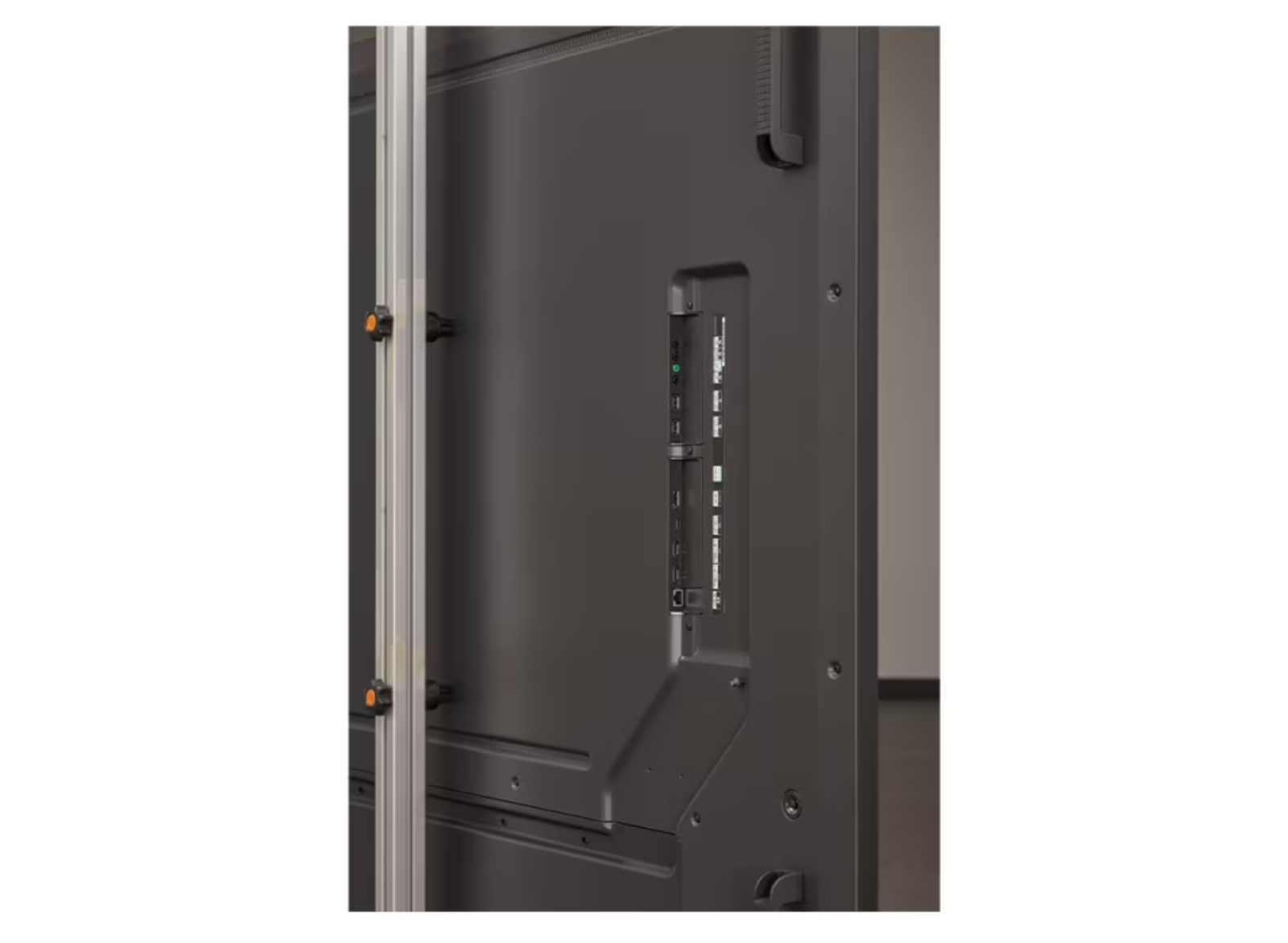

| Connectivity (Jack Interface) | |||
| HDMI IN | Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4 | DP IN | Yes(1), 3840x2160@60Hz, HDCP 2.2/1.3 |
| RS232C IN | Yes (1), 4pin Phone-jack | RJ45(LAN) IN | Yes (1) |
| IR IN | Yes (1) | USB IN | USB2.0 Type A(2) |
| Audio Out | Yes (1) | RS232C Out | Yes (1), 4pin Phone-jack |
| IR Out | No (Support IR daisy chain via RS232C IN/OUT) | ||
| Mechanical | |||
| Bezel Color | Black | Bezel Width | 13.4mm |
| Weight (Head) | 52.7kg(TBD) | Packed Weight | 65.5kg(TBD) |
| Monitor Dimensions (W x H x D) | 1928.8 x 1099.8 x 29.7 (without IR, Handle) | Carton Dimensions (W x H x D) | 2100 x 1250 x 253(TBD) |
| Handle | Yes | VESA Standard Mount Interface | 600 x 400 |
| HW Feature | |||
| Internal Memory (eMMC) | 16GB | Wi-Fi/BT (Built-in) | Yes |
| Temperature Sensor | Yes | Auto Brightness sensor | Yes(IR) |
| Acceleration(Gyro) Sensor | Yes | Local Key Operation | Yes |
| SW Feature | |||
| OS Ver. (webOS) | webOS6.0 | Local Contents Scheduling | Yes |
| Group Manager | Yes | USB Plug & Play | Yes |
| Fail over | Yes | Booting Logo Image | Yes |
| No Signal Image | Yes | RS232C Sync | Yes |
| Local Network Sync | Yes | PIP | Yes |
| PBP | Yes (4) | Screen Share | Yes |
| Video Tag | Yes (4) | Play via URL | Yes |
| Screen Rotation | Yes | External Input Rotation | Yes |
| Gapless Playback | Yes | Tile Mode Setting | Yes (Max. 15x15) |
| Setting Data Cloning | Yes | SNMP | Yes |
| ISM Method | Yes | Auto Set ID | Yes |
| Status Mailing | Yes | Control Manager | Yes |
| Cisco Certification | Yes (TBD) | Crestron Connected | Yes |
| Smart Energy Saving | Yes | PM mode | Yes |
| Wake on LAN | Yes | Network Ready | Yes |
| Beacon | Yes | HDMI-CEC | Yes |
| SI Server Setting | Yes | webRTC | Yes |
| Pro:Idiom | Yes | ||
| Environment Conditions | |||
| Operation Temperature | 0°C to 40°C | Operation Humidity | 10 % to 80 % |
| Power Consumption | |||
| Typ. | 197W (TBD) | Max. | 297W (TBD) |
| BTU (British Thermal Unit) | 672 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD) | Smart Enegy Saving (70%) | 138W (TBD) |
| DPM | 0.5W | Power off | 0.5W |
| Sound | |||
| Speaker (Built-in) | Yes (10W X 2) | ||
| Certification | |||
| Safety | CB / NRTL | EMC | FCC Class "B" / CE / KC |
| ErP / Energy Star | N/A / Yes | ePEAT(US only) | Yes / Carbon "Reducing CO2" |
| BS476 Part7 | Class 1 (case top / back cover) | EN13501-1 | Class A1 (case top) / Class A2 (back cover) |
| Software Compatibility | |||
| SuperSign CMS | Yes | SuperSign Control+ | Yes |
| SuperSign WB | Yes | SuperSign Cloud | Yes |
| Mobile CMS | Yes | Connected Care | Yes |
| Language | |||
| OSD | English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish | OSD (Cont.) | Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
| Accessory | |||
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA) | Optional | Wall Mount (LSW640A/B) |
| Special Feature | |||
| IP Rating | IP5X | Conformal Coating (Power Board) | Yes |
| Description | Downloads |
|---|---|
| Datasheet | Download |
