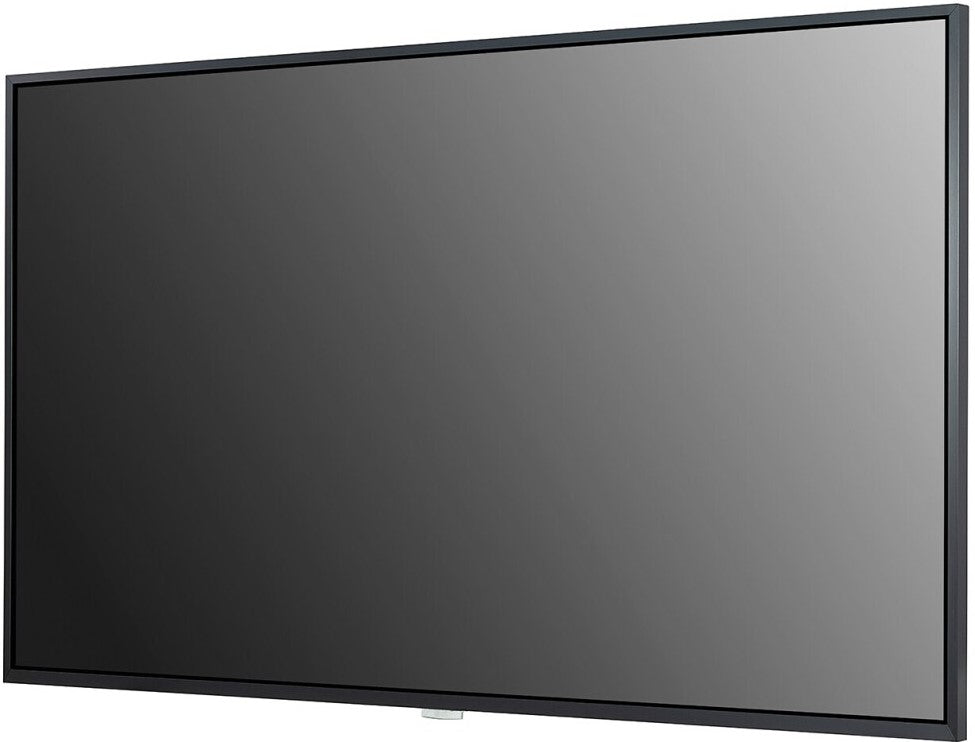

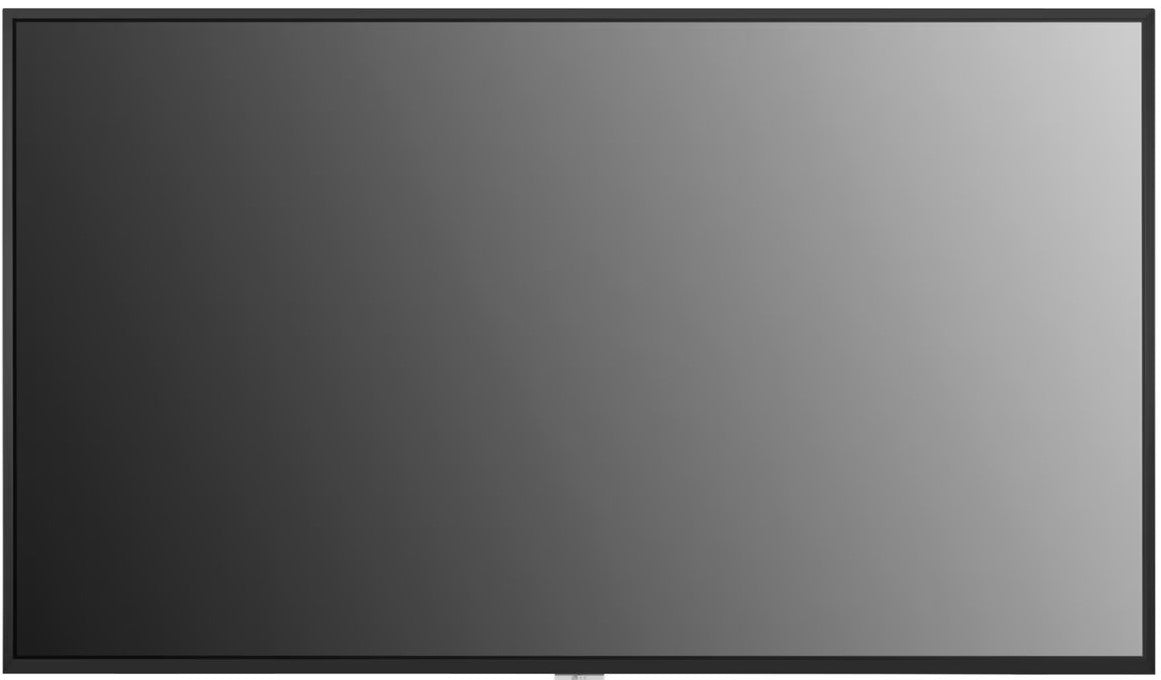

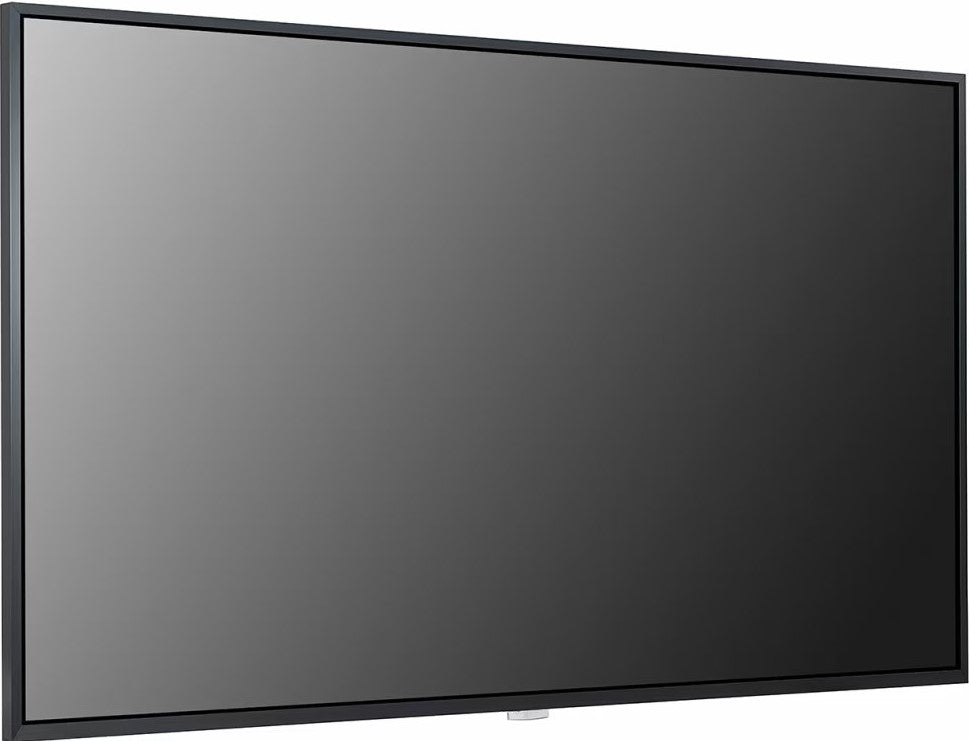

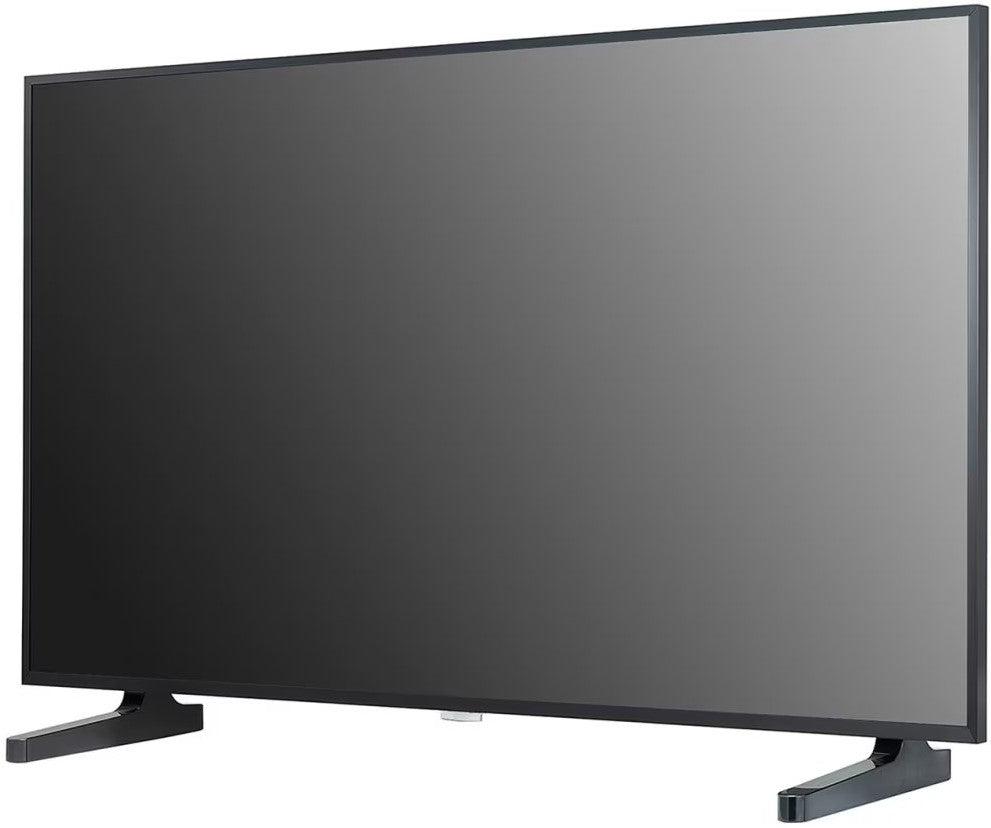

LG UM3DG Series / 65UM3DG 65" 4K Ultra HD Smart Digital Signage Display
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion
High Efficiency Video Coding
The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.
Narrow Bezel & Slim Depth
The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
15° Tilting Installation
When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.
Remote Monitoring
The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.
Simple Accessibility
Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.
High-Performance with webOS
Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatibility with AV Control System
The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatibility with Video Conference System
For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
-
Category |
Specification |
PANEL |
|
Screen Size (Inch) |
65 |
Panel Technology |
IPS |
Backlight Type |
Edge |
Aspect Ratio |
16:9 |
Native Resolution |
3840 x 2160 (UHD) |
Refresh Rate |
60Hz |
Brightness |
350nit (Typ.) |
Contrast Ratio |
1,200:1 |
Dynamic CR |
500,000:1 |
Color Gamut |
BT709 95% |
Viewing Angle (H x V) |
178º x 178º |
Color Depth |
1.07 Billion colors |
Response Time |
8ms (G to G) |
Surface Treatment (Haze) |
Haze 1% |
Life Time |
50,000Hrs (Min.) |
Operation Hours |
18/7 |
Portait / Landscape |
YES / YES |
Transparency |
N/A |
QWP (Quarter Wave Plate) |
N/A |
CONNECTIVITY |
|
HDMI In |
YES (3ea) |
HDMI In (HDCP Ver.) |
2.2/1.4 |
DP In |
NO |
DVI-D In |
NO |
RGB In |
NO |
Audio In |
NO |
RS232C In |
YES |
RJ45(LAN) In |
YES (1ea) |
IR In |
YES |
USB In |
USB2.0 Type A (1ea) |
HDMI Out |
NO |
DP Out |
NO |
Audio Out |
YES |
Touch USB |
NO |
External Speaker Out |
NO |
RS232C Out |
YES |
RJ45(LAN) Out |
NO |
IR Out |
NO |
Daisy Chain |
NO |
MECHANICAL SPECIFICATION |
|
Bezel Color |
Black |
Bezel Width |
T/R/L: 9.9mm, B: 14.4mm |
Weight (Head) |
28.2Kg |
Packed Weight |
35.0Kg |
Monitor Dimensions (W x H x D) |
1453.3 x 832.8 x 39.9mm (without LG Logo) |
Monitor Dimension with Stand (W x H x D) |
1453.3 x 893.1 x 290.0mm |
Handle |
NO |
VESA Standard Mount Interface |
300 x 300 mm |
Carton Dimensions (W x H x D) |
1600.0 x 1095.0 x 175.0mm |
Weight (Head+Stand) |
28.8Kg |
FEATURE - HARDWARE |
|
Internal Memory (eMMC) |
8GB |
Wi-Fi/BT (Built-in) |
YES |
Temperature Sensor |
YES |
Auto Brightness Sensor |
YES |
Pixel Sensor |
NO |
Proximity Sensor |
NO |
Current Sensor |
NO |
BLU Sensor |
NO |
Humidity Sensor |
NO |
Acceleration(Gyro) Sensor |
NO |
Power Indicator |
NO |
Local Key Operation |
YES |
FAN (Built-in) |
NO |
FEATURE - SOFTWARE |
|
OS Ver. (webOS) |
webOS 4.1 |
Local Contents Scheduling |
YES |
Group Manager |
YES |
USB Plug & Play |
YES |
Fail over |
YES |
Booting Logo Image |
YES |
No Signal Image |
YES |
RS232C Sync |
YES |
Local Network Sync |
YES |
Backlight Sync |
NO |
PIP |
NO |
PBP |
NO |
Screen Share |
YES |
Video Tag |
YES (4 Video Tag) |
Play via URL |
YES |
Screen Rotation |
YES |
External Input Rotation |
YES |
Gapless Playback |
YES |
Tile Mode Setting |
YES |
Setting Data Cloning |
YES |
SNMP |
YES |
ISM Method |
YES |
Auto Set ID |
YES |
Status Mailing |
YES |
Control Manager |
YES |
Cisco Certification |
YES |
Crestron Connected |
YES |
Smart Energy Saving |
YES |
PM mode |
YES |
Wake on LAN |
YES |
Network Ready |
YES |
Beacon |
YES |
HDMI-CEC |
YES |
SI Server Setting |
YES |
webRTC |
YES |
Pro:Idiom |
YES |
Brightness Compensation |
NO |
W/B Setting by Grey scale |
NO |
Scan Inversion |
NO |
ENVIRONMENT CONDITIONS |
|
Operation Temperature |
0 °C to 40 °C |
Operation Humidity |
10 % to 80 % |
POWER |
|
Power Supply |
AC 100-240V~, 50/60Hz |
Power Type |
Built-in Power |
POWER CONSUMPTION |
|
Typ. |
105W |
Max. |
160W |
BTU (British Thermal Unit) |
359 BTU/Hr(Typ.), 546 BTU/Hr(Max.) |
Smart Energy Saving (70%) |
74W |
DPM |
0.5W |
Power off |
0.5W |
SOUND |
|
Speaker (Built-in) |
YES (10W x 2) |
CERTIFICATION |
|
Safety |
CB / NRTL |
EMC |
FCC Class "A" / CE / KC |
ERP / Energy Star |
YES(NewErP) / YES |
ePEAT(US only) |
NO |
OPS COMPATIBILITY |
|
OPS Type compatible |
NO |
OPS Power Built-in |
NO |
SOFTWARE COMPATIBILITY |
|
SuperSign CMS |
YES |
SuperSign Control+ |
YES |
SuperSign WB |
YES |
SuperSign Cloud |
NO |
Promota |
YES |
Mobile CMS |
YES |
Connected Care |
YES |
LANGUAGE |
|
OSD |
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic |
ACCESSORY |
|
Basic |
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender |
Optional |
Stand(ST-653T) |
SPECIAL FEATURE |
|
Overlay Touch Compatibility |
N/A |
Smart Calibration |
N/A |
Tilt (Face up) |
N/A |
Tilt (Face down) |
Max. 15 degree |
IP Rating |
IP5X |
Conformal Coating (Power Board) |
YES |
Power Protection |
N/A |
Direct Sunlight |
N/A |
-
