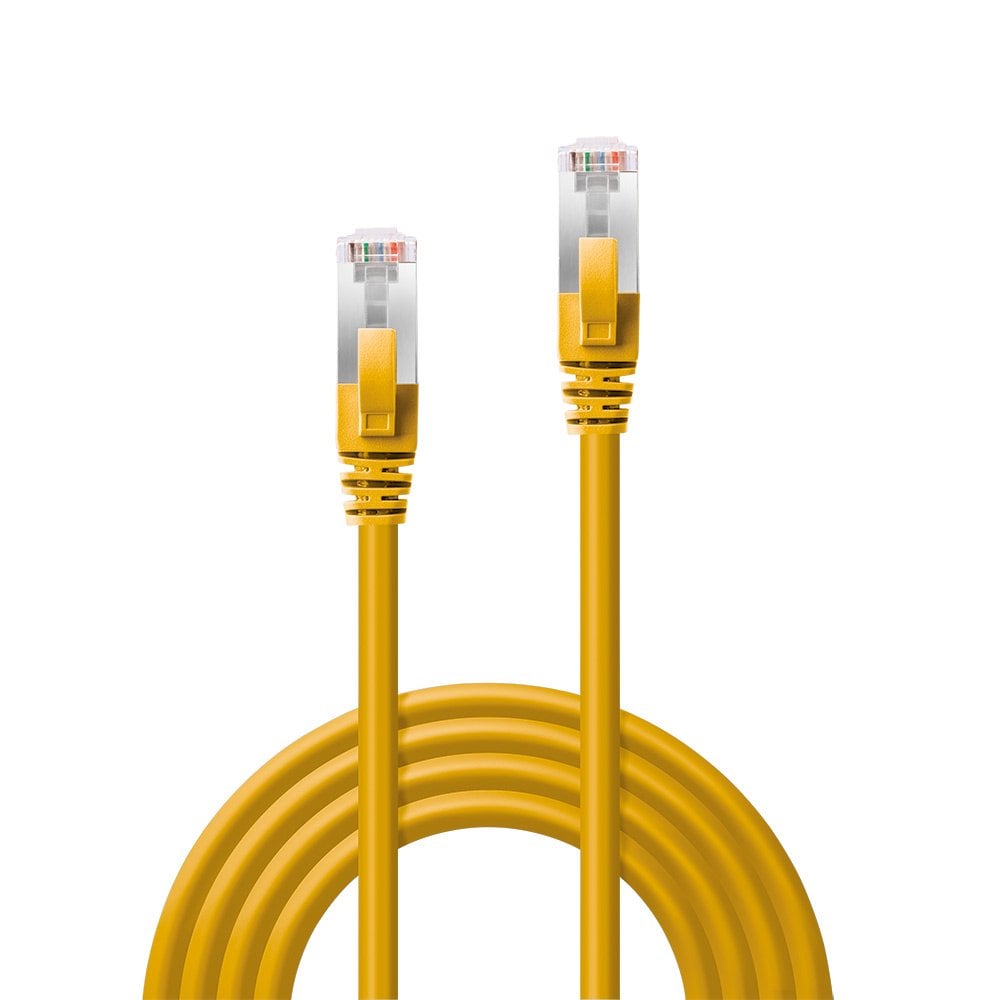

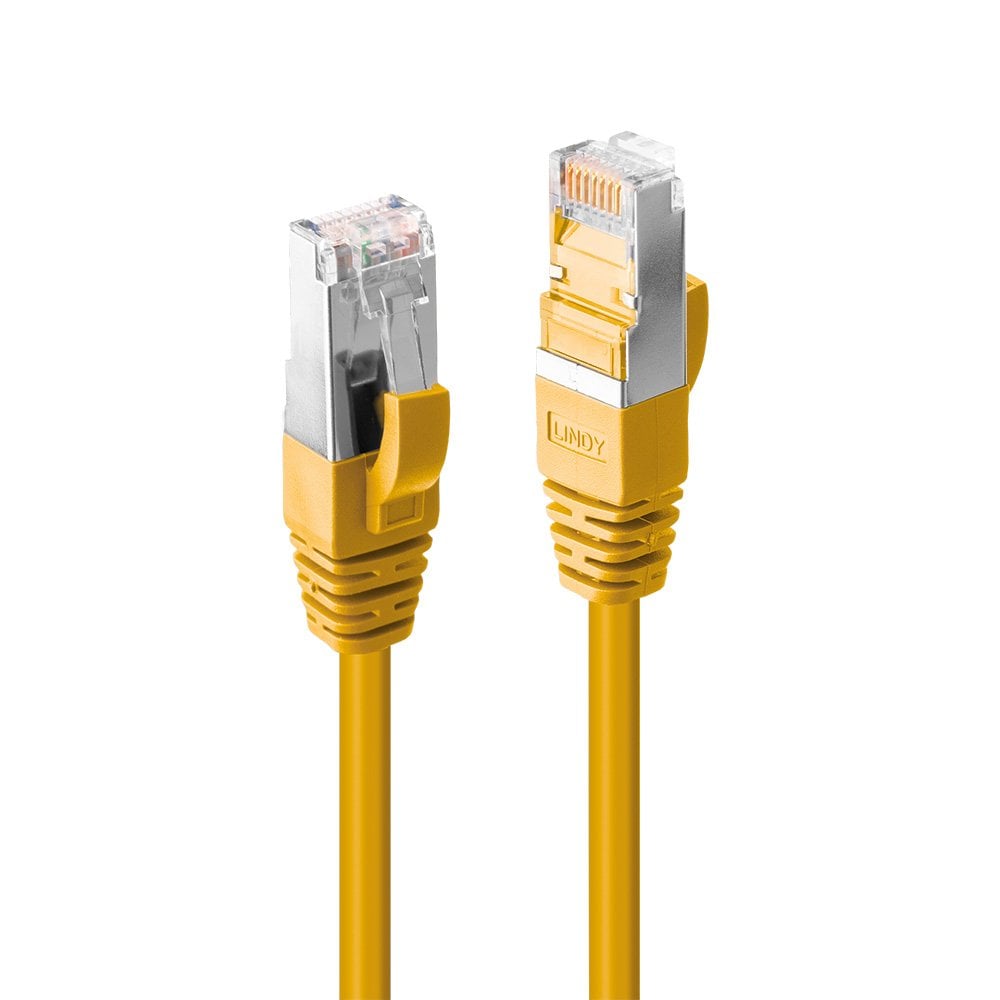

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available colours: Black, Blue, Grey, Red, White, Yellow, Green
| Connector A | RJ45 Male | Connector B | RJ45 Male |
| Housing Material | Polycarbonate | Connector Plating | Nickel |
| Pin Construction | Brass | Pin Plating | Gold plated |
| Dimensions (WxDxH) | 11.6x21.5x8.3mm (0.46x0.85x0.33in) | Length | 0.3m (0.98ft) |
| Colour | Yellow | Type | Cat.6A |
| Jacket Diameter | 6.0mm (0.24in) | Jacket Material | LSZH |
| Conductor Material | Copper | Conductor Gauge | 27AWG |
| Shielding | Aluminium Braid | Supported Bandwidth | 500MHz |
| Nominal Attenuation | 49.3dB/100m @ 500MHz | Minimum Bend Radius | 72mm (2.84in) |
| Operating Temperature | -10°C - 60°C (14F - 140°F) | Storage Temperature | -20°C - 75°C (-4F - 167°F) |
| Packaging Type | Polybag | Warranty | 10 Years |
| Product Compliance | RoHS, REACH | No. | 47860 |
| EAN | 4002888478601 | Available Colours | Black, Blue, Grey, Red, White, Yellow, Green |
| Description | Downloads |
|---|---|
| Product Safety Information | Downloads |
