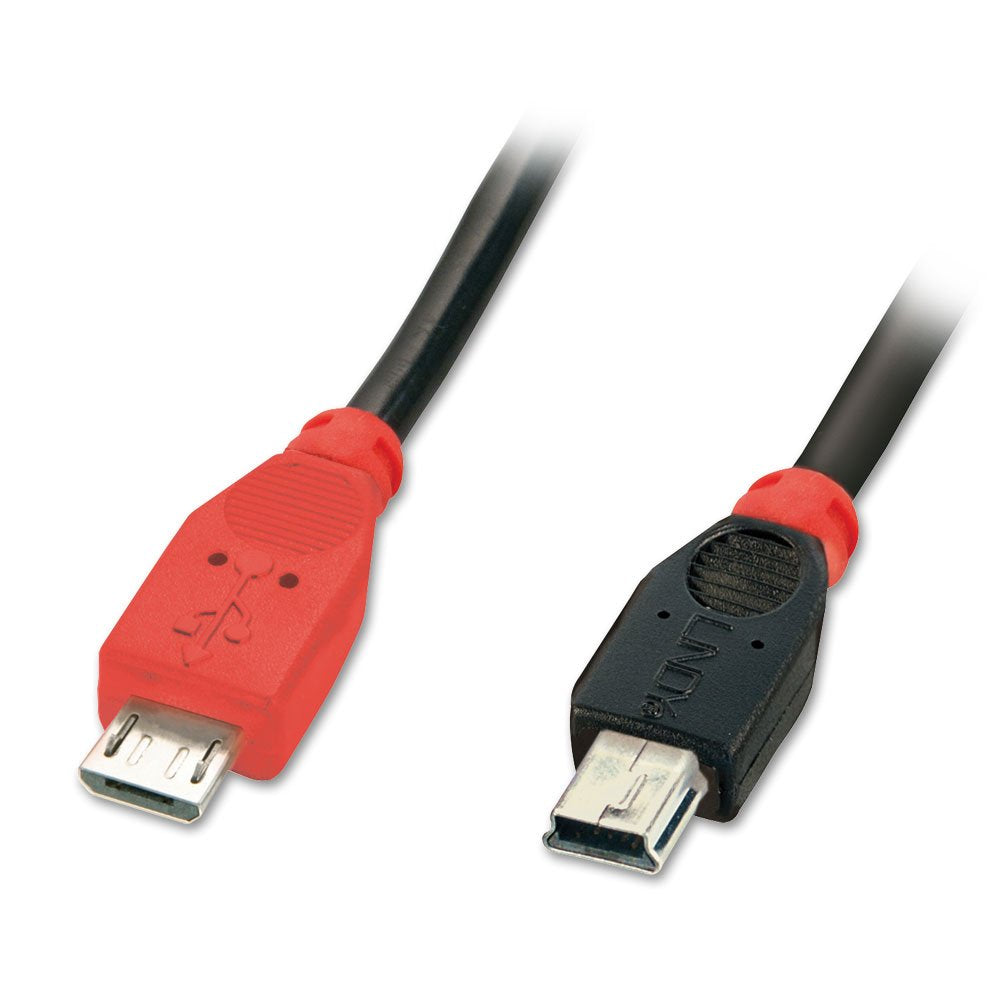

Lindy 0.5m USB 2.0 Type Micro-B to Mini-B OTG Cable | 31717
SKU: 31717
£1.01 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Gold-Plated Pins Ensure Signal Integrity
The Lindy USB Type Micro-B to Mini-B OTG cable enables a direct connection between two USB devices, with one device being the host and the other one being the peripheral. The connectors feature different colours for better differentiation.
The red marked connector is the OTG host and should therefore be connected to the device which should serve as a host. Please note that the cable does only work in one direction.
The cable is compatible with many devices featuring a USB Type Micro-B/Mini-B port such as smartphones, cameras, E-Bike computers. It can e.g. be used to connect a GPS device to an E-Bike computer to power, or to transfer images from a camera directly to the smartphone.Lindy USB Type Micro-B to Mini-B OTG Cables are available in the following lengths: 0.5m, 1m and 2m. -
Connector A USB 2.0 Type Micro-B Male Connector B USB 2.0 Type Mini-B Male Housing Material PVC Shielding in Head Shell - Connector Plating Nickel Pin Construction Copper Alloy Pin Plating Gold Dimensions Micro-B 22.75x10.2x6mm (0.9x0.4x0.24in) Dimensions Mini-B 22.75x10.2x6mm (0.9x0.4x0.24in) Length 0.5m (1.64ft) Standard USB 2.0 Colour Black Type Round Jacket Diameter 3.5mm (0.14in) Jacket Material PVC Conductor Material Copper Conductor Gauge Power 28AWG Conductor Gauge Data 28AWG Shielding Aluminium Magnesium Braid Supported Bandwidth 480Mbps Nominal Attenuation 1-400MHz < 5.8dB Minimum Bend Radius 42mm (1.65in) Operating Temperature -10°C - 40°C (14°F - 104°F) Storage Temperature -20°C - 70°C (-4°F - 158°F) Packaging Type Polybag Warranty 10 Years Certificated RoHS, REACH, UL & California Proposition 65 Product No. 31717 EAN 4002888317177 Other Lengths 31717 - 0.5m, 31718 - 1m, 31719 - 2m -
