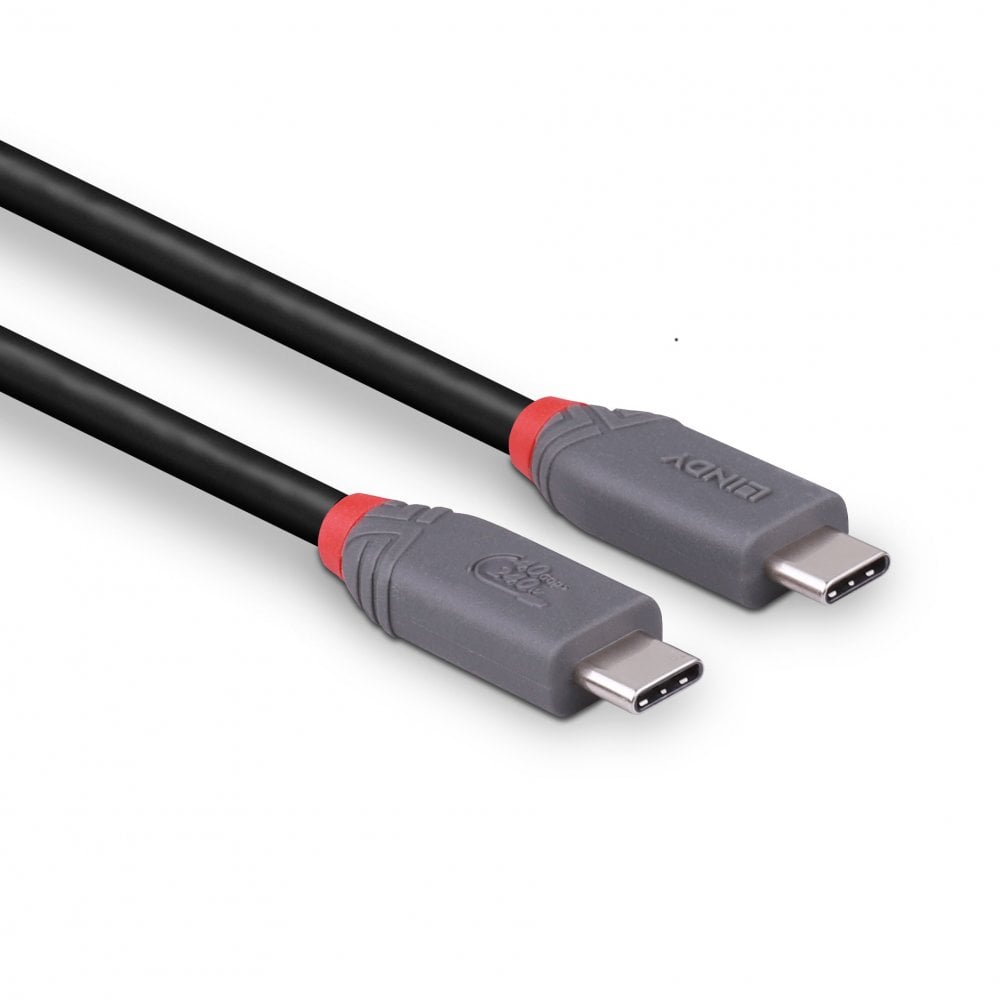

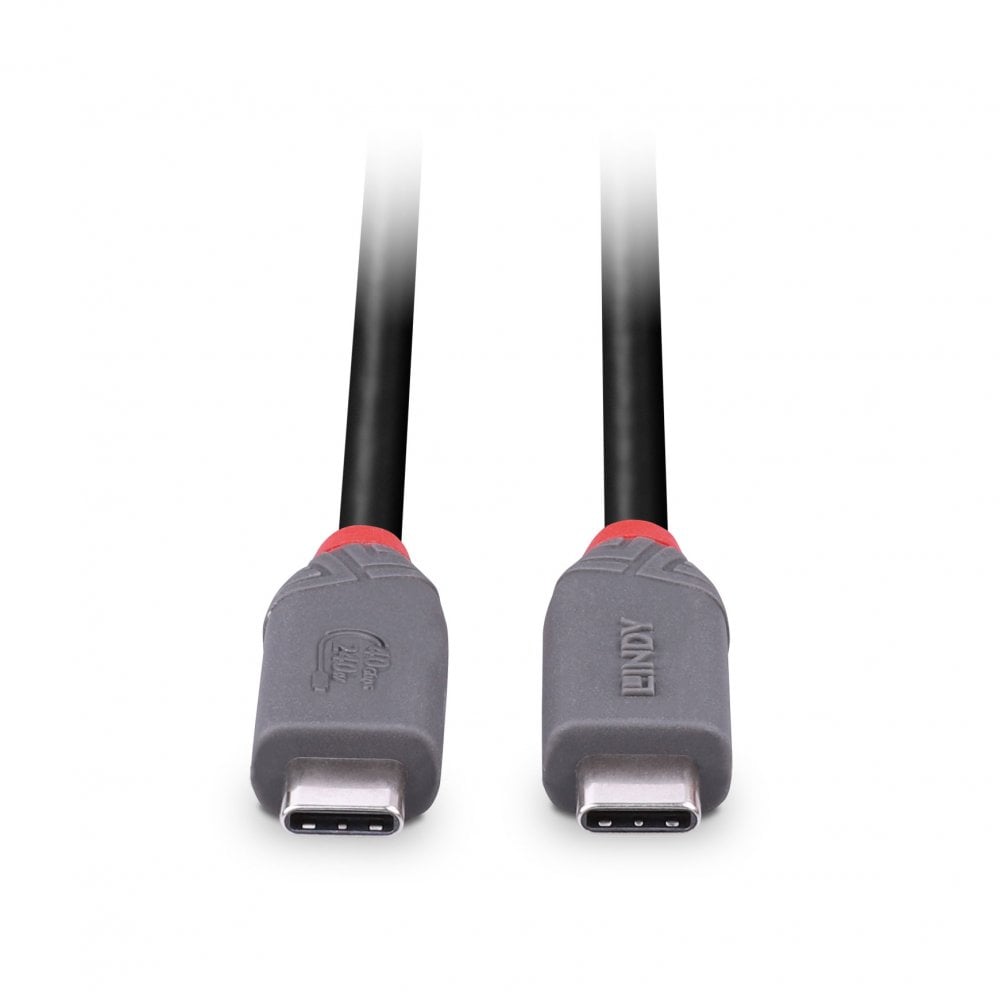

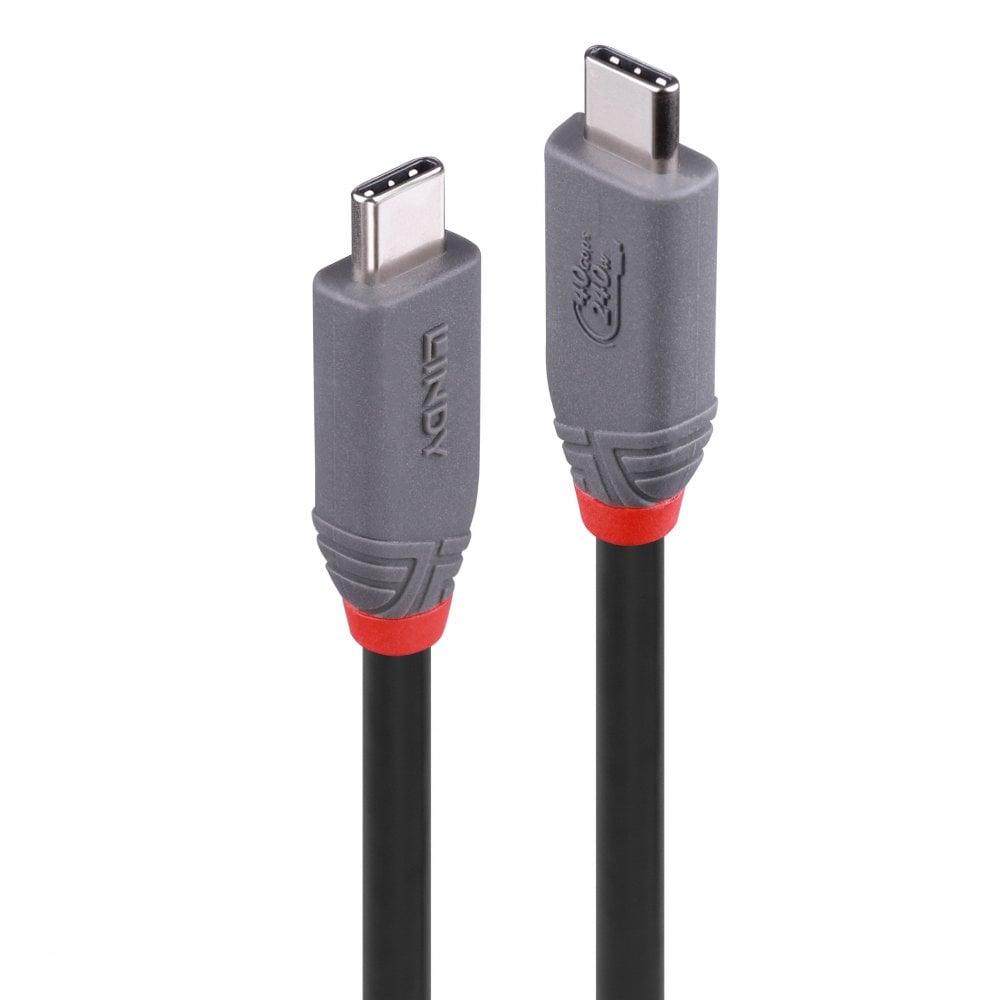

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
| Connector A | USB Type 4 C Male | Connector B | USB Type 4 C Male |
| Housing Material | TPE | Shielding in Head Shell | - |
| Connector Plating | Nickel | Pin Construction | Copper |
| Pin Plating | Gold | Dimensions (WxDxH) | 30x12.4x6.5mm (1.18x0.49x0.26in) |
| Length | 0.8m (2.62ft) | Standard | USB4 Gen 3x2 |
| Power Delivery | PD 3.1 | Max. Power | 240W (48V 5A EPR), 100W (20V 5A SPR) |
| Colour | Black | Type | Round |
| Jacket Diameter | 4.8mm (0.19in) | Jacket Material | TPE |
| Conductor Material | Silver Plated Copper | Conductor Gauge Power | 23AWG |
| Conductor Gauge Data | 30AWG/33AWG/34AWG | Shielding | Copper Braid 85% |
| Supported Bandwidth | 40Gbps | Maximum Resolution | 3840x2160@60Hz, 7680x4320@60Hz |
| Nominal Attenuation | 0.5Mhz-15Ghz-11dB | Minimum Bend Radius | 28.8mm (1.13in) |
| Operating Temperature | -20°C - 40°C (-4°F - 104°F) | Storage Temperature | -40°C - 80°C (-40°F - 176°F) |
| Packaging Type | Polybag | Warranty (Years) | 2 |
| Product Compliance | RoHS, REACH, California Proposition 65 & UL | Product No. | 36956 |
| EAN | 4002888369565 | Other Lengths | 36956 - 0.8m, 36957 - 2m, 36958 - 3m |
| Description | Downloads |
|---|---|
| Product Safety Information | Downloads |
