Lindy 10” Desktop Control Touchpad for AV Room Automation and Device Management | 32309

Professional Room Control Solution for Meeting Spaces and AV Systems

Flexible Room & Device Control with a 10 Inch Programmable Touchpad

The Lindy Control Touchpad Desktop provides intuitive and fully programmable control for presentation spaces, meeting rooms, auditoriums and professional AV environments, combining a responsive 10 inch touchscreen with flexible LAN and RS-485 device management.

Customisable Touchscreen Control for Professional AV Installations
Designed for flexible room control applications, the touchpad combines a capacitive 1280x800 touchscreen with simple project configuration through Lindy Pro Control software. Fully customisable button layouts, LAN and RS-485 control support, PoE capability and remote project management via smartphone or tablet applications make it suitable for modern conference, education and integrated AV environments.

At a Glance
10 inch programmable touchscreen
Provides intuitive and responsive control for integrated AV systems.

LAN and RS-485 control
Supports management of compatible devices across multiple control interfaces.

Customisable user interface
Create personalised layouts, buttons and backgrounds for specific installations.

PoE or external power
Flexible powering options simplify installation and desk integration.

Key Benefits
Simple and effective programming environment
Lindy Pro Control software provides an intuitive platform for configuring room control projects, managing commands and designing touchscreen interfaces for a wide range of controllable AV and IT devices.

Fully customisable touchscreen interface
Buttons, layouts and background images can be personalised to suit individual room requirements, helping integrators create clear and user-friendly control systems.

Flexible network and serial integration
Support for TCP/IP and RS-485 communication allows integration with a broad range of displays, switchers, audio systems, lighting controllers and automation platforms.

Designed for professional meeting and presentation spaces

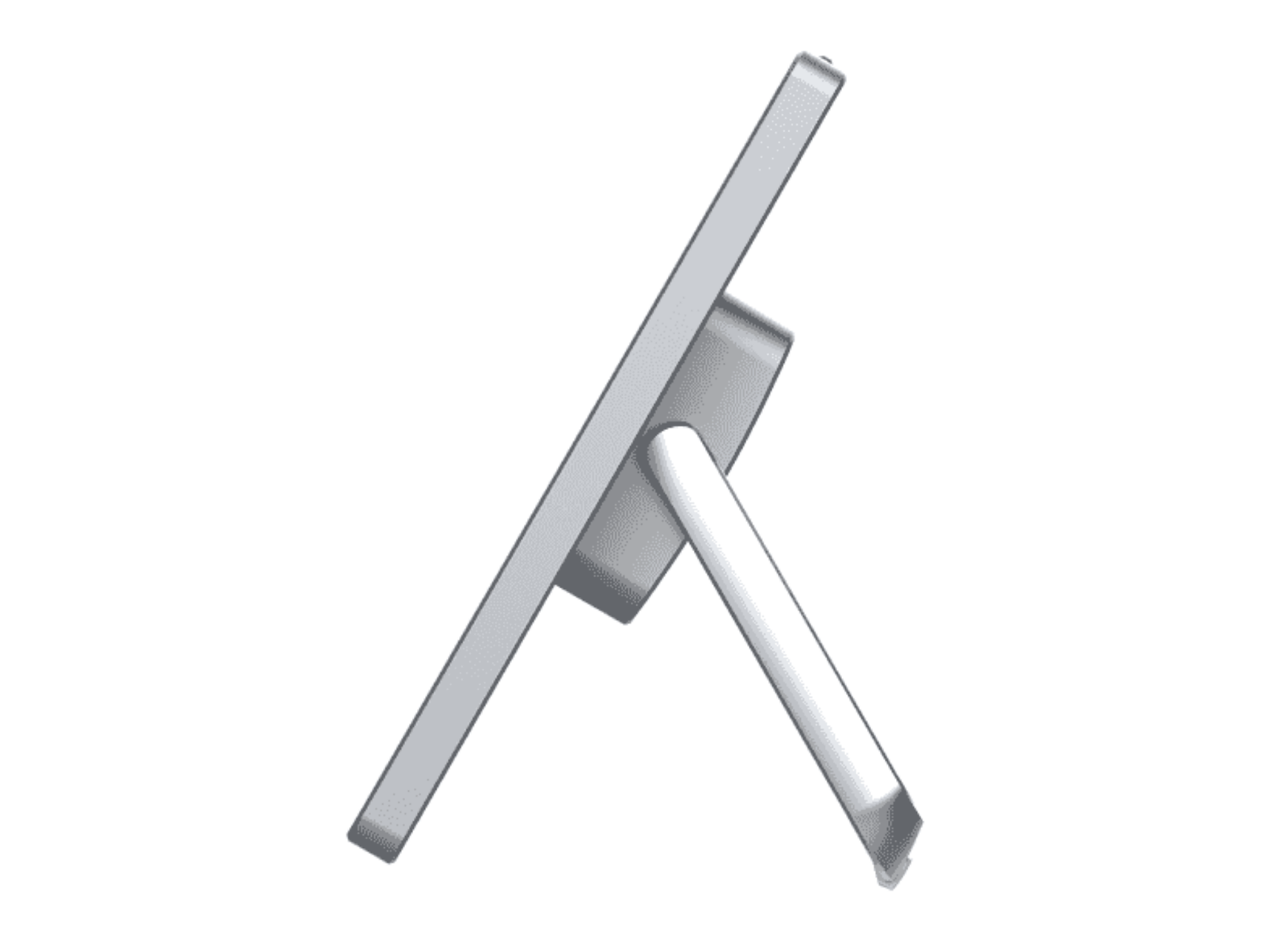

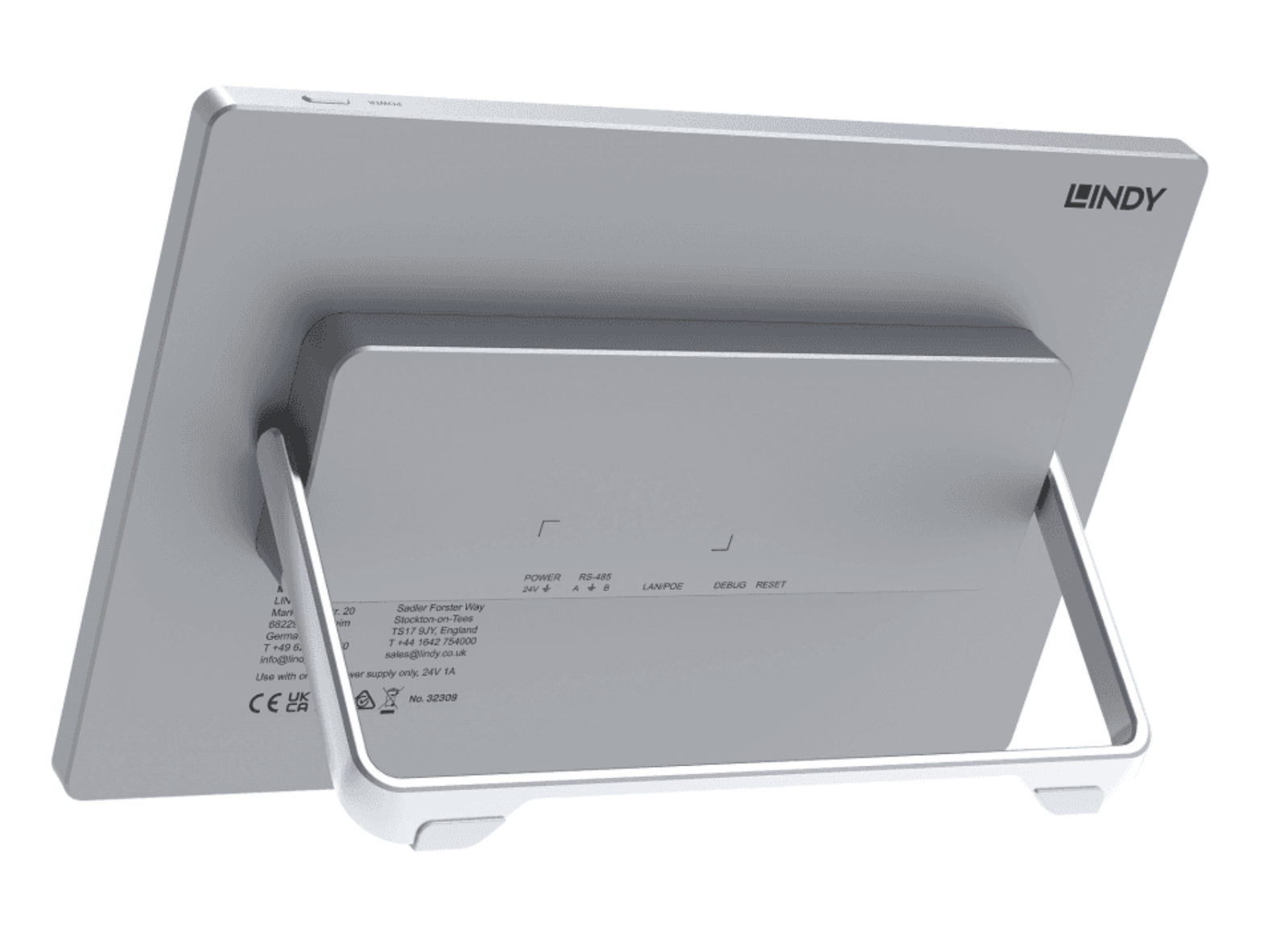

The adjustable desktop mounting bracket and slim aluminium housing provide a clean and practical control solution for boardrooms, lecture theatres and collaborative workspaces.

Remote project management capability
Configured projects can also be managed through the Lindy Pro Control mobile application on smartphones and tablets, providing additional flexibility for installers and end users.

Reliable installation with flexible powering
Support for PoE or external 24V DC power simplifies cabling requirements while enabling reliable deployment across modern AV and network infrastructures.

Typical Applications

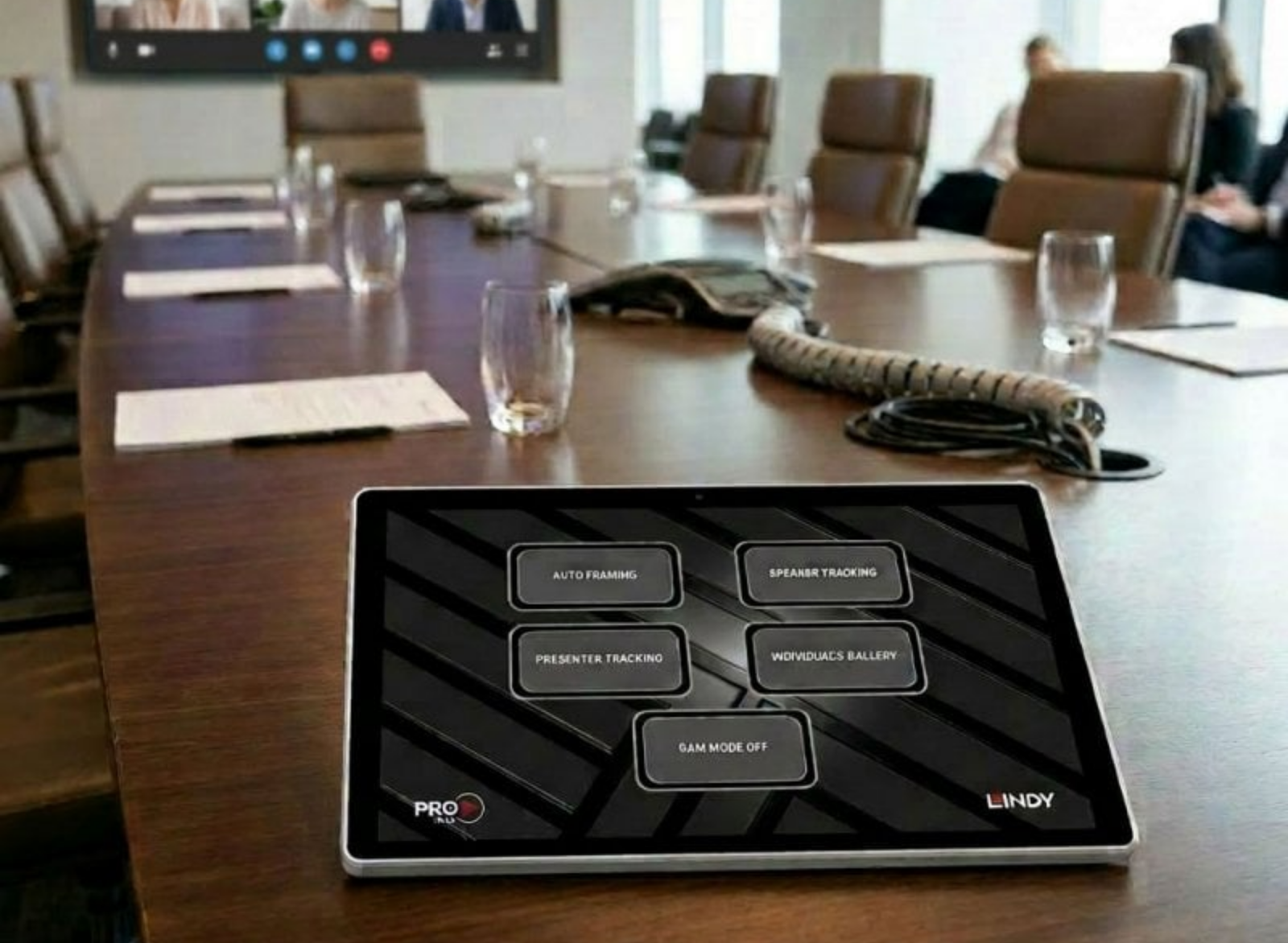

The Control Touchpad Desktop is ideal for presentation systems, conference rooms, classrooms, auditoriums and collaborative meeting spaces requiring centralised management of AV and room devices. It can be used to control displays, matrix switchers, audio systems, cameras, lighting and automation equipment over network or RS-485 connections while providing a clean and intuitive touchscreen user experience.

Technical Summary

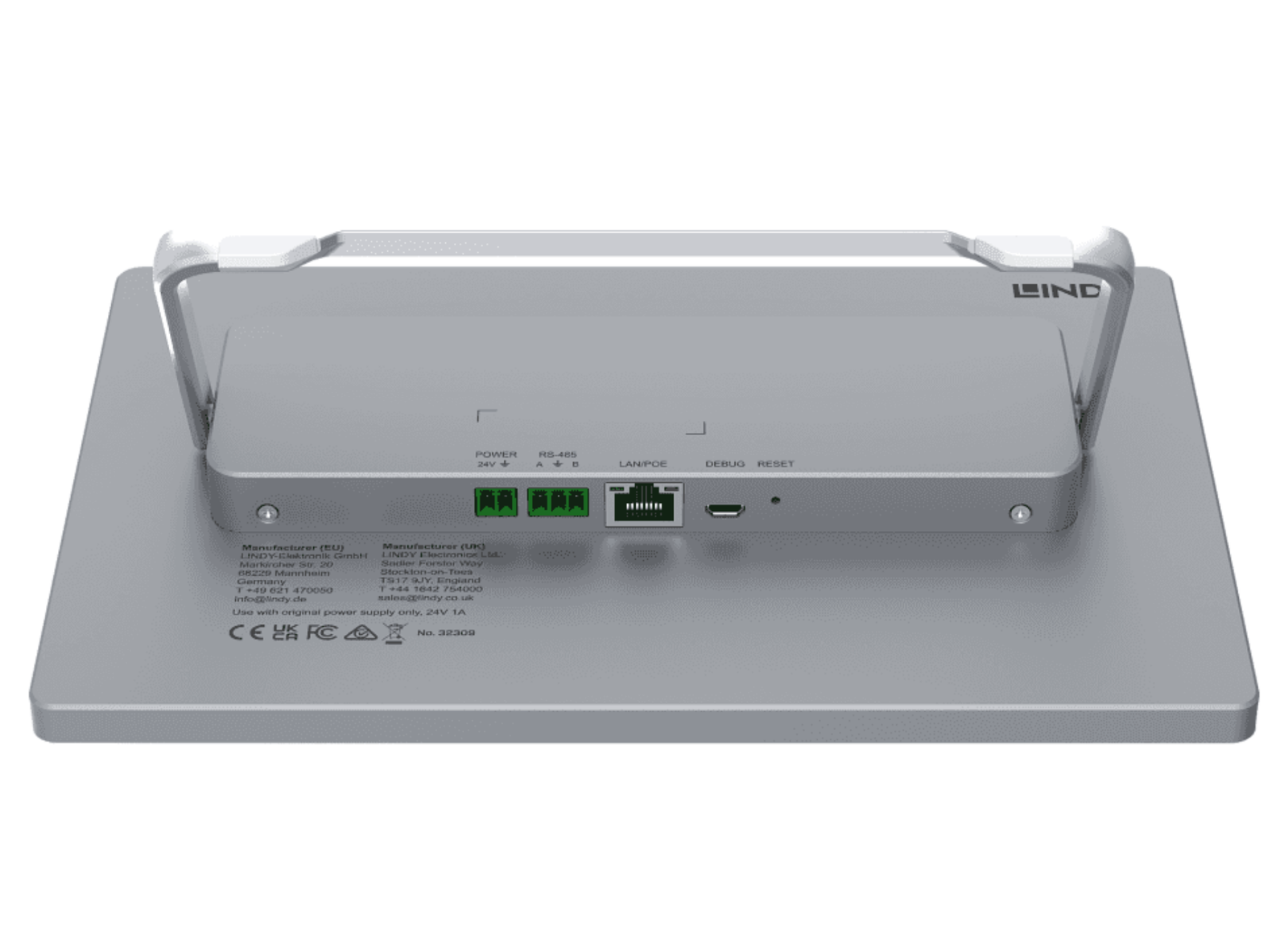

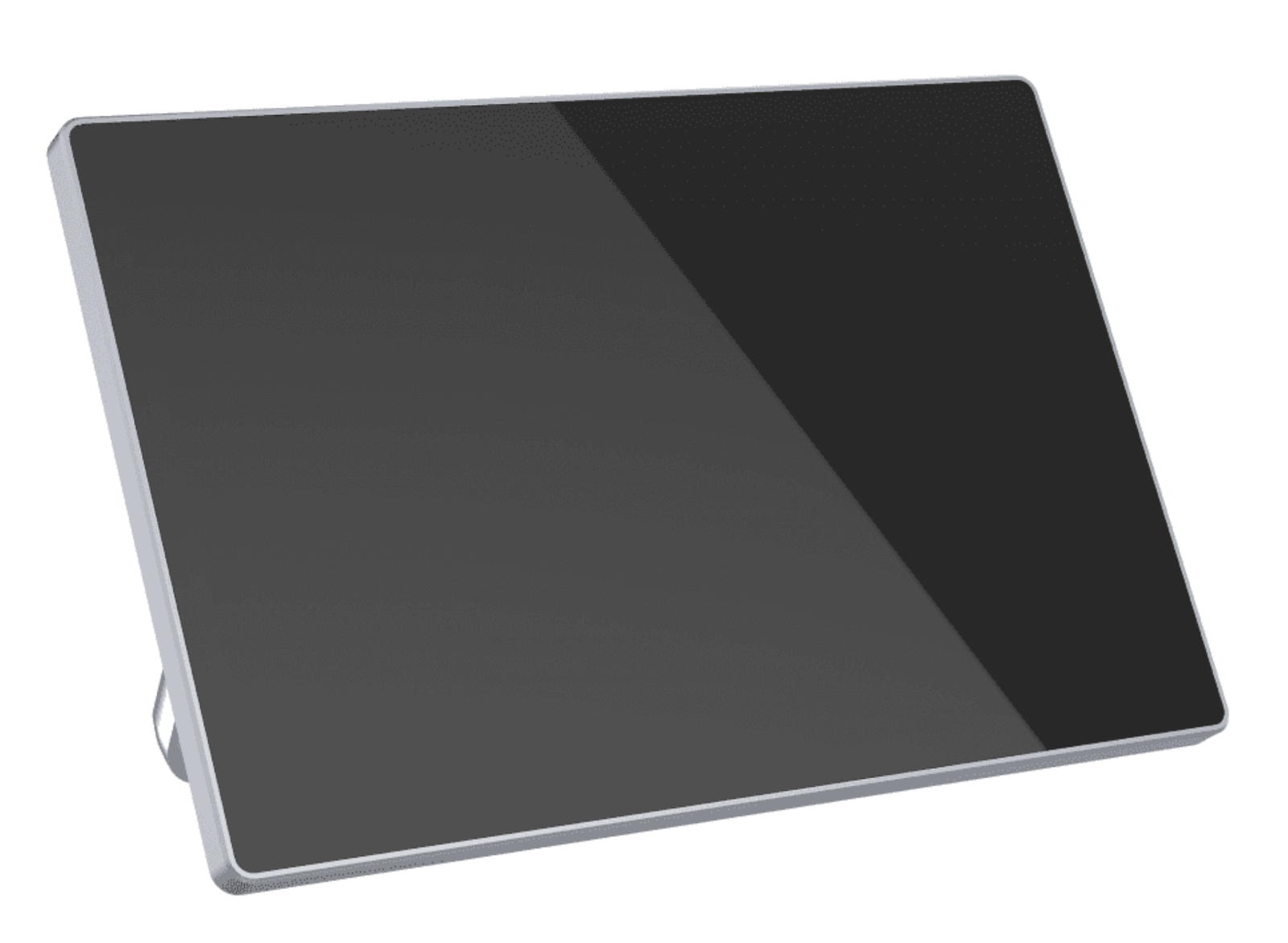

The touchpad features a 10 inch capacitive touchscreen with 1280x800 resolution and runs on Android 11 powered by an ARM Cortex-A55 1.8GHz processor with 4GB DDR4 RAM and 32GB eMMC flash storage. Control connectivity includes one Gigabit RJ45 PoE port and one RS-485 terminal block interface.

The unit supports PoE 802.3af or 24V DC external power input and can be deployed across Cat.6 infrastructure with transmission distances up to 100m. The aluminium alloy enclosure measures 245.4 x 164 x 27mm and includes an integrated adjustable rear bracket for desktop positioning.

Supplied accessories include Phoenix connectors, a multi-country power supply and quick installation guide. The touchpad is backed by a 2-year warranty and certified to CE, UKCA, FCC, RoHS, REACH and California Proposition 65 standards.
