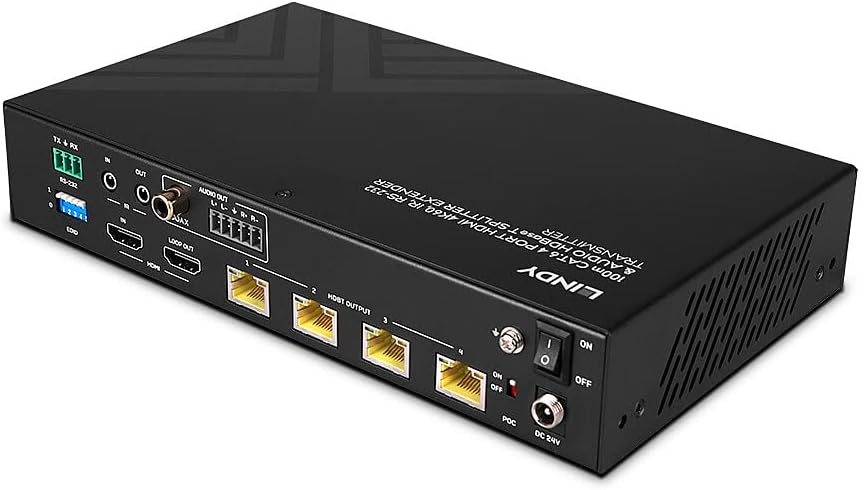

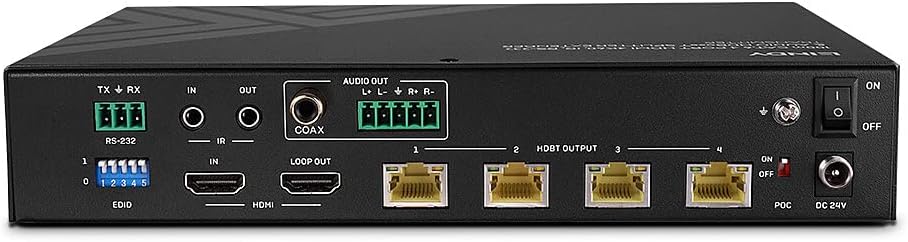

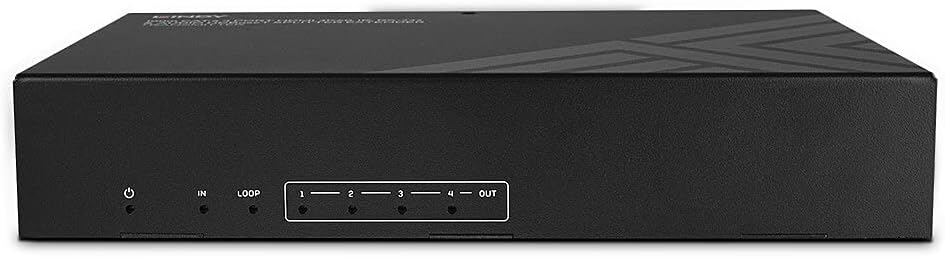

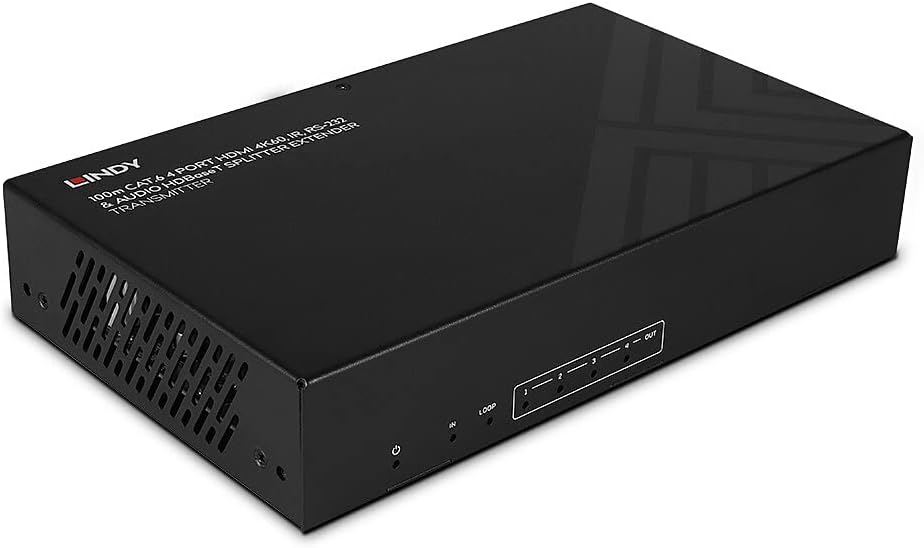

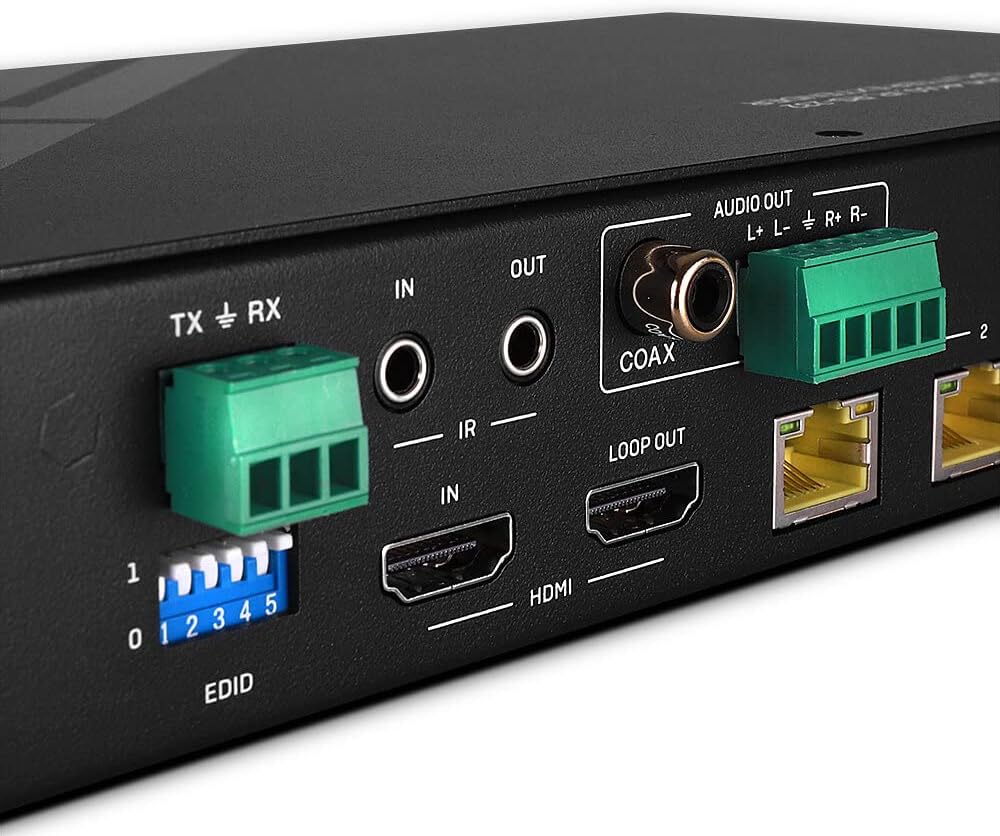

Lindy 100m Cat.6 4 Port HDMI 4K60 HDBT Splitter Extender
The Lindy 100m Cat.6 4 Port HDMI® 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI® signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.
Compatible with most HDBaseT receivers on the market like N. 38342.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as digital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI® loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
Please Note: Receviers are not included, ensure to use HDBaseT receivers that support all the required features.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Category | Attribute | Value |
|---|---|---|
| AV Interface | HDMI® Standard | HDMI® 2.0 |
| Bandwidth | 18Gbps | |
| Max Resolution | 3840x2160@60Hz 4:4:4 8bit | |
| HDCP Support | HDCP 2.2 | |
| EDID Support | Presets, Cloning | |
| Distance | 4K@60Hz | Up to 70m |
| 1080p@60Hz | Up to 100m | |
| Audio | HDMI Audio | Pass-through |
| Digital Audio | Up to 5.1Ch | |
| Analog Audio | Up to 2.0Ch | |
| Audio Ports | Coax, 5-pin Phoenix | |
| IR & Serial | IR Range | 20 - 60KHz |
| RS-232 | 3-Pin Terminal Block | |
| Transmission | Protocol | HDBaseT |
| Medium | 4 x Cat.6 | |
| Features | HDMI® Loop Out | Yes |
| PoC (Power over Cable) | Yes | |
| Connectors | TX Input | HDMI®, 3.5mm IR |
| TX Output | HDMI®, Coax, 5-pin L/R, IR, 4 x RJ45 | |
| Power | Connector | 5.5/2.1mm |
| Requirements | 24VDC 2.7A | |
| Physical | Dimensions (WxDxH) | 220x130x40mm |
| Material | Metal | |
| Net Weight | 1.395kg (3.08lb) | |
| Colour | Black | |
| Environment | Operating Temp. | 0°C to 40°C |
| Storage Temp. | -20°C to 60°C | |
| Humidity | 20% to 90% RH (non-cond.) | |
| Packaging | Type | Carton Box |
| Dimensions | 285x274x100mm | |
| Gross Weight | 1.894kg (4.18lb) | |
| Compliance | Certifications | CE, UKCA, FCC, RoHS, REACH, Prop 65 |
| Warranty | Duration | 2 Years |
| Included Items | Contents | Transmitter, IR Cables, Mounts, PSU, Manual |
| Description | Downloads |
|---|---|
| Lindy 100m Cat.6 4 Port HDMI 4K60 HDBT Splitter Extender | 38355 User Manual | Downloads |
