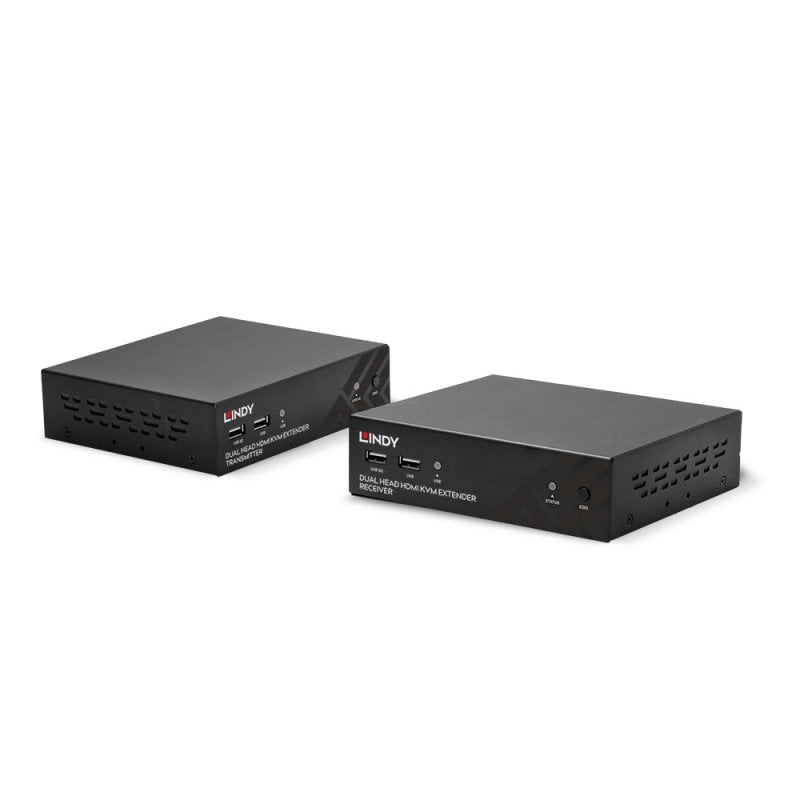

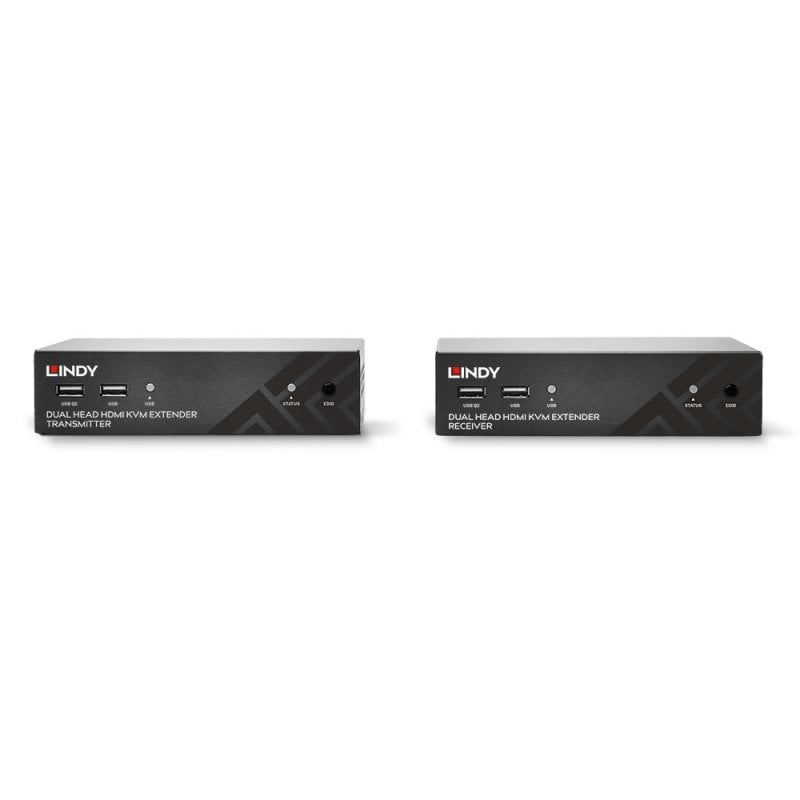

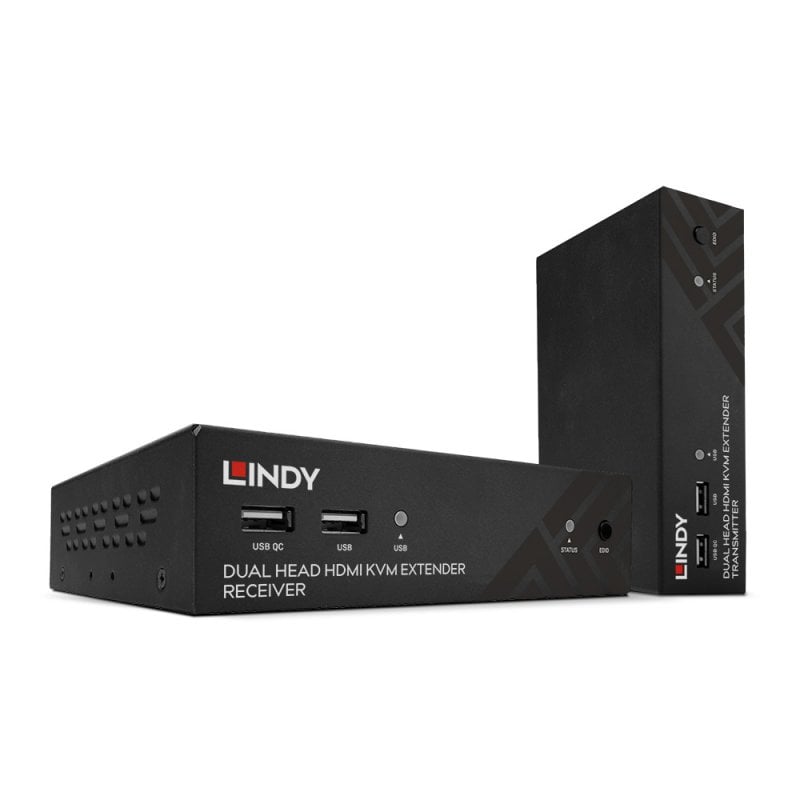

Lindy 100m Cat.6 Dual Head HDMI, USB & RS-232 Extender | 39374

The Lindy 100m Cat.6 Dual Head HDMI, USB & RS-232 KVM Extender is a powerful, versatile solution for extending and controlling a dual head workstation up to distances of 100m (328.08ft) over a single Cat.6 cable using HDBaseT. It's utilisation of the HDBaseT 2.0 specification allows for the transmission of audio, video & various control methods with just one connection between the transmitter and receiver units.

The use of two HDMI displays at resolutions up to 1920x1080@60Hz and USB HID’s in a convenient remote location creates a super effective productivity console. This gives users the ability to fully operate a high performance PC which is stored in a convenient location, helping to meet the requirements of modern offices as multiple applications can be open and sharing data simultaneously.

Up to 7.1 Digital & Stereo analogue can be passed through from the source to standalone amplifiers, speakers and headphones to ensure any relevant audible information or data is understood by the user.

Serial & Bi-directional IR add to this extender’s comprehensive suite of control methods. Source and display devices can be controlled at either point of a configuration using an IR remote control, whilst serial input and control devices can be used at the remote console.

In applications which rely heavily on the uptime of source devices such as medical environments or manufacturing, the Lindy 100m Cat.6 Dual Head KVM extender can be used to ensure PC’s or servers can be locked in a secure location to prevent any unauthorised access or tampering of equipment and protect them from major power outages, fires or water leaks. It’s reliable HDBaseT connection means users can be confident that control will always be maintained over the source device even in the most demanding environments.

Category	Details
AV Interface	2 x HDMI
Console Interface	USB
Interfaces Standard	HDMI 1.4, USB
Supported Bandwidth	4.95Gbps
Maximum Distance	100m (328.08ft)
Maximum Resolution	1920x1080@60Hz
HDCP Support	1.4
Supported Audio	Analogue Stereo & Toslink
Separate Audio Ports	2 x 3.5mm (Female), 1 x Toslink (Female)
Transmission Protocol	HDBaseT
Transmission Medium	1 x Cat.6 cable
Special Features	IR and RS232 signal extension

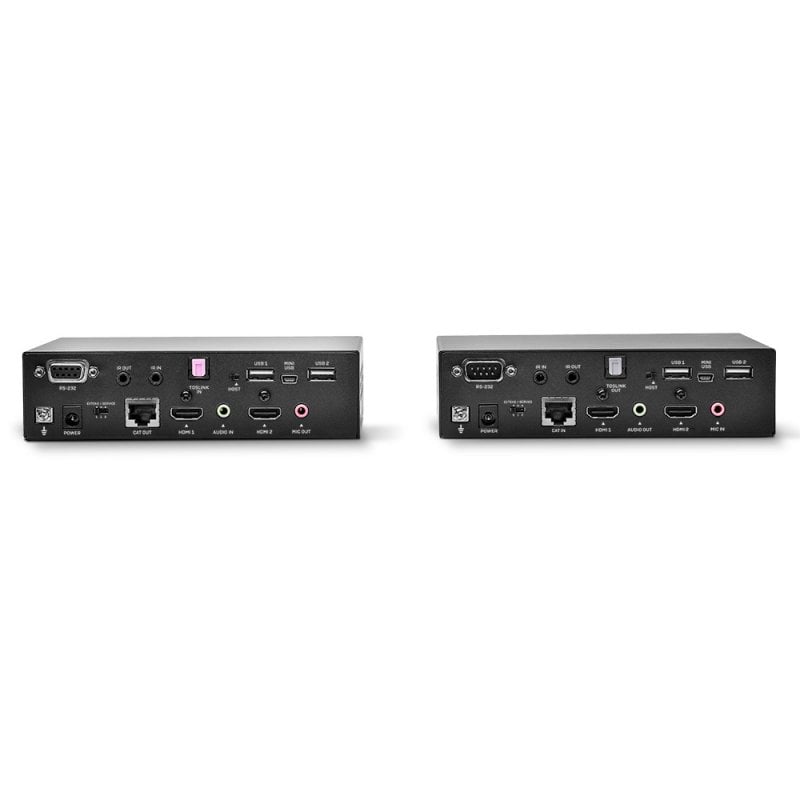

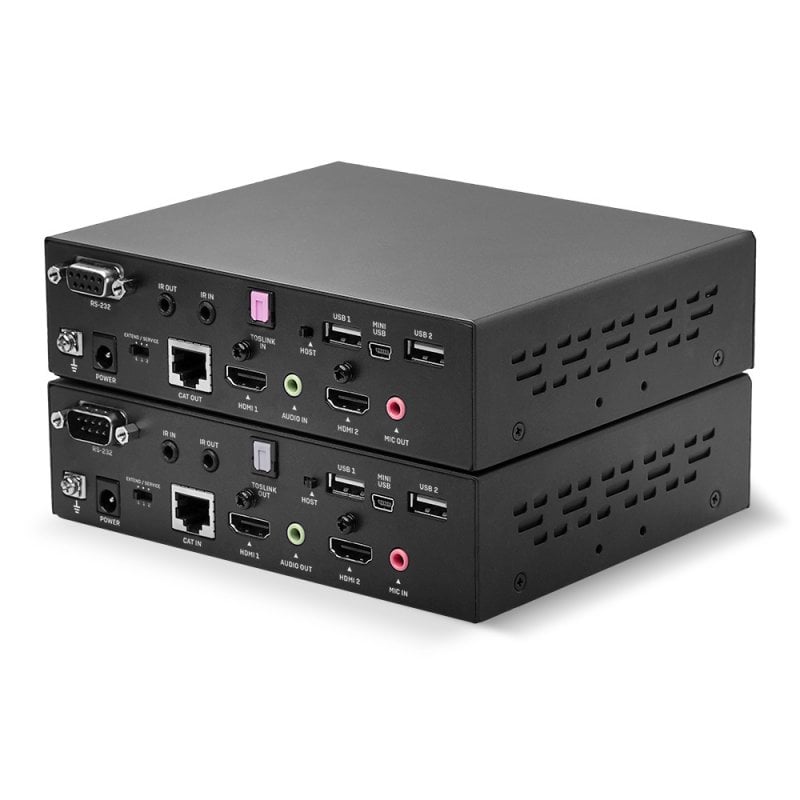

Connectors	Transmitter KVM Interfaces: 2 x HDMI (Female), 4 x USB Type A (Female), 1 x Mini USB (Female), 2 x 3.5mm Audio (Female), 2 x 3.5mm IR (Female), 1 x Toslink (Female), 1 x DB9 (Female)
	Transmitter Extension Port: 1 x RJ45 (Female)
	Receiver Console Interface: 2 x HDMI (Female), 4 x USB Type A (Female), 1 x Mini USB (Female), 2 x 3.5mm Audio (Female), 2 x 3.5mm IR (Female), 1 x Toslink (Female), 1 x DB9 (Female)
	Receiver Extension Port: 1 x RJ45 (Female)
	Bi-directional Ports: DB9 RS232 (Female)
Power	5.5/2.1mm DC socket
Physical Properties	Dimensions: 156x130x42mm (6.14x5.12x1.65in) per unit
	Housing Material: Metal
	Net Weight: 0.4kg (0.88lb) per unit
	Operating Temperature: 0°C - 65°C (32°F - 149°F)
	Storage Temperature: -20°C - 65°C (-4°F - 149°F)
	Humidity: 0 - 90% RH (non-condensing)
	Power Requirements: 12VDC 1.5A
	Colour: Black
Miscellaneous	Packaging Type: Carton box
	Packaging Dimensions: 450x220x67mm (17.72x8.66x2.64in)
	Gross Weight: 1.5kg (3.31lb)
	Warranty: 2 Years
	Certification: CE, FCC, RoHS & REACH
Package Contents	Transmitter and Receiver Units, USB cable, IR cables, Power supplies, Rubber feet, HDMI stand-offs, LINDY Manual
Purchasing Information	No.: 39374
	EAN: 4002888393744
