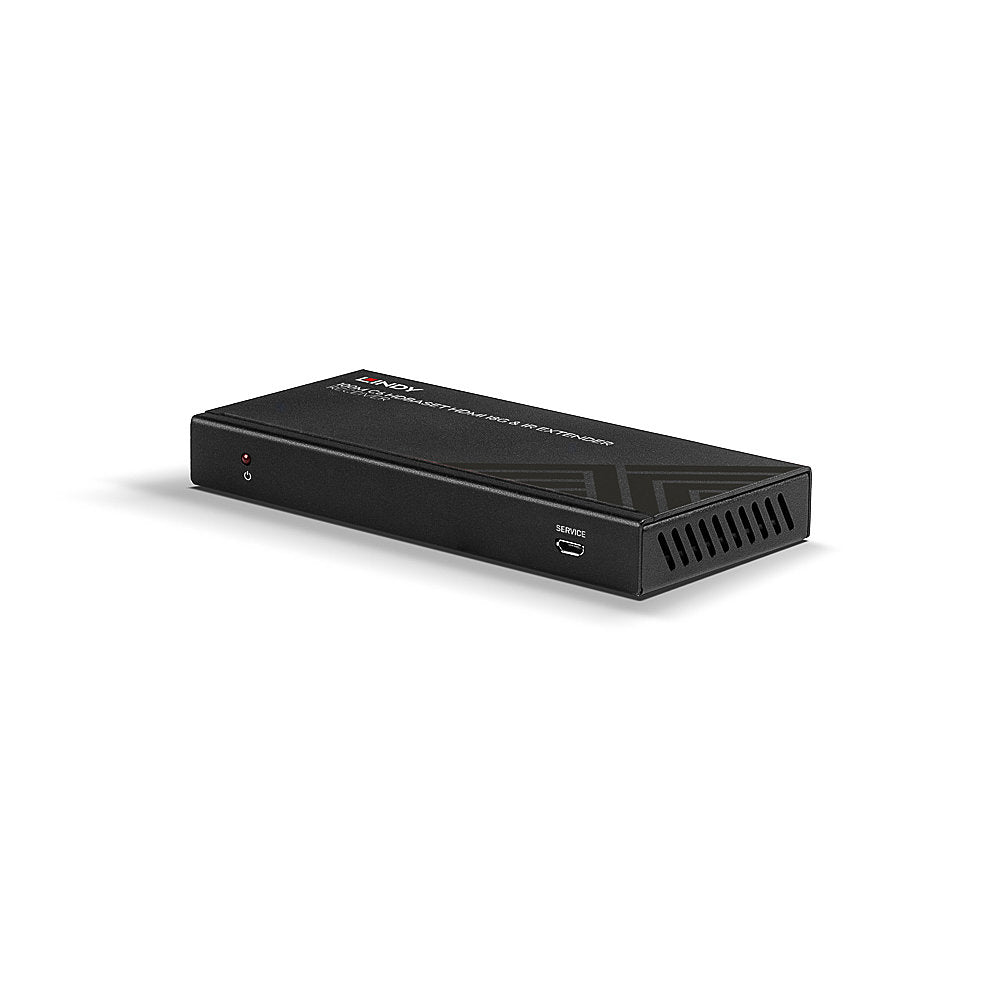

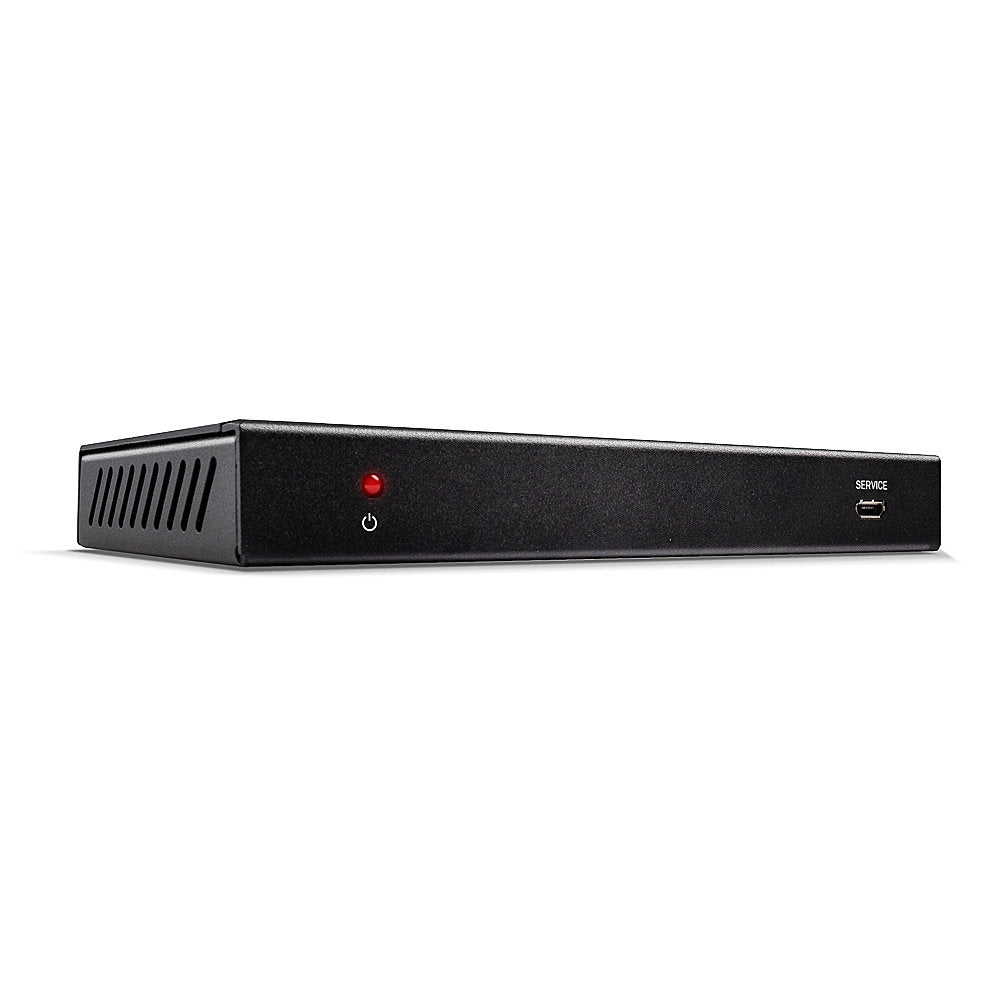

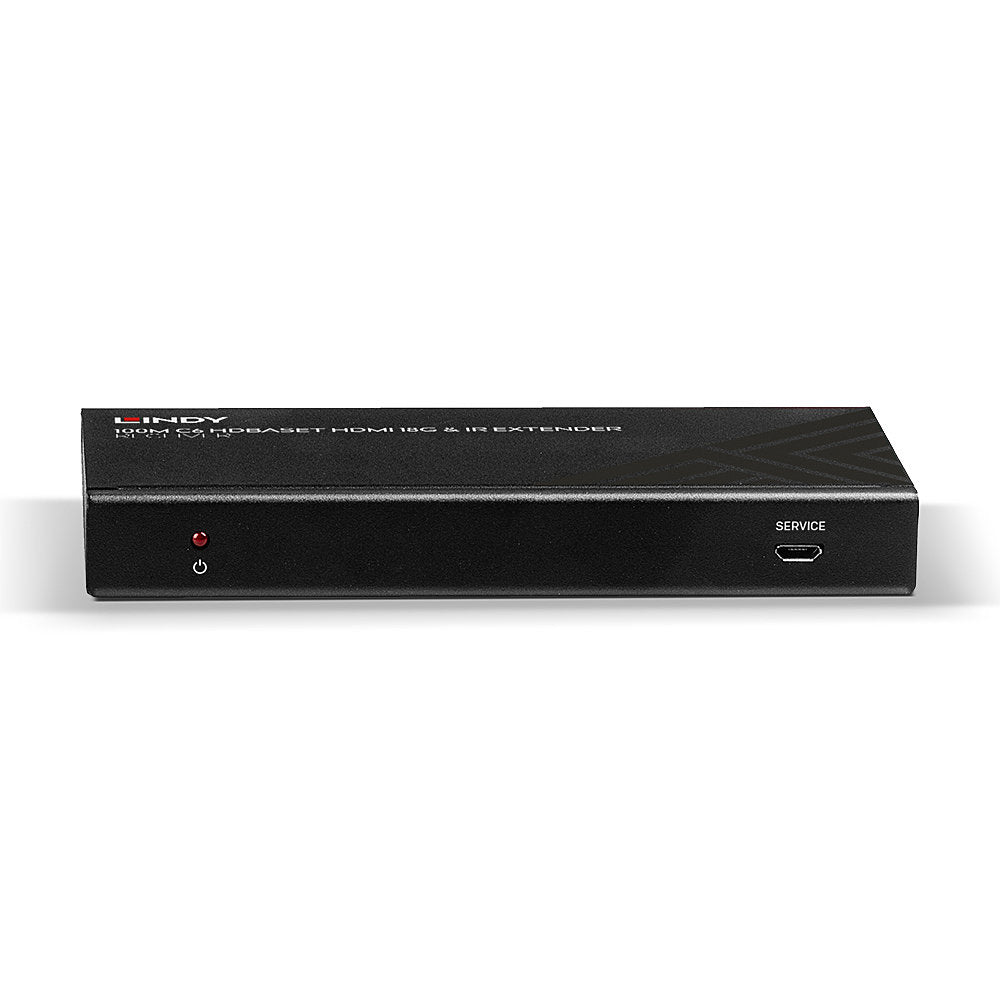

Lindy 100m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender with PoC, Receiver | 38207

The Lindy C6 HDBaseT HDMI 4K60 & IR Extender, Receiver is one part of a high performance solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this receiver unit with a compatible Lindy HDBaseT transmitter, splitter or matrix, this solution ensures reliable transmission up to 150m.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:

150m (492.12ft) - 1280x720@60Hz via Long Reach Mode

100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit

70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

Supporting resolutions up to 4K UHD 3840x2160@60Hz, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls. Analogue audio can be easily extracted via 3.5mm port for connecting speakers or amplifiers, to provide dual channel immersive audio to compliment the video content.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.

Terminal blocks allows for pass-through of RS-232 commands when integrated into control systems.

HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: Due to the methods of compression with this product, it is recommended this item is only used for a point to point connection with 38206.

Category	Specification
AV Interface	HDMI
Interface Standard	HDMI 2.0
Supported Bandwidth	18Gbps
Maximum Distance
- 3840x2160 @ 60Hz	70m (229.66ft)
- 3840x2160 @ 30Hz	100m (328.08ft)
- 1280x720 @ 60Hz	150m (492.12ft)
Maximum Resolution	3840x2160 @ 60Hz 4:4:4 8bit
HDCP Support	2.2
EDID Pass Through	Pass-through
Supported Audio	HDMI Audio Pass-through, 2CH Analogue
IR Support	20KHz - 60KHz
CEC Support	Pass-through
Serial Interface	RS-232 (Bi-directional)
Transmission Protocol	HDBaseT
Transmission Medium	1 x Cat.6
Special Features	2CH Analogue Audio Extraction, PoC (Power over Cat.6)

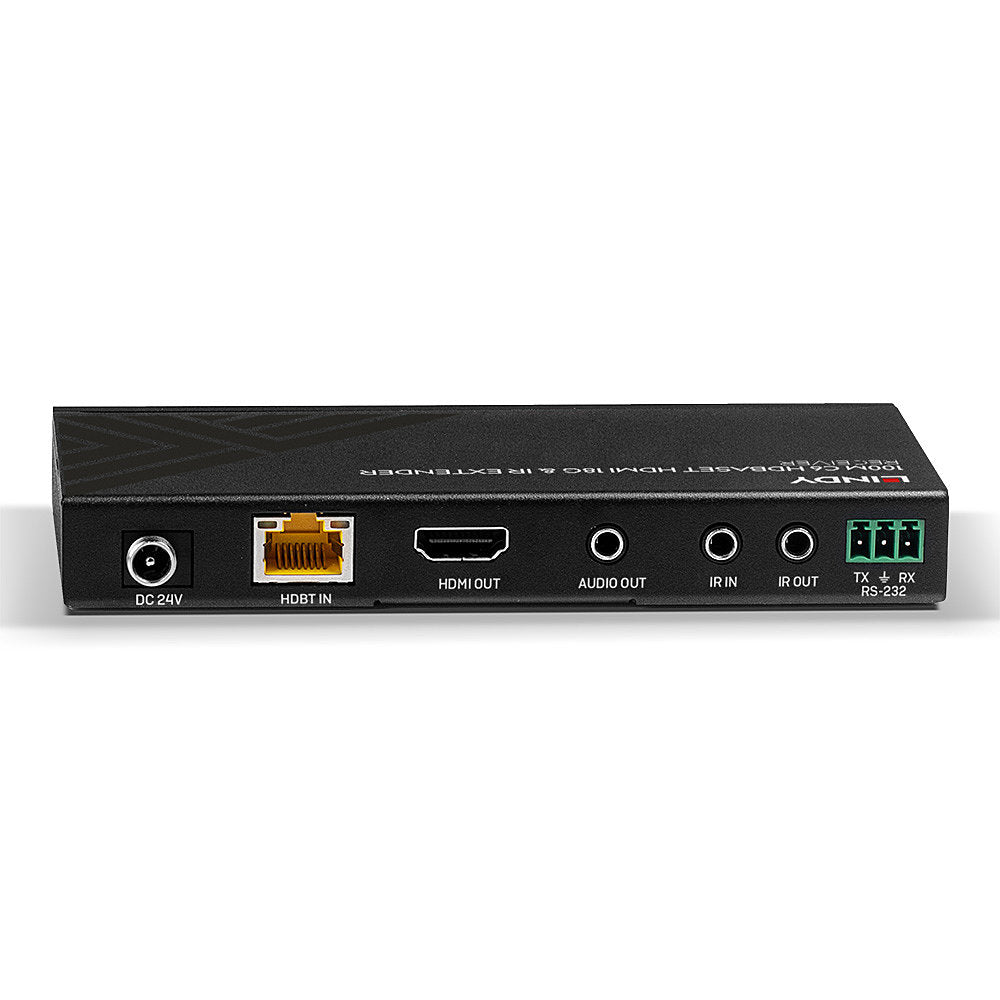

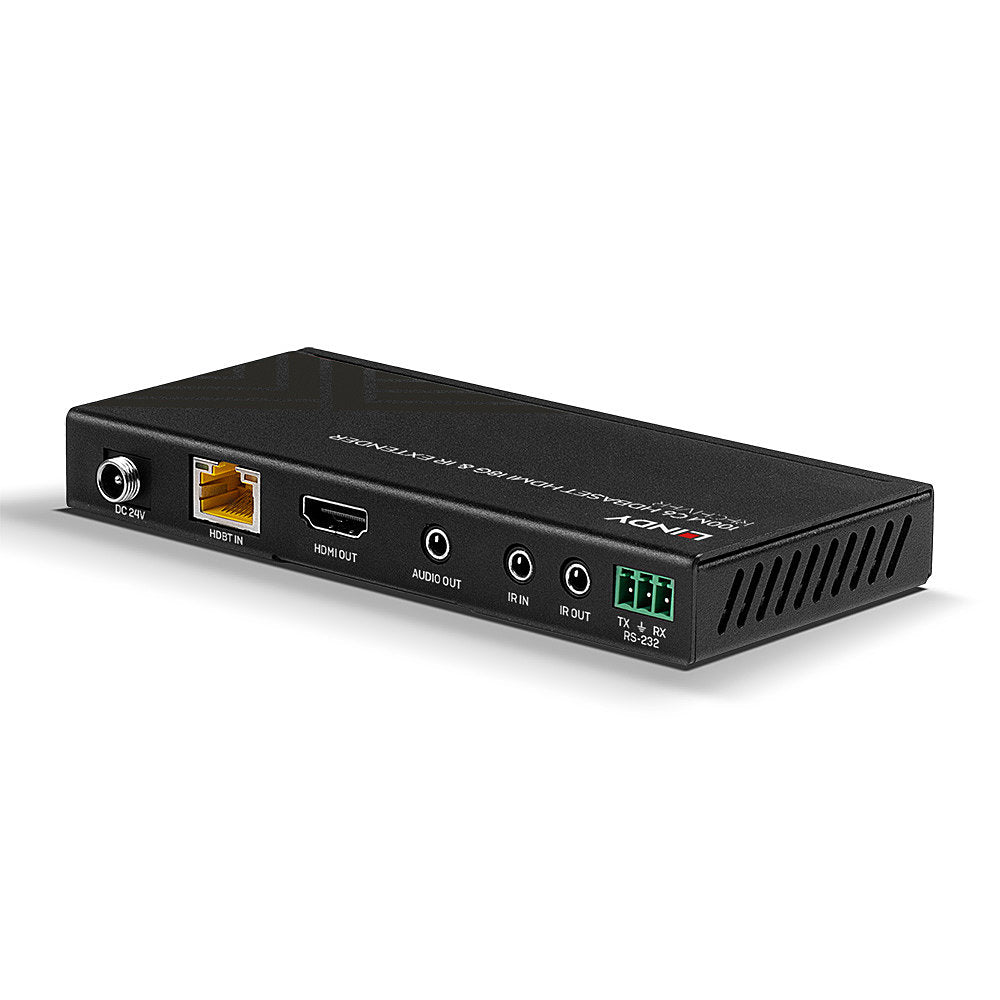

Connectors
Receiver Input	RJ-45 (Female)
Receiver Output	HDMI Type A (Female), 3.5mm (Female)
Bi-directional Ports	RS-232 (Female)
Power	5.5/2.1mm
Physical Properties
Dimensions (WxDxH)	140x65x18mm (5.51x2.56x0.71in)
Housing Material	Metal
Net Weight	0.478kg (1.05lb)
Operating Temperature	0°C - 40°C (32°F - 104°F)
Storage Temperature	-20°C - 60°C (-4°F - 140°F)
Humidity	20 - 90% RH (non-condensing)
Power Requirements	24VDC 1A
Colour	Black
Miscellaneous
Packaging Type	Carton Box
Packaging Dimensions	220x115x75mm (8.66x4.53x2.95in)
Gross Weight	0.644kg (1.42lb)
Warranty (Years)	2
Certifications	CE, FCC, RoHS, REACH & California Proposition 65
Package Contents
Contents	Extender, Receiver, IR Cables, Mounting Kit, Power Supply, Manual
Purchasing Information
No.	38207
EAN	4002888382076
