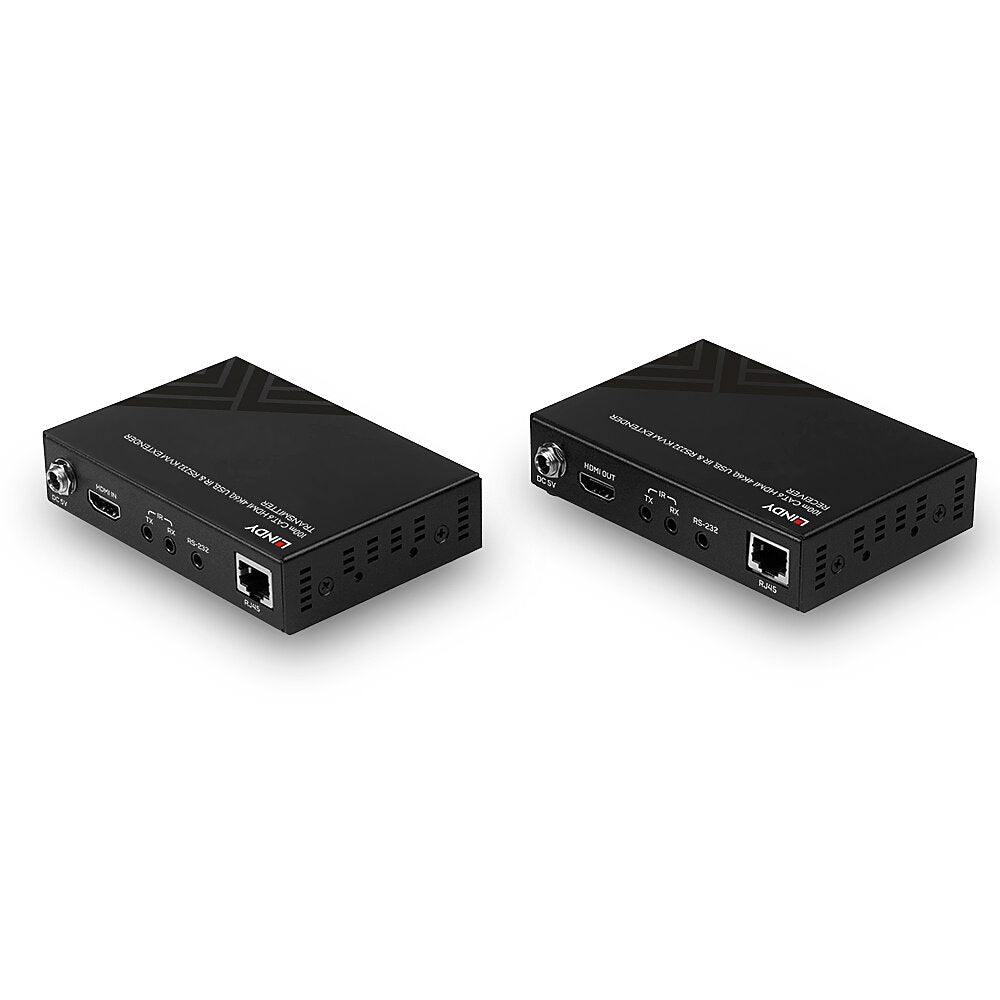

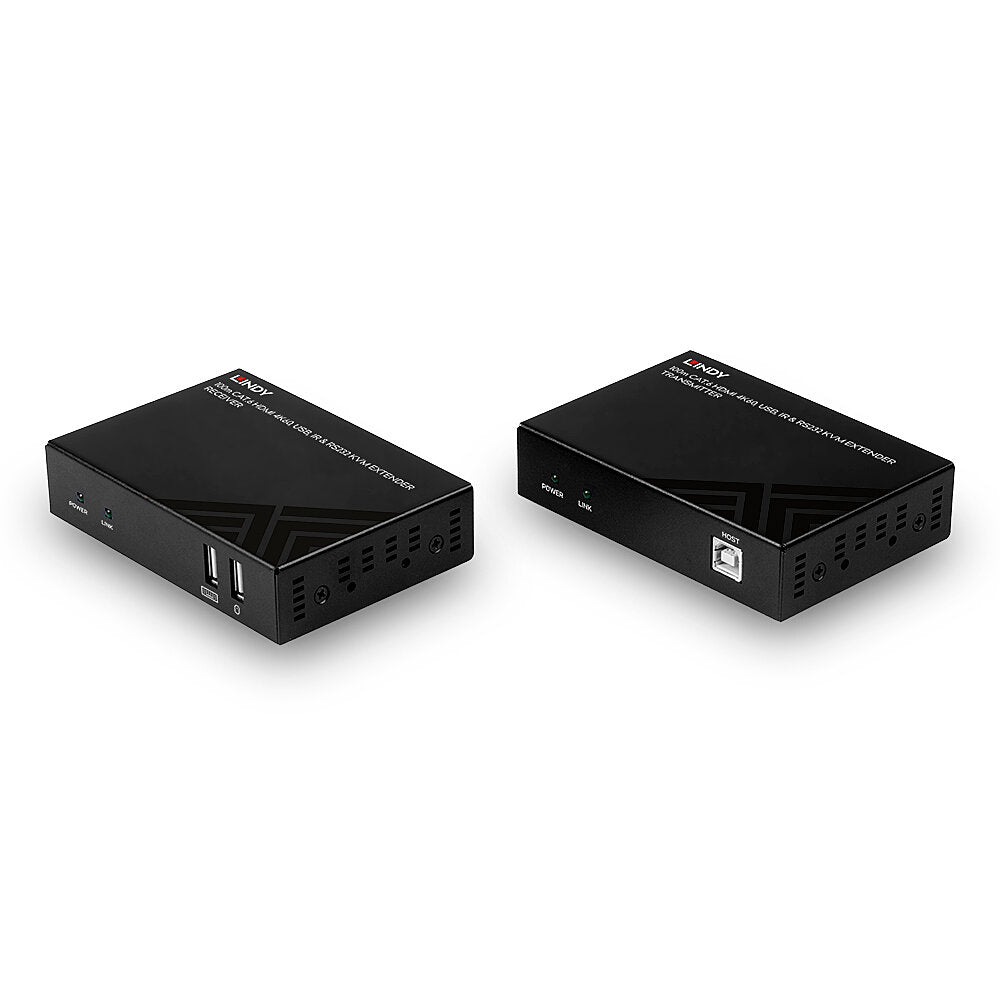

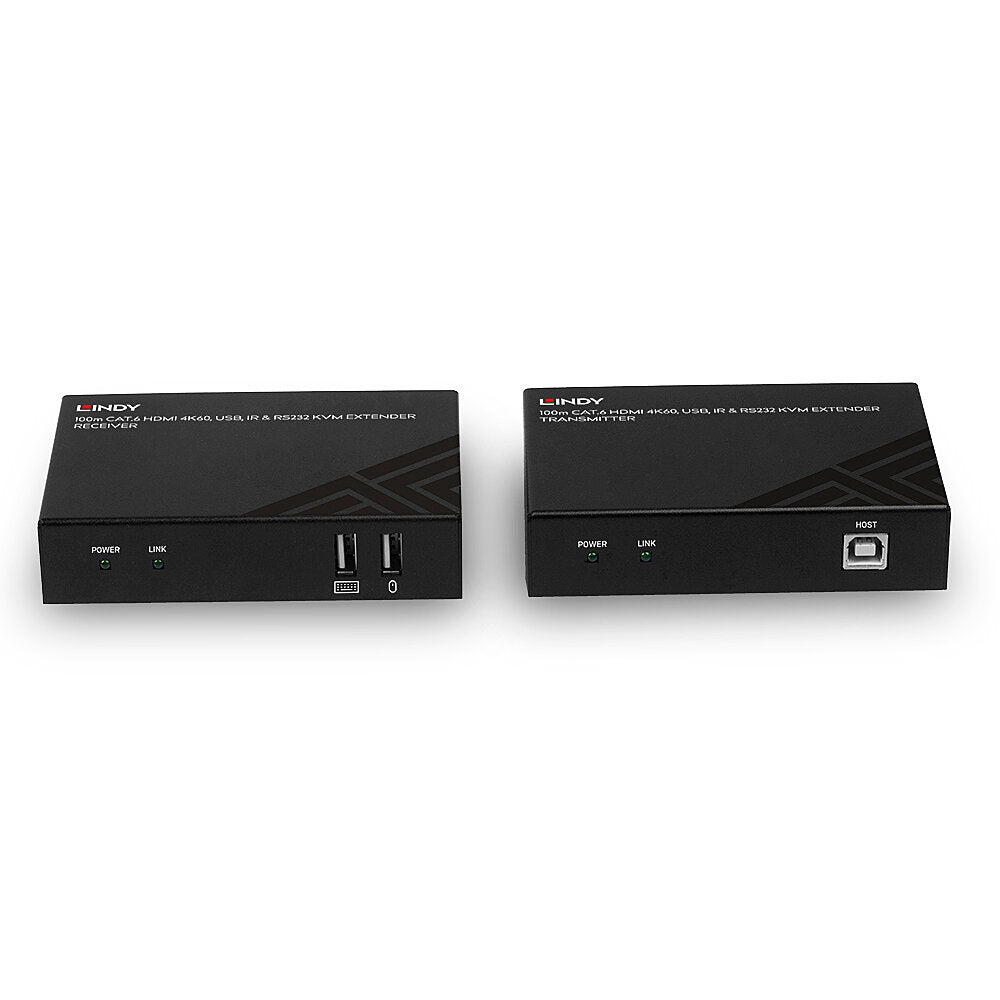

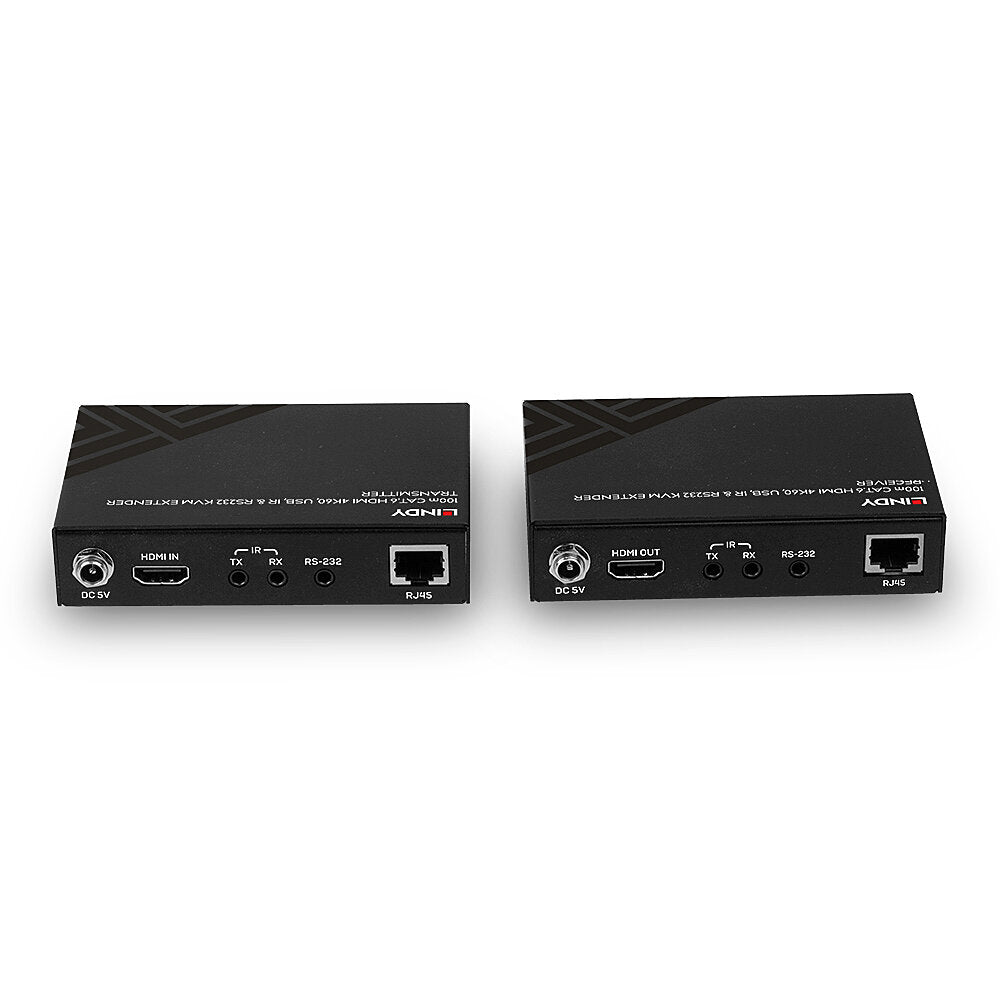

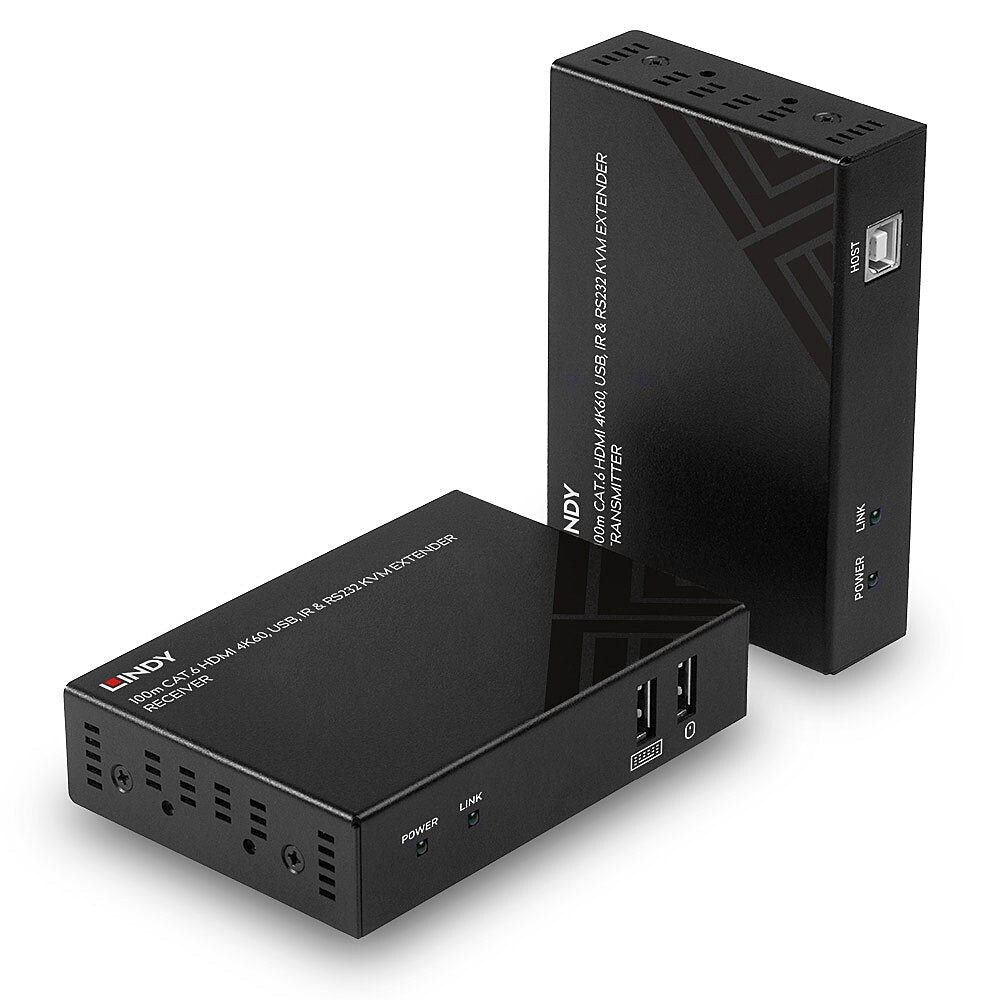

Lindy 100m Cat.6 HDMI 4K60, USB & RS232 KVM Extender | 39382
The Lindy Cat.6 HDMI® 4K60, USB, IR & RS232 KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable. Support for HDMI 18G signals allows for the transmission of highly detailed 3840x2160@60Hz resolutions, perfect for detailed content in control rooms, medical setups or security installations. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit; the transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be seamlessly controlled from the display side, and the display can also be controlled from the HDMI® source device. RS-232 connections also allow for integration into pre-installed control systems. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point-to-point connection.
-
| Category |
Details |
| AV Interface |
HDMI® |
| Console Interface |
USB |
| Interfaces Standard |
USB 1.1 |
| Supported Bandwidth |
18Gbps (HDMI 2.0) |
| Maximum Distance |
100m (328.08ft) |
| Maximum Resolution |
3840x2160@60Hz 4:4:4 8bit |
| HDCP Support |
2.2 |
| Supported Audio |
HDMI® Pass-through |
| Separate Audio Ports |
- |
| Transmission Protocol |
- |
| Transmission Medium |
Cat.6 |
| Special Features |
IR and RS-232 signal extension |
| Transmitter KVM Interfaces |
HDMI® (Female), USB Type B (Female) |
| Transmitter Extension Port |
1 x RJ-45 (Female) |
| Receiver Console Interface |
HDMI® (Female), 2 x USB Type A (Female) |
| Receiver Extension Port |
1 x RJ-45 (Female) |
| Bi-directional Ports |
3.5mm RS-232 (Female), 3.5mm IR (Female) |
| Other Interfaces |
- |
| Power |
5.5/2.1mm DC socket |
| Dimensions (WxDxH) |
111x75x25mm (4.37x2.95x0.98in) (each unit) |
| Housing Material |
Metal |
| Net Weight |
1.16kg (2.56lb) |
| Operating Temperature |
0°C - 40°C (32°F - 104°F) |
| Storage Temperature |
-15°C - 55°C (5°F - 131°F) |
| Humidity |
5 - 85% RH (non-condensing) |
| Power Requirements |
5VDC 3A |
| Colour |
Black |
| Packaging Type |
Carton Box |
| Packaging Dimensions |
248x195x95mm (9.76x7.68x3.74in) |
| Gross Weight |
1.4kg (3.08lb) |
| Warranty |
2 Years |
| Certification |
CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents |
Transmitter unit, Receiver unit, IR Emitter/Receiver Cables (1.5m), 3.5mm to RS-232 DB9 Male/Female Cables (0.5m), Brackets with Screws, Multi-Country Power Supplies (EU, UK, US, AUS), Lindy Manual |
| Part Number |
39382 |
| EAN |
4002888393829 |
-
