Extend USB Type C Video, Data and Power up to 100m

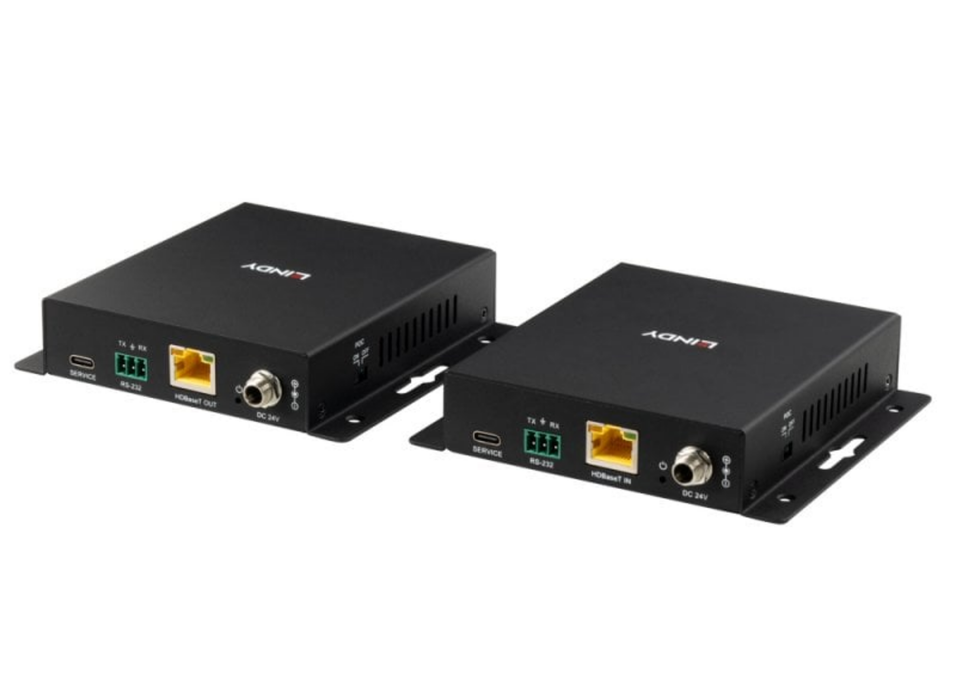

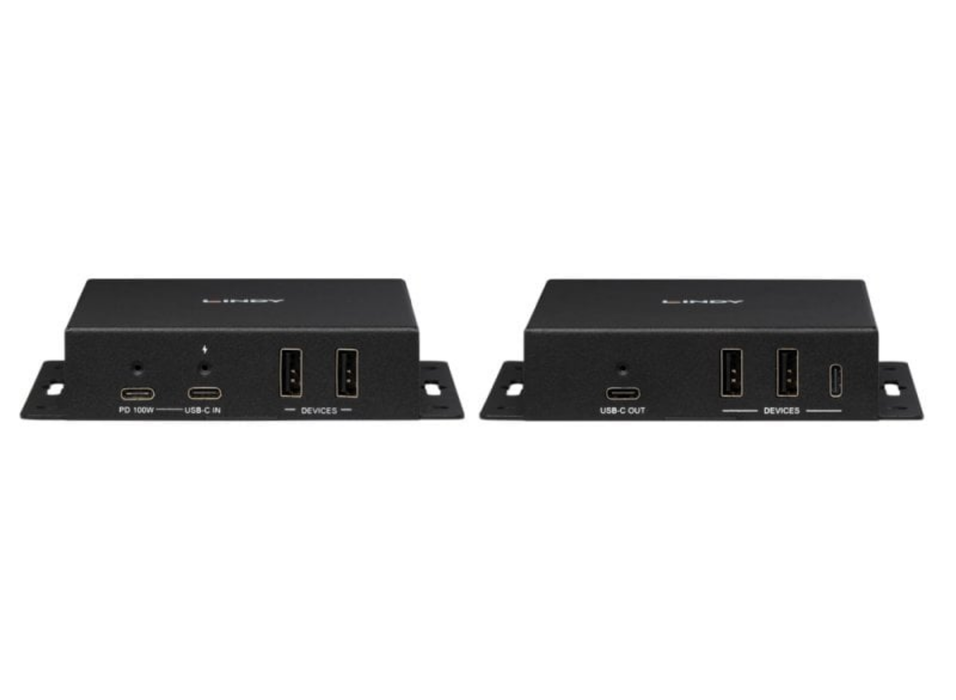

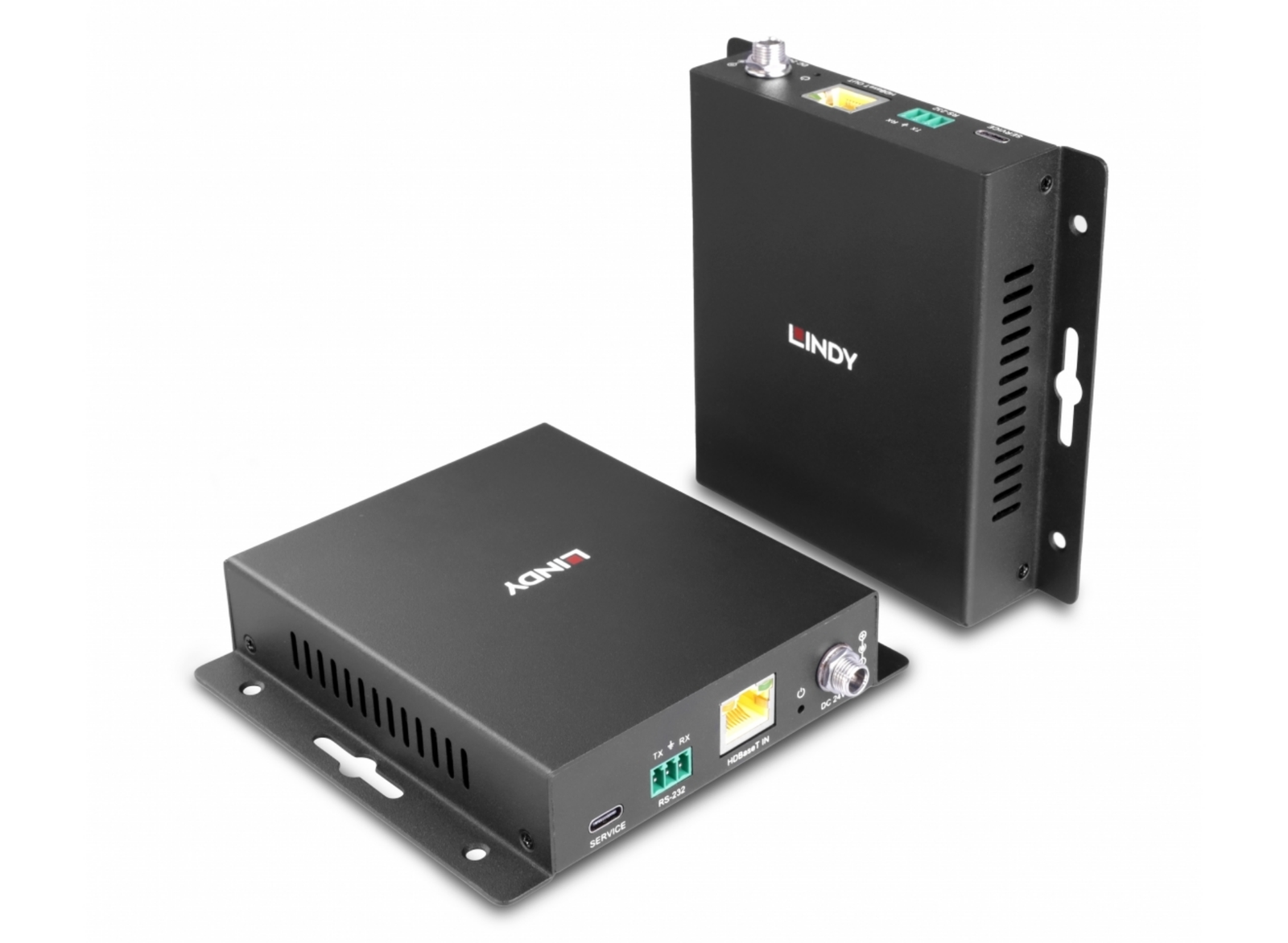

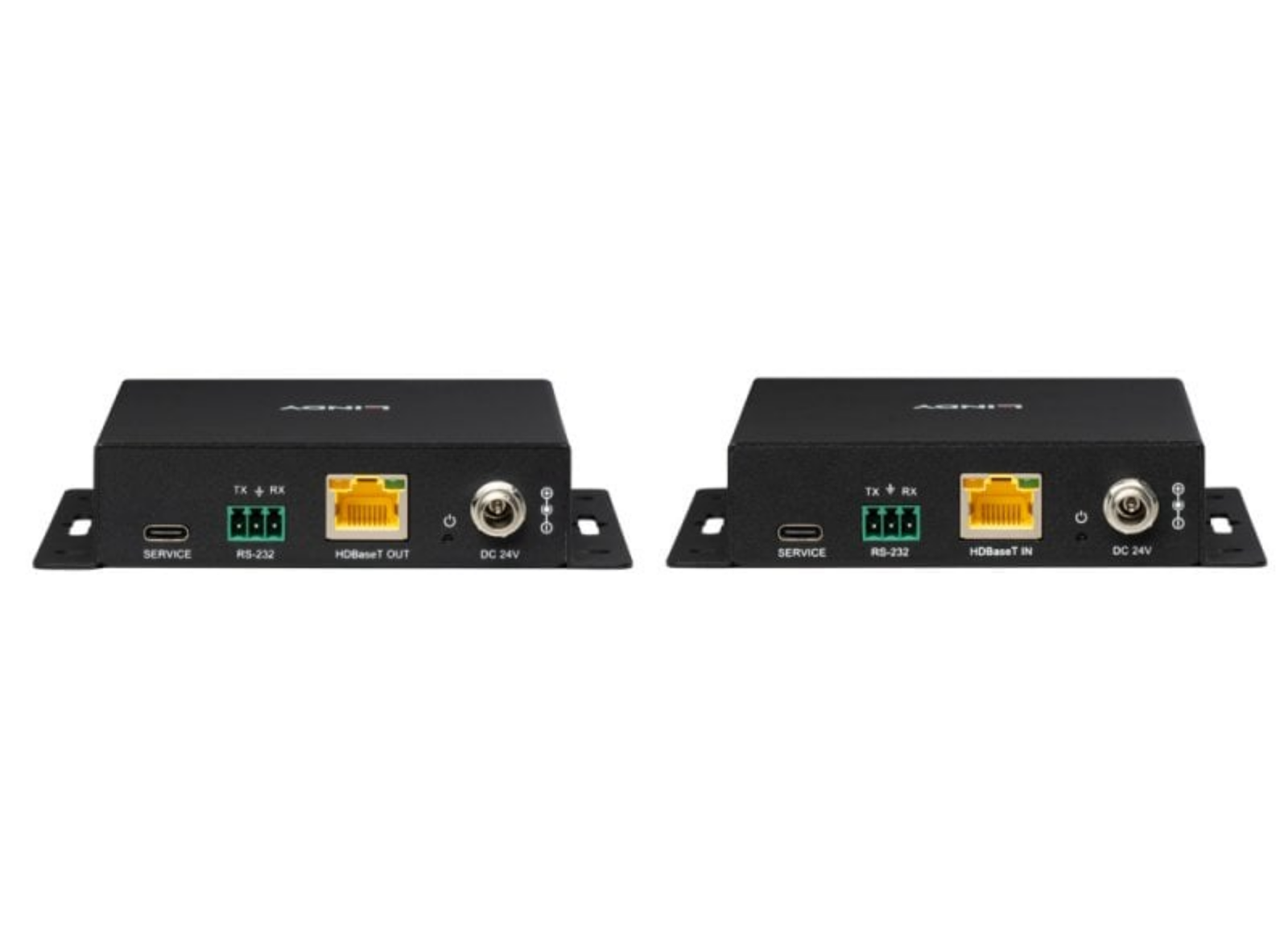

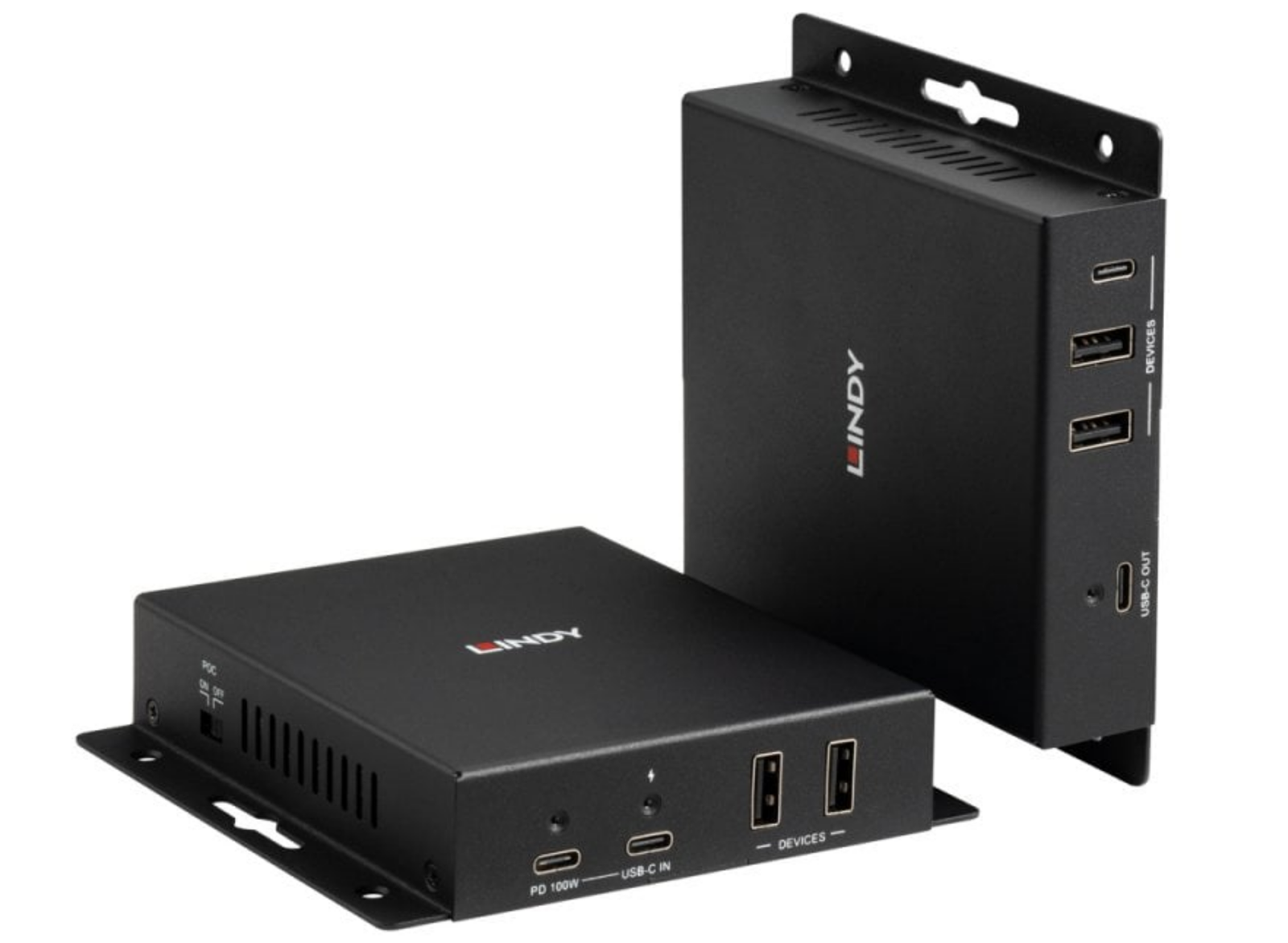

The Lindy 100m Cat.6A USB Type C 4K60 Video & Data HDBaseT 3.0 Extender provides high performance extension of USB Type C video, USB data, Ethernet and power over a single Cat.6A cable, making it ideal for professional AV, collaboration, education and digital signage installations.
Professional HDBaseT 3.0 Extension with USB Type C Connectivity
Designed for modern AV and unified communications environments, this HDBaseT 3.0 extender supports HDMI® equivalent video transmission up to 4K 60Hz 4:4:4 together with USB 2.0, Gigabit Ethernet and USB Type C power delivery over distances up to 100m using a single Cat.6A cable. Bi-directional IR and RS-232 control, integrated USB hub functionality and support for BYOM collaboration systems provide a versatile and streamlined extension solution for demanding professional installations.
At a Glance
100m HDBaseT 3.0 extension
Extends video, USB, Ethernet and control signals over a single Cat.6A cable.
4K60 4:4:4 video support
Delivers high quality Ultra HD video for professional AV environments.
USB Type C with power delivery
Supports video, USB data and charging through a single connection.
Integrated USB and control support
Provides USB 2.0, RS-232 and IR extension for collaboration and AV control with API commands such as EDID presets, copy, user-defined functions, and a pattern generator.
Key Benefits
Simplifies modern AV connectivity
Extends USB Type C video, USB data, Ethernet and control signals over a single Cat.6A cable, reducing cabling complexity and streamlining professional AV installations.
Supports high quality Ultra HD video
HDBaseT 3.0 technology enables transmission of resolutions up to 4K 60Hz 4:4:4, ensuring detailed and accurate image reproduction for collaboration, presentation and signage environments.
Ideal for BYOM collaboration systems
Integrated USB extension and USB hub functionality support conferencing peripherals including cameras, microphones and speakerphones within hybrid meeting room deployments.
Flexible AV control integration
Bi-directional IR and RS-232 pass-through provide reliable integration with room control systems and remotely managed AV equipment.
Single cable installation efficiency
Combining video, USB, Ethernet, control and power delivery within one infrastructure cable reduces installation time and improves cable management within meeting rooms and presentation spaces.
Reliable professional construction
The durable metal housing and professional connectivity are designed for dependable long-term operation in commercial AV, education and corporate environments.
Typical Applications
The 100m Cat.6A USB Type C 4K60 Video & Data HDBaseT 3.0 Extender is ideal for meeting rooms, lecture theatres, digital signage, training spaces and collaborative AV environments requiring long distance extension of video, USB peripherals and control signals. It is particularly suited to BYOM conferencing systems, presentation environments and professional AV installations where reliable single cable connectivity is essential.
Technical Summary
The extender supports transmission distances up to 100m over Cat.6A cabling using HDBaseT 3.0 technology, with support for resolutions up to 3840x2160@60Hz 4:4:4. USB Type C connectivity supports DisplayPort Alternate Mode, USB 2.0 data transfer and USB power delivery for compatible connected devices.
Additional connectivity includes Gigabit Ethernet pass-through, USB hub functionality, bi-directional IR, RS-232 control and stereo audio extraction for flexible integration within professional AV and collaboration systems.
The transmitter and receiver feature durable metal housings designed for reliable installation within commercial AV environments. The extender is supplied with mounting brackets, IR accessories, power supplies and installation documentation, and is backed by a 2-year warranty.
| AV Interface | Type C | Interface Standard | USB 2.0 |
| Supported Bandwidth | 18Gbps | Maximum Distance | 100m (328.08ft) |
| Maximum Resolution at 70m | 3840x2160@60Hz 4:4:4 8bit | Maximum Resolution at 100m | 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit |
| HDCP Support | 2.2 | EDID Pass Through | APIs with presets, user defined and copy function |
| Supported Audio | Pass Through | Separate Audio Ports | - |
| IR Support | - | CEC Support | - |
| Serial Interface | RS-232 Pass Through | Transmission Protocol | HDBaseT 3.0 |
| Transmission Medium | Cat.6A | Laser Class | - |
| Wavelength | - | Chipset | VS3000 |
| Special Features | DisplayPort Alternate mode, APIs, 100W PD on Type C port, PoC with On/Off switch | Transmitter Input | USB Type C Alt Mode (Female), USB Type C PD (Female) |
| Transmitter Output | RJ-45 (Female), 2x USB Type A (Female) | Receiver Input | RJ-45 (Female) |
| Receiver Output | USB Type C Alt Mode (Female), 2x USB Type A Device (Female), USB Type C Device (Female) | Control Ports | USB Type C (Female), RS-232 3-Pin Terminal Block |
| Power | 5.5/2.1mm | Dimensions | 120x117x25.5mm (4.72x4.61x1in) |
| Housing Material | Metal | Net Weight | 1.9Kg (4.19lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) | Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 80% RH (non-condensing) | Power Requirements | 24VDC 3.75A |
| Colour | Black | Packaging Type | Carton Box |
| Packaging Dimensions | 320x180x80mm (12.6x7.09x3.15in) | Gross Weight | 2.18Kg (4.81lb) |
| Warranty | 2 Years | Product Compliance | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | Transmitter, Receiver, IEC Power Supply (UK, EU, US & AUS cables), 2x 3-Pin Terminal Block, Lindy Manual | No. | 39347 |
| EAN | 4002888393478 |
| Description | Downloads |
|---|---|
| Manual | Download |
