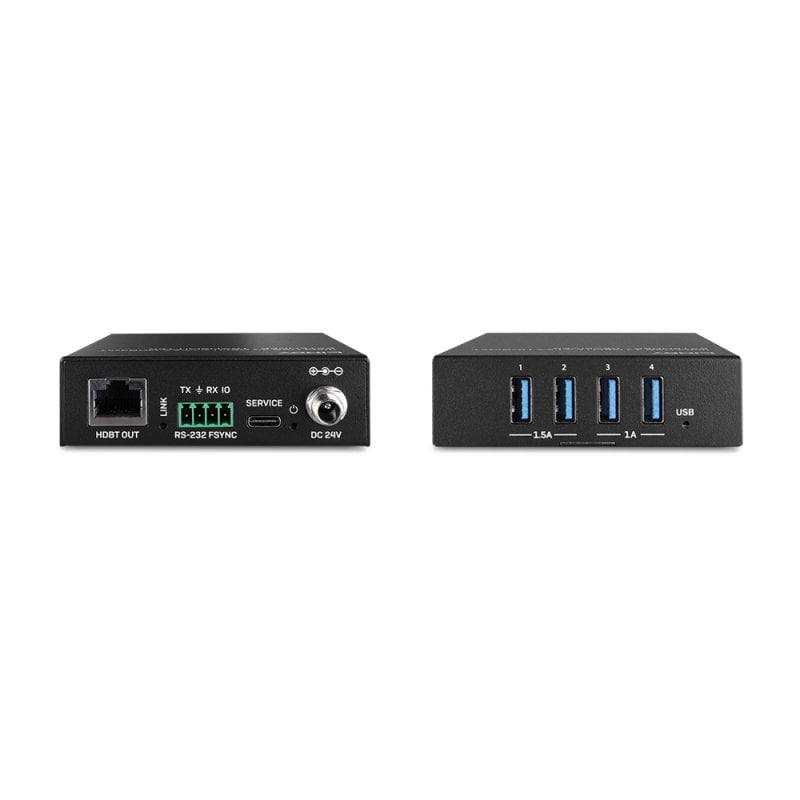

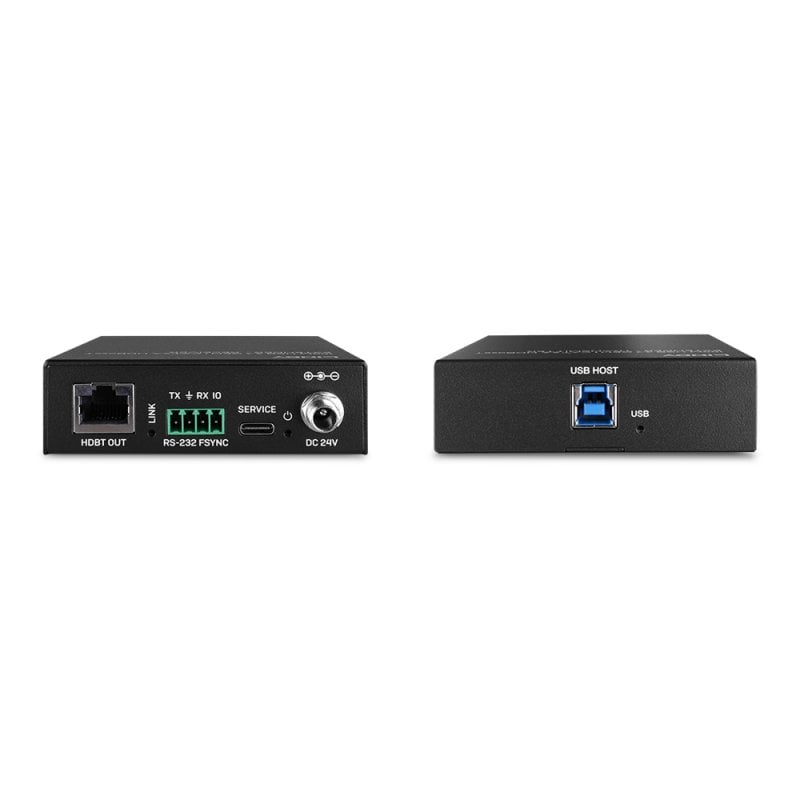

Lindy 100m USB 3.2 Gen 1 Cat.6A HDBaseT Extender | 43410
Enhanced Long Distance USB Connectivity
Extend the reach of your USB devices with the Lindy USB 3.2 Gen 1 Cat.6A Extender, the leading choice for extending USB connections up to an exceptional 100 metres—tripling the previous extension limits achievable with Cat.6 cables. Choose an affordable alternative to more costly expensive fibre optic installations with this cost-efficient solution.
Optimal Compatibility and Extended Range

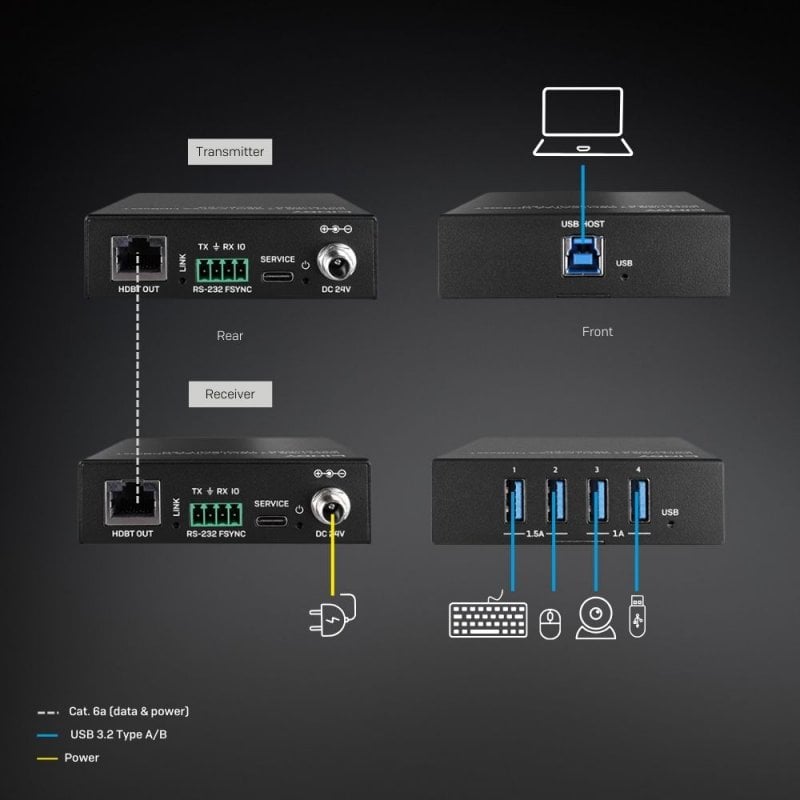

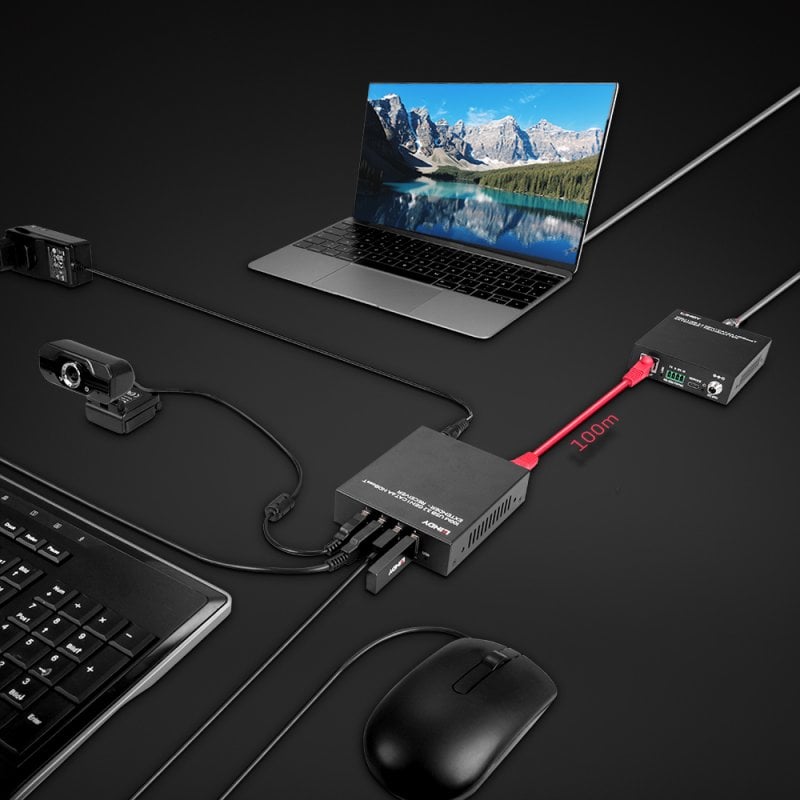

The cutting-edge extender supports a comprehensive array of USB signals including control, bulk, interrupt, and isochronous data transfer. Employ a standard Cat.6A cable* (or above) to connect USB peripherals seamlessly to your host computer over distances up to 100 metres (328.08 feet). Additionally, a standard Cat.6 cable can reliably support connections up to 40 metres for shorter configurations.
Advanced Power Management
This device features sophisticated Power over Cable technology, necessitating just a single power supply connected to either the transmitter or receiver unit. The receiver unit's four Type A USB ports ensure efficient power delivery to connected devices; two ports support up to 1.5A and two up to 1A each.
Superior Connectivity and Control
Easily monitor system status with intuitive status LEDs that display power, link stability, and active data transfer. Integrated RS232 and FSYNC GPIO pass-through ports further enhance functionality, enabling bidirectional commands suitable for industrial cameras and other professional equipment.

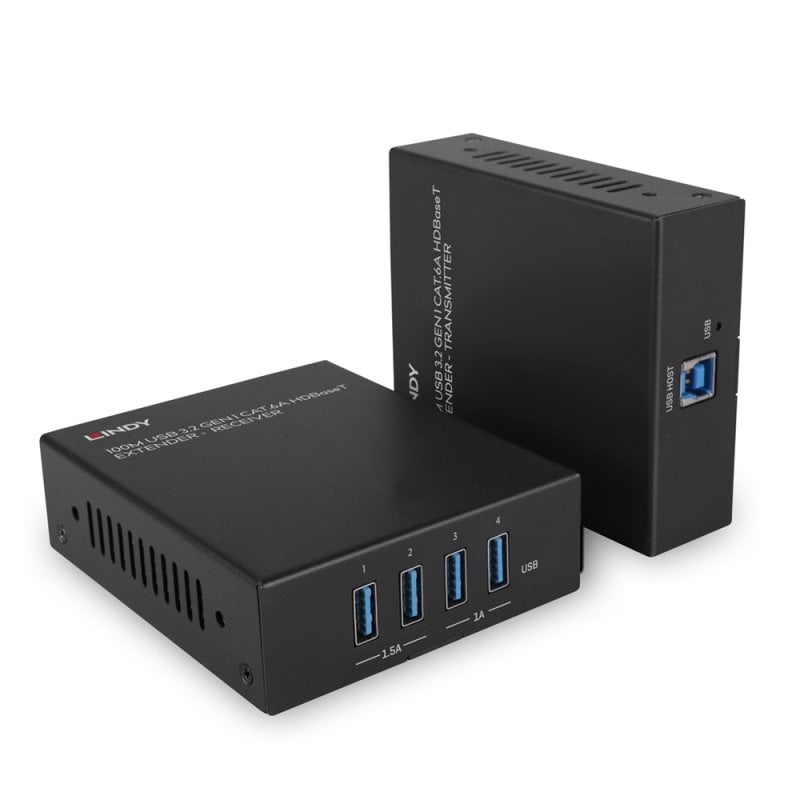

Durable Construction for Professional Use
Built with a robust metal housing and equipped with mounting brackets, this extender is designed to endure the demands of professional and industrial settings. A secure screw-type DC jack provides a reliable power connection, essential for preventing accidental disconnections and ensuring continuous operation.
Compliance with Industry Standards
Conforming to the globally recognized HDBaseT standard, this extender ensures high-quality distribution of AV content, power, and control over extended distances using economical Cat.6 or higher cables. Be advised that using alternative cabling components such as wall plates, couplers, or patch panels may impact maximum distance capabilities.
HDBaseT USB3 Certified
This product guarantees top-tier performance and reliability, it's certified by the HDBaseT Alliance.
Discover advanced connectivity solutions with the Lindy USB 3.2 Gen 1 Cat.6A Extender, making extensive distances manageable for your data transfer requirements.
*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A S/FTP cables.
| Category | Details |
|---|---|
| USB Standard | USB 3.2 Gen 1 |
| Supported Bandwidth | 5Gbps |
| Maximum Distance | 100m (328.08ft) |
| Transmission Medium | Cat.6A or higher network cable |
| Chipset | VS6320 |
| Special Features | Power over Cable, supports FSYNC, RS232, control, bulk, interrupt, isochronous data transfer |
| Connectors | Transmitter Input: USB 3.0 Type B (Female) |
| Transmitter Output: RJ45 (Female) | |
| Receiver Input: RJ45 (Female) | |
| Receiver Output: 4 x USB Type A (Female) | |
| Control Ports: RS-232 4-Pin Terminal Block | |
| Power: 5.5/2.1mm DC socket | |
| Physical Dimensions | 100x85x30mm (3.94x3.35x1.18in) each unit |
| Housing Material | Metal |
| Net Weight | 0.86kg (1.9lb) |
| Operating Temperature | 0° - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 0 - 90% RH (non-condensing) |
| Power Requirements | 24VDC 2A |
| Colour | Black |
| Packaging Type | Carton Box |
| Packaging Dimensions | 235x150x80mm (9.25x5.91x3.15in) |
| Gross Weight | 1.07kg (2.36lb) |
| Warranty | 2 Years |
| Product Compliance | CE, UKCA, FCC, RoHS & REACH, CP65 |
| Package Contents | Transmitter unit, Receiver unit, 1m USB 3.2 Gen 1 Type A Male to B Male cable, |
| 2 x 4-Pin Terminal Block, Multi-Country Power Supply (EU, UK, US & AUS), | |
| Mounting brackets & screws, Lindy Manual | |
| Product Number | 43410 |
| EAN | 4002888434102 |
| Type | Action |
|---|---|
| Manual | Downloads |
