Extends HDMI and USB up to 120m over Cat.6 network cable
Supports HDMI resolutions up to FullHD
HDMI loop-out port to connect one additional display on the transmitter
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2 year warranty

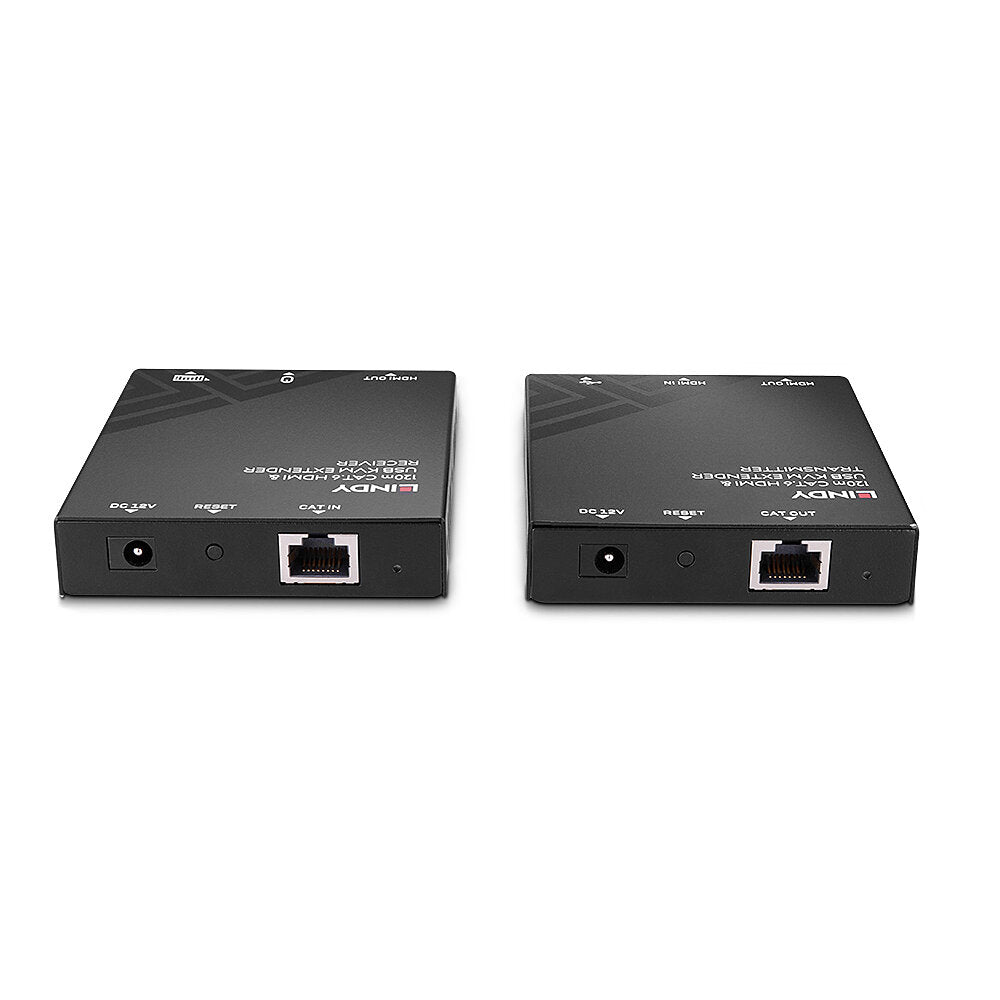

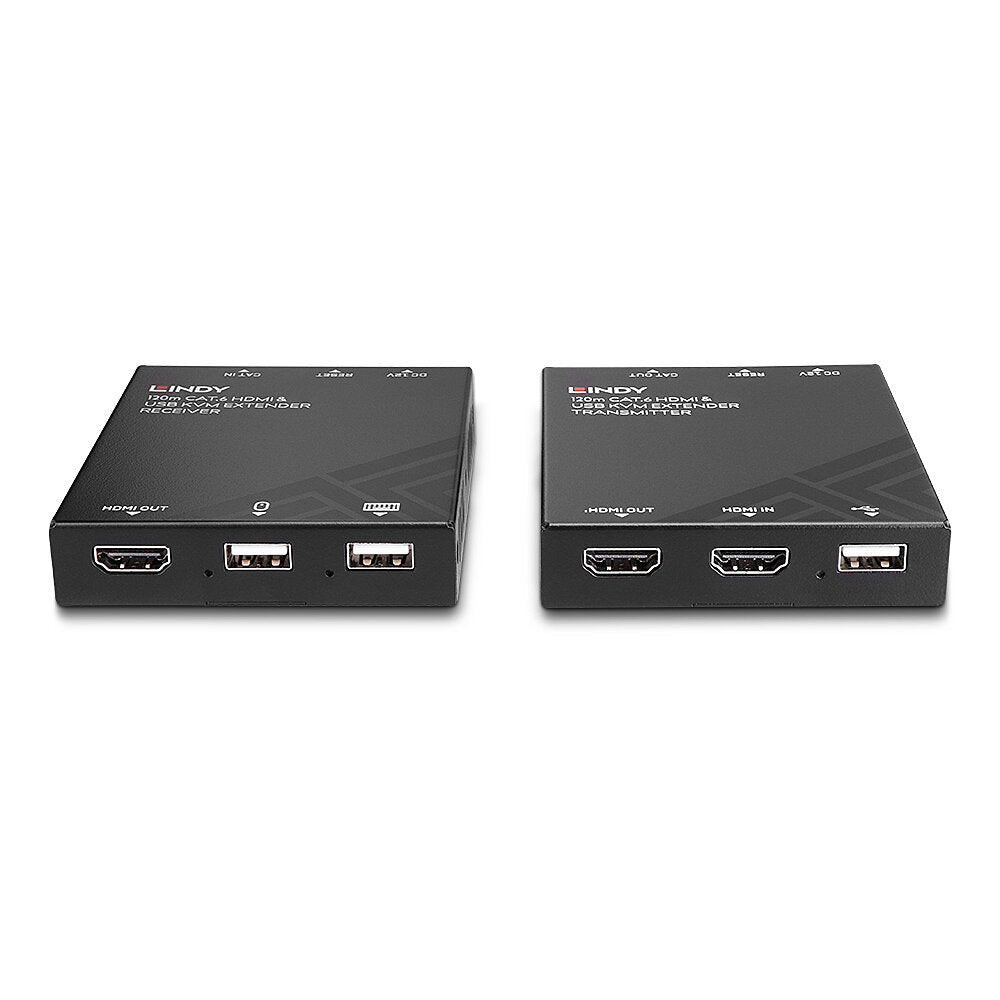

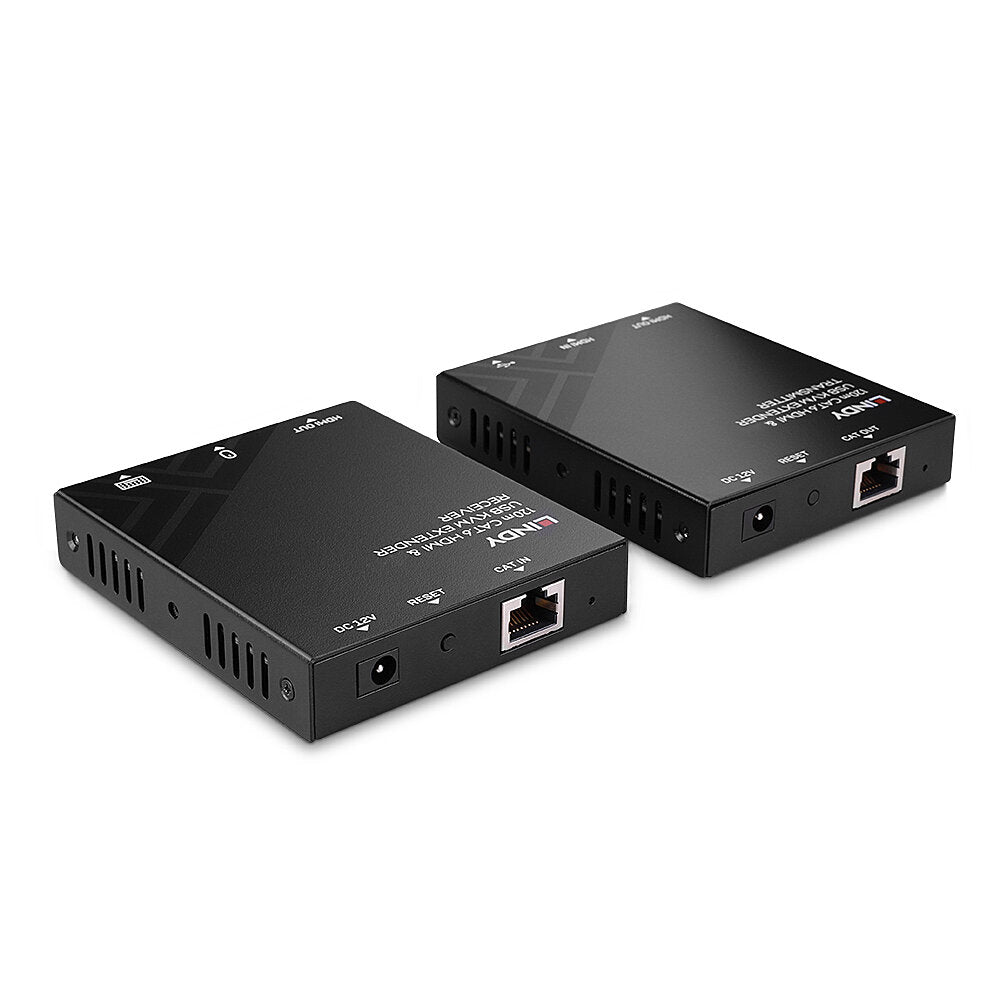

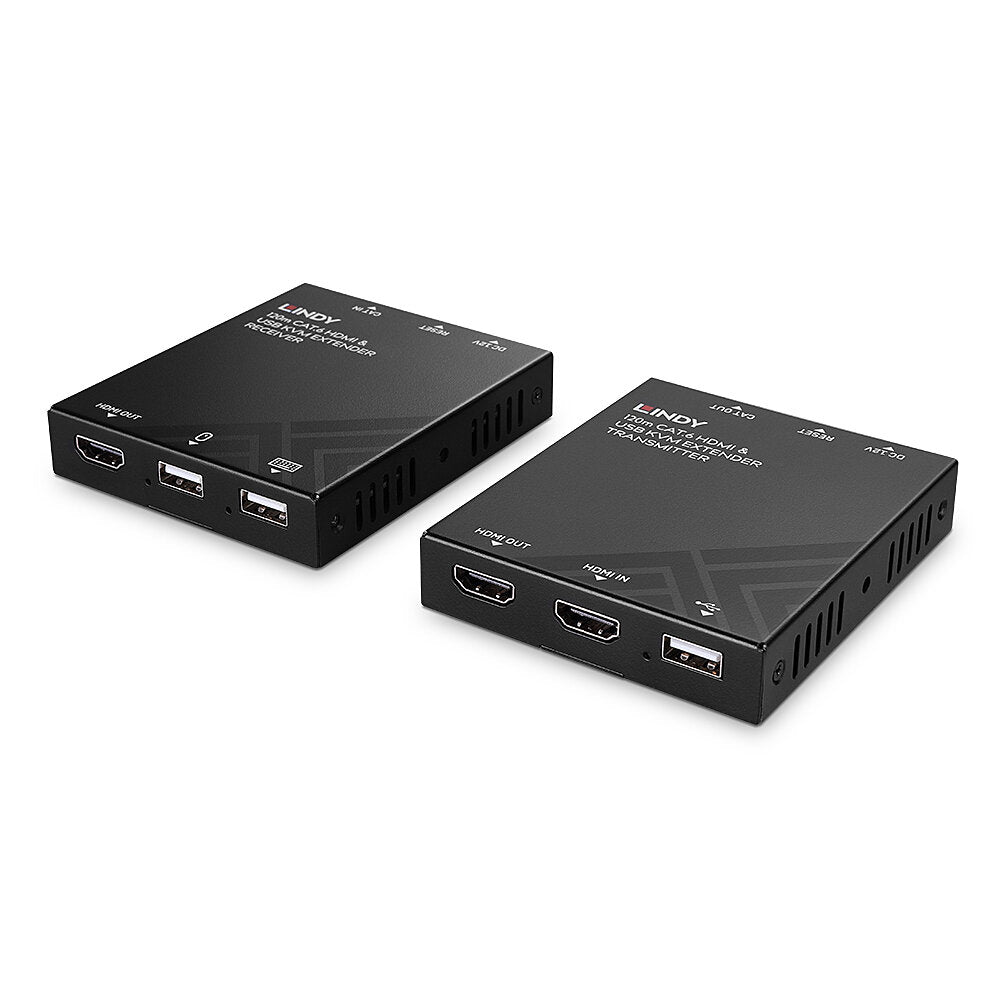

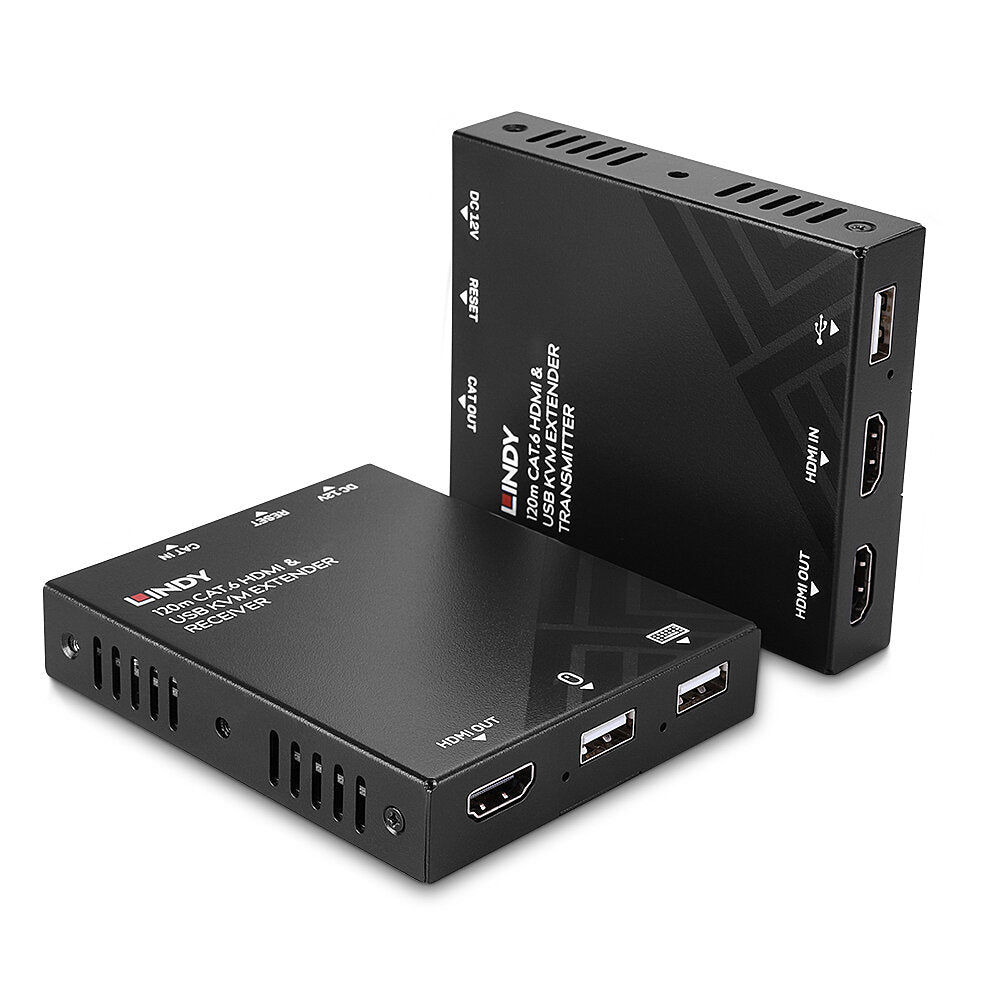

The Lindy 120m Cat.6 HDMI & USB KVM Extender is a complete end to end reliable solution to control a source device such as a PC from a single keyboard, mouse and display over long distances via Cat.6 network cable.
Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
USB ports allow for a mouse and keyboard to be connected to the receiver to control a USB source device such as a PC or laptop. The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
| Specifications | |
|---|---|
| AV Interface | HDMI |
| Interface Standard | HDMI 1.4, USB 1.1 |
| Supported Bandwidth | 4.95 Gbps |
| Maximum Distance | 120m (393ft) |
| Maximum Resolution | 1920x1080@60Hz |
| HDCP Support | 2.2 |
| EDID Pass Through | Pass-through |
| Supported Audio | HDMI Audio Pass-through |
| Separate Audio Ports | - |
| IR Support | - |
| CEC Support | Pass-through |
| Serial Interface | - |
| Transmission Protocol | - |
| Transmission Medium | 1 x Cat.6 |
| Laser Class (only for Fibre) | - |
| Wavelength (only for Fibre) | - |
| Special Features | HDMI Loop Out Port |
| PoC (Power over Cable) | |
| Connectors | |
| Transmitter Input | HDMI Type A (Female), USB Type A (Female) |
| Transmitter Output | RJ-45 (Female), HDMI Type A (Female) |
| Receiver Input | RJ-45 (Female) |
| Receiver Output | HDMI Type A (Female), 2 x USB Type A (Female) |
| Bi-directional Ports | - |
| Power | 5.5/2.1mm |
| Physical Properties | |
| Dimensions (WxDxH) | 95x80x16mm (3.74x3.15x0.63in) per unit |
| Housing Material | Metal |
| Net Weight | 0.5kg (1.1lb) |
| Operating Temperature | -5°C - 55°C (23°F - 131°F) |
| Storage Temperature | -25°C - 70°C (-13°F - 158°F) |
| Humidity | 10 - 90% RH (non-condensing) |
| Power Requirements | 12VDC 1A |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton Box |
| Packaging Dimensions | 240x180x60mm (9.45x7.09x2.36in) |
| Gross Weight | 0.8kg (1.76lb) |
| Warranty (Years) | 2 |
| Certificated | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | |
| HDMI KVM Extender, Transmitter | |
| HDMI KVM Extender, Receiver | |
| USB Type A Male to Type A Male cable, 1m | |
| 4 x Mounting Ears with screws | |
| Multi-country Power Supply (UK, EU, US & AUS) | |
| Lindy Manual | |
| Purchasing Information | |
| No. | 39381 |
| EAN | 4002888393812 |
| Description | Downloads |
|---|---|
| User Manual | Download |
