Lindy 12m USB 2.0 Active Extension Pro 4 Port Hub | 42783

SKU: 42783
Part Number: 42783
Condition: Brand New
Purchase Orders Accepted
Save £18.74 Save £18.74

£40.44 (Excl. VAT)

Current price - £48.53 (Inc. VAT)
£40.44 - £40.44
Current price- - £48.53
Availability:
24 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Lindy 12m USB 2.0 Active Extension Pro 4 Port Hub | 42783

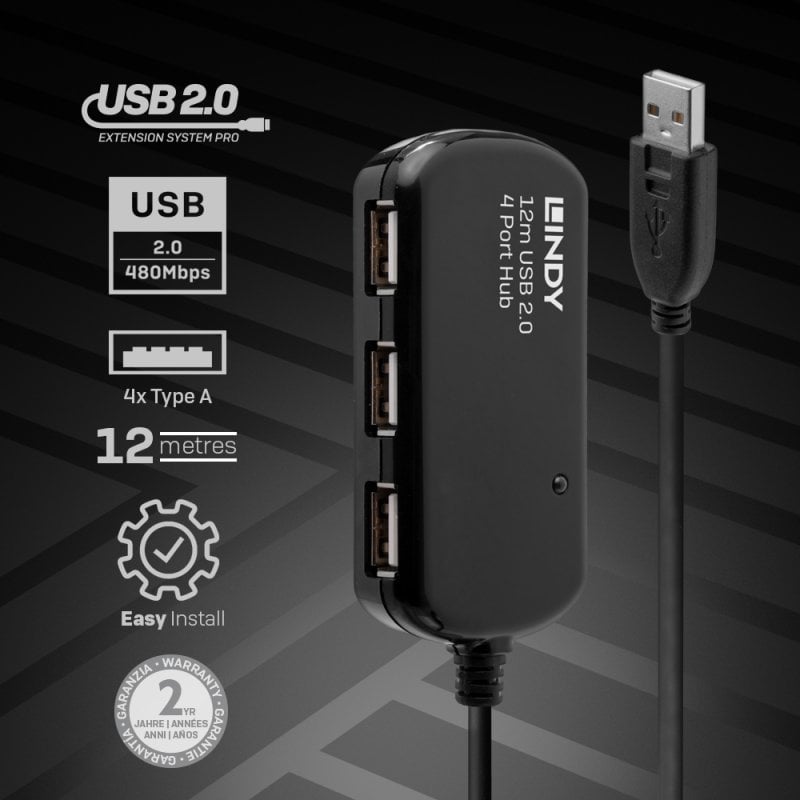

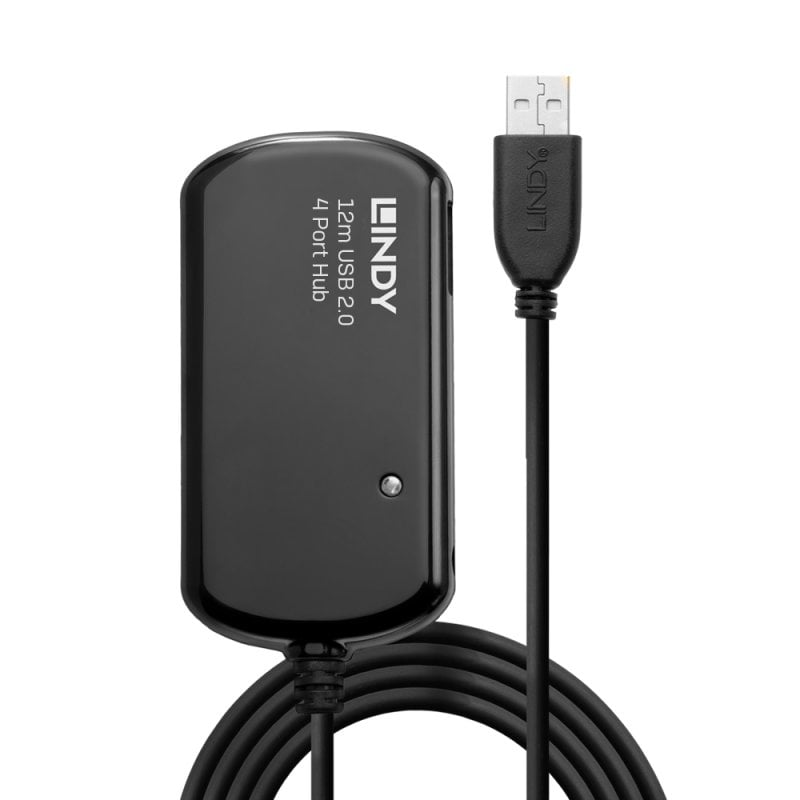

    The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

    This 12m extension hub can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.


    The 8m and 12m cable and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

    This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

  • Category Details
    Connectors Connector A: USB Type A Male
    Connector B: 4 x USB Type A Female
    Power 3.5/1.35mm DC Connector
    Housing Material Plastic
    Connector Plating Front: Gold / Back: Nickel
    Pin Construction Brass
    Pin Plating Gold Flash
    Dimensions (approx.) USB A Male: 15x43x8mm (0.59x1.69x0.31in)
    Hub: 80x40x16mm (3.15x1.57x0.63in)
    Cable Construction Length: 12m (39.37ft)
    Standard: USB 2.0
    Colour: Black
    Type: Round
    Jacket Diameter 5mm +/-0.15mm (0.2in +/- 0.01in)
    Jacket Material Half matt PVC low toxic
    Conductor Material Tinned Copper
    Conductor Gauge 26/20AWG
    Shielding AL Mylar and braid
    Supported Bandwidth 480 Mbps
    Nominal Attenuation Various frequencies from -0.08 dB to -5.8 dB
    Minimum Bend Radius 26mm (1.02in)
    Operating Temperature 0°C - 50°C (32°F - 122°F)
    Storage Temperature -20°C - 60°C (-4°F - 140°F)
    Transmission Medium Twisted Pair
    Transmission Technology USB 2.0
    Packaging Type Carton Box
    Packaging Dimensions 238x202x66mm (9.37x7.95x2.6in)
    Net Weight 0.463kg (1.02lb)
    Gross Weight 0.819kg (1.81lb)
    Warranty (Years) 2
    Certified CE, UKCA, FCC, RoHS & REACH
    Packaging Content USB 2.0 Active Extension Pro Hub
    5VDC 2.6A Multi-Country Power Supply (EU, UK, US & AUS)
    Lindy Manual
    Purchasing Information No.: 42783
    EAN: 4002888427838
    Available Lengths 8m (26.25ft) with hub (42781)
