Lindy 12m USB 2.0 Active Extension Pro | 42782
SKU: 42782
£28.03 (Excl. VAT)
- Description
- Specifications
- Downloads
-
High Performance USB 2.0 Active Extension Cable
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

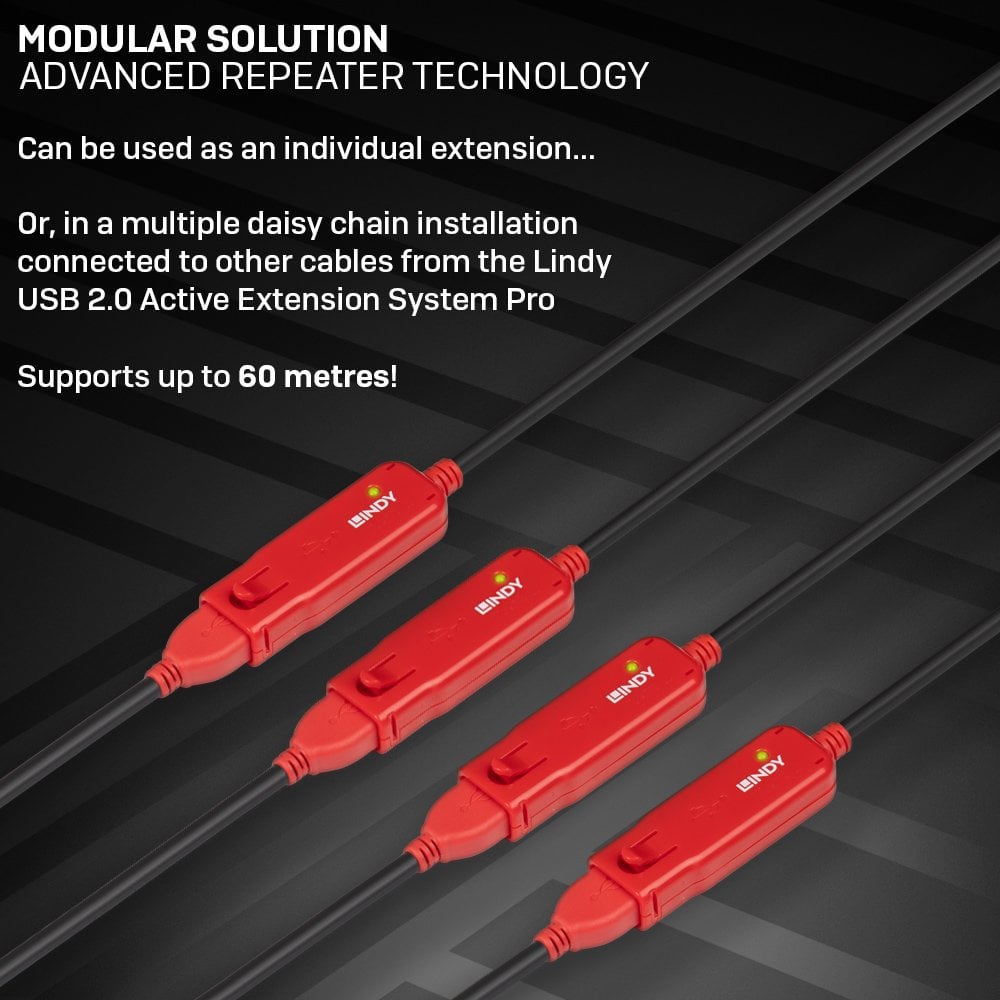

This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

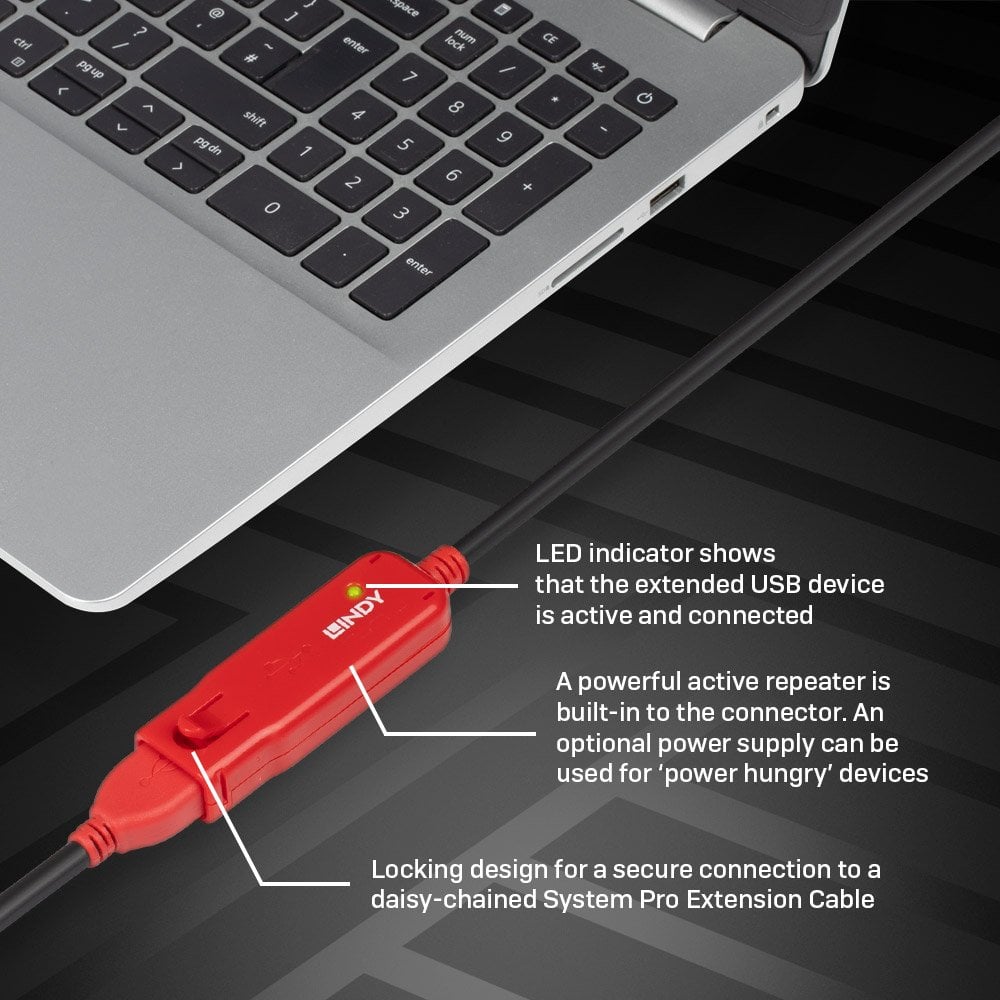

The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
-
Connector A USB Type A Male Connector B USB Type A Female Power - Housing Material Plastic Connector Plating Front: Gold / Back: Nickel Pin Construction Brass Pin Plating Gold Flash Dimensions USB A Male 15x43x8mm (0.59x1.69x0.31in) Dimensions USB B Female 20x64x13mm (0.83x2.52x0.51in) Length 12m (39.37ft) Standard USB 2.0 Colour Black Type Round Jacket Diameter 5mm +/-0.15mm (0.2in +/-0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 26/20AWG Shielding AL Mylar and braid Supported Bandwidth 480 Mbps Included Hubs 1x USB 2.0 Nominal Attenuation 0.064MHz-400MHz (-0.08dB to -5.8dB) Minimum Bend Radius 26mm (1.02in) Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 60°C (-4°F - 140°F) Transmission Medium Twisted Pair Transmission Technology USB 2.0 Packaging Type Carton Box Packaging Dimensions 238x202x66mm (9.37x7.95x2.6in) Net Weight 0.42kg (0.93lb) Gross Weight 0.597kg (1.32lb) Warranty (Years) 2 Certified CE, UKCA, FCC, RoHS, REACH, Prop 65 Package Contents USB 2.0 Active Extension Pro 12m, Lindy Manual Purchasing No. 42782 EAN 4002888427821 Other Lengths 42780 - 8m (26.25ft) -
Description Downloads Product Safety Information Downloads
