The Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and a PC over distances up to 140m using a single Cat.6 UTP or higher network cable. Cat.5e UTP/STP cable can be used in lengths up to a maximum of 120m. For best performance and compatibility, we recommend the use of solid core patched cables. For best performance and compatibility, we recommend the use of solid core patched cables.

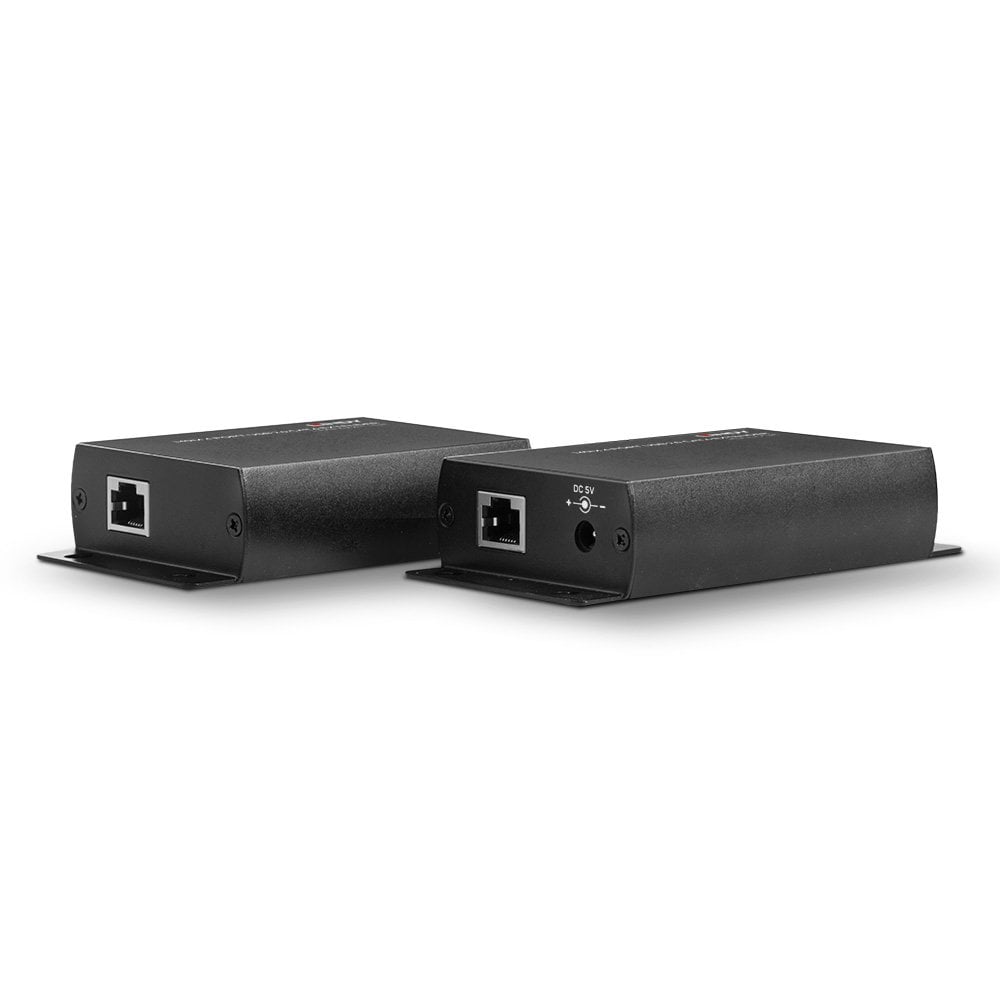

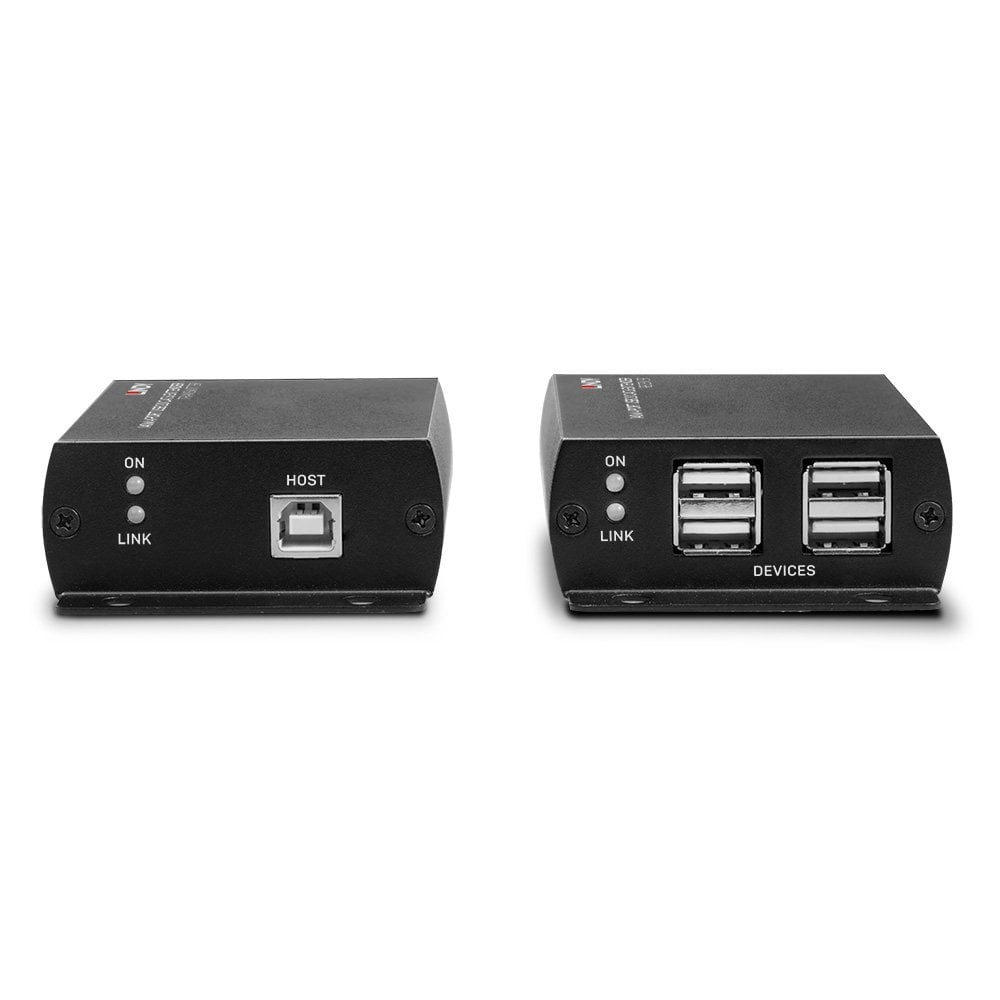

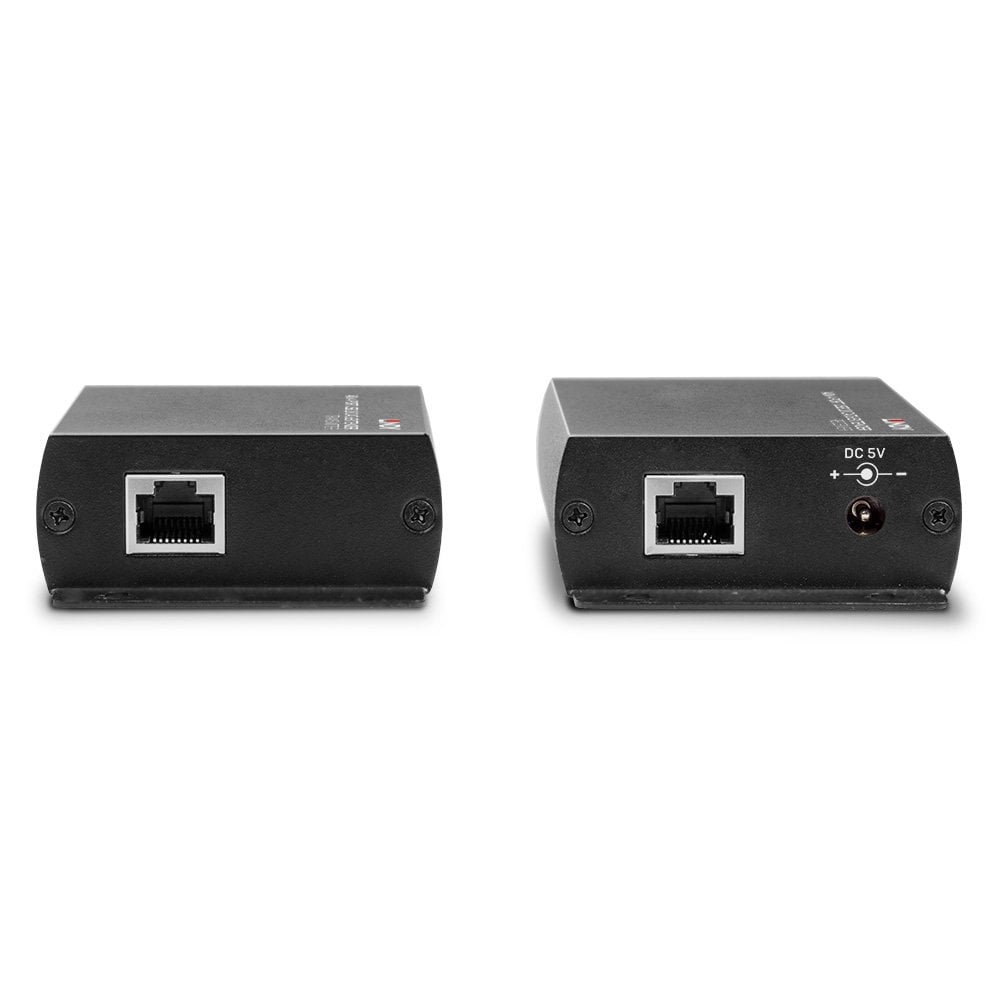

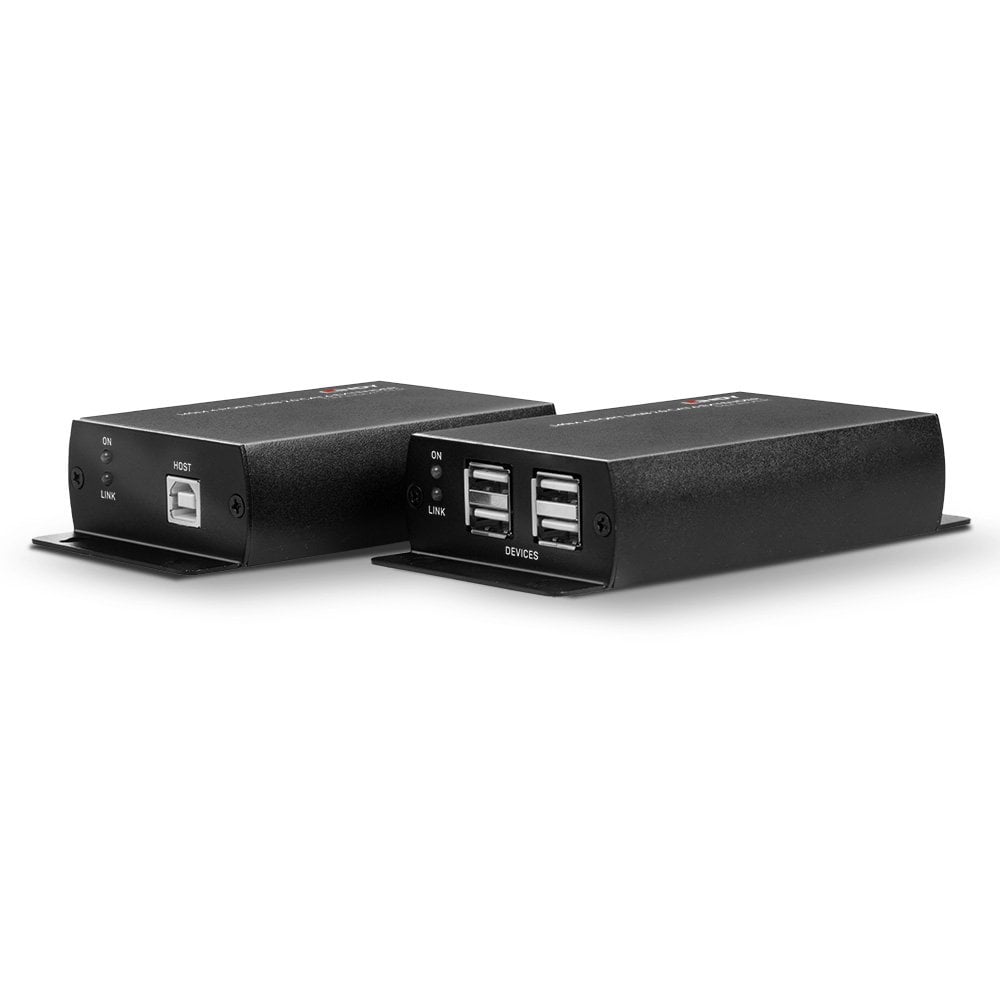

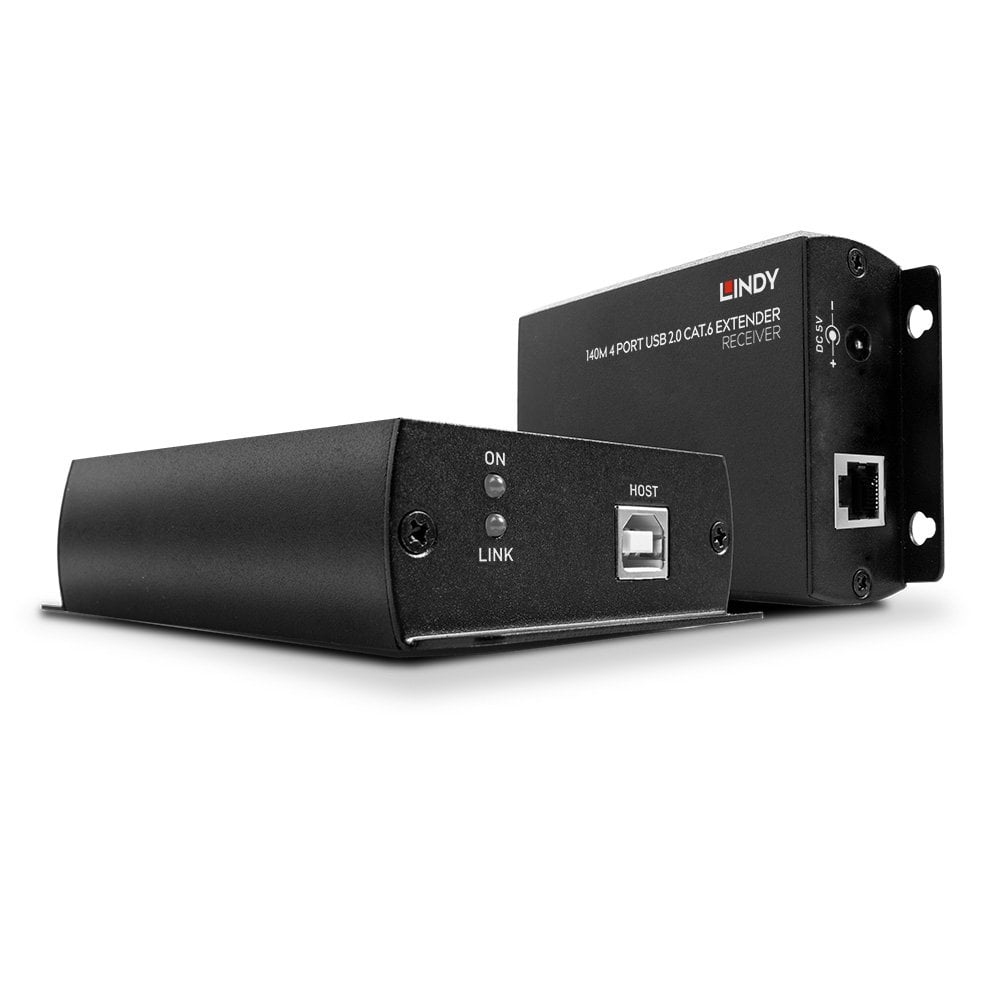

This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.
With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, webcams* and external HDD & flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.
*tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008B For the latest firmware fixing compatibility issue, please contact our support team.
Please note: Through the use of the Signal Repeater No. 42709 distances can be doubled up to 280m.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Category | Feature | Details |
|---|---|---|
| USB Standard | USB 2.0 | |
| Supported Bandwidth | 480Mbps | |
| Maximum Distance | 140m (459.31ft) | |
| Transmission Medium | Cat.6 or higher network cable | |
| Chipset | AST1620 | |
| Special Features | Signal Repeater Support | Up to 280m with Signal Repeater No. 42709 |
| Isochronous Data Transfer | Supported | |
| Connectors | Transmitter Input | USB Type B (Female) |
| Transmitter Output | RJ45 (Female) | |
| Receiver Input | RJ45 (Female) | |
| Receiver Output | 4 x USB Type A (Female) | |
| Power | 5.5/2.5mm DC socket | |
| Physical Properties | Dimensions (WxDxH) | |
| Transmitter | 120x67x27mm (4.72x2.64x1.06in) | |
| Receiver | 130x67x27mm (5.12x2.64x1.06in) | |
| Housing Material | Aluminium | |
| Net Weight | ||
| Transmitter | 0.19kg (0.42lb) | |
| Receiver | 0.21kg (0.46lb) | |
| Operating Temperature | 0° - 55°C (32°F - 131°F) | |
| Storage Temperature | -20°C - 85°C (-4°F - 185°F) | |
| Humidity | 0 - 95% RH (non-condensing) | |
| Power Requirements | 5VDC 2.6A | |
| Colour | Black | |
| Miscellaneous | Packaging Type | Carton Box |
| Packaging Dimensions | 240x150x55mm (9.45x5.91x2.17in) | |
| Gross Weight | 0.6kg (1.32lb) | |
| Warranty | 2 Years | |
| Certification | CE, UKCA, FCC, RoHS, REACH, CP65 | |
| Package Contents | Contents | Transmitter unit, Receiver unit, 1.5m USB 2.0 A Male to B Male cable, 8x Assembly Screws & Dowels, Multi-Country Power Supply (EU, UK, US & AUS), Lindy Manual |
| Purchasing Information | No. | 42710 |
| EAN | 4002888427104 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
