Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender | 38345
The Lindy 150m Cat.6 4x4 HDMI® 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI® signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI® loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

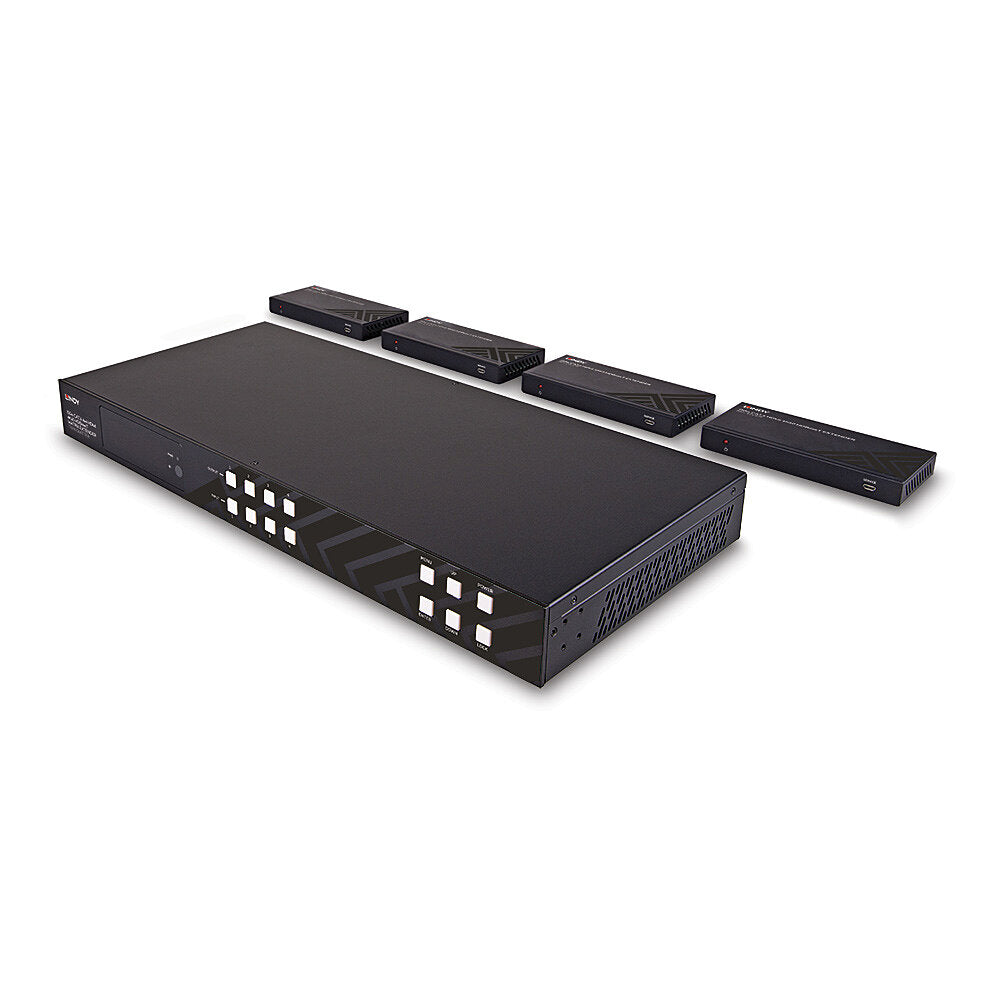

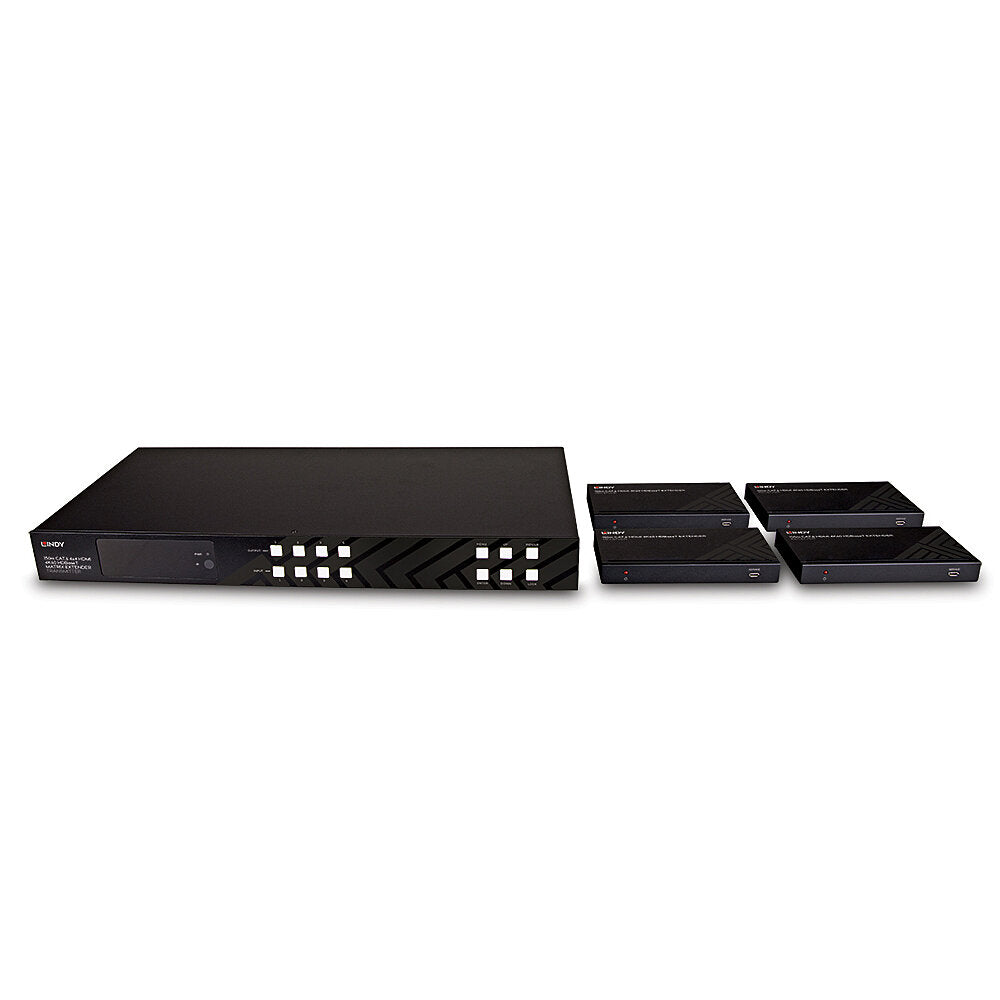

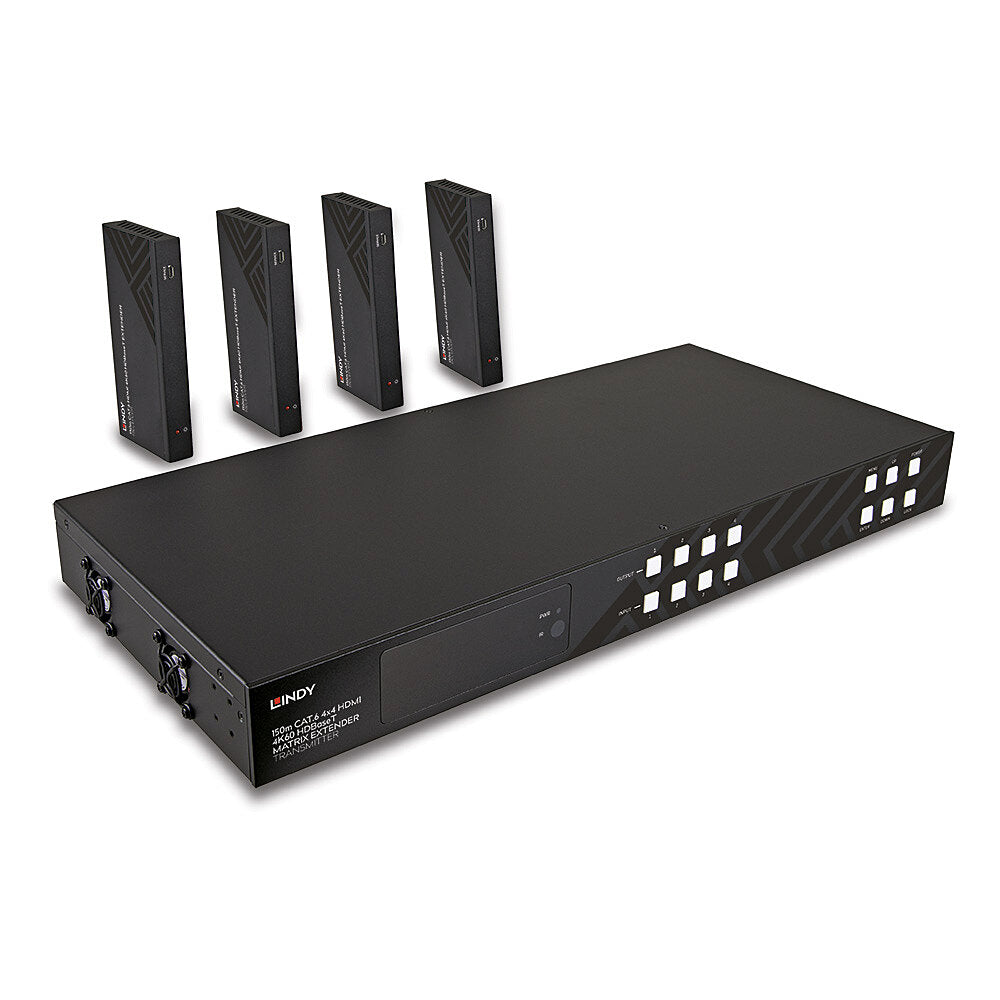

This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
-
| Category |
Specifications |
| AV Interface |
HDMI® |
| Interfaces Standard |
HDMI® 2.0 |
| Supported Bandwidth |
18Gbps |
| Maximum Distance |
120m (3840x2160@60Hz 4:4:4 8bit), 150m (1920x1080@60Hz) |
| Maximum Resolution |
3840x2160@60Hz 4:4:4 8bit |
| HDCP Support |
2.2 |
| EDID Pass Through |
Presets, Cloning |
| Supported Audio |
HDMI® Audio Pass-through, Digital up to 5.1Ch, Analog up to 2.0Ch |
| Separate Audio Ports |
Coax and balanced analog |
| IR Support |
20 - 60KHz |
| Serial Interface |
RS-232 |
| Transmission Protocol |
HDBaseT |
| Transmission Medium |
4 x Cat.6 |
| Special Features |
PoC, HDMI® Loop Out, 4K to 1080p downscaler |
| Connectors (Transmitter) |

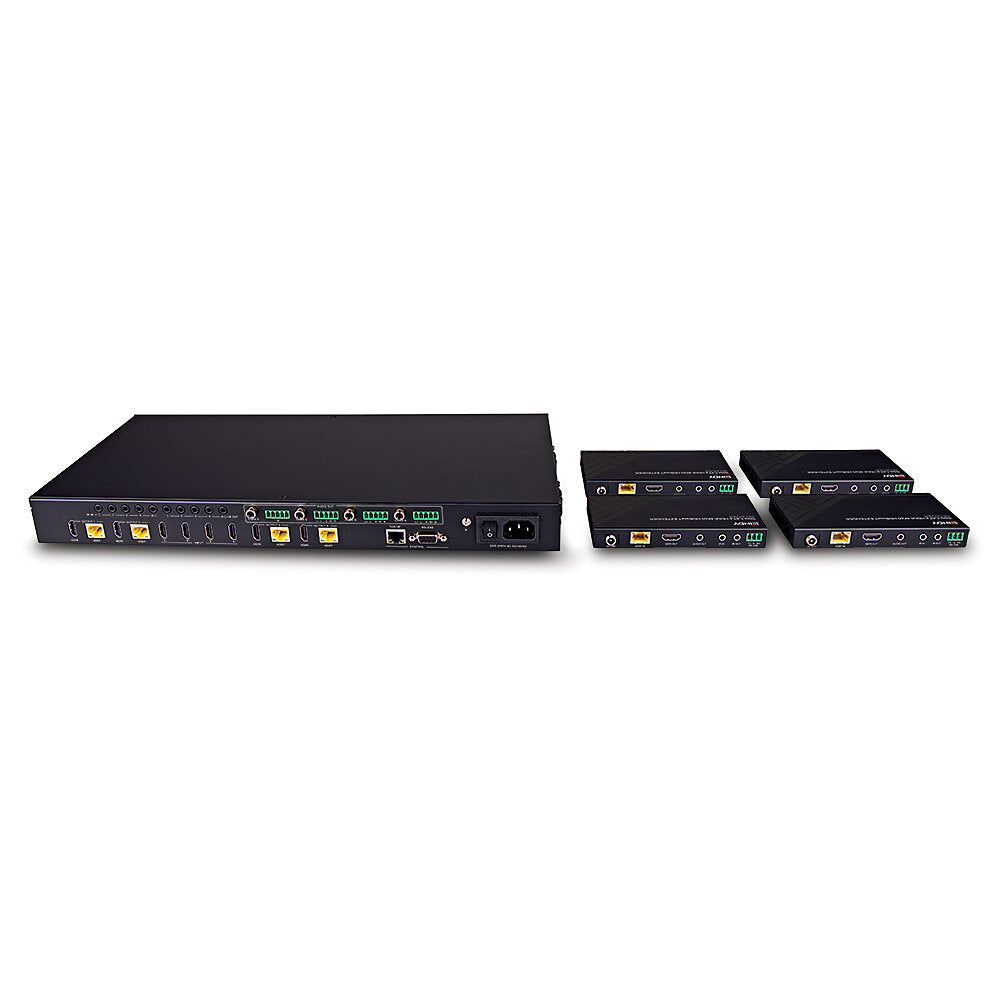

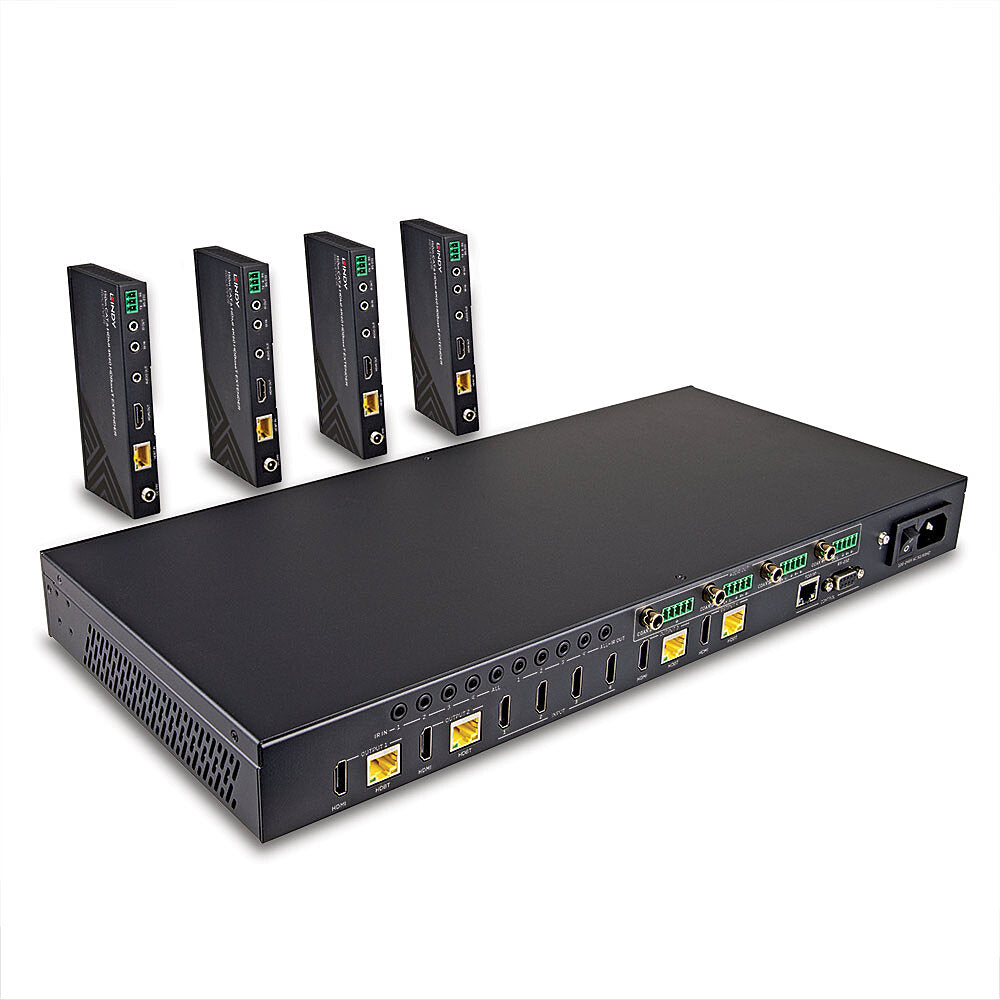

Input: 4 x HDMI®, 5 x 3.5mm IR; Output: 4 x HDMI®, 4 x Coax RCA, 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR, 4 x RJ45; Bidirectional: RS-232, RJ45; Power: IEC C14 |
| Connectors (Receiver) |
Input: 3.5mm IR, RJ45; Output: HDMI®, 3.5mm Audio, 3.5mm IR; Bidirectional: RS-232; Power: 5.5/2.1mm |
| Physical Properties |
Matrix: 440x200x45mm, Receivers: 140x65x18mm; Material: Metal; Net Weight: 5.31Kg; Operating Temp: 0°C- 40°C; Storage Temp: -20°C- 60°C; Humidity: 20- 90% RH; Power Requirements: 60W; Colour: Black |
| Miscellaneous |
Packaging: Carton Box; Dimensions: 510x401x98mm; Gross Weight: 6.33kg; Warranty: 2 years; Compliance: CE, UKCA, FCC, RoHS, REACH, CA Prop 65 |
| Package Contents |
4x4 Matrix, 4 Receivers, 5 IR Emitter Cables, 5 IR Receiver Cables, 10 Mounting Ears & Screws, 4 3-Pin & 4 5-Pin Terminal Blocks, RS-232 Cable, 4 Mains Cables, Manual |
| Purchasing Information |
No.: 38345, EAN: 4002888383455 |
-
