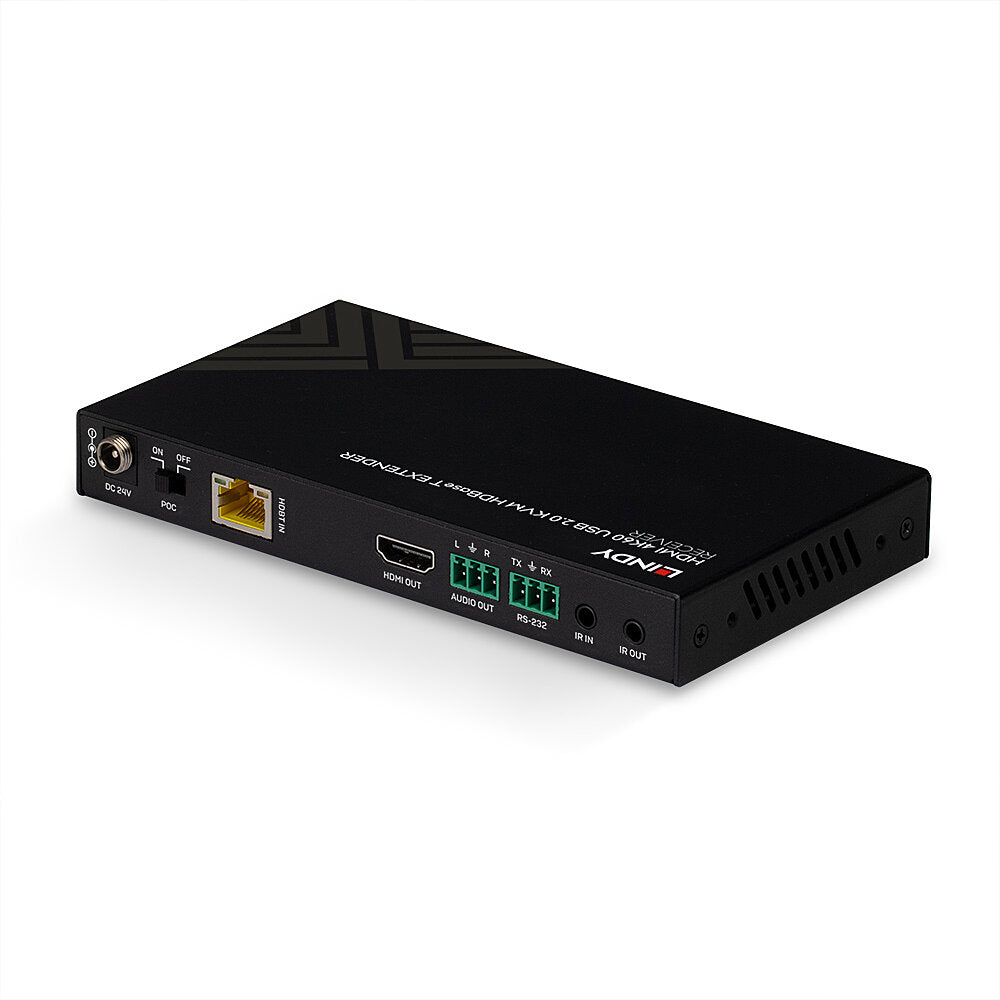

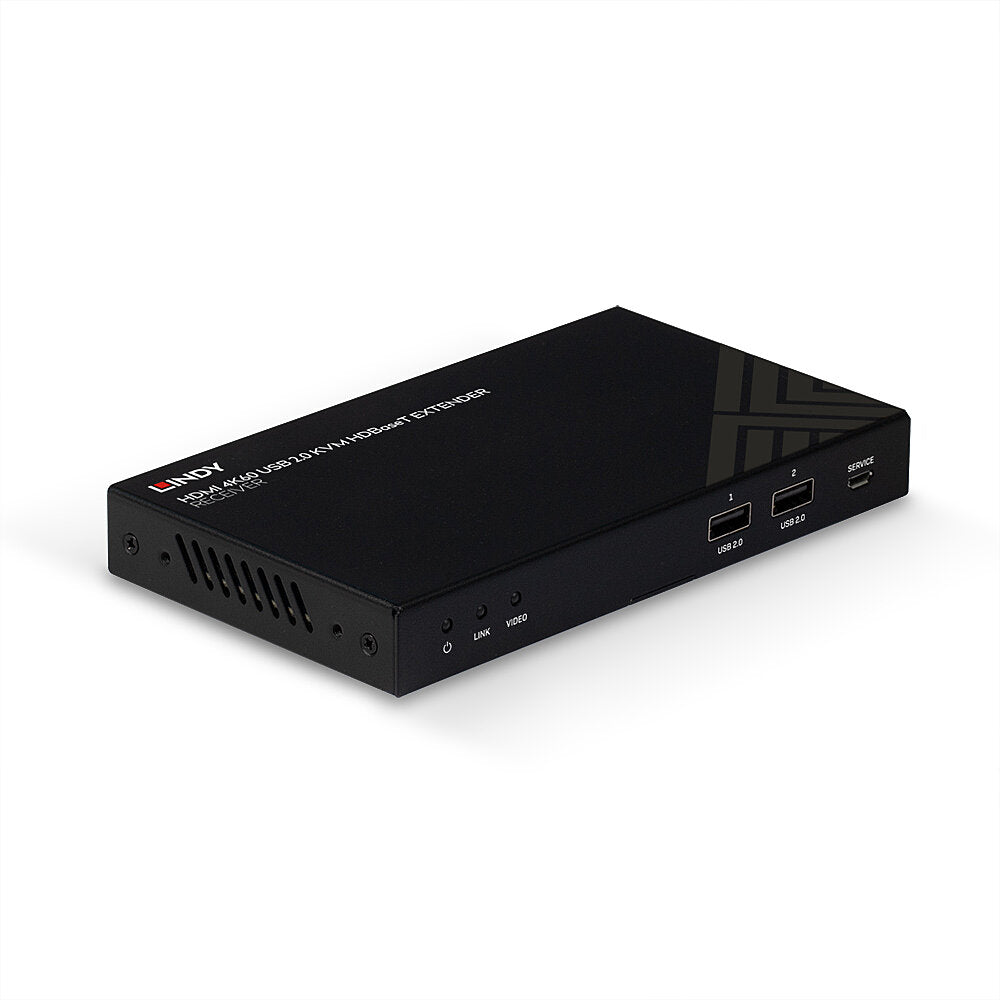

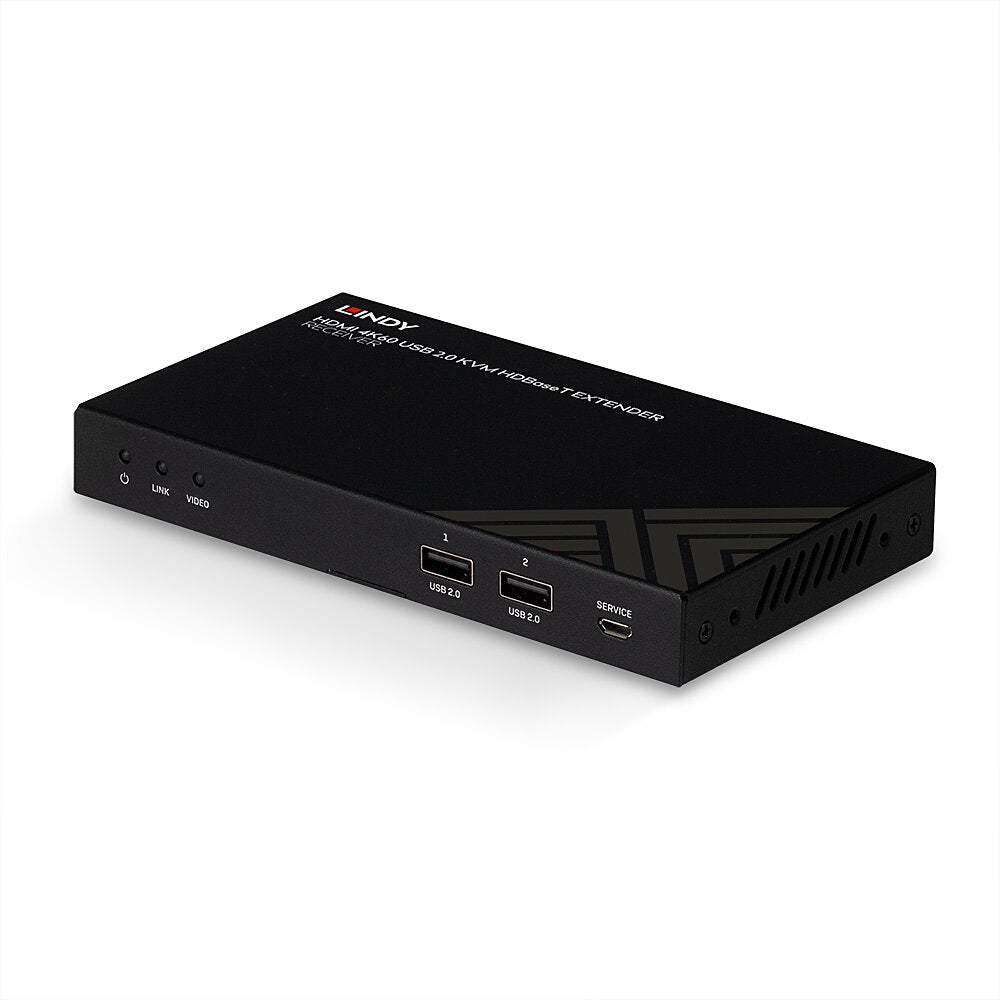

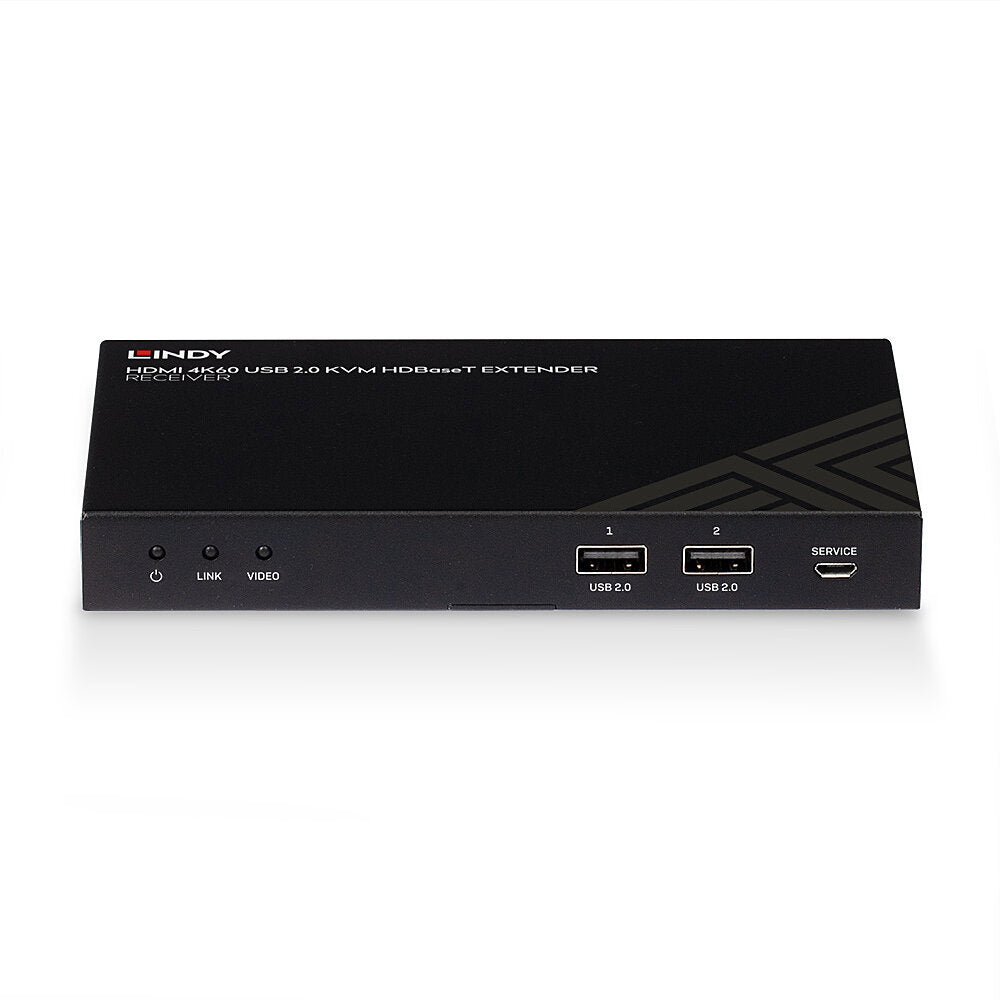

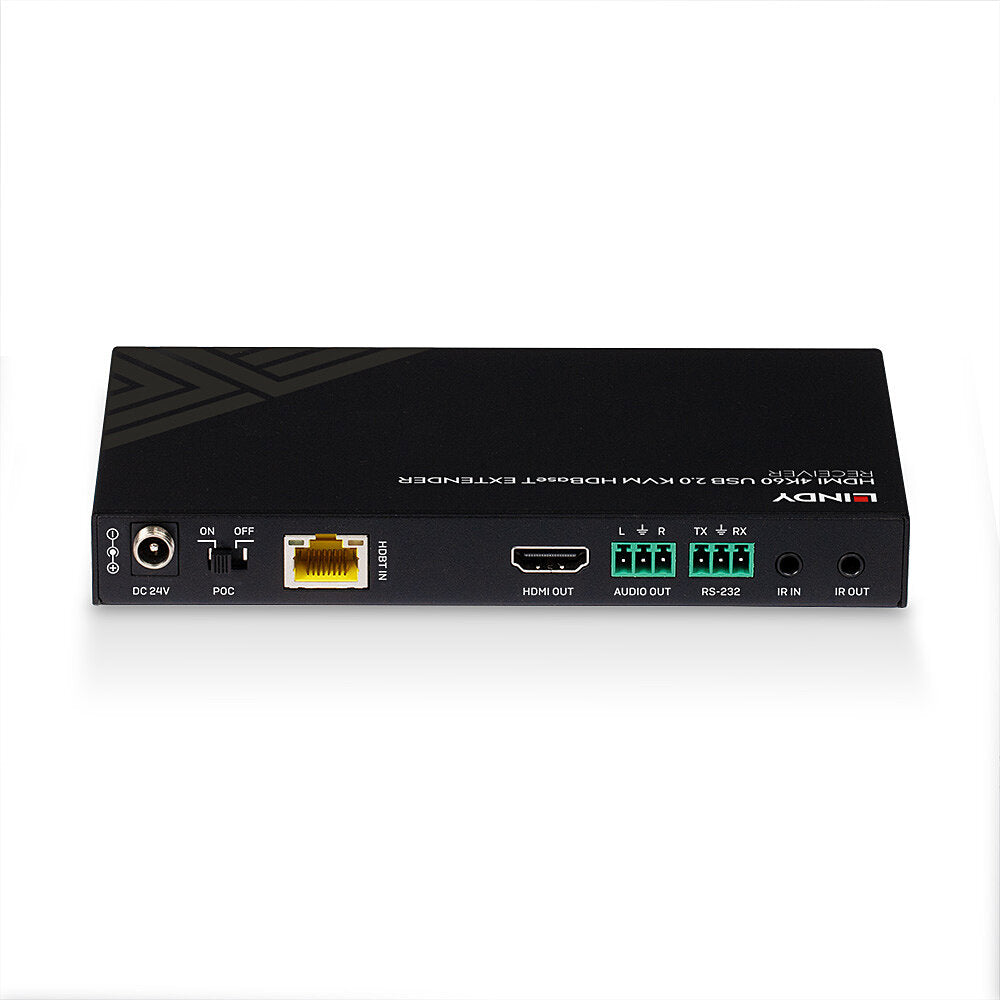

The Lindy 150m Cat.6 HDMI® 4K60, IR, RS232 & Audio HDBaseT KVM Receiver is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
By combining this Receiver unit with a compatible HDBaseT Wall Plate Transmitter such as Lindy No. 38387 and 38388, this solution ensures reliable transmission up to 150m.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.
This extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI® source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances
| Category | Specification |
|---|---|
| AV Interface | HDMI® |
| Interface Standard | HDMI® 2.0, USB 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Distance | 90m at 3840x2160@60Hz 4:4:4 8bit (STD), 150m at 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit (LRM) |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| EDID Pass Through | Pass Through |
| Supported Audio | Pass Through |
| Separate Audio Ports | 3-Pin Terminal Block |
| IR Support | 20 - 60KHz |
| CEC Support | - |
| Serial Interface | RS-232 Pass Through |
| Transmission Protocol | HDBaseT 2.0 |
| Transmission Medium | Cat.6 |
| Chipset | VS2010 |
| Special Features | Bi-directional IR, PoC (Power over Cable) with On/Off switch, Audio de-embedded, Long Reach Mode |
| Connectors | Transmitter Input: - Transmitter Output: - Receiver Input: RJ-45 (Female), 3.5mm IR (Female) Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female), Audio 3-pin Terminal Block, 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block |
| Power | 5.5/2.1mm |
| Physical Properties | Dimensions: 157x20x88mm (6.18x0.79x3.46in) Housing Material: Metal Net Weight: 0.64kg (1.41lb) Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: White plate |
| Miscellaneous | Packaging Type: Carton Box Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in) Gross Weight: 0.80kg (1.76lb) Warranty (Years): 2 Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | Receiver, IR Emitter Cable (1.5m), IR Receiver Cable (1.5m), Multi-country Power Supply (UK, EU, US & AUS), 2 x 3-Pin Terminal Block, 2 x Mounting Ears & 4 x Screws, Lindy Manual |
| Purchasing Information | No.: 38389 EAN: 4002888383899 |
