Distributes content from a single HDMI source across 16 HDMI displays
Supports resolutions up to 4K@60Hz, with additional support for HDR
HDCP 2.2 for enhanced compatibility with 4K content
Smart EDID Management control to ensure the optimum video performance
2 year warranty
HDMI splitters are high quality solutions for distributing identical content simultaneously across several HDMI displays.

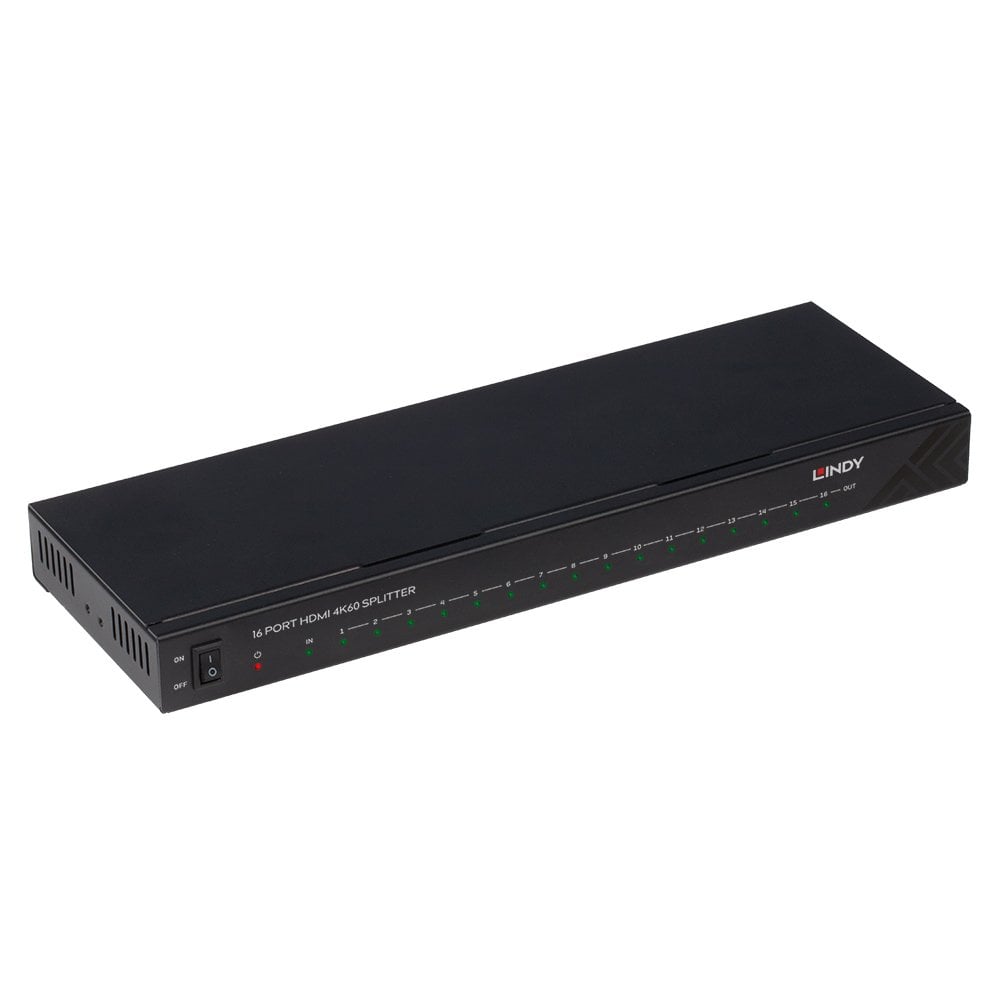

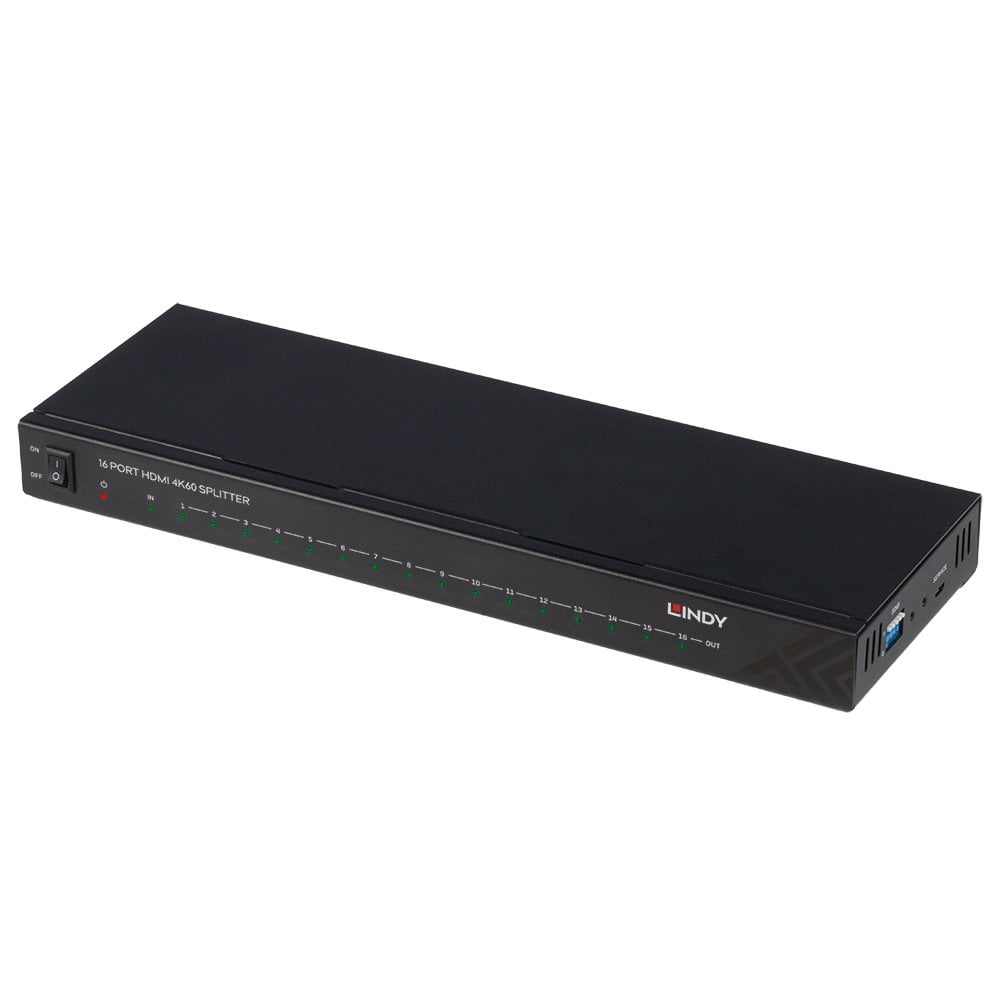

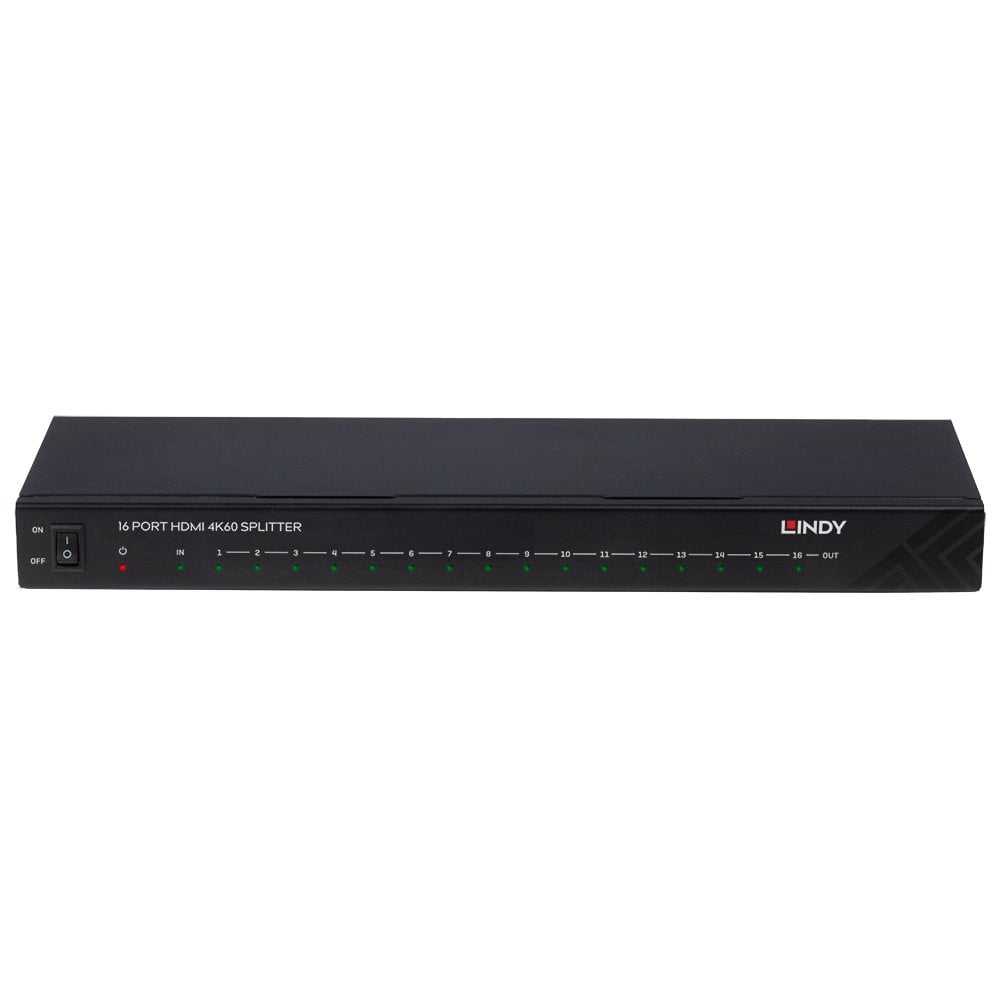

The Lindy 16 Port HDMI Splitter is a professional solution for distributing high quality HDMI content simultaneously across 16 seperate displays, when connected to a single HDMI source such as media players, PCs or set top boxes.
With support for full 4K@60Hz resolutions and HDR, content can be viewed in superior quality with a wider colour gamut and greater contrast. The splitter is perfect for creating eye-catching digital signage in retail, hospitality, conference rooms, transport hubs or impressive residential installations. HDCP 2.2 support also ensures seamless playback of 4K and Full HD content including video games, Blu-rays and on-demand video.
The splitter also includes a smart EDID dip switch for ensuring the optimum resolutions possible are shown on the connected displays.
| Specifications | Details |
|---|---|
| AV Interface | HDMI |
| Interface Standard | HDMI 2.0 |
| Supports Bandwidth | 18Gbps |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| Supported Audio | Audio Pass-through |
| Separate Audio Ports | - |
| CEC Support | - |
| Serial Interface | - |
| Special Features | EDID Management |
| Connectors | |
| Input | HDMI Type A (Female) |

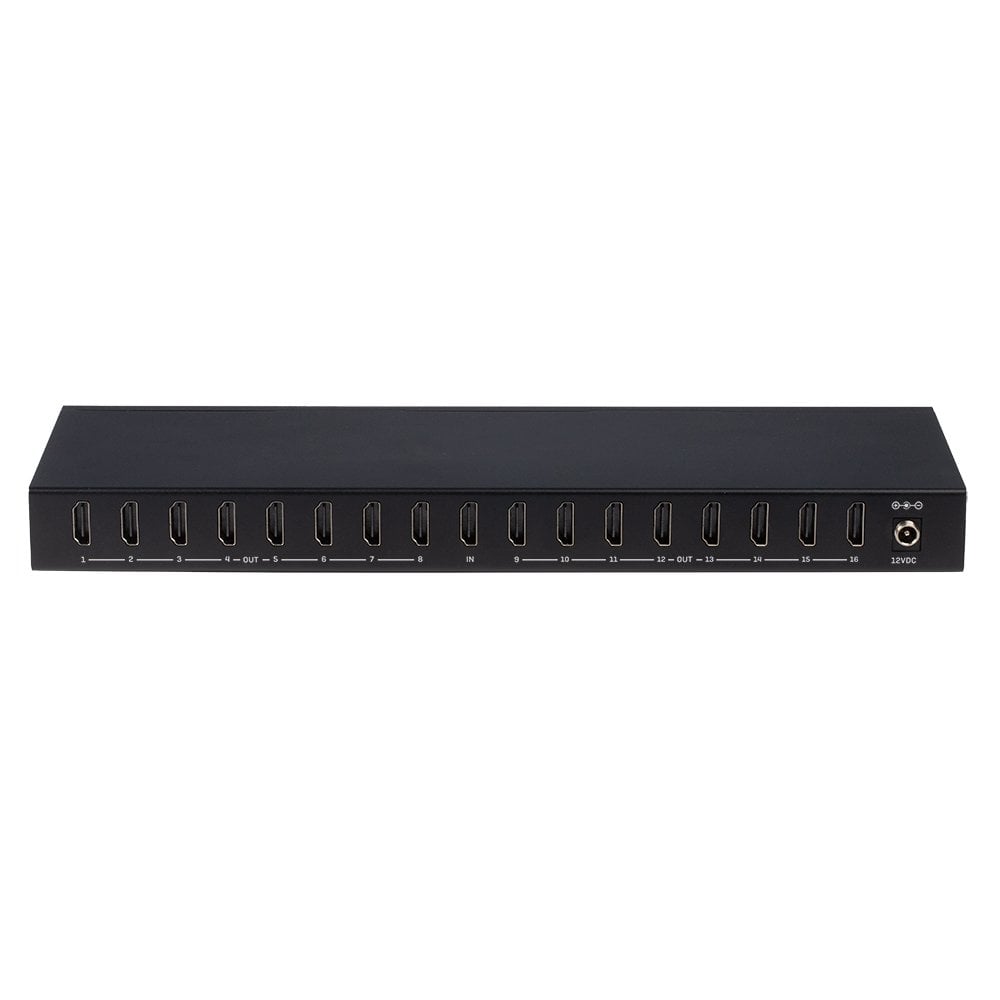

| Output | 16 x HDMI Type A (Female) |
| Control | - |
| Power | 5.5/2.1mm |
| Physical Properties | |
| Dimensions (WxDxH) | 300x100x28mm (11.81x3.94x1.1in) |
| Housing Material | Metal |
| Net Weight | 0.9kg (1.98lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 12VDC 2.5A |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton Box |
| Packaging Dimensions | 350x220x60mm (13.78x8.66x2.36in) |
| Gross Weight | 1.28kg (2.82lb) |
| Warranty (Years) | 2 |
| Certified | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | |
| 16 Port HDMI 4K60 Splitter | |
| Multi-Country Power Supply | EU, UK, US & AUS |
| Lindy Manual | |
| Purchasing Information | |
| No. | 38239 |
| EAN | 4002888382397 |
