Official Partner
Provides control of two DisplayPort equipped computers using a keyboard, mouse & two displays
Ultra-high definition resolutions of up to 3840x2160@60Hz provide exceptional visual performance
Compatible with various USB devices including printers, storage devices and human interface devices (HID) such as mice and keyboards
Switch between host PC’s with ease with an IR remote control or front panel button
2 Year warranty

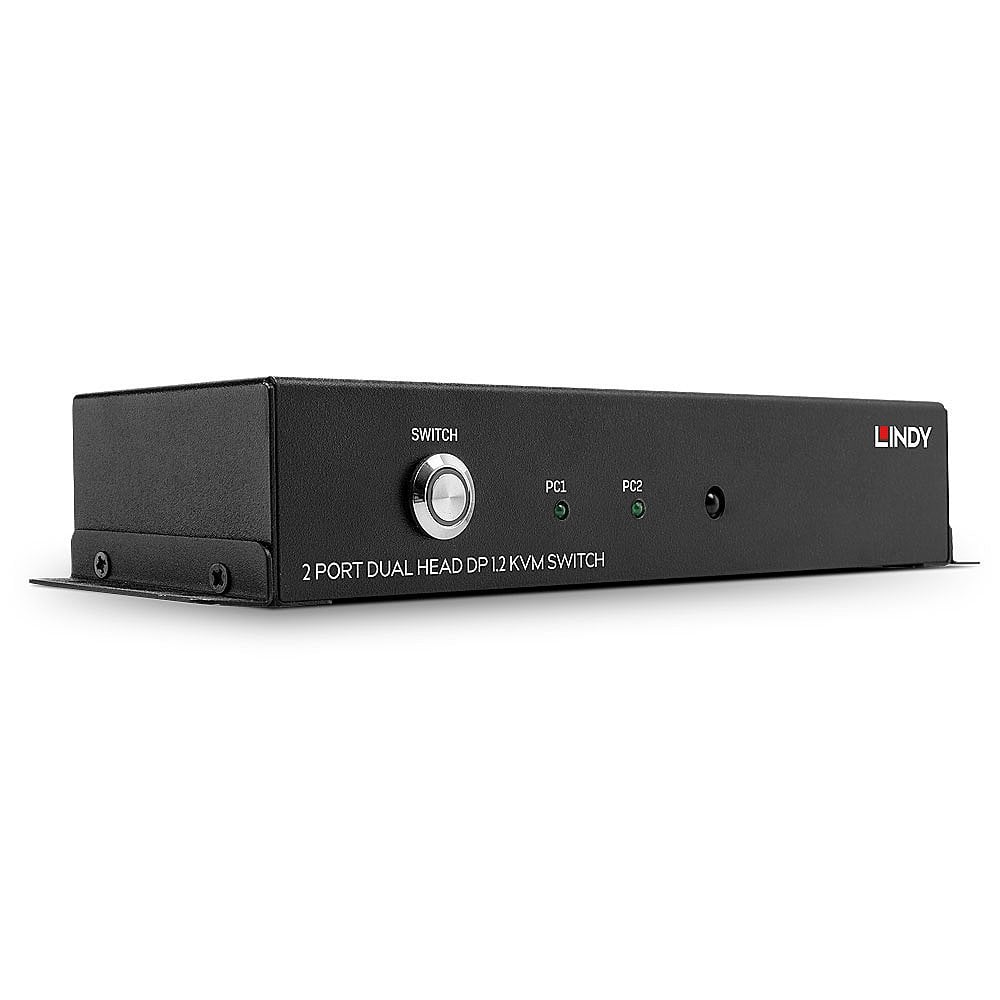

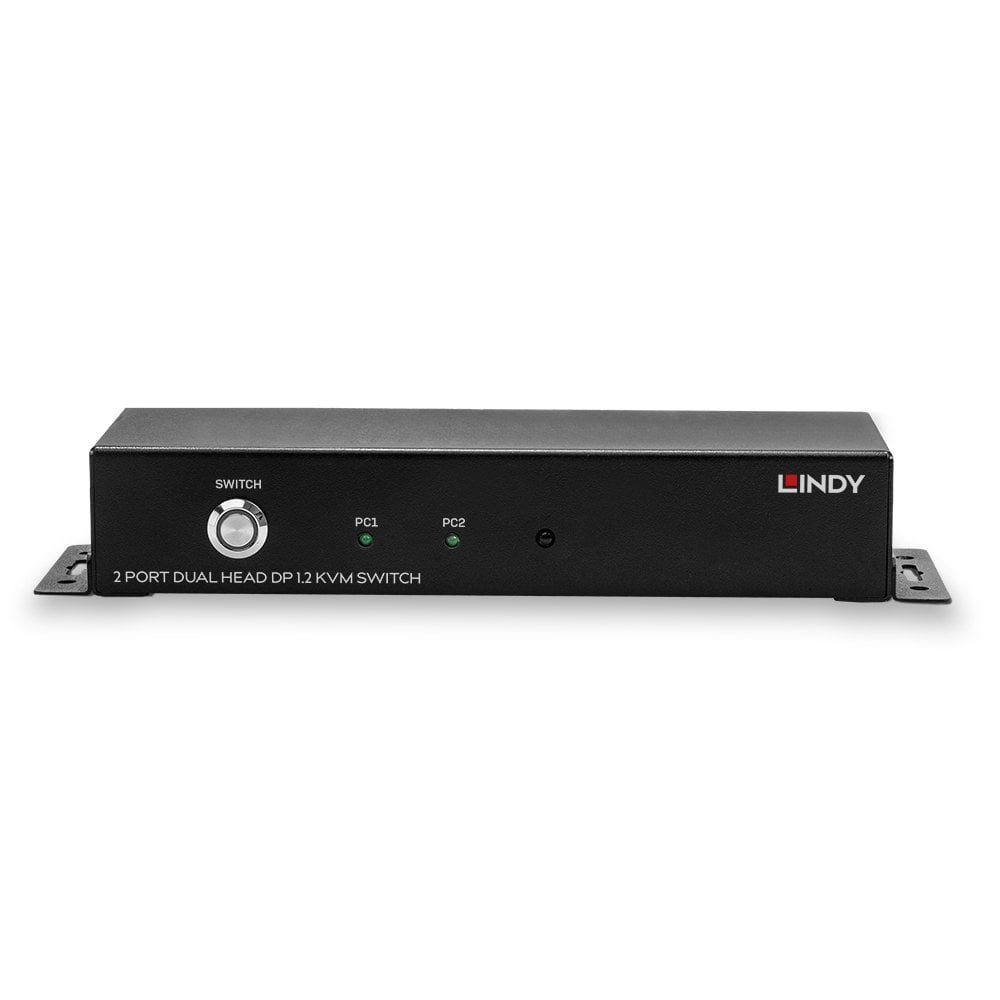

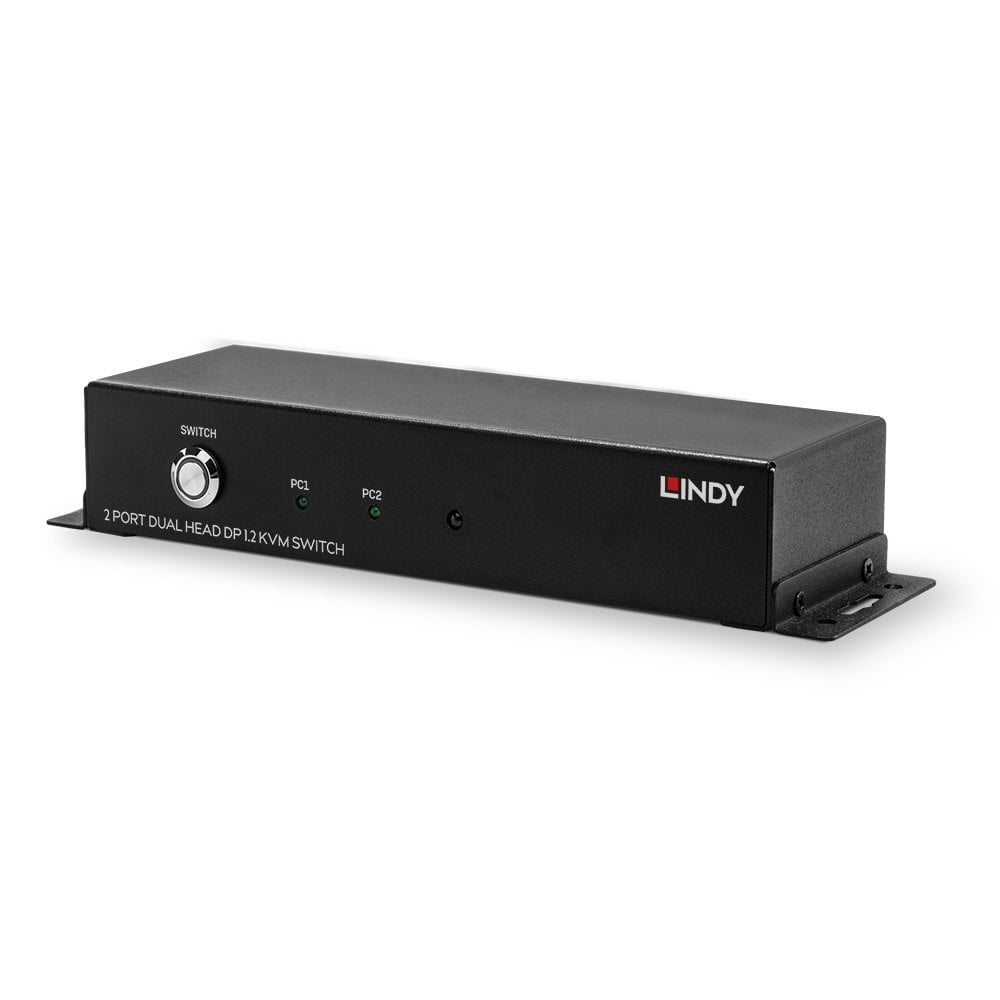

The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals & storage devices between host PC’s seamlessly.
Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.
Installation within new & existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.
| Category | Details |
|---|---|
| Specifications | |
| AV Interface | DisplayPort |
| Console Interfaces | USB |
| Interface Standard | DisplayPort 1.2, USB 2.0 |
| Maximum Resolution | 3840x2160@60Hz |
| HDCP Support | 1.4 & 2.2 |
| Supported Audio | Pass-through |
| Separate Audio Ports | - |
| Serial Interface | - |
| Console Number | 1 |
| Max Number PC/Server | 2 |
| Cascadable | - |
| Switching Method | Push Button / IR Remote Control |
| 19" Rack Mountable | - |
| Special Features | Dual Head |
| Connectors | |

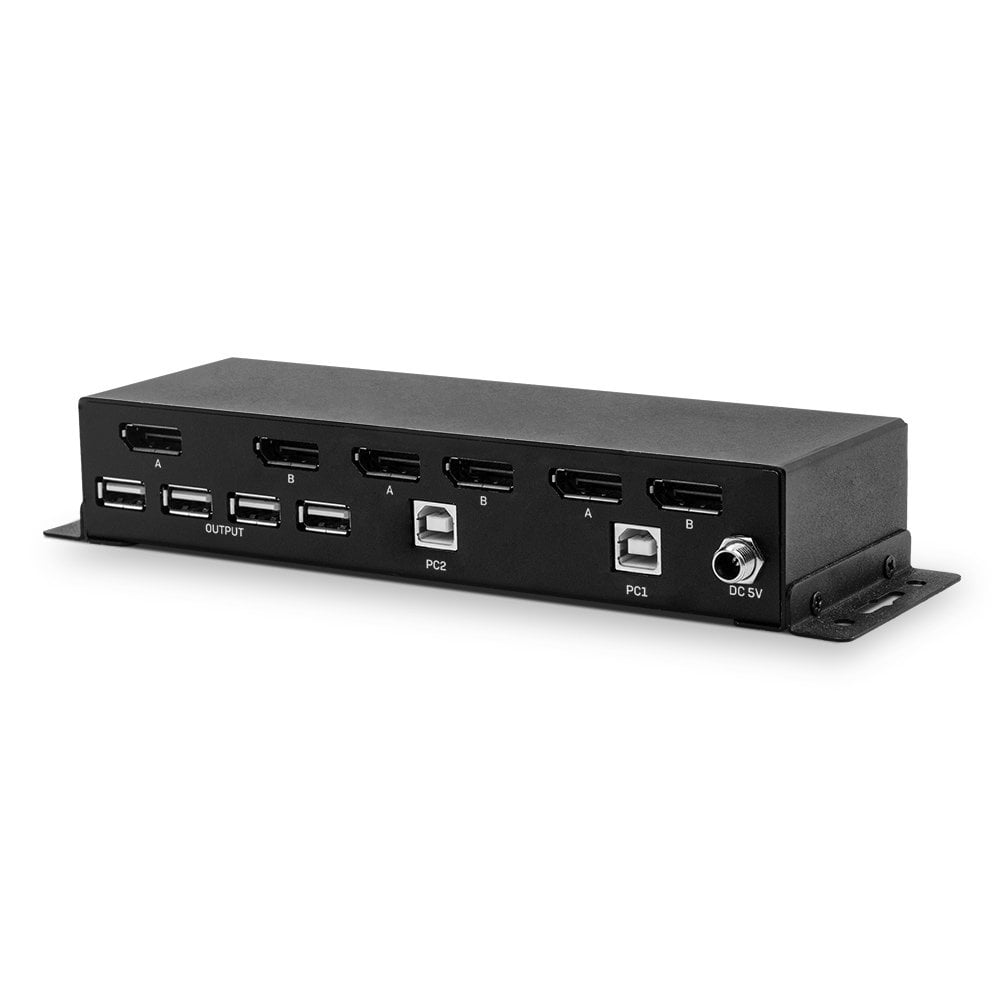

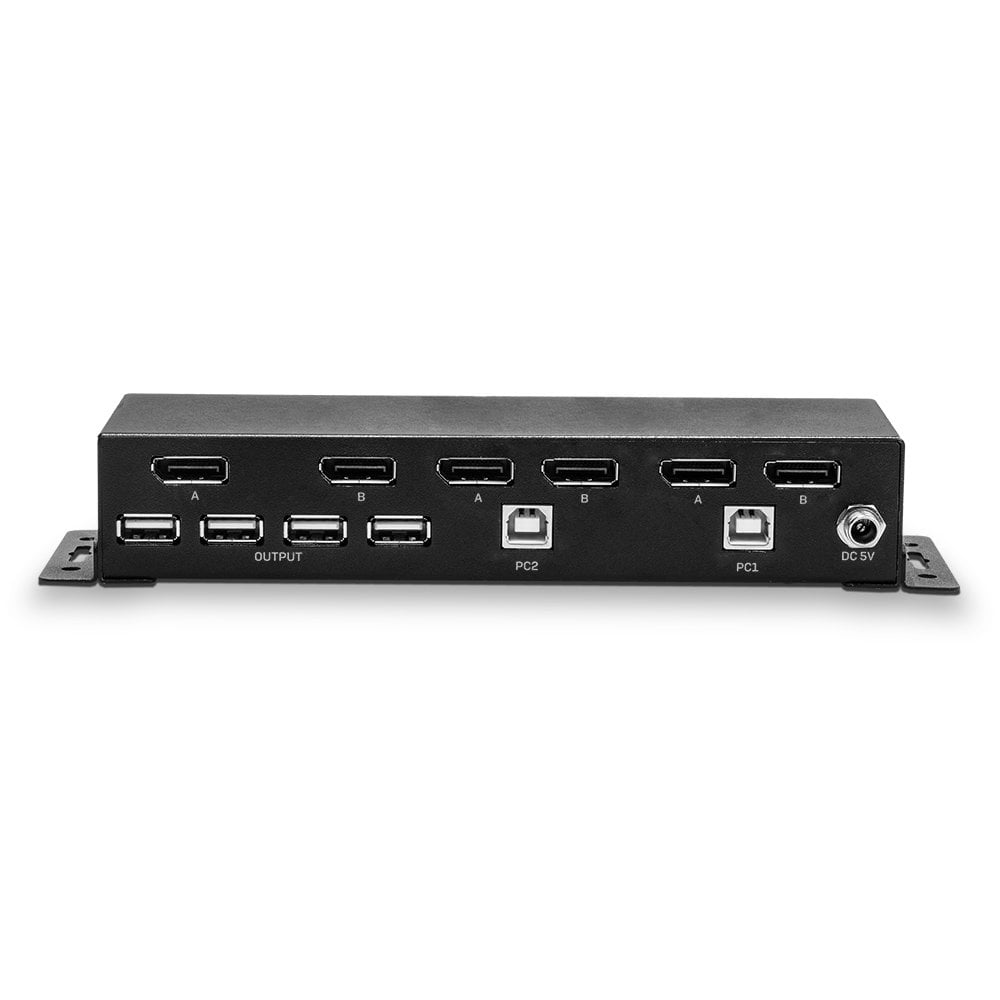

| Console Interfaces | 2 x DisplayPort 1.2 (Female), 4 x USB Type A (Female) |
| PC/Server Interfaces | 4 x DisplayPort 1.2 (Female), 2 x USB Type B (Female) |
| Other Interfaces | - |
| Power | DC5V 5.5/2.5mm |
| Physical Properties | |
| Dimensions (approx.) WxDxH | 184x35x60mm (7.24x1.38x2.36in) |
| Housing Material | Metal |
| Net Weight | 0.674kg (1.48lb) |
| Operating Temperature | 0°C - 55°C (32°F - 131°F) |
| Storage Temperature | -20°C - 75°C (-4°F - 167°F) |
| Humidity | 0~90% RH (non-condensing) |
| Power Requirements | 5V |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton box |
| Packaging Dimensions | 235x63x198mm (9.25x2.48x7.8in) |
| Gross Weight | 0.860kg (1.89lb) |
| Warranty (Years) | 2 |
| Certificated | CE, FCC, RoHS & REACH |
| Package Contents | |
| Included Items | 2 Port Dual Head DisplayPort 1.2 KVM Switch IR Remote Control with CR2025 Battery 5VDC 4A Multi-country power supply (UK, EU, US, AUS adapters) Lindy Manual |
| Purchasing Information | |
| No. | 39306 |
| EAN | 4002888393065 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
