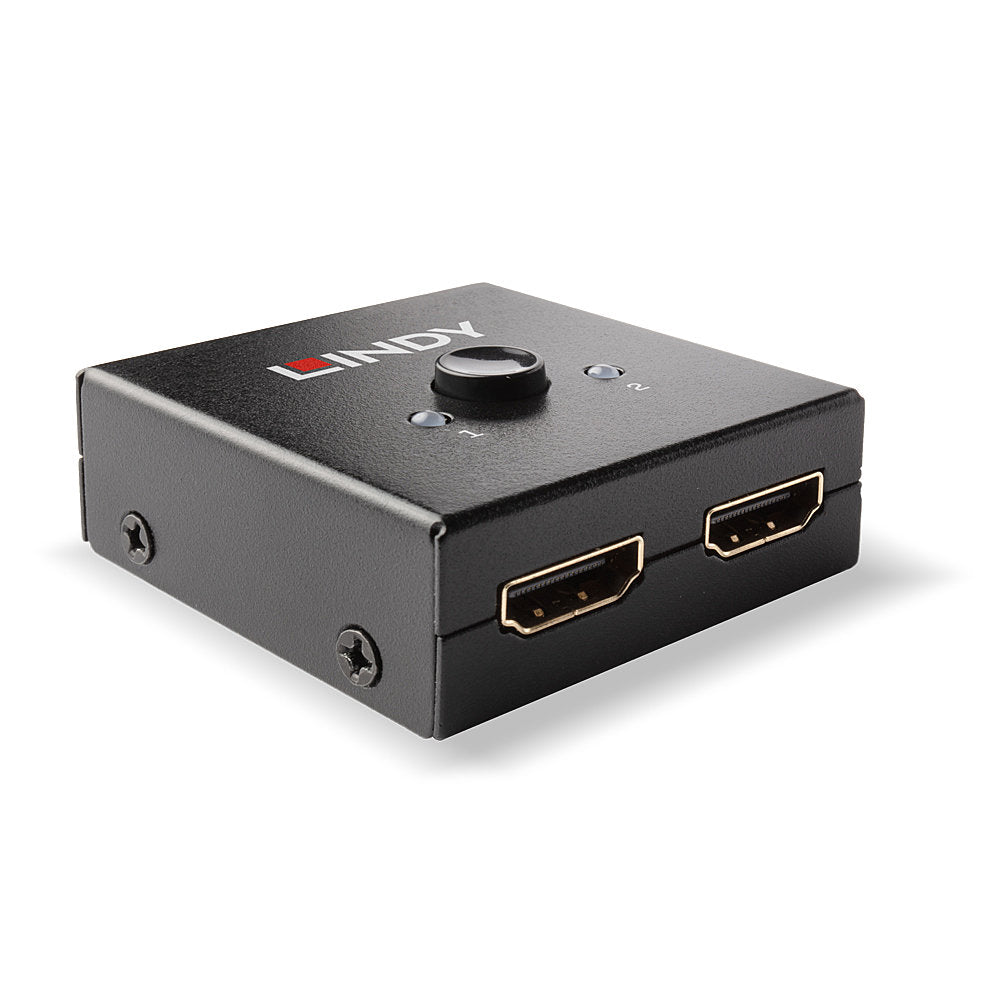

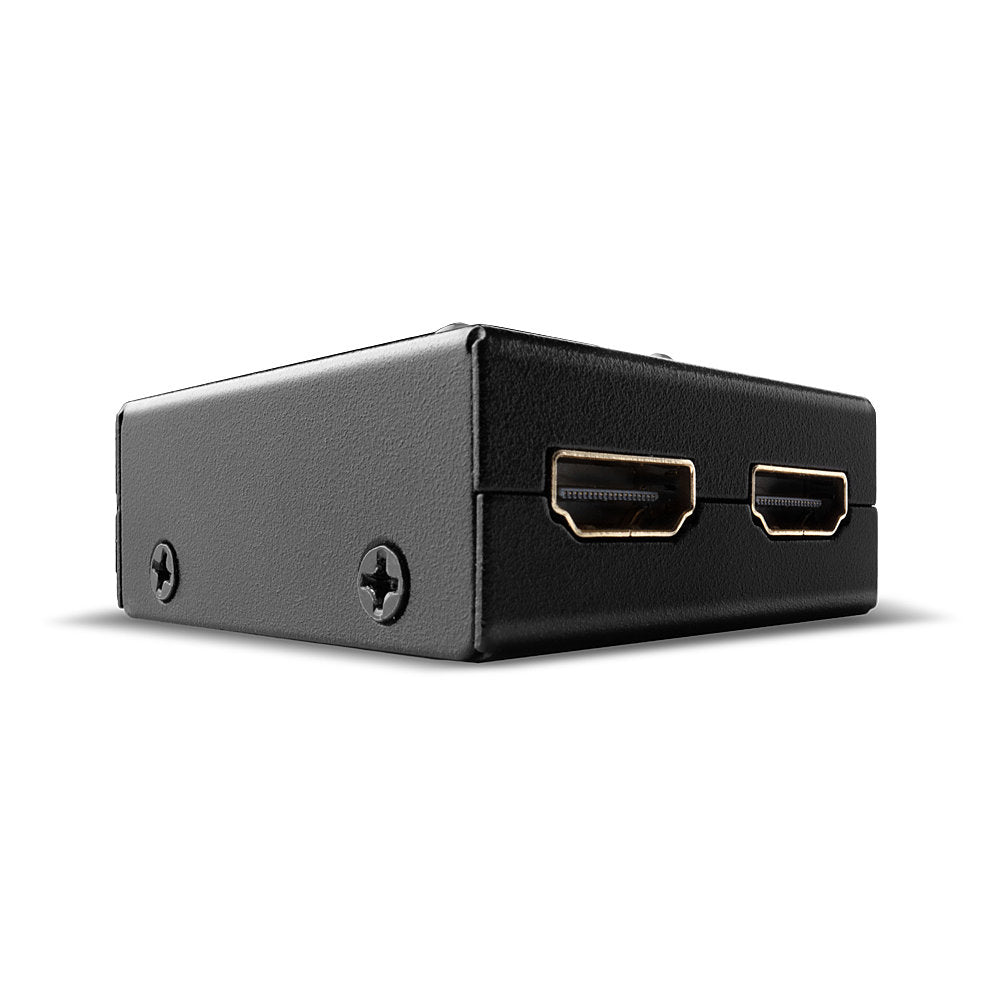

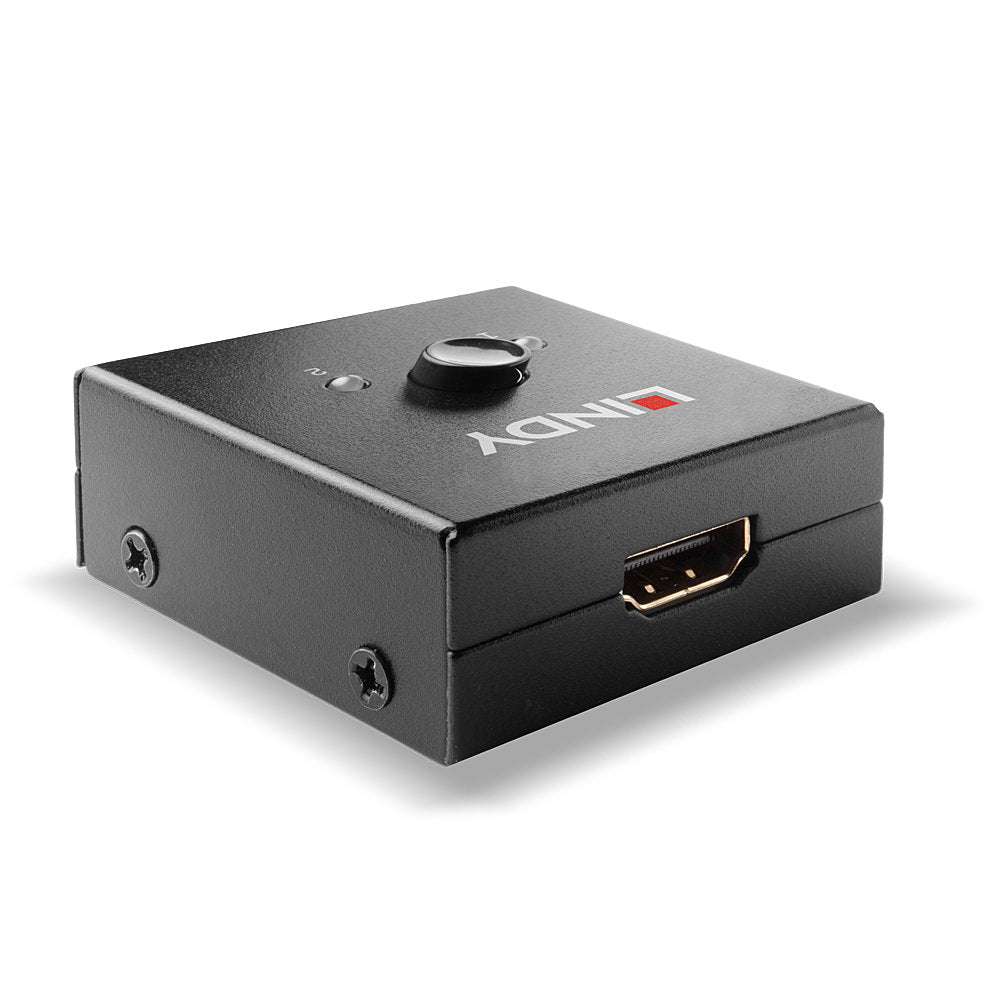

Lindy 2 Port HDMI 18G Bi-Directional Switch | 38336
Switches between two source devices to one output, or one source device to two outputs
Supports resolutions up to 4K 3840x2160 @60Hz
Supports HDMI audio pass-through
No external power supply required, for easy and discreet installation
2 year warranty
The Lindy HDMI 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.
With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
The switch’s minimalistic design, with no external power requirement, allows for a clean, discreet installation.
| Specifications | |
|---|---|
| AV Interface | HDMI |
| Interface Standard | HDMI 2.0 |
| Supports Bandwidth | 18Gbps |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | Pass-through |
| Supported Audio | Pass-through |
| Separate Audio Ports | - |
| IR Support | - |
| CEC Support | Pass-through |
| Serial Interface | - |
| Special Features | Bi-Directional Capability |
| Connectors | |
| Input | 2 x HDMI Type A (Female) Bi-Directional |
| Output | HDMI Type A (Female) Bi-Directional |
| Control | - |
| Power | Powered via HDMI interface |
| Physical Properties | |
| Dimensions (WxDxH) | 49x52x20mm (1.93x2.05x0.79in) |
| Housing Material | Metal |
| Net Weight | 0.7kg (1.54lb) |
| Operating Temperature | 0°C - 70°C (32°F - 158°F) |
| Storage Temperature | -10°C - 80°C (14°F - 176°F) |
| Humidity | 10% to 85% RH (no condensation) |
| Power Requirements | - |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton Box |
| Packaging Dimensions | 63.5x80x28mm (2.5x3.15x1.1in) |
| Gross Weight | 0.84kg (1.85lb) |
| Warranty (Years) | 2 |
| Certificated | CE, FCC, RoHS, REACH & California Proposition 65 |
| Package content | |
| 2 Port HDMI 18G Bi-Directional Switch | |
| Lindy Manual | |
| Purchasing Information | |
| No. | 38336 |
| EAN | 4002888383363 |
| Description | Downloads |
|---|---|
| User Manual | Download |
