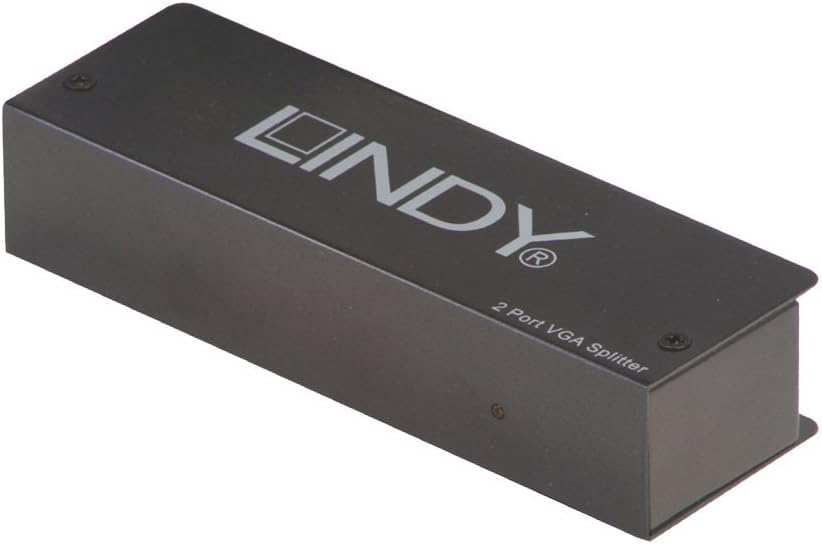

Lindy 2 Port VGA Splitter | 32569
The Lindy 2 Port VGA Splitter is a professional solution for splitting PC video content across two separate VGA displays, with simultaneous playback.
Supporting resolutions up to 2048x1536, this splitter is perfect for engaging educational installations, eye catching digital signage or display testing that utilise legacy PC’s and monitors. This splitter is also cascadeable up to three layers, allowing for much larger display installations, all showing the same content from one VGA source device.
Please note: distances may vary on the quality of the cable used within the installation
| Category | Attribute | Value |
|---|---|---|
| AV Interface | Type | VGA |
| Standard | VGA | |
| Max Bandwidth | 350MHz | |
| Max Resolution | 2048x1536 | |
| Audio/Control | Audio Support | Not Supported |
| CEC / Serial | Not Supported | |
| Features | Cascadeable | Up to 3 Units |

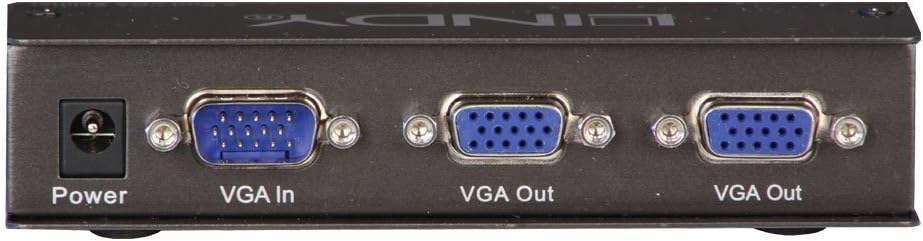

| Connectors | Input | 1 x VGA (Male) |
| Output | 2 x VGA (Female) | |
| Power Port | 5.5/2.1mm | |
| Power | Requirement | 5VDC 1A |
| Build | Material | Metal |
| Colour | Black | |
| Dimensions (WxDxH) | 127x41x27 mm | |
| Net Weight | 0.25 kg | |
| Environment | Operating Temp. | 0°C to 50°C |
| Storage Temp. | -20°C to 60°C | |
| Humidity | 0%–80% RH (non-cond.) | |
| Packaging | Type | Carton Box |
| Size | 136x57.5x117 mm | |
| Gross Weight | 0.34 kg | |
| Compliance | Certifications | CE, UKCA, FCC, RoHS, REACH |
| Warranty | Duration | 2 Years |
| Included Items | In the Box | Splitter, Power Supply (UK/EU/US/AUS), Manual |
| Description | Downloads |
|---|---|
| Lindy 2 Port VGA Splitter | 32569 User Manual | Downloads |
