The Lindy Cat.6 Dual VGA, USB & Audio KVM Extender allows users to control a source device such as a PC from a keyboard, mouse and two displays up to 200m using two Cat.5e/6 RJ45 cable. Supports analogue resolutions up to 1920x1080 (or 1600x1200) with VGA ports, ideal to manage a PC or workstation from very long distances. The Extender features PC & console ports on the transmitter to connect additional displays, keyboard and mouse for local control and supports Dual Head operation from both units. Local and remote consoles can be used simultaneously.
Includes image enhancements for focus and gain on the receiver unit and supports analogue stereo audio 3.5mm to connect speakers.
USB ports support only HID devices like standard mouse and keyboard, other devices are not supported.
This extender provides a simple plug & play installation, no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
| Category | Details |
|---|---|
| Specifications | |
| AV Interface | VGA |
| Console Interface | VGA, USB |
| Interface Standard | VGA, USB (HID) |
| Supported Bandwidth | 350MHz |
| Maximum Distance | 200m (656.16ft) |
| Maximum Resolution | 1920x1200@60Hz |
| HDCP Support | - |
| Supported Audio | 2CH 3.5mm Audio for speaker |
| Separate Audio Ports | - |
| Transmission Protocol | - |
| Transmission Medium | 2 x Cat.5e / 6 |
| Laser Class (only for Fibre) | - |
| Wavelength (only for Fibre) | - |
| Special Features | Gain and Focus adjustments |
| Connectors | |

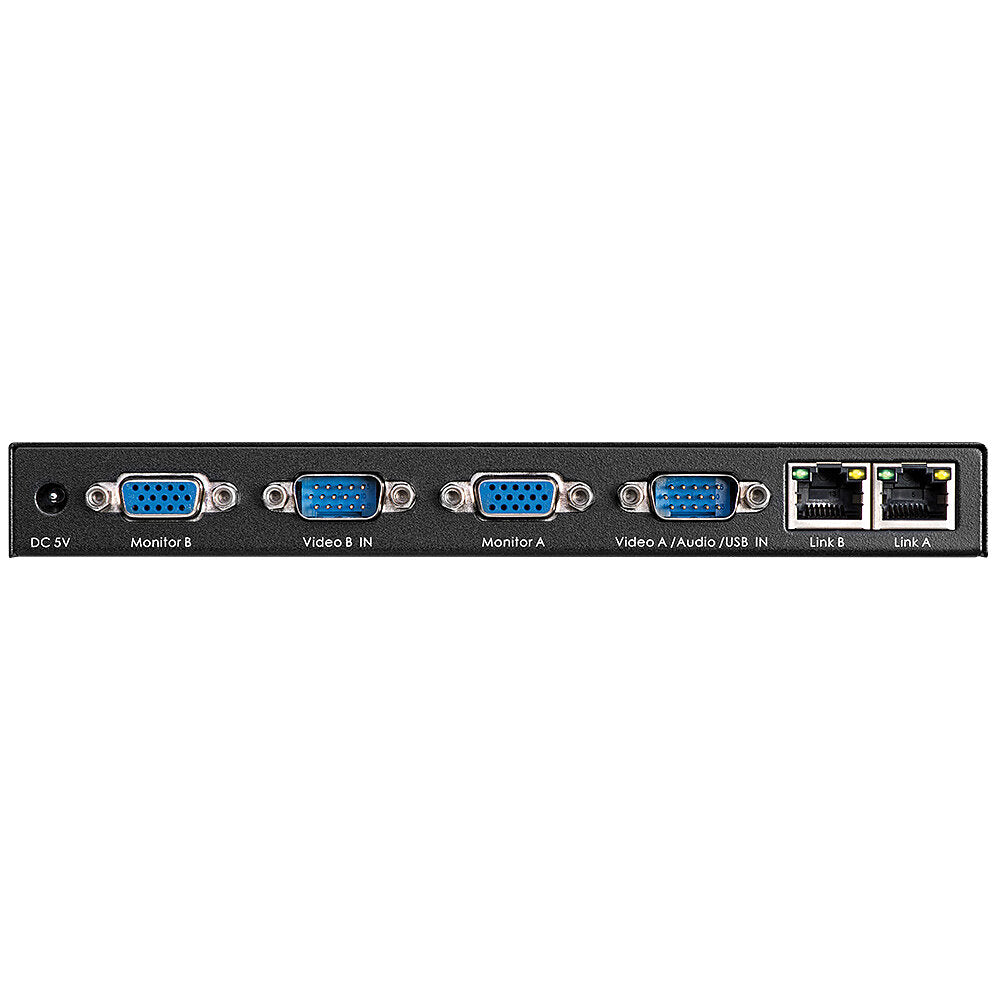

| Transmitter KVM Interfaces | Console ports: 2 x VGA (Female), 2 x USB Type A (Female), 1 x 3.5mm (Female) PC Port: 2 x VGA (Male) |
| Transmitter Extension Port | 2 x RJ45 |

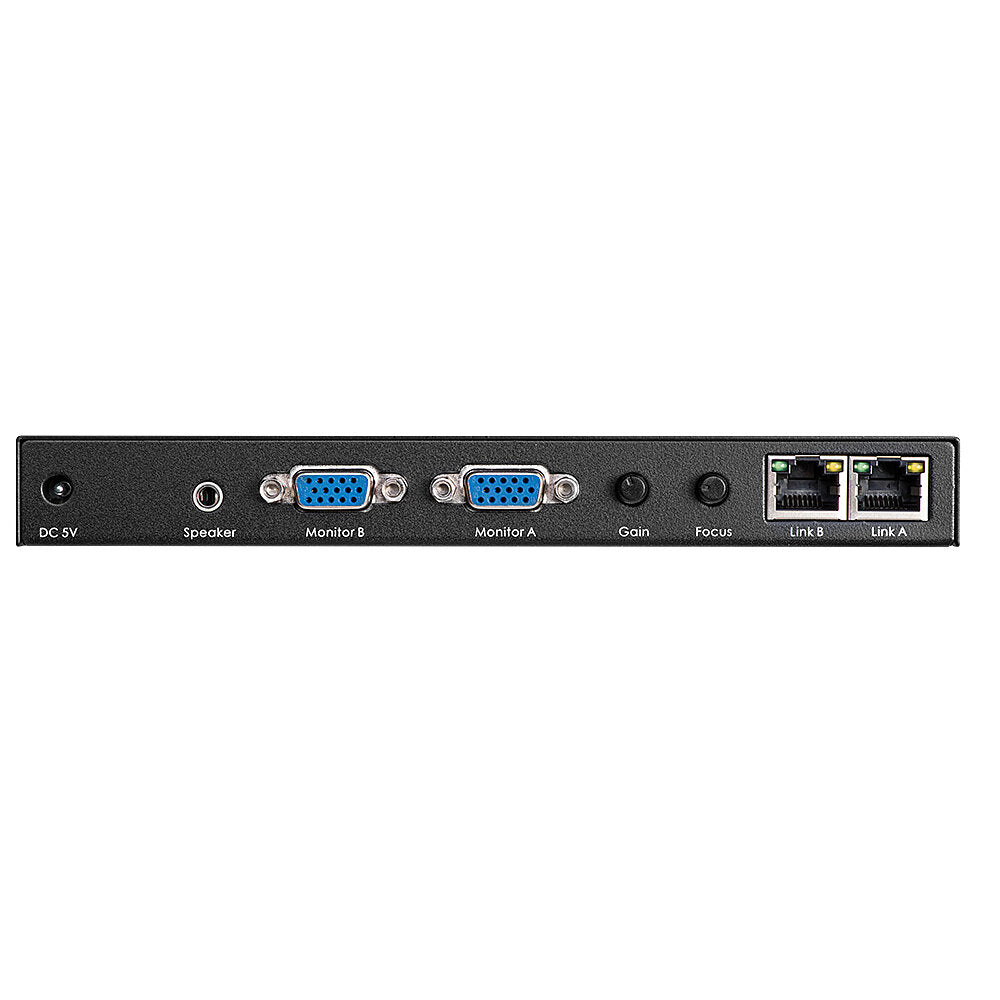

| Receiver Console Interface | Console ports: 2 x VGA (Female), 2 x USB Type A (Female), 1 x 3.5mm (Female) |
| Receiver Extension Port | 2 x RJ45 |
| Bi-directional Ports | - |
| Other Interfaces | - |
| Power | 5.5/2.5mm DC socket |
| Physical Properties | |
| Dimensions WxDxH | 193x85x25mm (7.6x3.35x0.98in) (each unit) |
| Housing Material | Metal |
| Net Weight | 0.95kg (2.09lb) (each unit) |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Storage Temperature | -10°C - 60°C (14°F - 140°F) |
| Humidity | 5 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1.2A |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton Box |
| Packaging Dimensions | 260x170x70mm (10.24x6.69x2.76in) |
| Gross Weight | 1.643kg (3.62lb) |
| Warranty (Years) | 2 |
| Certification | CE, FCC, RoHS |
| Package Content | |
| Included Items | Transmitter Unit Receiver Unit 1 x 3-in-1 KVM cable, 1m 1 x VGA M/F cable, 1m 2 x Multi-Country Power Supply (EU, UK, US, AUS) Lindy Manual |
| Purchasing Information | |
| No. | 39396 |
| EAN | 4002888393966 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
