Lindy 20m USB 3.0 Active Extension Pro | 43361
SKU: 43361
£131.17 (Excl. VAT)
- Description
- Specifications
- Downloads
-

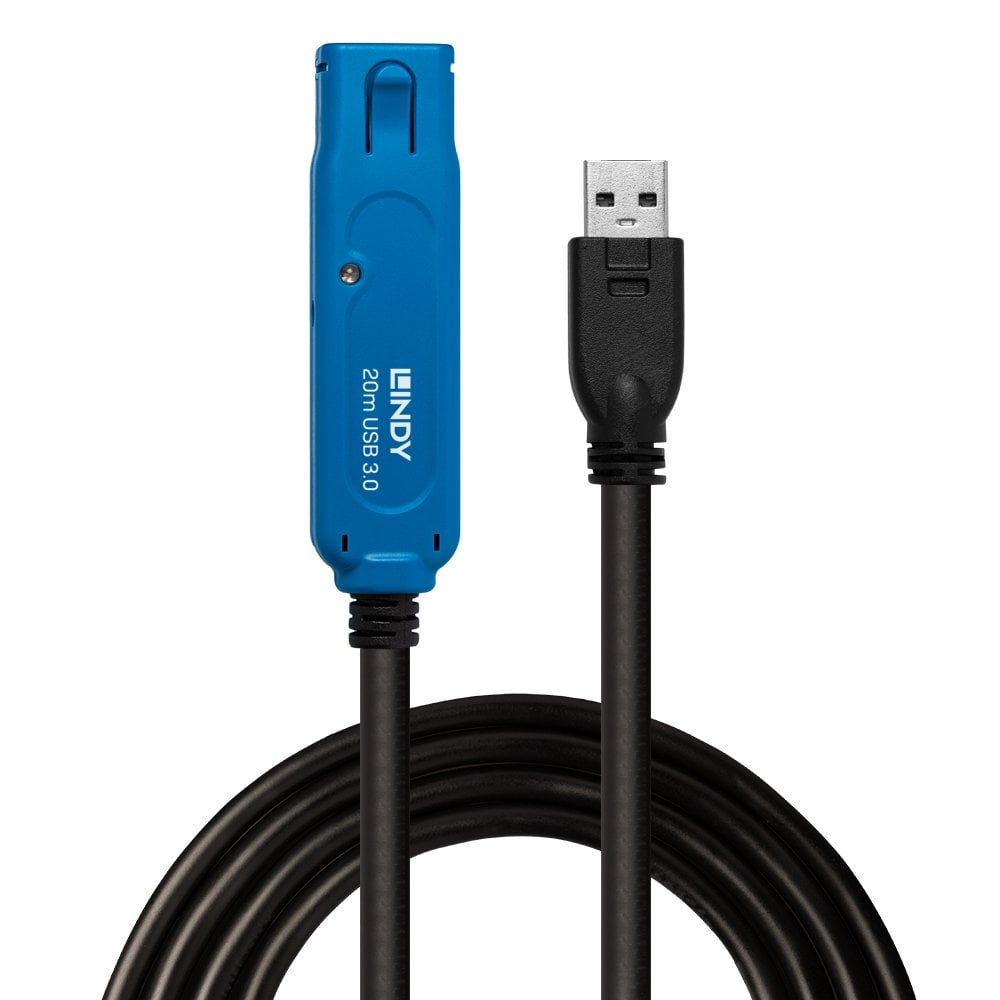

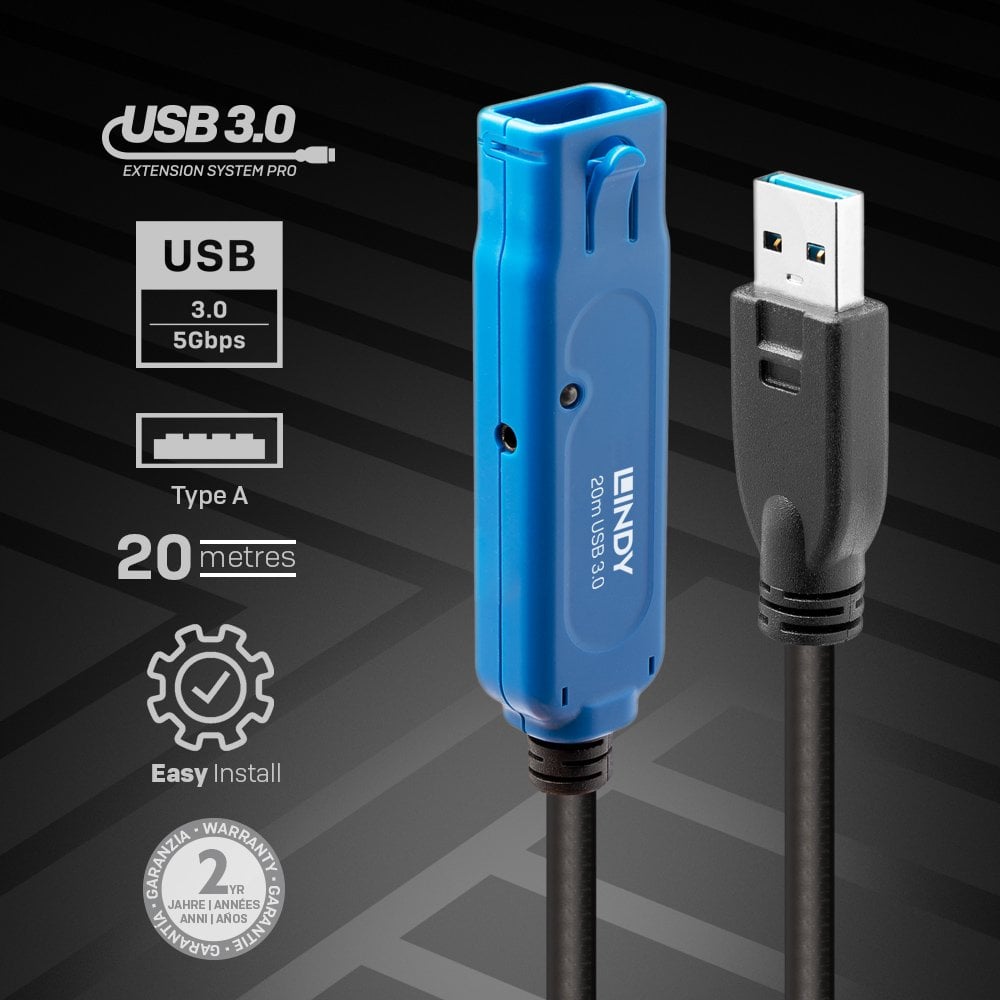

High-Speed USB 3.0 Extension Cable with Active Signal Boost
The Lindy 20m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.

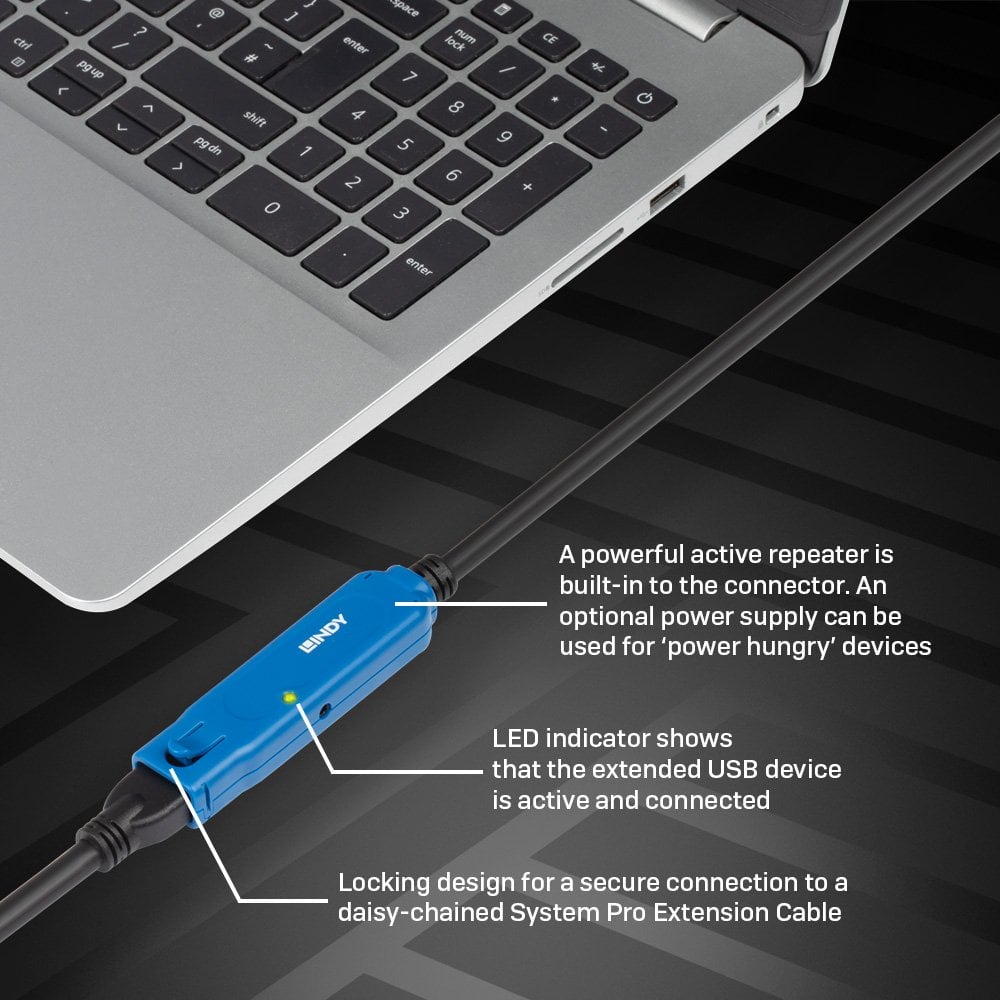

The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

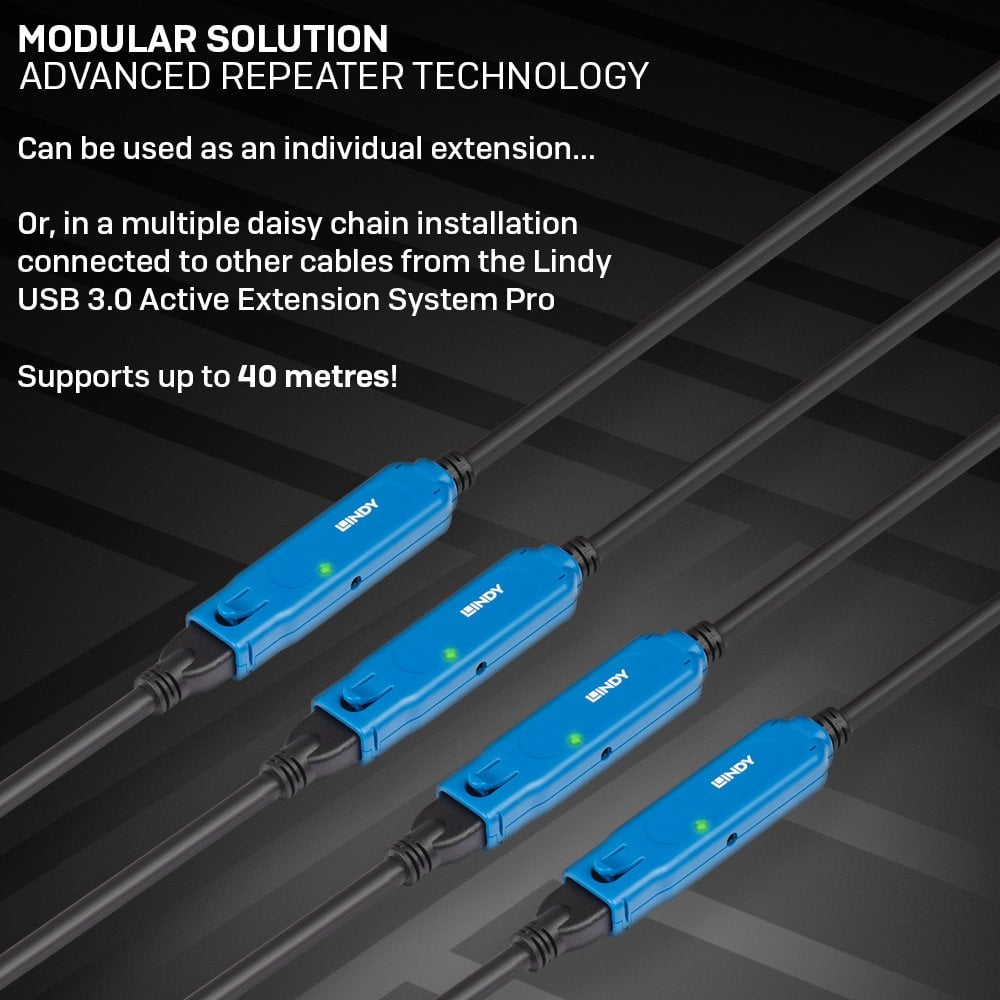

This 20m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps. -
Connector A USB Type A Male Connector B USB Type A Female Power 2.5/0.7mm DC Connector Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Flash Dimensions USB A Male 15x49x8mm (0.59x1.93x0.31in) Dimensions USB A Female 20x80x13mm (0.79x3.15x0.51in) Repeater (2x) 84.5x15.5mm (3.33x0.61in) Length 20m (65.62ft) Standard USB 3.2 / 3.1 Gen 1 / 3.0 Colour Black Type Round Jacket Diameter 7mm +/- 0.15mm (0.28in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 24/24/20AWG Shielding AL Mylar and braid Supported Bandwidth 5 Gbps Included Hubs 3x USB 3.0 Minimum Bend Radius 36mm (1.42in) Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 60°C (-4°F - 140°F) Transmission Medium Twisted Pair Transmission Technology USB 3.2 / 3.1 Gen 1 / 3.0 Packaging Type Carton Box Packaging Dimensions 230x198x120mm (9.06x7.8x4.72in) Net Weight 1.6kg (3.53lb) Gross Weight 1.82kg (4.01lb) Warranty 2 Years Certifications CE, FCC, RoHS, REACH, California Proposition 65 Package Contents USB 3.0 Active Extension Pro 20m, Power Adapter Cable Nr. 70265, Lindy Manual Purchasing No. 43361 EAN 4002888433617 Other Lengths 43158 - 8m, 43157 - 10m, 43159 - 10m with hub, 43229 - 15m, 43362 - 30m -
