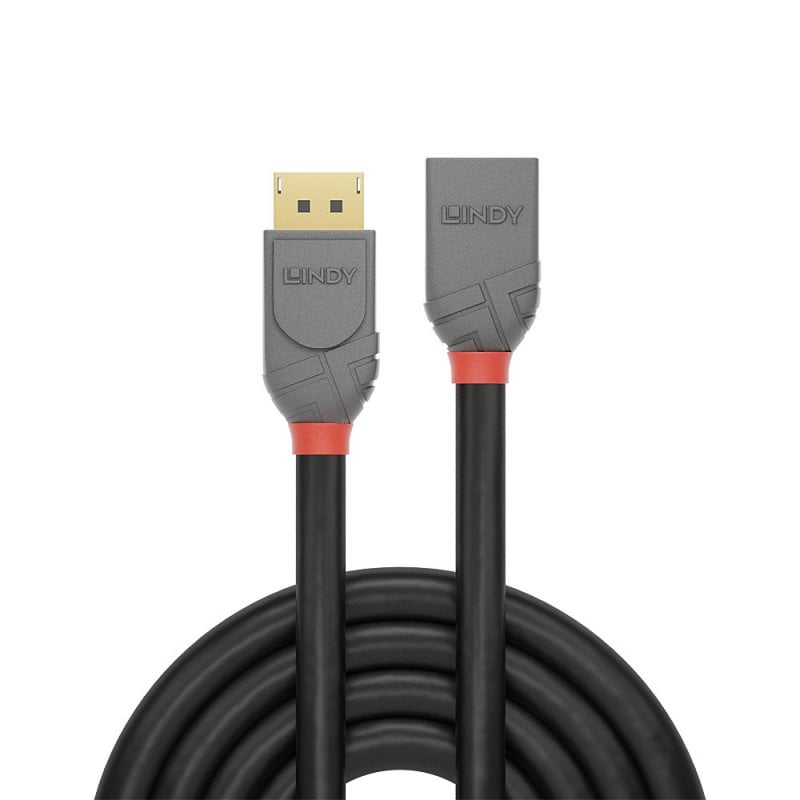

Lindy 2m DisplayPort 1.4 Extension Cable, Anthra Line | 36497
SKU: 36497
£13.53 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Lindy 2m DisplayPort 1.4 Extension Cable, Anthra Line | 36497
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 7680x4320@60Hz 4:2:2 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.4 technology ensures compatibility with all DisplayPort enabled devices.Anthra Line DisplayPort cables are available in lengths from 0.5m to 3m.
-
Category Details Connectors - Connector A: DP Male - Connector B: DP Female - Housing Material: ABS (Male) / PVC (Female) - Connector Plating: Gold - Pin Construction: Copper Alloy - Pin Plating: Gold - Male Dimensions: 20.5x36.0x12.5mm (0.8x1.42x0.49in) - Female Dimensions: 20.9x35.0x11.8mm (0.82x1.38x0.46in) Cable Construction - Length: 2m (6.561ft) - Standard: DP 1.4 - Colour: Black - Type: Round - Jacket Diameter: 7.0mm (0.28in) - Jacket Material: PVC - Conductor Material: Copper Alloy - Conductor Gauge: 28AWG - Shielding: Aluminium Magnesium Braid 85% Specifications - Supported Bandwidth: 32.4Gbps - Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit - Nominal Attenuation: 1.35GHz > -5.5dB (HBR1) 2.7GHz > -8.5dB (HBR2) 4.05GHz > -11.0dB (HBR3) - Minimum Bend Radius: 70mm (2.76in) - Operating Temperature: -10°C - 80°C (14°F - 176°F) - Storage Temperature: -20°C - 85°C (-4°F - 185°F) Miscellaneous - Packaging Type: Polybag - Warranty (Years): 10 - Certifications: RoHS, REACH, CP65, UL Purchasing Info - Product No.: 36497 - EAN: 4002888364973 -
Description Downloads Product Safety Information Downloads
