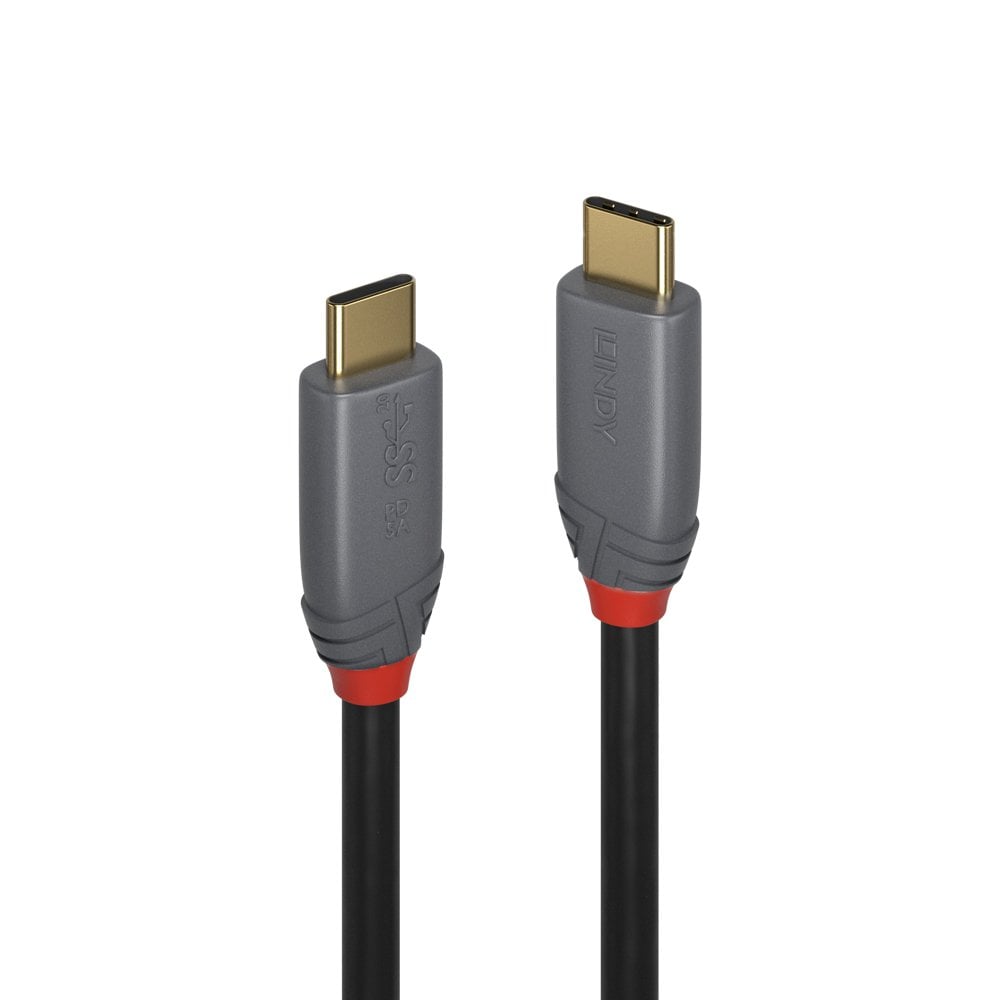

Lindy 2m USB 3.2 Type C to C Cable, 20Gbps, 5A, PD, Anthra Line | 36903
SKU: 36903
£17.20 (Excl. VAT)
- Description
- Specifications
- Downloads
-
2m USB 3.2 Gen 2x2 Type C to C Cable – 20Gbps, 100W PD, Anthra Line
The full-featured Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. -
Connector A USB 3.2 Type C Male Connector B USB 3.2 Type C Male Housing Material TPE Shielding in Head Shell Copper Foil Connector Plating Gold Pin Construction Copper Pin Plating Gold Dimensions (WxDxH) 13x41x7.75mm (0.51x1.61x0.31in) Length 2m (6.56ft) Standard USB 3.2 Gen 2x2 Power Delivery PD 3.0 Max. Power 100W (20V 5A, SPR) Colour Black Type Round Jacket Diameter 5.4mm (0.21in) Jacket Material TPE Conductor Material Tinned Copper Conductor Gauge Power 22AWG Conductor Gauge Data 29AWG/32AWG Shielding Tinned Copper 85% Supported Bandwidth 20Gbps Maximum Resolution 4K 4096x2160@60Hz Nominal Attenuation 0.5Mhz-15Ghz＜40dB Minimum Bend Radius 27mm (1.06in) Operating Temperature 0°C - 40°C (32°F -104°F) Storage Temperature -20°C - 60°C (-4°F -140°F) Packaging Type Polybag Warranty (Years) 10 Product Compliance RoHS, REACH, California Proposition 65 & UL EAN 4002888369039 -
