Lindy 2x2 HDMI 8K60 Matrix | 38313
SKU: 38313
£148.98 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Lindy 2x2 HDMI 8K60 Matrix | 38313
A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.

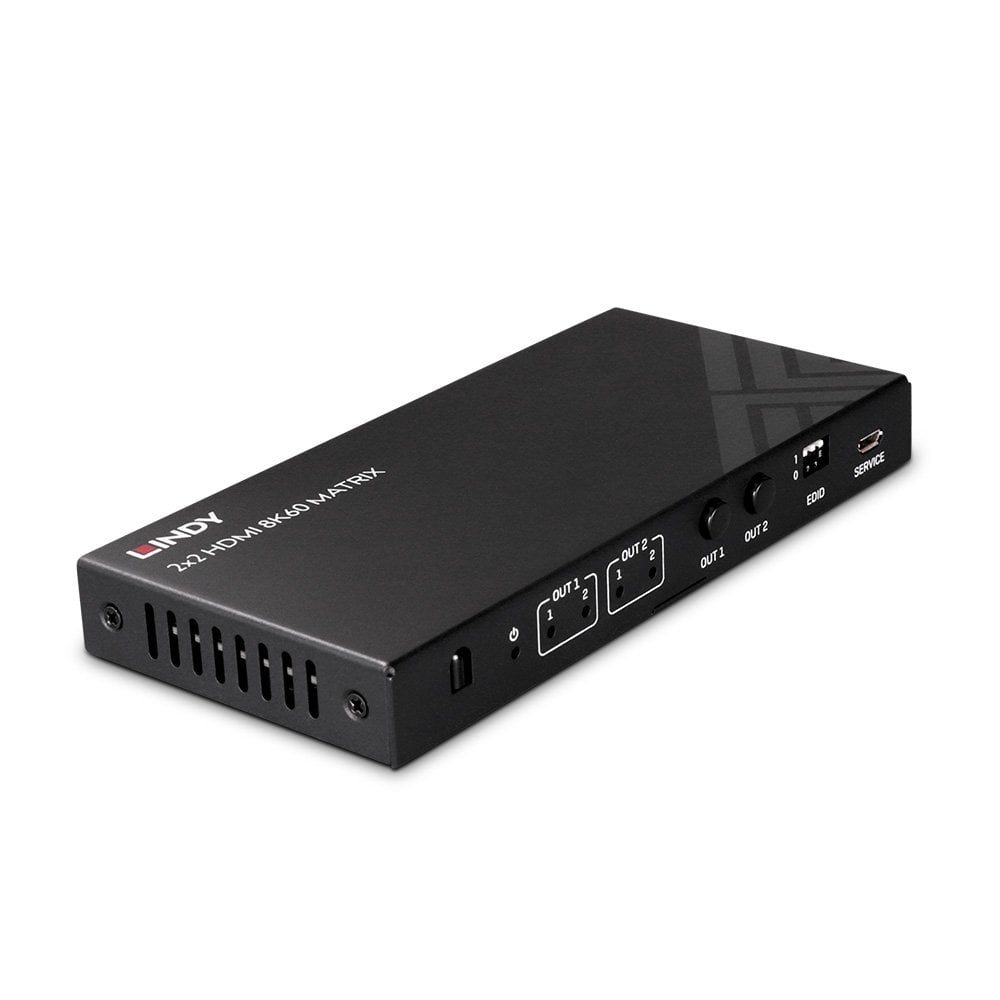

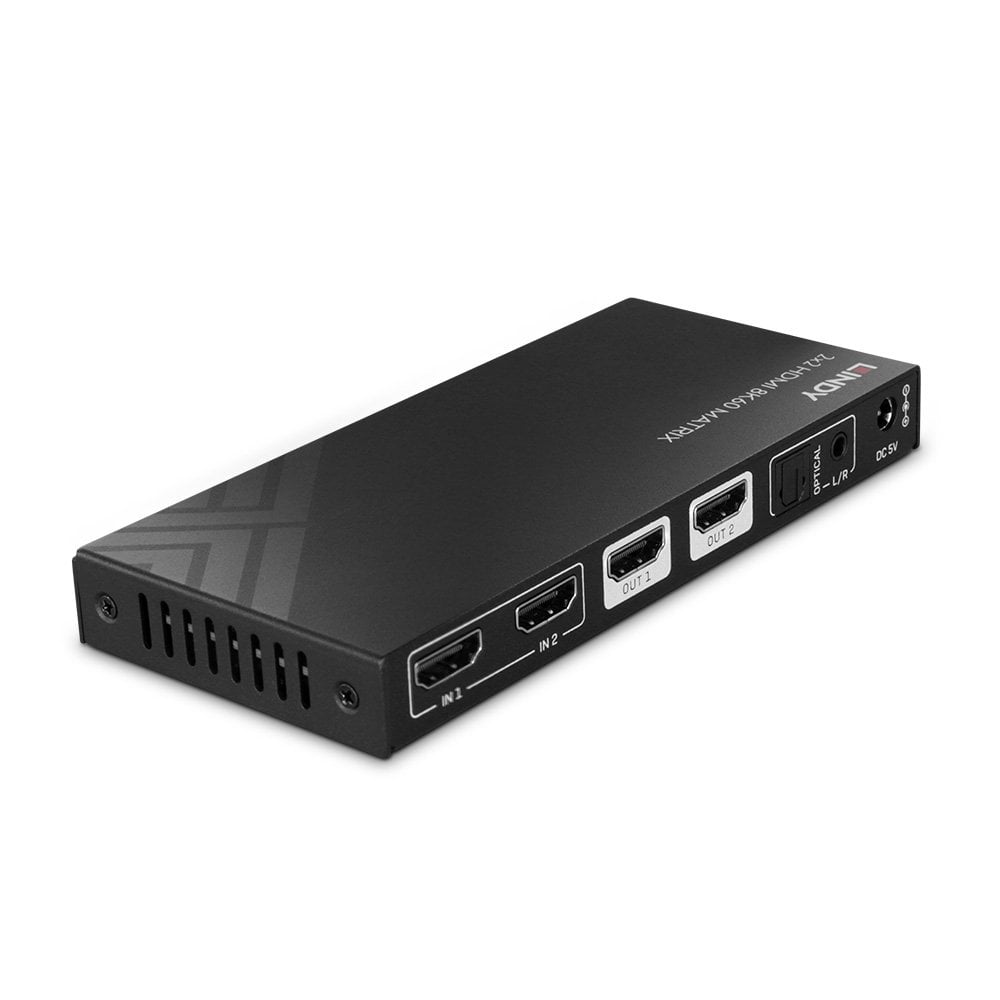

The Lindy 2x2 HDMI® 8K60 Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI® inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI® displays, or output video simultaneously.
With support for HDMI® 8K signals, this matrix allows for the transmission of high quality 4K UHD 3840x2160@120Hz or 8K 7680x4320@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.3 support ensures there are no compatibility issues with 8K content when connected to source devices including set top boxes, Blu-Ray players and 8K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.

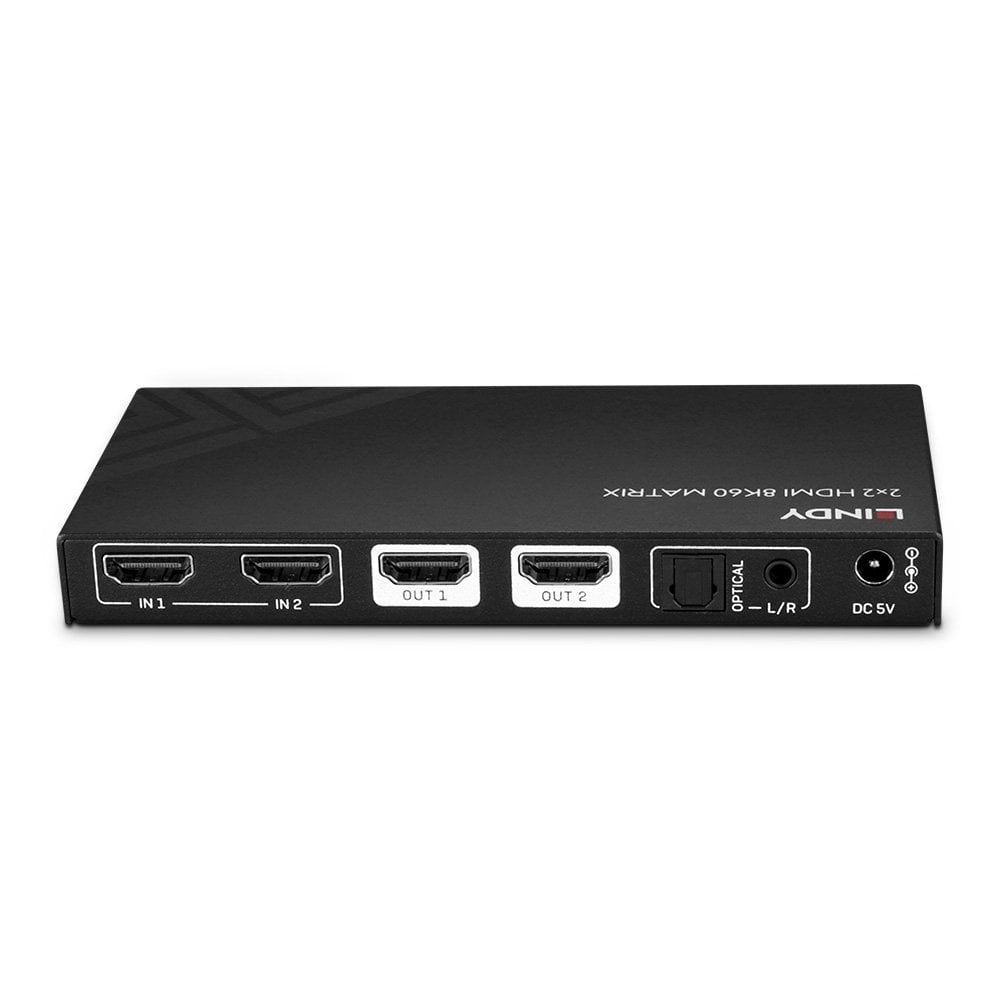

As well as HDMI® audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

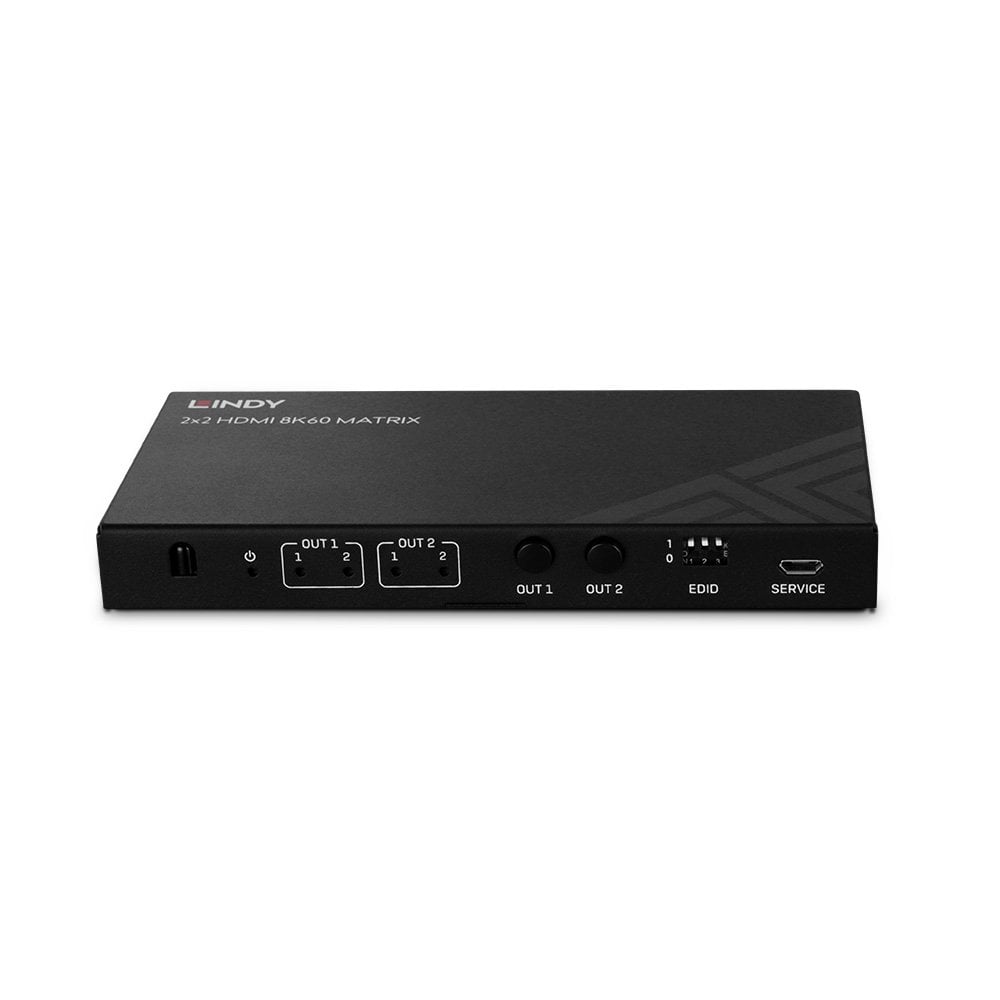

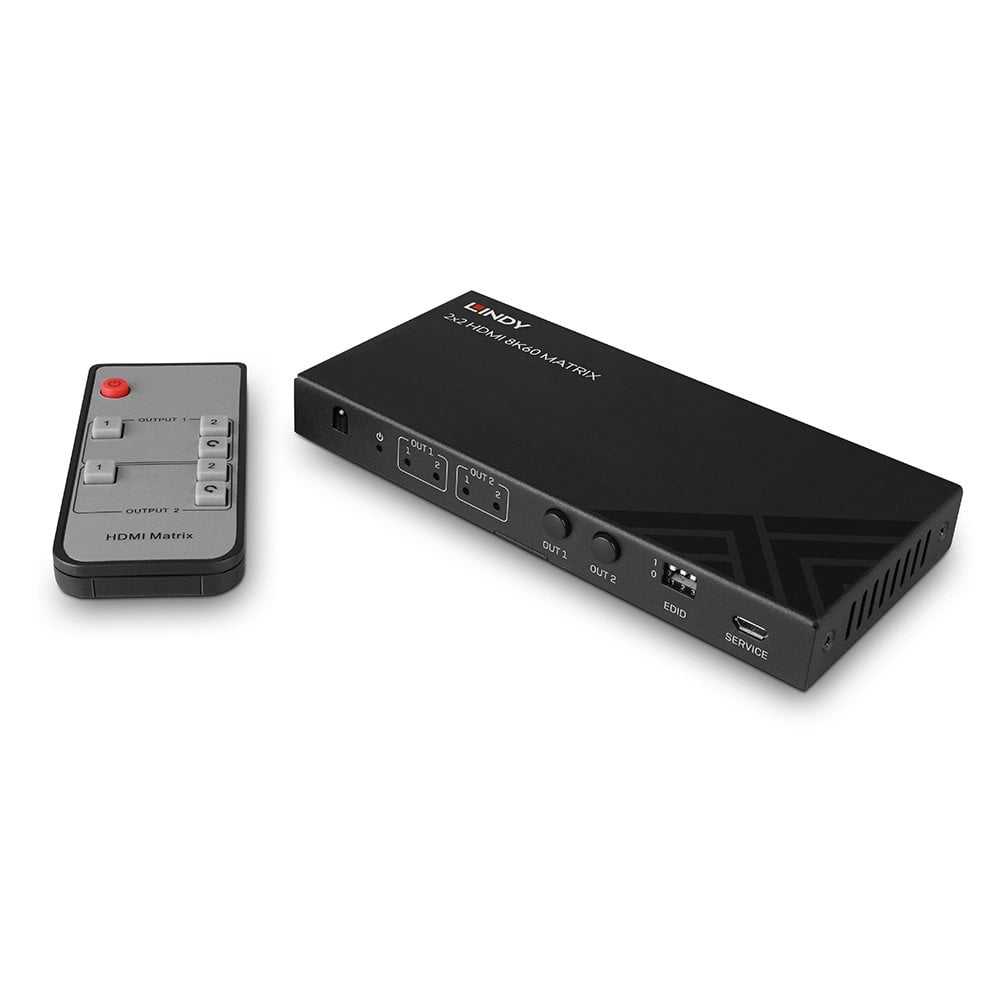

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Category Attribute Value AV Interface Interface Type HDMI® Standard HDMI® 2.1 Bandwidth 40Gbps Max Resolution 4K@120Hz 4:4:4, 8K@60Hz 4:2:0 HDCP Support HDCP 2.3 Audio Support HDMI Pass, TosLink (5.1CH), 3.5mm (2CH) Audio Ports TosLink, 3.5mm Special Features EDID Management Connectors HDMI Input 2 × HDMI (Female) HDMI Output 2 × HDMI (Female) Audio Out TosLink, 3.5mm Power Input 5.5/2.5mm Physical Dimensions WxDxH 145×68×17 mm Material Metal Net Weight 0.263 kg Operating Temp 0°C to 40°C Storage Temp -20°C to 60°C Humidity 20–90% RH (non-condensing) Power Req. 5VDC 2A Colour Black Miscellaneous Packaging Type Carton box Package Dimensions 200×113×70 mm Gross Weight 0.482 kg Warranty 2 Years Compliance CE, UKCA, FCC, RoHS, REACH, POP, CP65 Box Contents Included 2x2 HDMI 8K60 Matrix, IR Remote, PSU, Manual -
Description Downloads Lindy 2x2 HDMI 8K60 Matrix | 38313 DataSheet Downloads Lindy 2x2 HDMI 8K60 Matrix | 38313 User Manual Downloads
