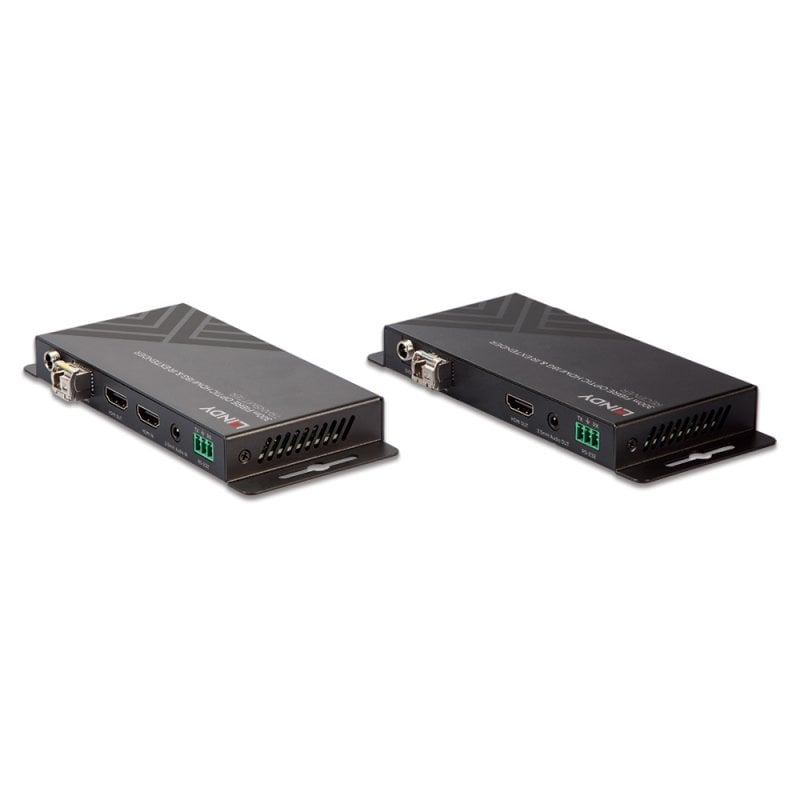

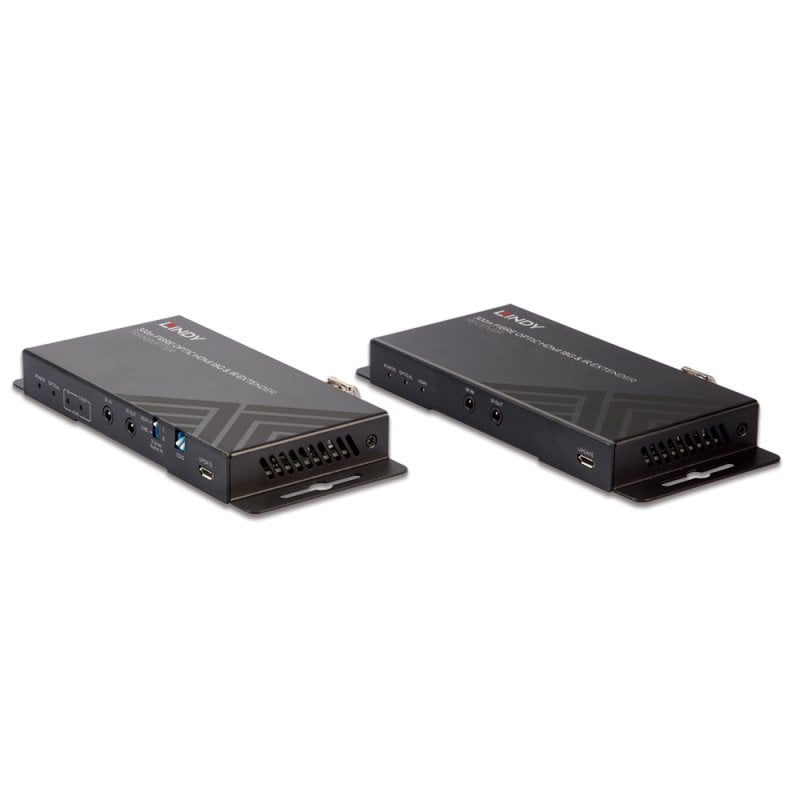

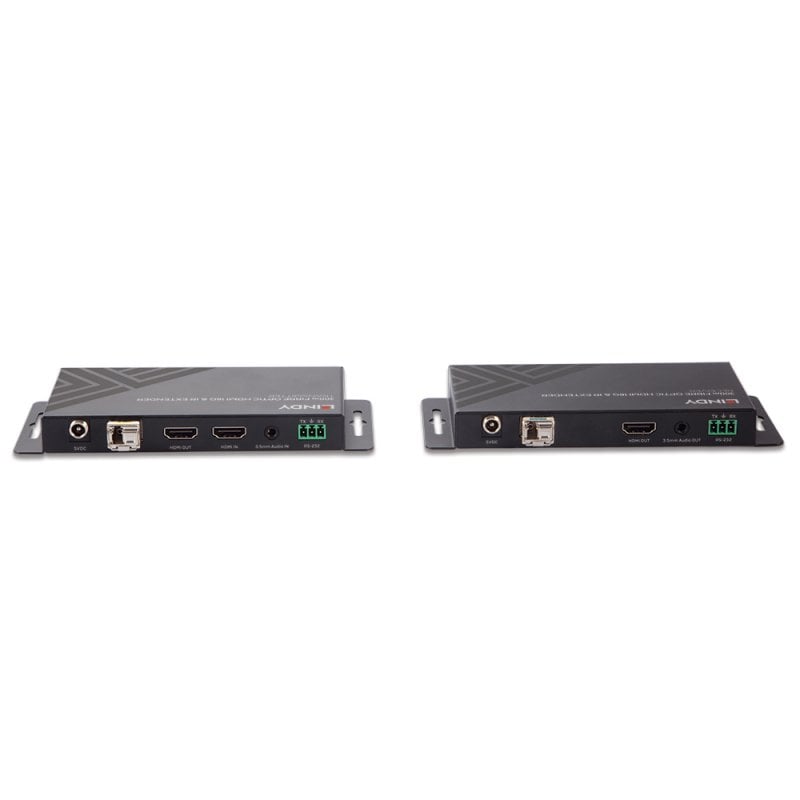

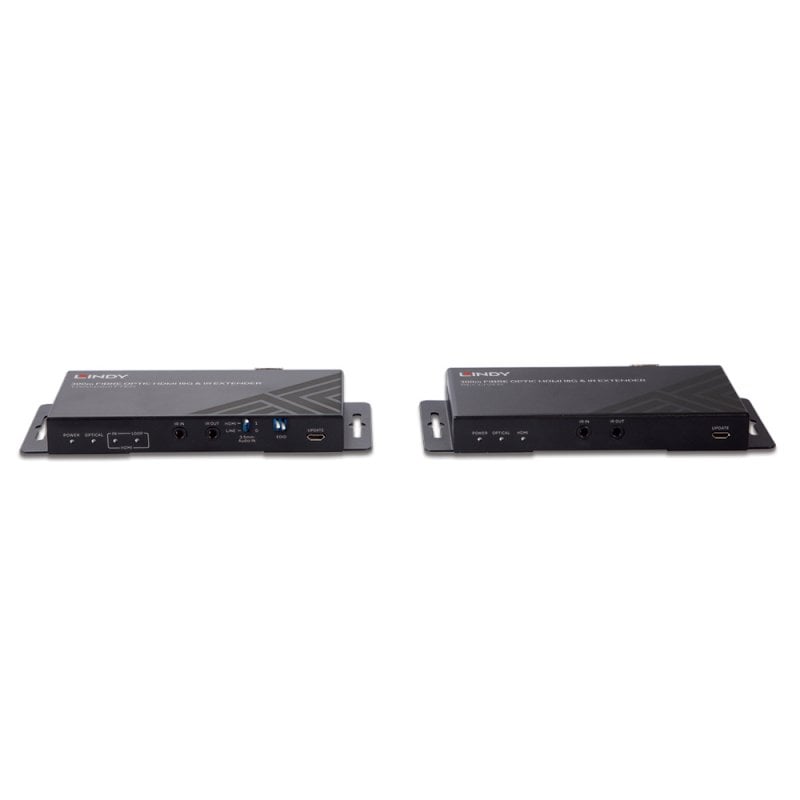

Lindy 300m/1000m Fibre Optic HDMI 4K60, IR, RS232 & Audio Extender | 38174
The Lindy 300m/1000m Fibre Optic HDMI® & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable.
Support for the HDMI® 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.
As opposed to the use of copper based extension systems, the use of fibre optic cable also ensures immunity to RF and EMI, providing a stable signal in ‘noisy’ retail or industrial environments which can have a high interference from electronics.
With the ability to extend signals up to 1000m the extender provides huge installation flexibility, the transmitter can be easily connected to a variety of HDMI® source devices such as Blu-Ray players, 4K HDR media players or PC's in a convenient location, while the receiver can be placed in a suitable viewing area along with a 4K display or projector. The included mounting brackets also allow for a neat installation under desks or discreetly hidden behind displays.
Featuring bi-directional IR and RS-232 ports, the extender provides the capability for source equipment to be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device, great for providing simple, flexible control over the installation for the user. The support for RS-232 enables the extension of control signals as part of a larger installation.
-
| Category |
Specification |
| AV Interface |
HDMI® |
| Interface Standard |
HDMI® 2.0 |
| Supported Bandwidth |
18Gbps |
| Maximum Distance |
300m (Multimode), 1000m (Singlemode) |
| Maximum Resolution |
3840x2160@60Hz 4:4:4 8bit |
| HDCP Support |
Pass-through |
| EDID Pass Through |
Pass-through |
| Supported Audio |
Pass-through |
| Separate Audio Ports |
3.5mm |
| IR Support |
20KHz – 60KHz |
| CEC Support |
- |
| Serial Interface |
RS-232 (Bi-directional) |
| Transmission Medium |
1 x Simplex LC |
| Laser Class |
1 |
| Wavelength |
1310 and 1550nm (with supplied SFP+ module) |
| Chipset |
SD1503/SD1513 |
| Special Features |
Auto Laser Disabling Function |

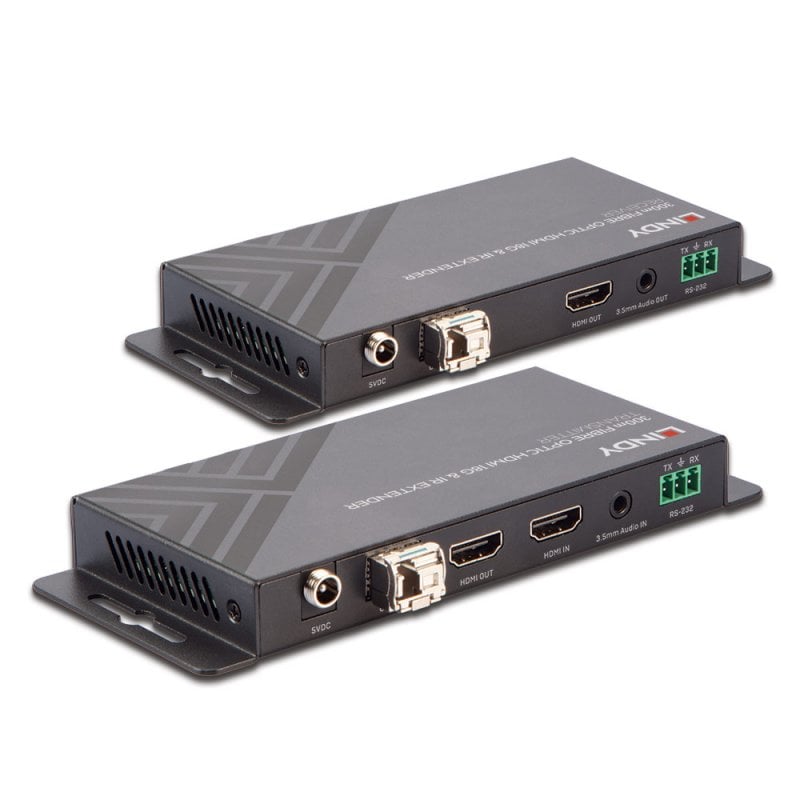

| Connectors |
|
| Transmitter Input |
HDMI® Type A (Female), 3.5mm Audio (Female) |
| Transmitter Output |
Simplex LC, HDMI® Type A (Female) |
| Receiver Input |
Simplex LC |
| Receiver Output |
HDMI® Type A (Female), 3.5mm Audio (Female) |
| Bidirectional Ports |
RS232 (Terminal Blocks), IR (Female) |
| Power |
5.5/2.5mm DC Socket |
| Physical Properties |
|
| Dimensions (WxDxH) |
100x65x25.6mm |
| Housing Material |
Metal |
| Net Weight |
0.516kg (1.14lb) |
| Operating Temperature |
0°C - 40°C (32°F - 104°F) |
| Storage Temperature |
-20°C - 60°C (-4°F - 140°F) |
| Humidity |
20 - 90% RH (non-condensing) |
| Power Requirements |
5VDC 1A |
| Colour |
Black |
| Miscellaneous |
|
| Packaging Type |
Carton box |
| Packaging Dimensions |
250x55x185mm (9.84x2.17x7.28in) |
| Gross Weight |
0.918kg (2.02lb) |
| Warranty (Years) |
2 |
| Certifications |
CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Package Contents |
|
| Contents |
Transmitter unit, Receiver unit, Power Supplies, Fiber Modules, IR Cables, Manual |
| Purchasing Information |
|
| No. |
38174 |
| EAN |
4002888381741 |
-
