VGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

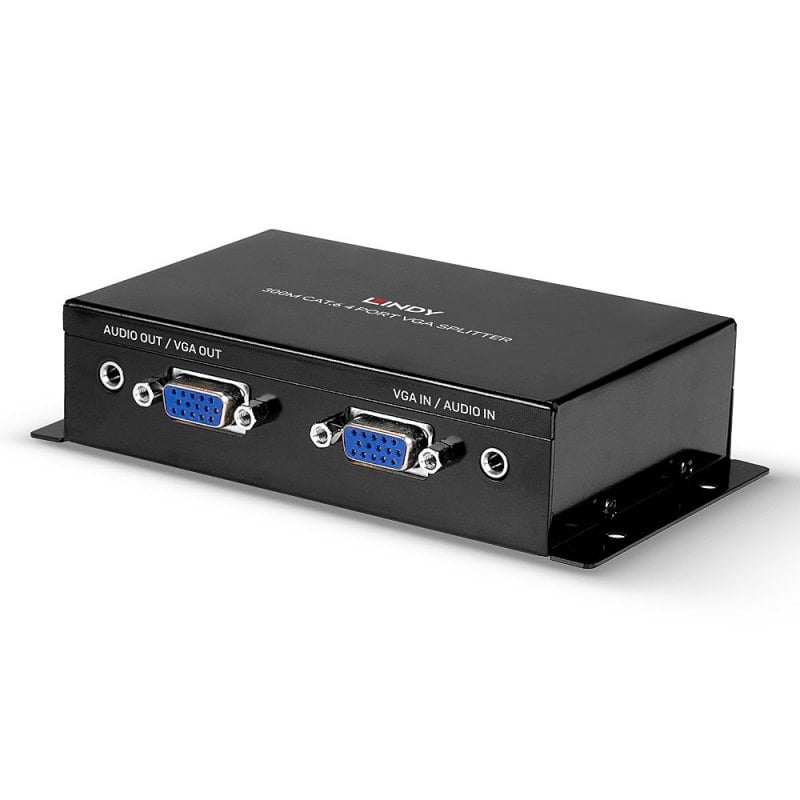

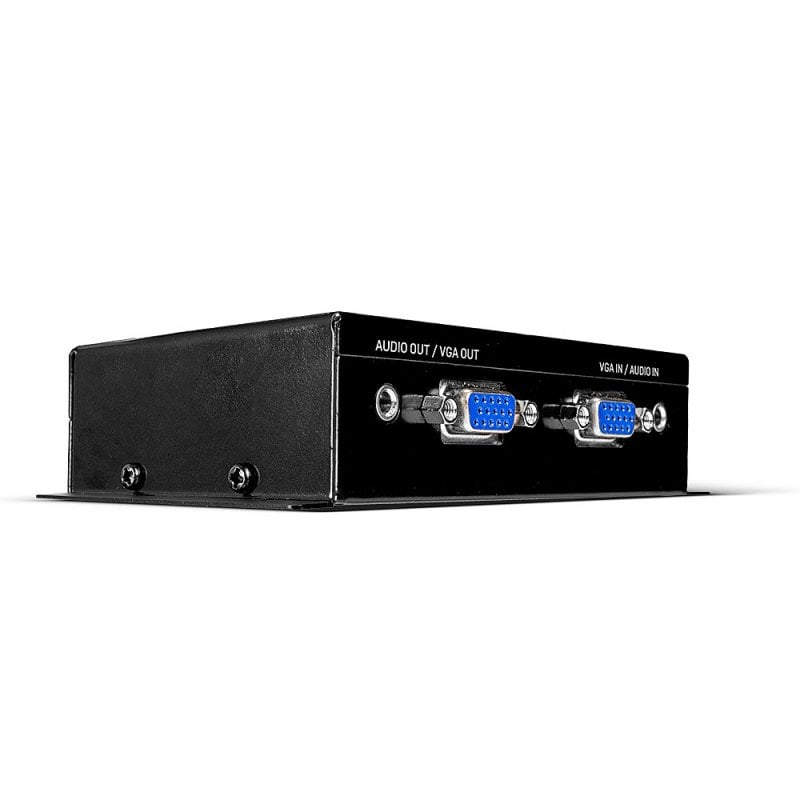

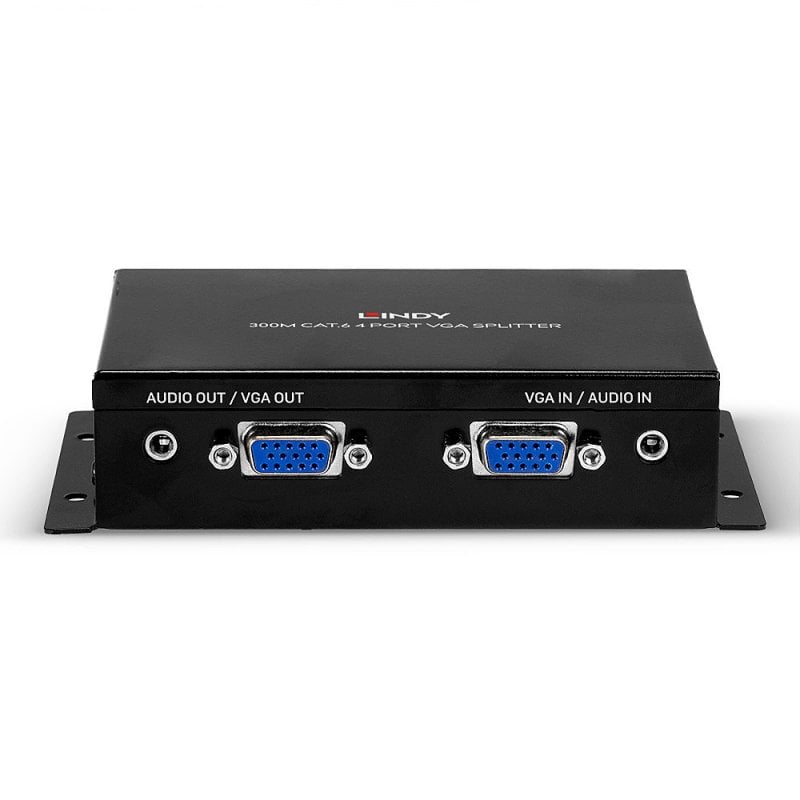

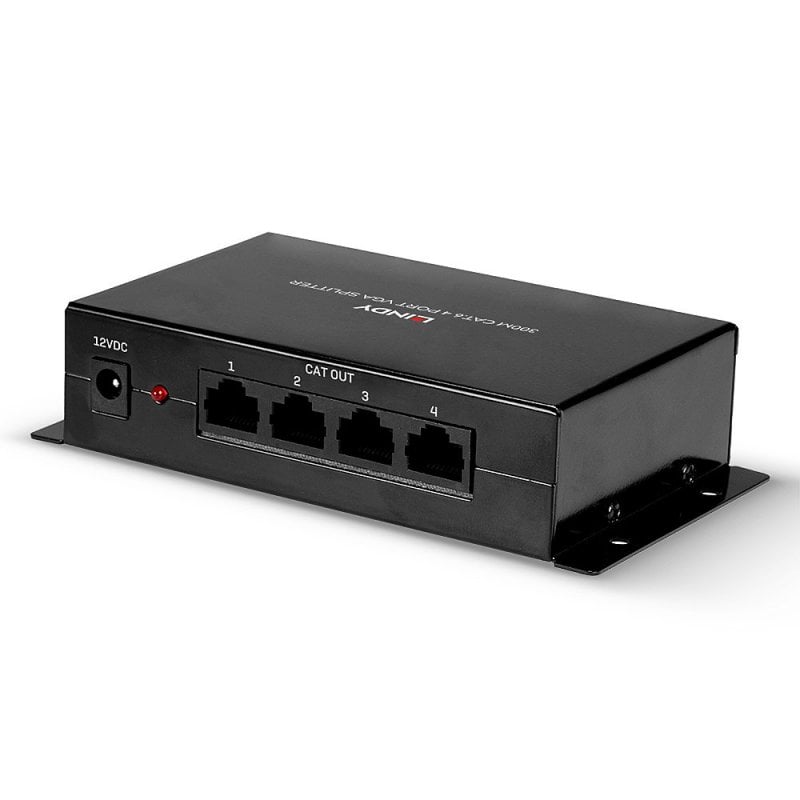

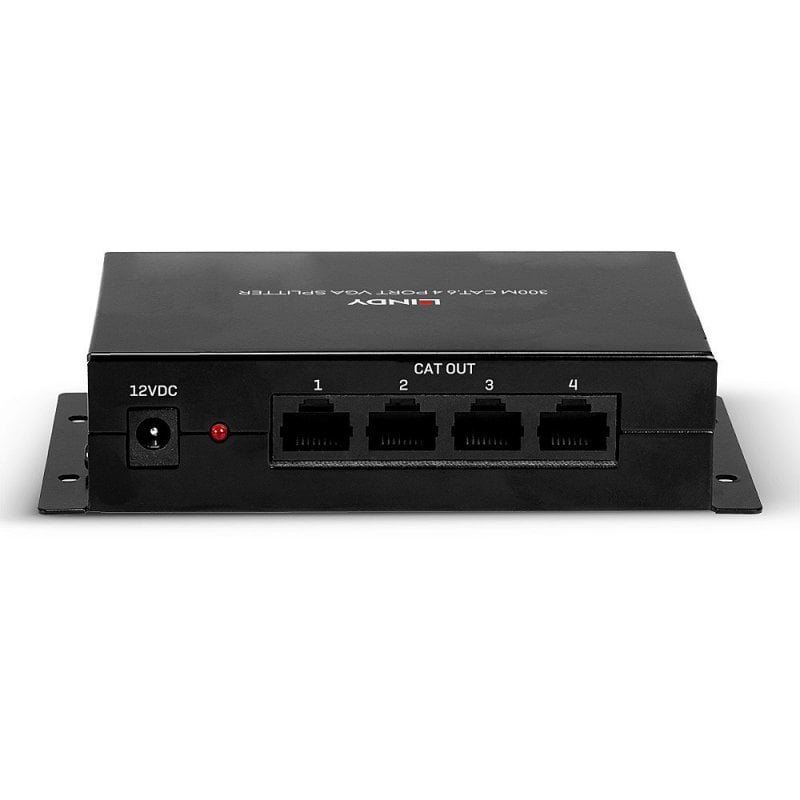

The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection.
The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup.
The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
| Category | Details |
|---|---|
| AV Interface | VGA |
| Interface Standard | - |
| Supported Bandwidth | 350MHz |
| Maximum Distance | 300m (984.24ft) |
| Maximum Resolution | 300m: 640x480 200m: 800x600 180m: 1024x768 120m: 1280x1024 100m: 1920x1080 |
| HDCP Support | - |
| EDID Pass Through | - |
| Supported Audio | Dual Mono |
| Separate Audio Ports | 3.5mm |
| IR Support | - |
| CEC Support | - |
| Serial Interface | - |
| Transmission Protocol | - |
| Transmission Medium | 1 x Cat.5e/6 |
| Chipset | EL4543IUZ |
| Special Features | Local VGA Output, Dual Mono Audio Extraction, Mountable Housing |
| Transmitter Input | VGA (Female), 3.5mm (Female) |
| Transmitter Output | VGA (Female), 3.5mm (Female), 4 x RJ-45 (Female) |
| Receiver Input | - |
| Receiver Output | - |
| Bi-directional Ports | - |
| Power | 5.5/2.1mm DC socket |
| Dimensions (WxDxH) | 135.4x73x31mm (5.33x2.87x1.22in) |
| Housing Material | Metal |
| Net Weight | 0.484kg (1.07lb) |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Storage Temperature | -20°C - 70°C (-4°F - 158°F) |
| Humidity | 20 - 80% RH (non-condensing) |
| Power Requirements | 12VDC 1.2A |
| Colour | Black |
| Packaging Type | Carton Box |
| Packaging Dimensions | 177x75x110mm (6.97x2.95x4.33in) |
| Gross Weight | 0.547kg (1.21lb) |
| Warranty | 2 Years |
| Certification | CE, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | 300m 4 Port Cat.6 VGA Splitter, 4 x Mounting Screws, Multi-country Power Supply (UK, EU, US & AUS), Lindy Manual |
| Part Number | 35403 |
| EAN | 4002888354035 |
