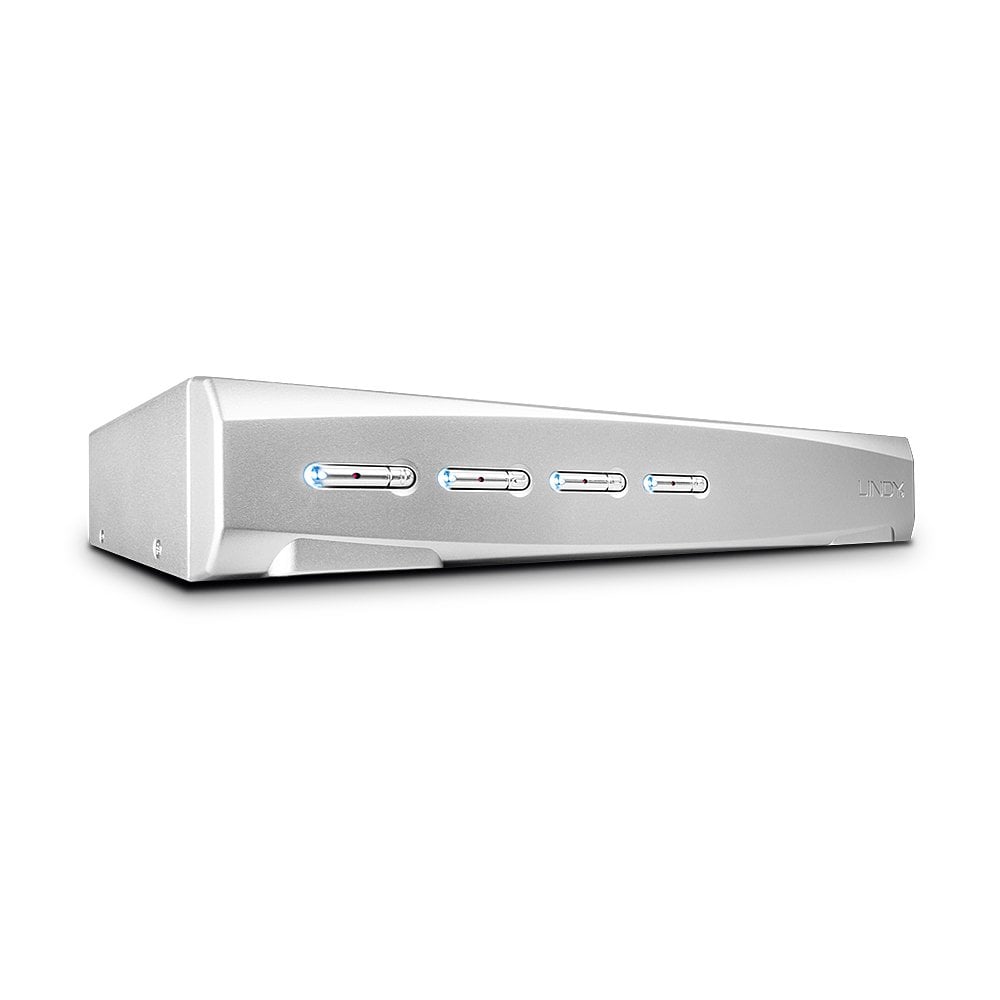

Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch Pro - 39337
Control four DVI-Single Link computers with one keyboard, monitor and mouse
True Transparent USB - supports all widely used mice & keyboards
DDC support for "Plug & Play" monitors
Independent audio switching meaning you can listen to music on computer while browsing the internet on the other
2 year warranty
The Lindy 4 Port DVI-I KVM switch allows you to control four DVI-Single Link equipped computers using a single keyboard, monitor and mouse along with independent control over audio. An integrated USB 2.0 hub allows you to share USB devices such as pen drives, hard drives and printers, between the computers. Representing excellent value for money it can support both high resolution digital and analogue systems.
True Transparent USB Function
True Transparent USB switching is an advanced USB emulation technology. It allows the KVM to recognise specific Keyboard & Mouse models and emulate any of their associated special key and function information.
Unique Switching Options
A unique switching arrangement allows the built-in USB hub to be switched independently of the computers allowing you to print from one PC whilst playing games on another. Similarly, independent audio switching means you can listen to music from one computer while browsing the internet on the other.
DVI-I Support
Supports DVI-I single link monitors and computers with video resolutions of up to 1920 x 1200. The switch can also be used with analogue VGA computers using compatible adapter cables.
-
| Category |
Details |
| Specifications |
|
| AV Interface |
DVI-I |
| Console Interfaces |
USB |
| Interface Standard |
DVI-I 2.0 (Single Link), USB 2.0 |
| Maximum Resolution |
|
| DVI |
1920x1200@60Hz |
| VGA |
2048x1536@30Hz |
| HDCP Support |
- |
| Supported Audio |
Analog Stereo |
| Separate Audio Ports |
2 x 3.5mm (Female) |
| Serial Interface |
- |
| Console Number |
1 |
| Max Number PC/Server |
4 |
| Cascadable |
Yes |
| Switching Method |
Port Buttons, Hotkey Switching (Configurable Hotkeys) |
| 19" Rack Mountable |
- |
| Special Features |
Shared USB Ports |

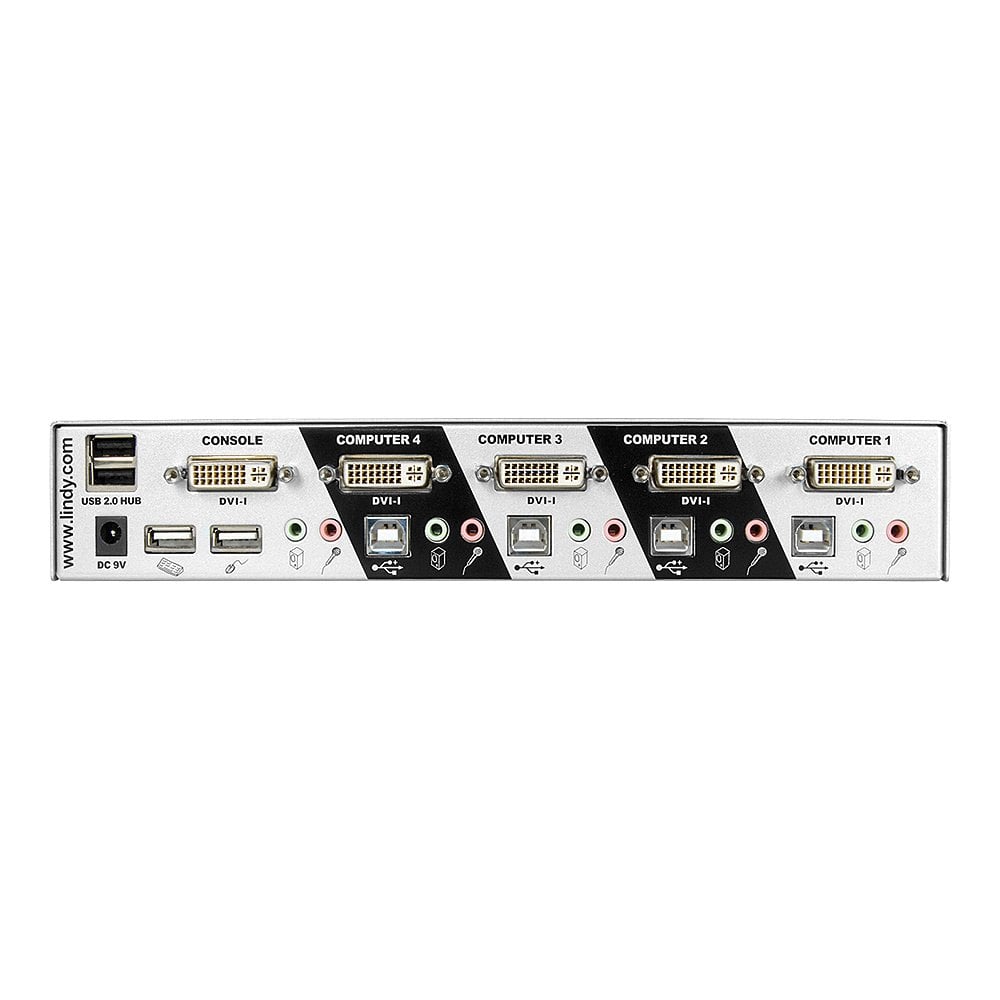

| Connectors |
|
| Console Interfaces |
DVI-I (Female), USB Type A HID (Female), 2 x 3.5mm (Female) |
| PC/Server Interfaces |
4 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female) |
| Other Interfaces |
2 x USB 2.0 Type A (Female) Shared Ports |
| Power |
5.5/2.1mm DC socket |
| Physical Properties |
|
| Dimensions (WxDxH) |
255x120x46mm (10.04x4.72x1.81in) |
| Housing Material |
Metal + Plastic Front Panel |
| Net Weight |
1.25kg (2.76lb) |
| Operating Temperature |
0°C - 50°C (32°F - 122°F) |
| Storage Temperature |
-20°C - 60°C (-4°F - 140°F) |
| Humidity |
0~90% RH (non-condensing) |
| Power Requirements |
9VDC 1.1A |
| Colour |
Silver |
| Miscellaneous |
|
| Packaging Type |
Carton box |
| Packaging Dimensions |
310x215x65mm (12.2x8.46x2.56in) |
| Gross Weight |
1.64kg (3.62lb) |
| Warranty (Years) |
2 |
| Certified |
CE, UKCA, FCC, RoHS & REACH |
| Package Contents |
|
| Included |
KVM Switch |
|
Multi-Country Power Supply (UK, Euro, US, AUS) |
|
LINDY Manual |
| Purchasing Information |
|
| No. |
39337 |
| EAN |
4002888393379 |
-
