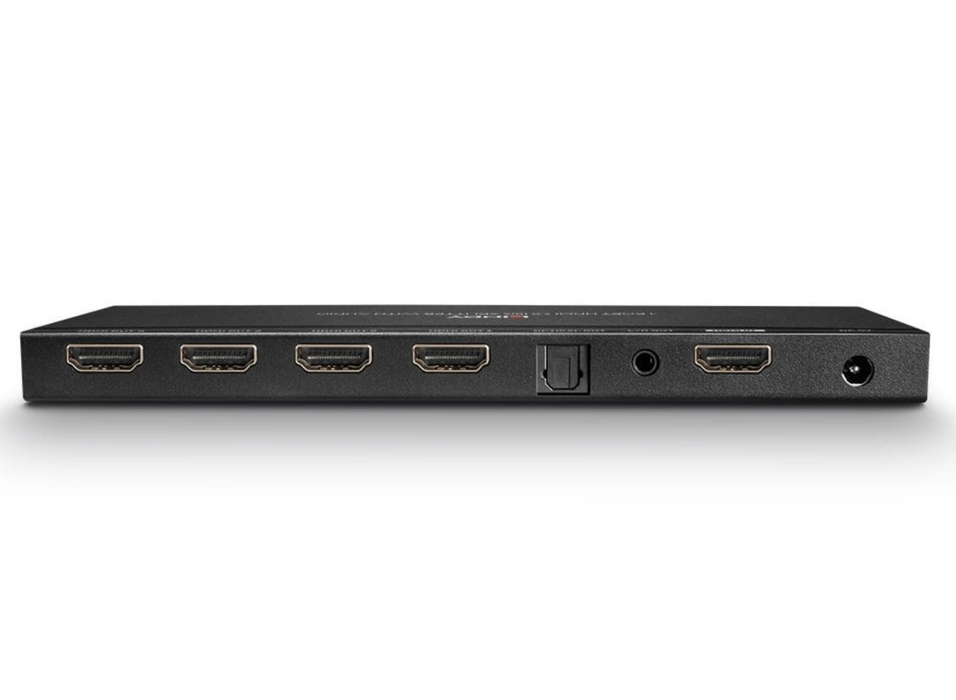

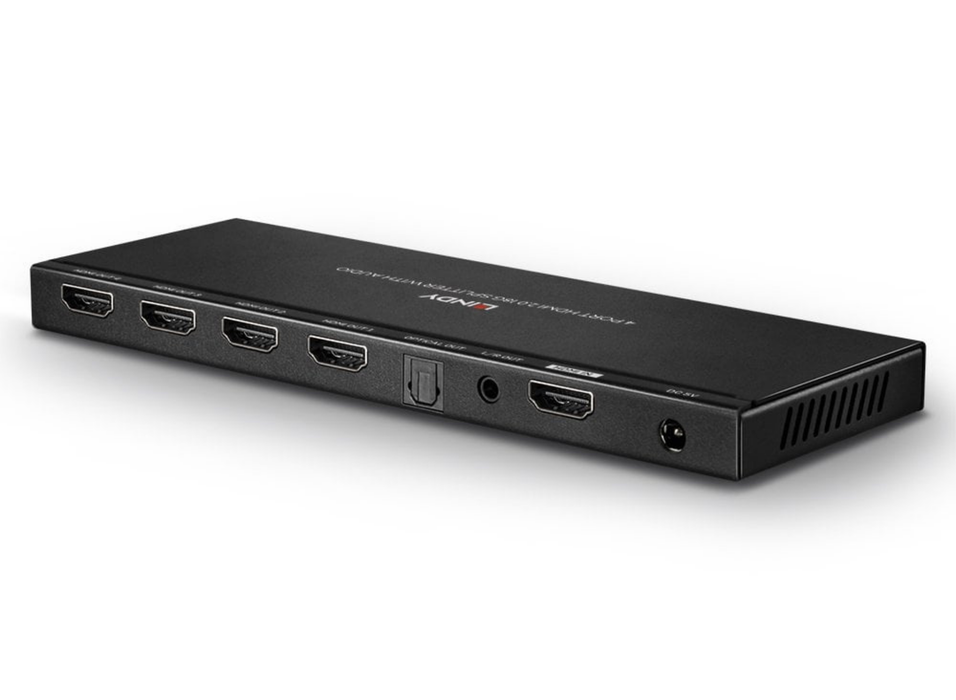

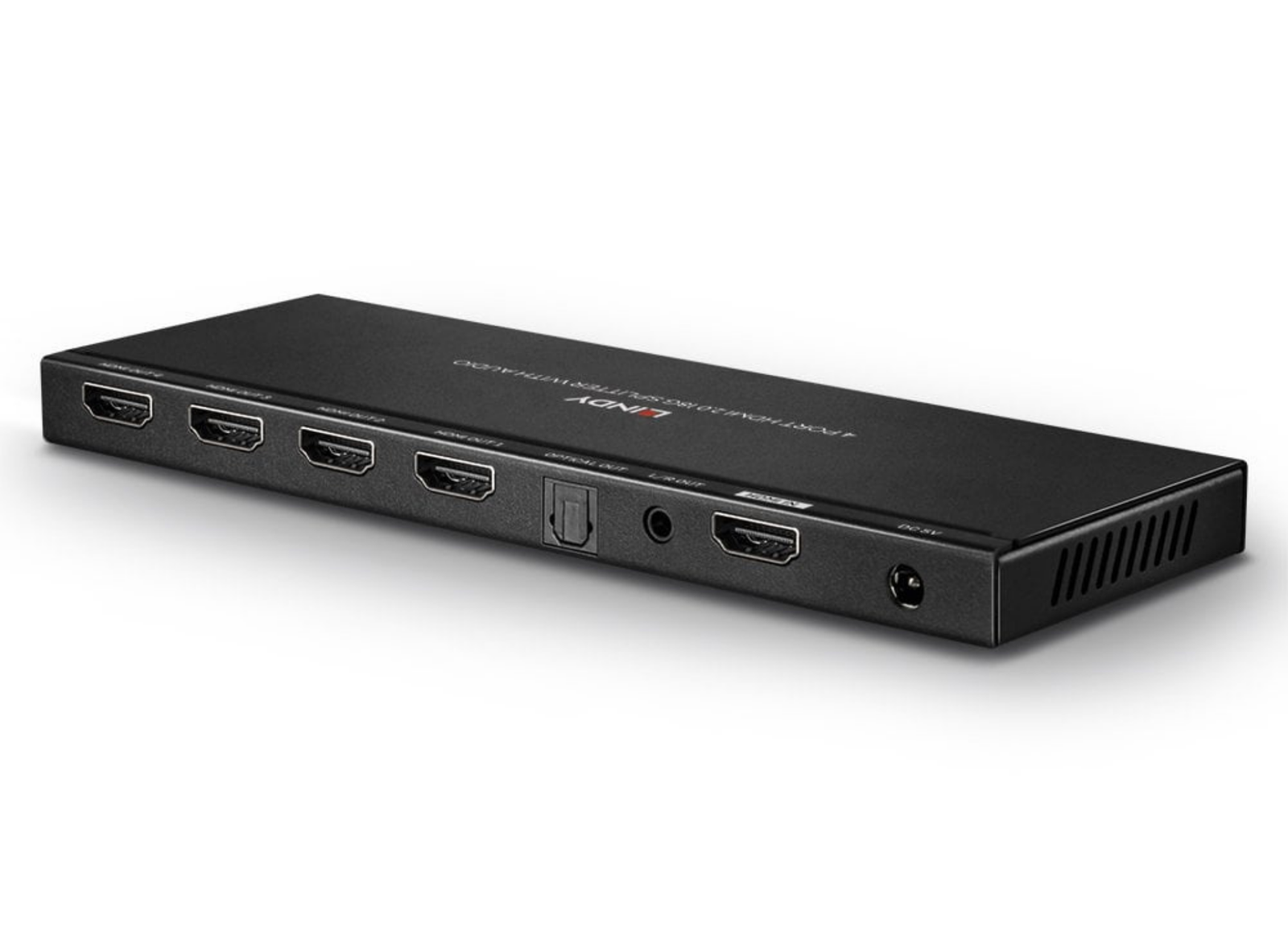

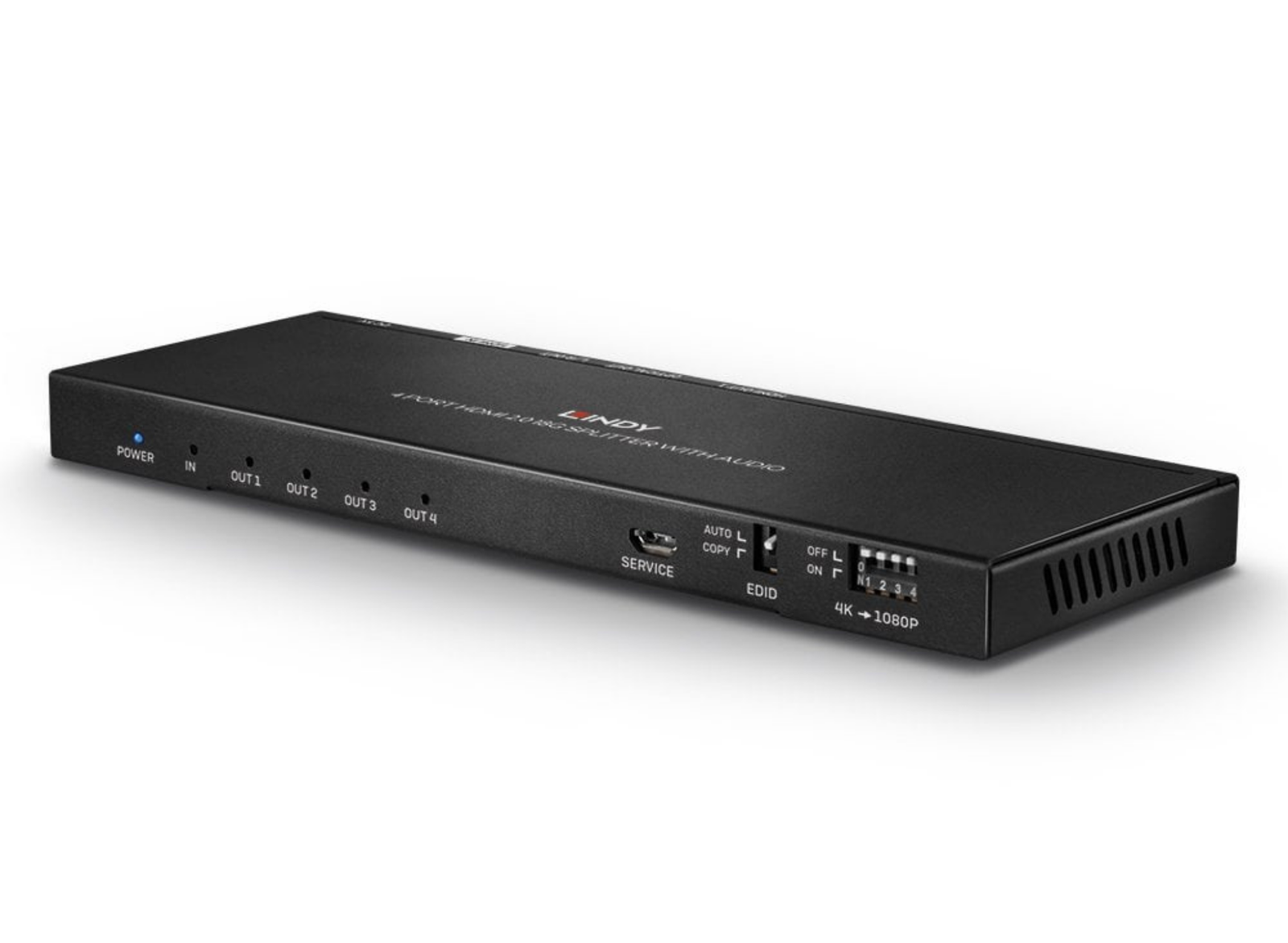

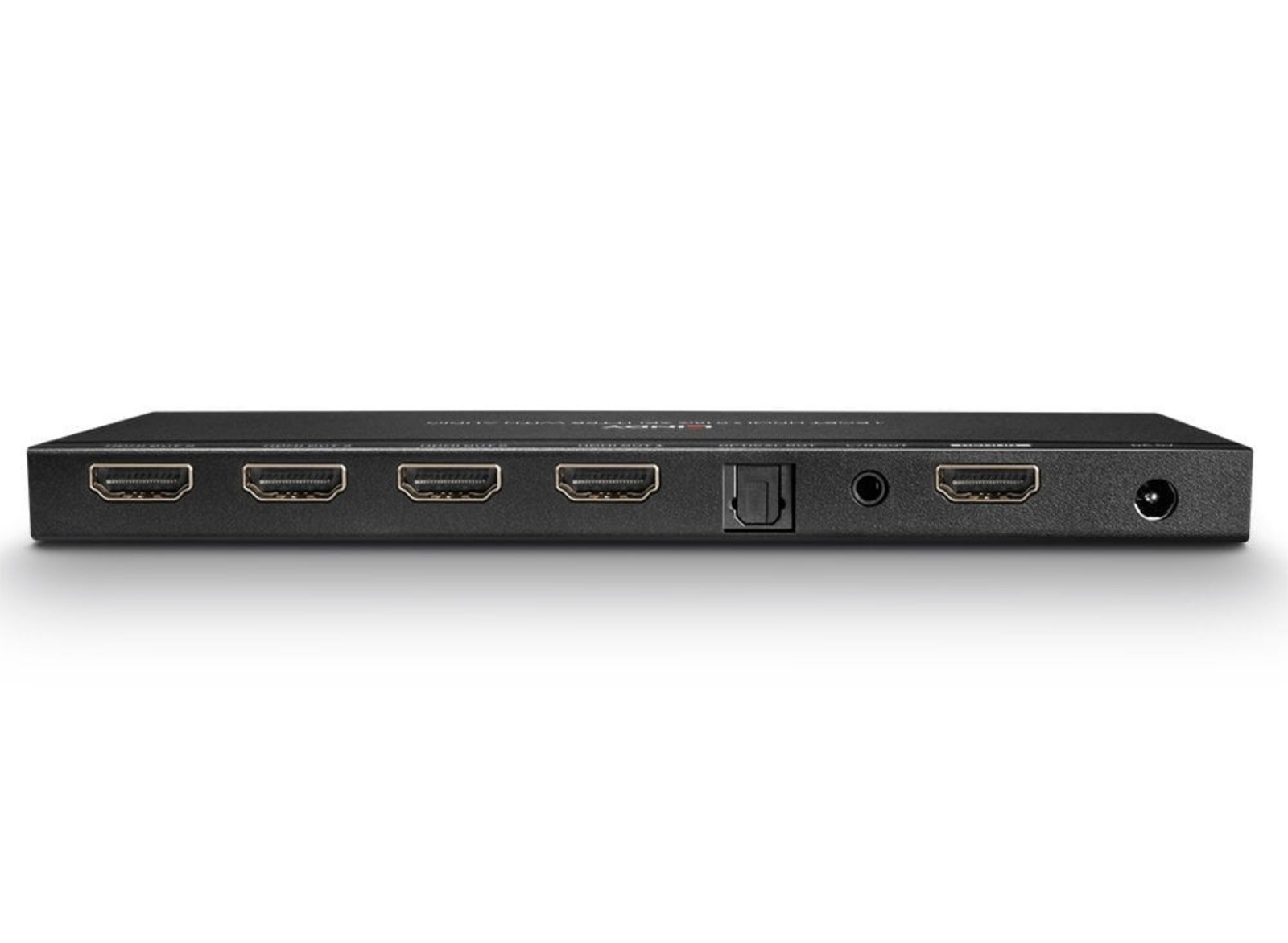

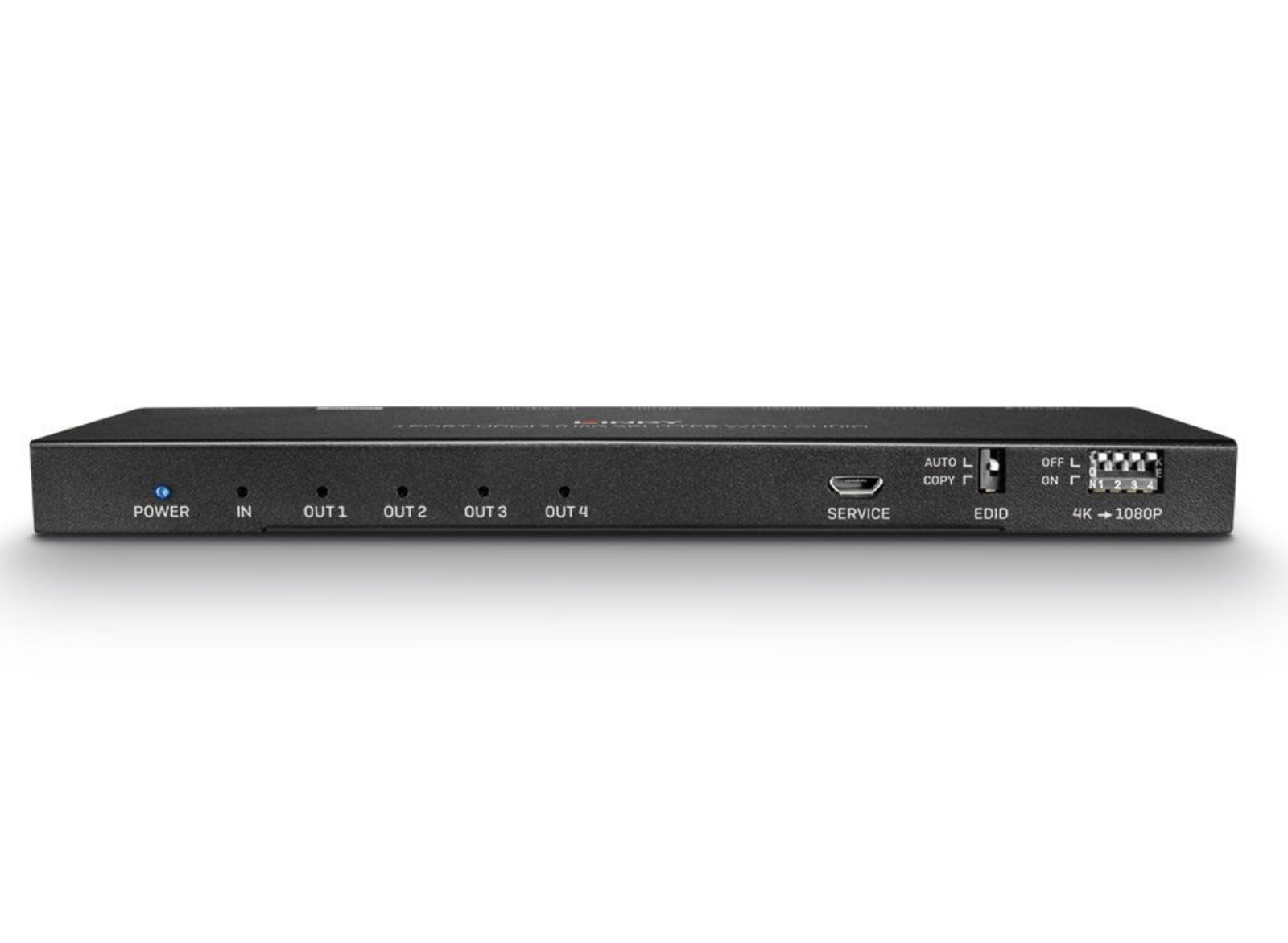

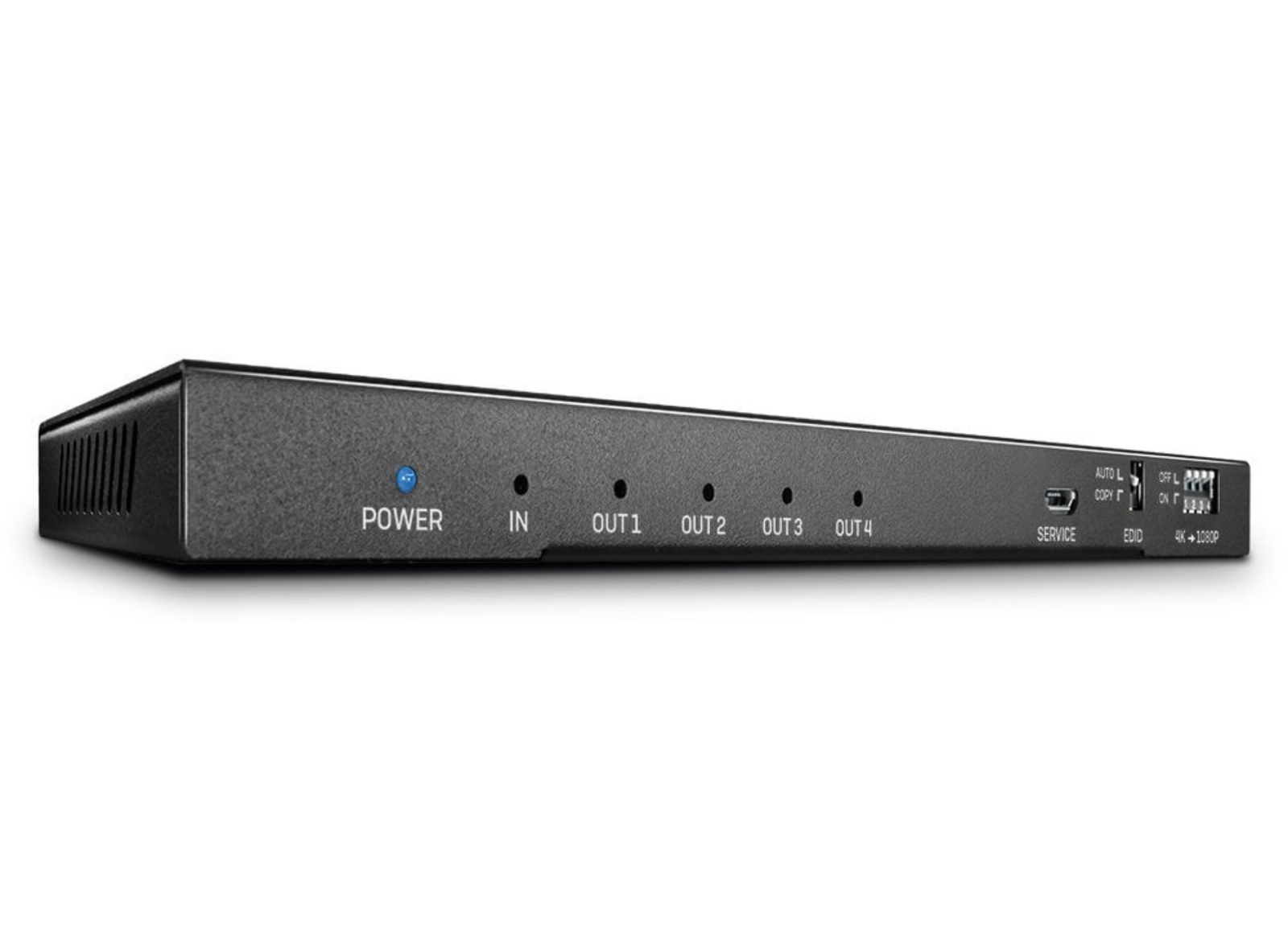

Lindy 4 Port HDMI 18G Splitter with Audio & Downscaling | 38231
The Lindy 4 Port HDMI® 2.0 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| AV Interface | HDMI® | Interface Standard | HDMI® 2.0 |
| Supports Bandwidth | 18Gbps | Max Resolution | 4096x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 | Audio Support | Pass-through, LPCM 2CH, up to 7.1CH (Optical) |
| Audio Outputs | 3.5mm, Toslink | CEC Support | - |
| Serial Interface | - | Special Features | Downscaler, EDID Emulation |
| Input | 1 x HDMI Type A (Female) | Output | 4 x HDMI, Toslink, 3.5mm |
| Control | - | Power Connector | 5.5/2.1mm |
| Dimensions | 180x14.4x63mm (7.09x0.57x2.48in) | Housing Material | Metal |
| Net Weight | 0.122kg (0.27lb) | Operating Temp | 0°C - 40°C (32°F - 104°F) |
| Storage Temp | -20°C - 60°C (-4°F - 140°F) | Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1A | Colour | Black |
| Packaging Type | Carton Box | Packaging Dimensions | 212x55x148mm (8.35x2.17x5.83in) |
| Gross Weight | 0.228kg (0.5lb) | Warranty (Years) | 2 |
| Compliance | CE, UKCA, FCC, RoHS, REACH, CA Prop 65 | Package Contents | 4 Port HDMI® Splitter, Power Supply (UK/EU/US/AUS), Lindy Manual |
| No. | 38231 | EAN | 4002888382311 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
