Lindy 4 Port HDMI 4K Video Wall Scaler | 38135
SKU: 38135
£1,176.94 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Lindy 4 Port HDMI 4K Video Wall Scaler | 38135
The 4K HDMI Video Wall Controller Scaler allows a 4K UHD HDMI input source to be freely arranged on 4 displays (TV or monitor) in a variety of arrangements (2x2, 4x1, 1x4). Larger video walls (up to 15x15) can be created using a HDMI splitter and multiple Scalers.
Each output can be adjusted for bezel correction, contrast, brightness, saturation and hue so that you can optimise the appearance of your video wall.
This flexible feature rich product has been designed to be used in a number of different applications, such as:
Public/Retail Advertisement
Digital Presentation
Broadcasting & Control
Surveillance & Control
Conference & Meeting RoomThe Scaler, or multiple Scalers in larger installations, can be controlled by a simple control application (see downloads) or via RS-232 and Telnet using the commands listed in the user manual, making it simple to integrate within your installation.
-

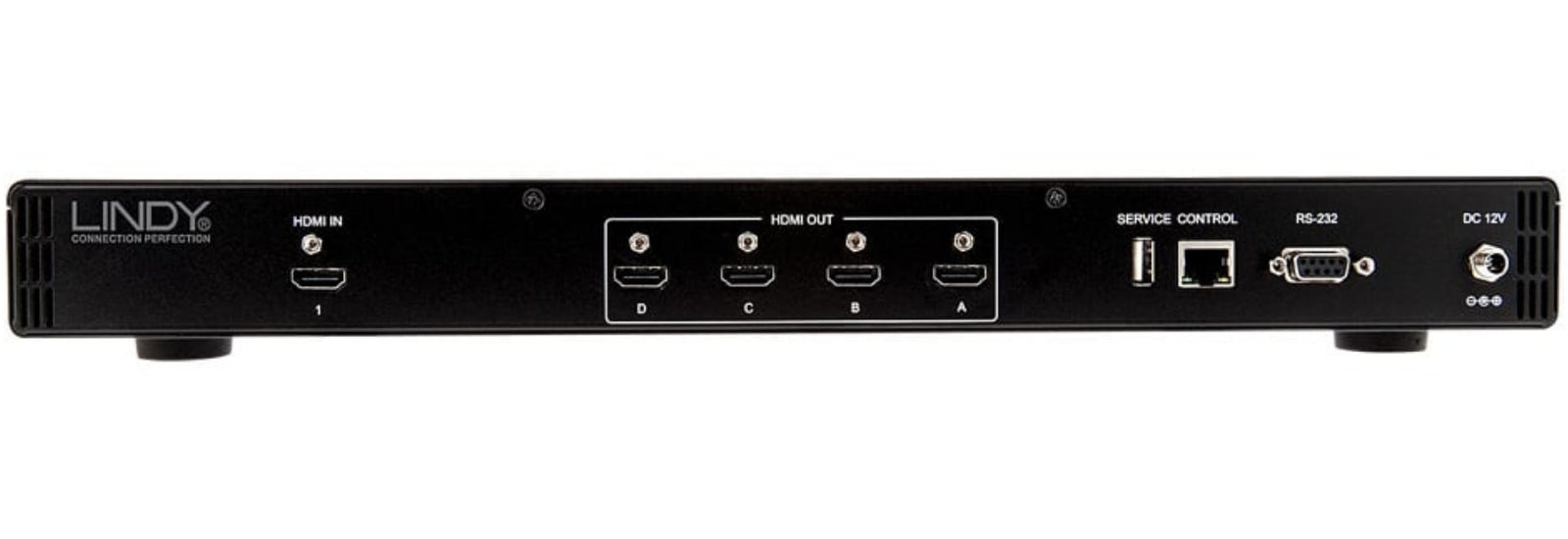

Category Attribute Value Input HDMI Ports 1 x HDMI Female Input Resolution Up to 3840x2160p24/25/30, 4096x2160p24 Output HDMI Ports 4 x HDMI Female Output Resolution 480p – 1080p / 1200p RB Audio Formats Supported LPCM 2CH/6CH/8CH, AC3, DTS, Dolby Digital+ Dolby TrueHD, DTS-HD Control Ports RJ45 Telnet RS-232 9-Pin Serial (Male) Performance Video Bandwidth 300MHz / 9Gbps Power Consumption 12.98W Physical Dimensions (WxDxH) 438 x 269 x 44 mm Weight 2.9 kg -
Description Downloads Lindy 4 Port HDMI 4K Video Wall Scaler | 38135 User Manual Downloads
