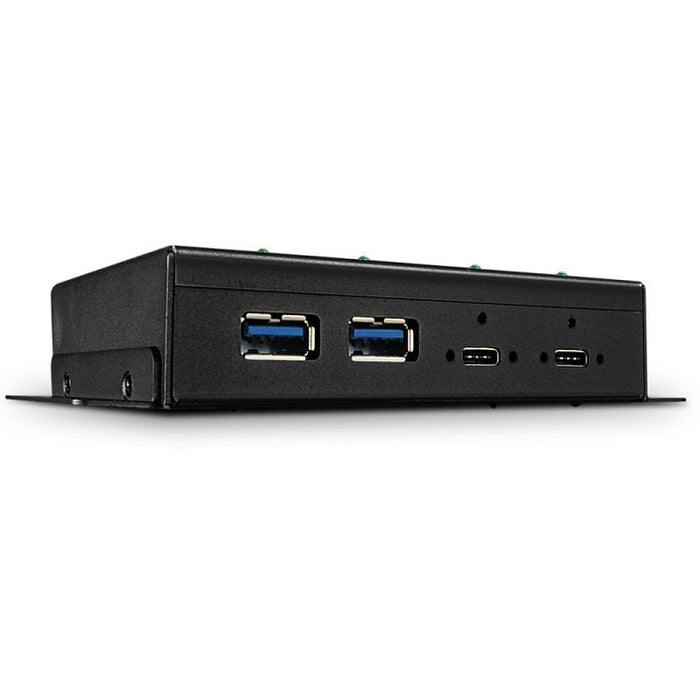

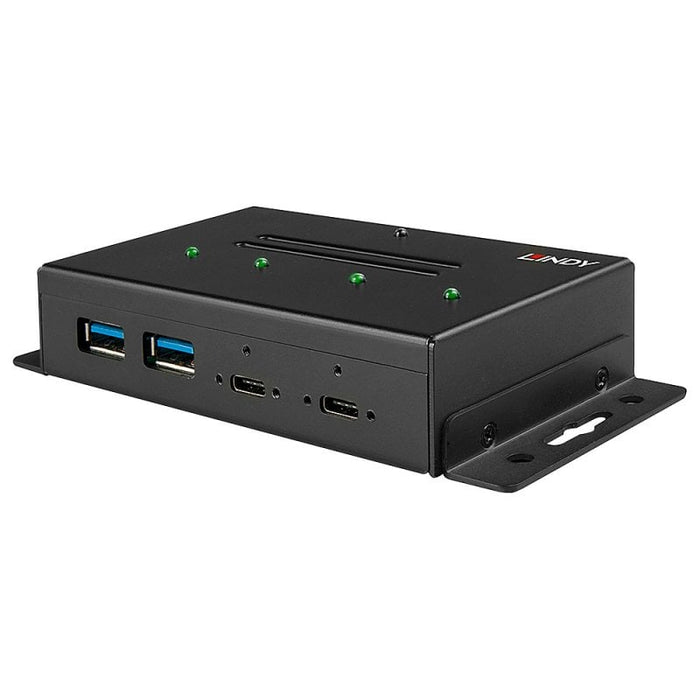

Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub | 43094
The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

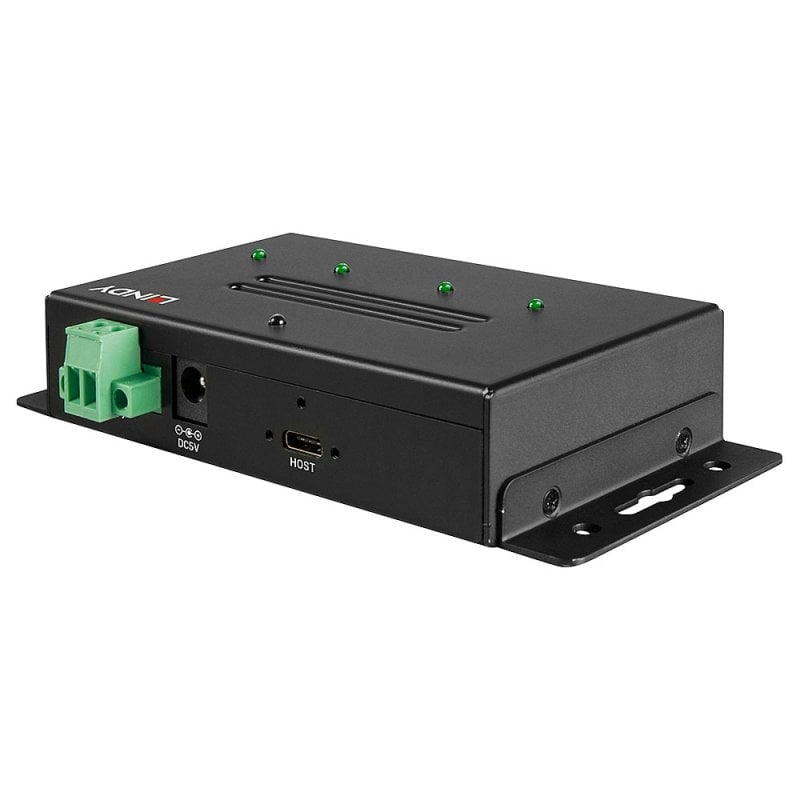

Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
-
Category |
Specification |
USB Standard |
USB 3.2 / 3.1 Gen 2 |
Supported Bandwidth |
10 Gbps |
Chipset |
VL820 |
Compatibility |
USB Type C equipped computers, Thunderbolt 3 |
Power Delivery |
- |
Special Features |
Supports Battery Charging 1.2, Locking USB C cables, Terminal Block |
Inputs |
1 x USB Type C (Female) |
Outputs |
2 x USB Type A (Female), 2 x USB Type C (Female) |
Power Connector |
5.5/2.1mm DC socket |
Dimensions |
135x60x24mm (5.31x2.36x0.94in) |
Housing Material |
Metal |
Net Weight |
0.229kg (0.5lb) |
Operating Temperature |
0°C - 50°C (32°F - 122°F) |
Storage Temperature |
-25°C - 85°C (-13°F - 185°F) |
Humidity |
0 - 95% RH (non-condensing) |
Power Requirements |
5VDC 4A |
Colour |
Black |
Packaging Type |
Carton Box |
Packaging Dimensions |
230x198x63mm (9.06x7.8x2.48in) |
Gross Weight |
0.667kg (1.47lb) |
Warranty |
2 years |
Certifications |
CE, UKCA, FCC, RoHS & REACH |
Package Contents |
4 Port USB 3.2 Metal Hub, 0.6m Dual Screw USB C-C Cable, Multi-country PSU, Lindy Manual |
Item Number |
43094 |
EAN |
4002888430944 |
