Lindy 4K30 HDMI & USB over IP System - Encoder | 38396

SKU: 38396
Part Number: 38396
Condition: Brand New
Purchase Orders Accepted
Sold out

£527.90 (Excl. VAT)

Current price - £633.48 (Inc. VAT)
£527.90 - £527.90
Current price- - £633.48
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Lindy 4K30 HDMI & USB over IP System - Encoder | 38396

    The Lindy 4K30 HDMI & USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

    Please note: All modules are sold separately so you can build and scale according to your requirements.

    One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI® display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

    Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.


    As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

    This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.

    The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

  • Category Specification
    AV Interface HDMI®
    Interface Standard HDMI® 2.0
    Supported Bandwidth 18Gbps
    Maximum Distance 100m (328.08ft)
    Maximum Resolution 4K@30Hz 4:4:4
    HDCP Support 2.2
    EDID Pass Through -
    Supported Audio Pass Through
    Separate Audio Ports 3-pin
    IR Support 20 - 60KHz
    CEC Support Pass Through
    Serial Interface RS-232
    Transmission Protocol IP
    Transmission Medium Cat.6
    Special Features PoE, API support

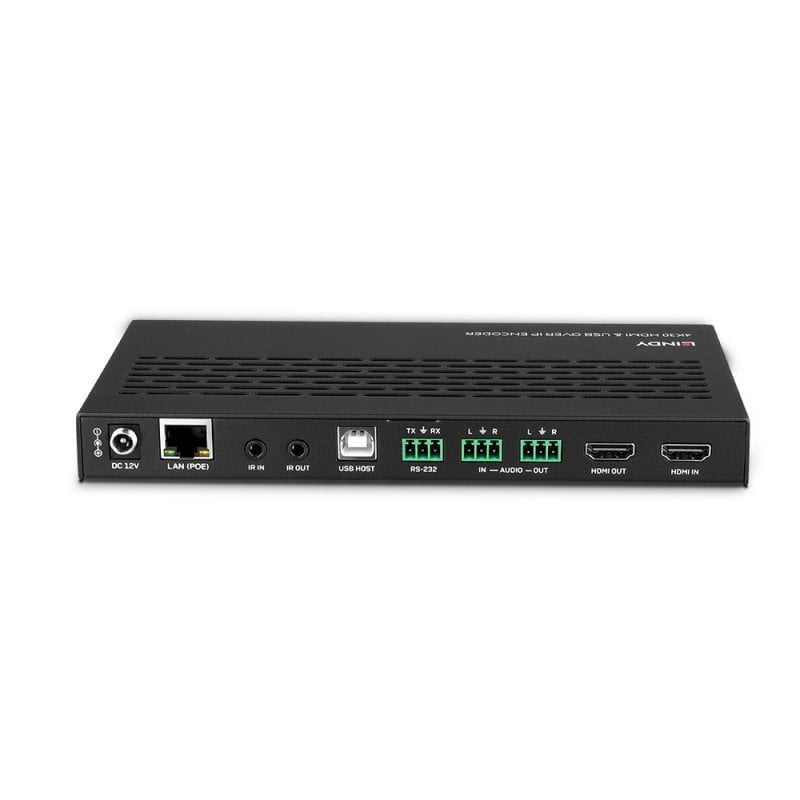

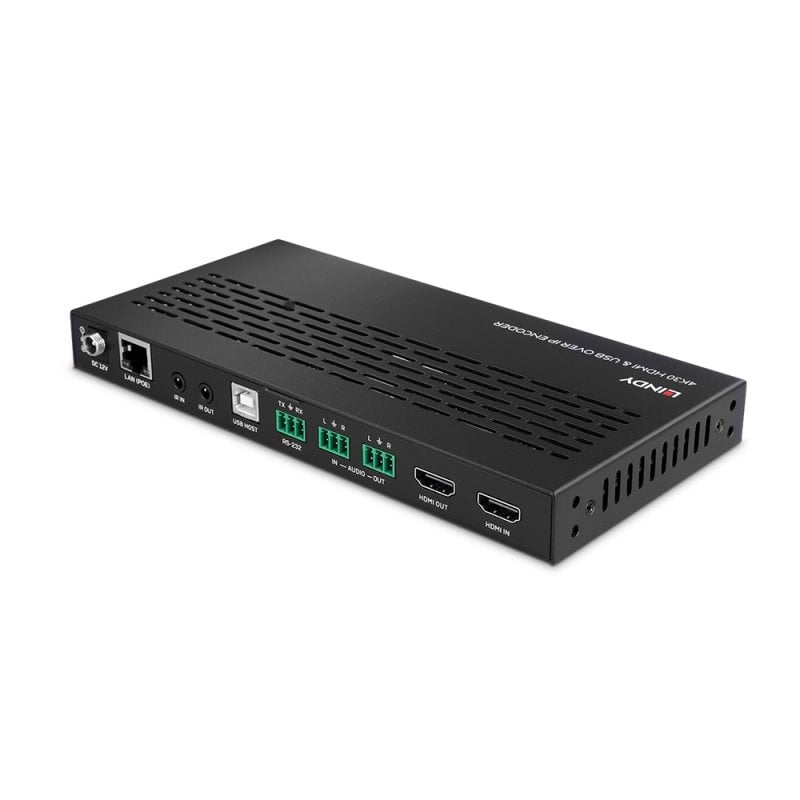

    Transmitter Input HDMI® (Female), USB Type B (Female), 3-pin Audio (Female), 3.5mm IR (Female)
    Transmitter Output HDMI® (Female), 3-pin Audio (Female), 3.5mm IR (Female)
    Bi-directional Ports RS-232 3-Pin Terminal Block
    Power 5.5/2.1mm
    Physical Properties Dimensions (approx.) WxDxH: 204x134x21.5mm (8.03x5.28x0.85in)
    Housing Material: Metal
    Net Weight: 0.78kg (1.72lb)
    Operating Temperature: 0°C - 40°C (32°F -104°F)
    Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    Humidity: 20 - 90% RH (non-condensing)
    Power Requirements: 12V 1A
    Colour: Black
    Miscellaneous Packaging Type: Carton Box
    Packaging Dimensions: 245x185x75mm (9.65x5.28x2.95in)
    Gross Weight: 1.02kg (2.25lb)
    Warranty (Years): 2
    Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Package Contents 4K30 HDMI® & USB over IP Encoder
    IR Emitter Cable, 1.5m
    IR Receiver Cable, 1.5m
    2 x Mounting Ears & 4 x Screws
    3 x 3-Pin Terminal Block
    Multi-country Power Supply (UK, EU, US & AUS)
    Lindy Manual
    Purchasing Information No.: 38396
    EAN: 4002888383967
