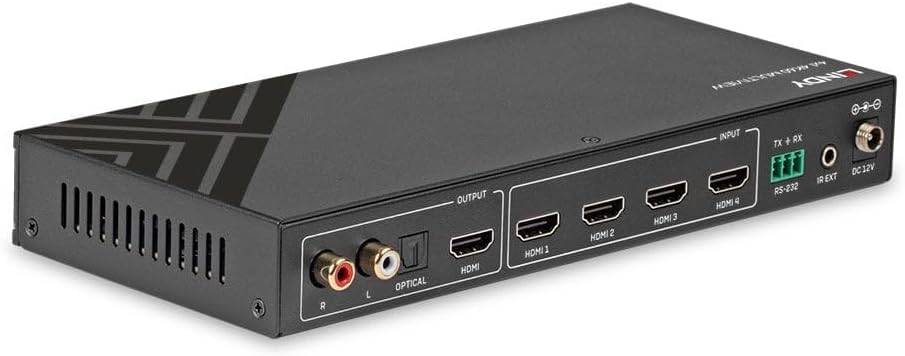

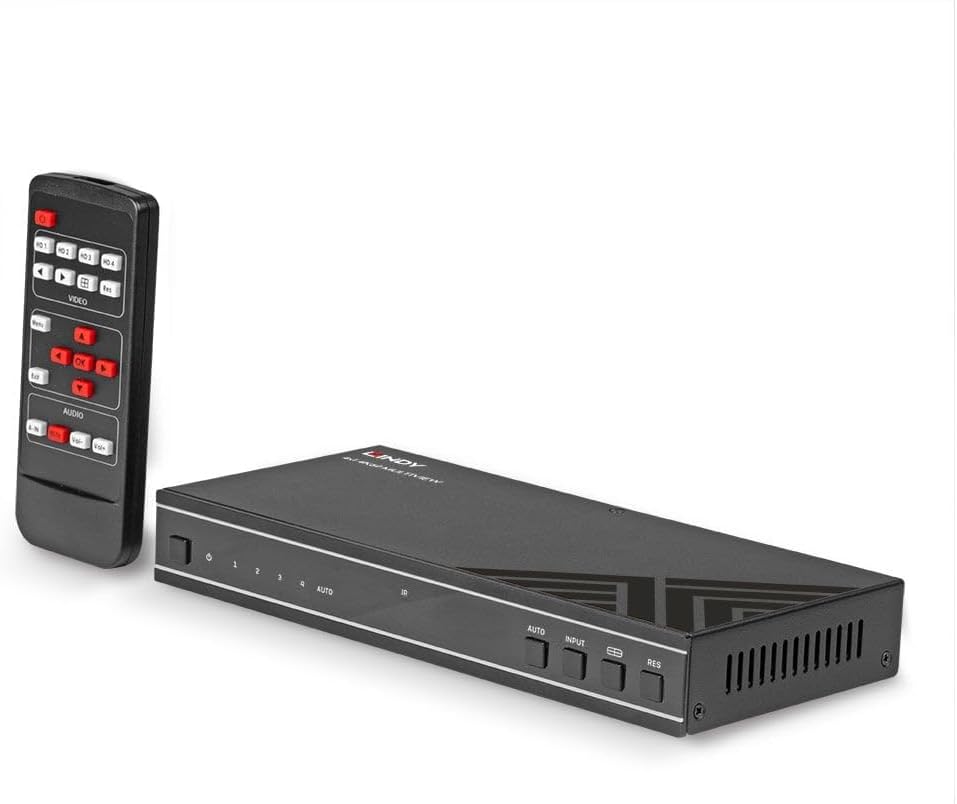

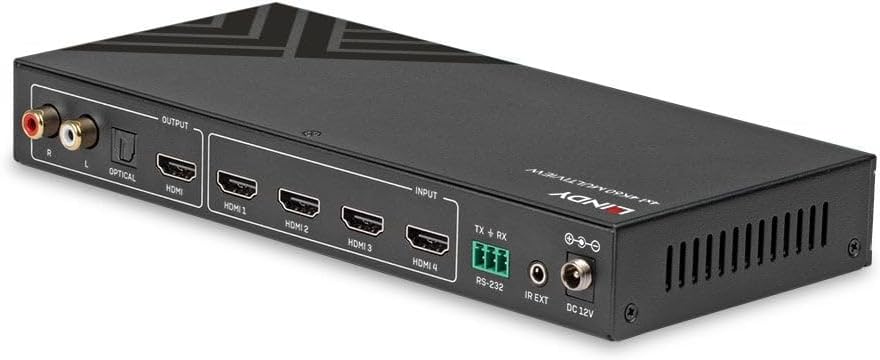

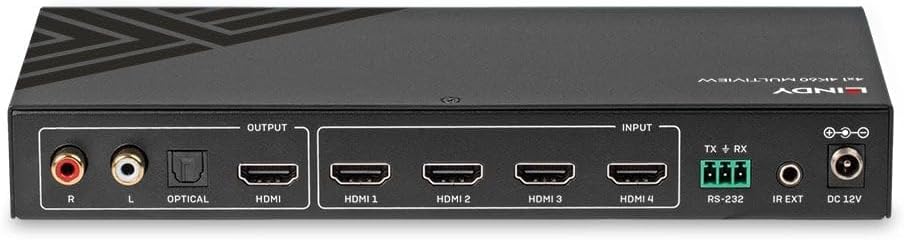

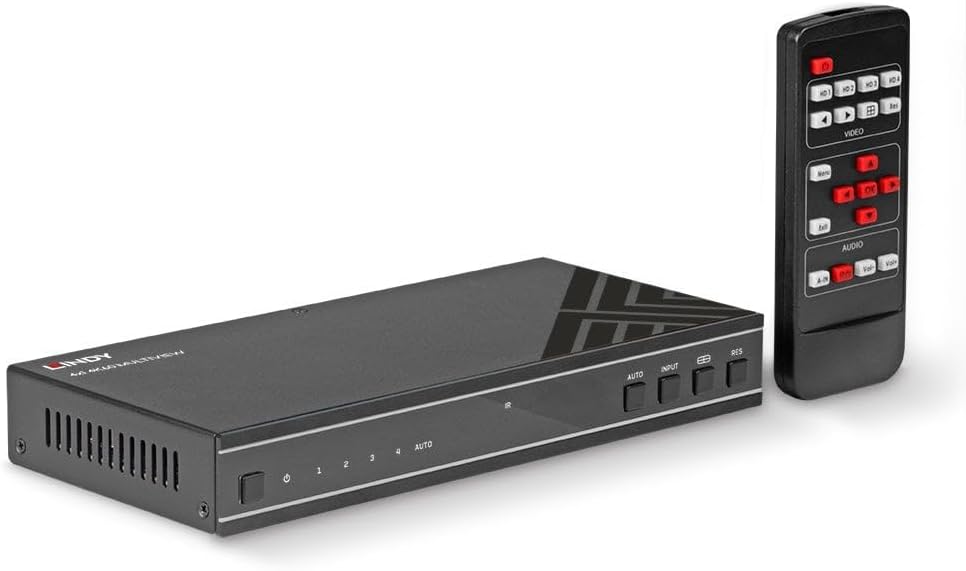

Lindy 4x1 4K60 HDMI Seamless Multiview Switch | 38228
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Feature | Description |
|---|---|
| AV Interface | HDMI® |
| Interface Standard | HDMI® |
| Supports Bandwidth | 18Gbit/s |
| Max Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| Audio Support | RCA / Optical de-embed |
| Audio Ports | R/L / Optical / HDMI® |
| IR Support | 38kHz |
| Serial Interface | 3-pin Phoenix RS-232 |
| Special Features | PiP, PbP, Triple, Quad |
| Input | 4 x HDMI® |
| Output | 1 x HDMI® |
| Control | RS-232, IR Remote |
| Power | 5.5/2.1mm DC 12V/2.5A |
| Dimensions | 219x111x30mm |
| Material | Metal |
| Net Weight | 0.61kg |
| Operating Temp | 0°C - 40°C |
| Storage Temp | -4°C - 140°F |
| Humidity | 20% - 90% RH |
| Power Req | 12VDC 2.5A |
| Colour | Black |
| Packaging Type | Carton Box |
| Packaging Size | 280x179x78mm |
| Gross Weight | 1.078kg |
| Warranty | 2 Years |
| Compliance | CE, FCC, RoHS, REACH |
| Package Contents | Switcher, Remote, Adapter, Accessories |
| Product No. | 38228 |
| EAN | 4002888382281 |
| Description | Downloads |
|---|---|
| Lindy 4x1 4K60 HDMI Seamless Multiview Switch | 38228 User Manual | Downloads |
