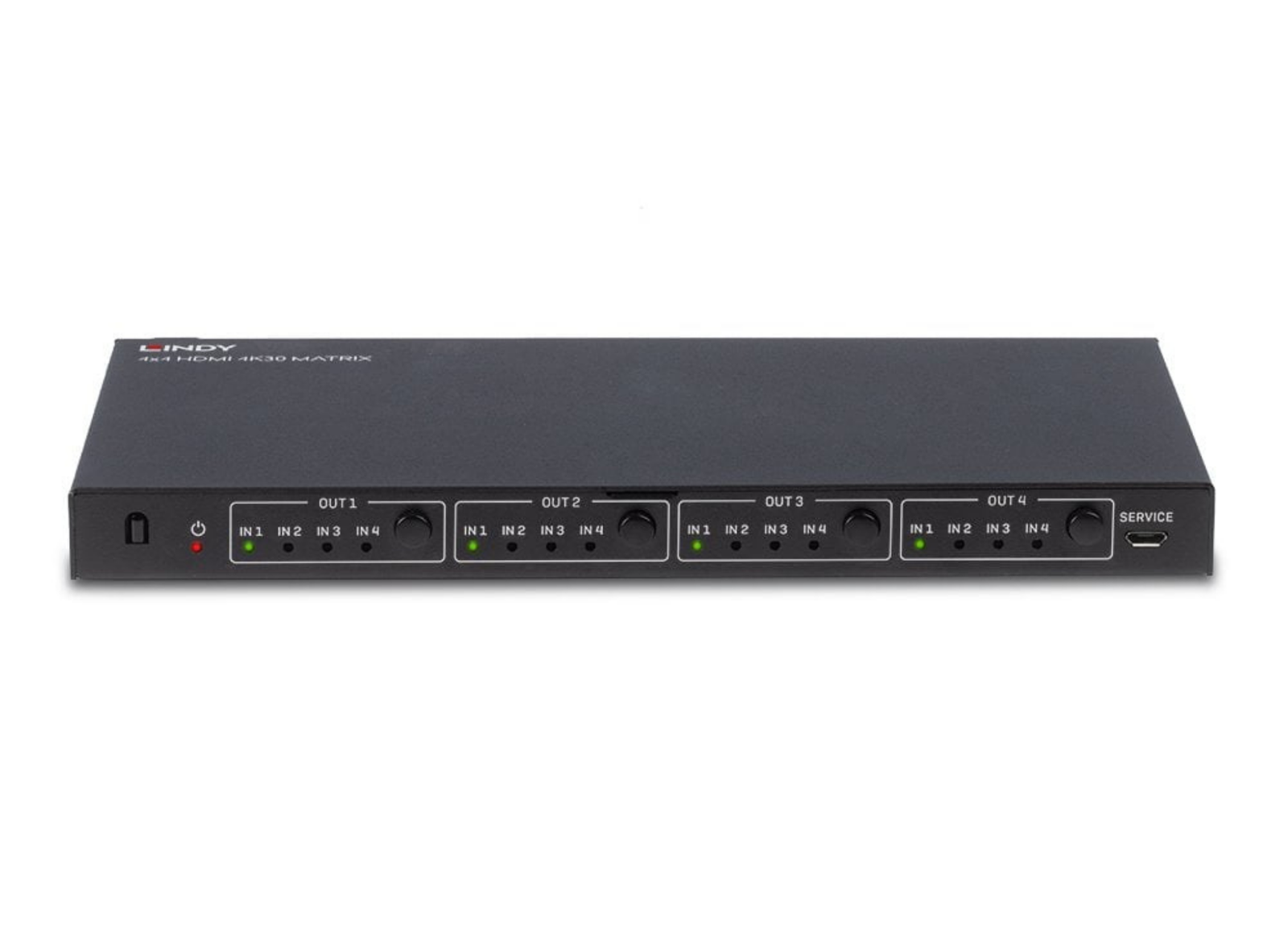

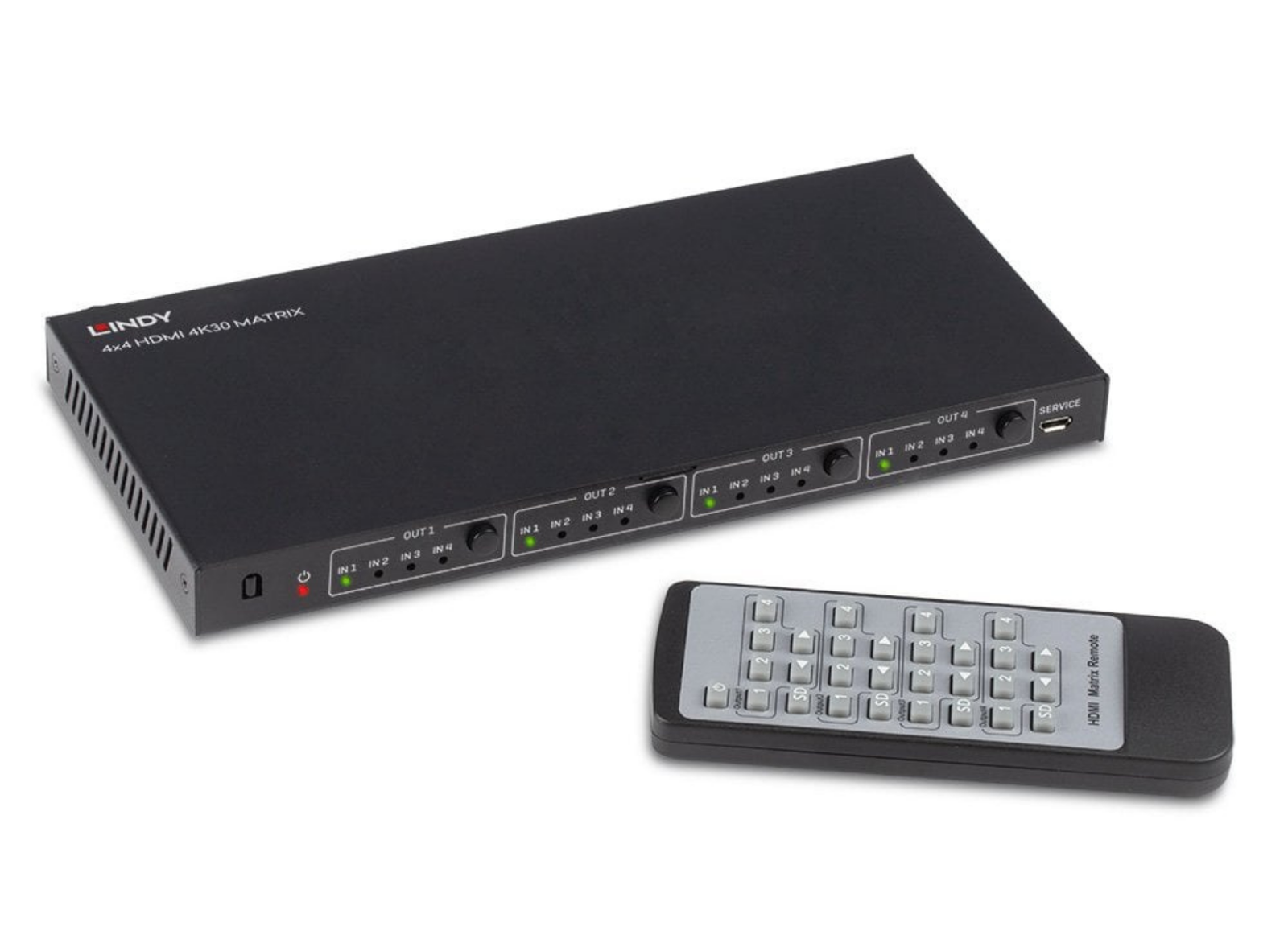

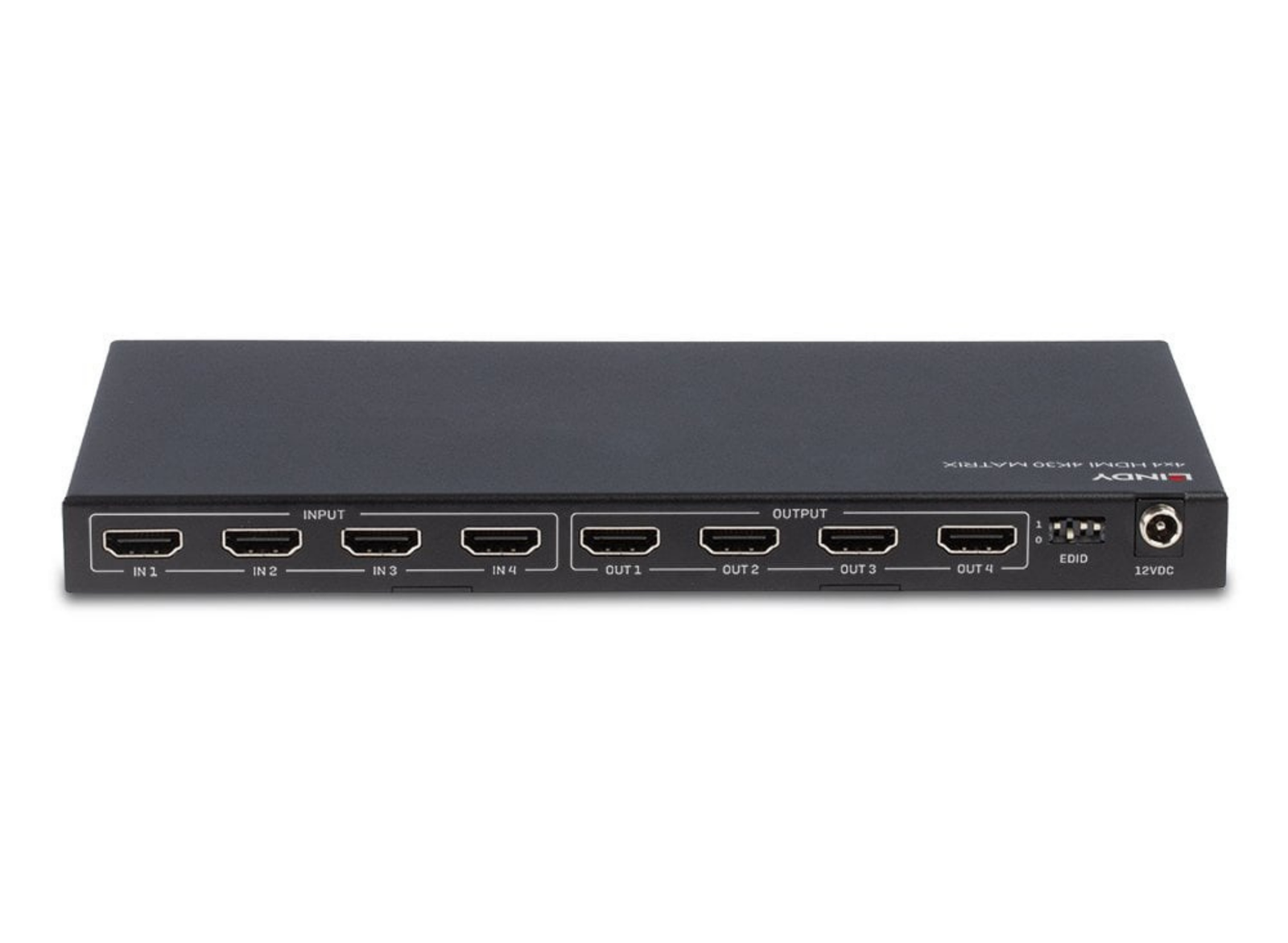

Lindy 4x4 HDMI 4K60 Matrix | 38152
Matrices are multi-port solutions for distributing content from multiple sources to several displays in a variety of configurations.
The Lindy 4x4 HDMI® 4K 60 Matrix is an effective solution for distributing 4K content from up to 4 HDMI® source devices, including PCs and media players, to 4 displays.
Supporting 4K@60Hz resolutions, content can be viewed in excellent quality - great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.
The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit, IR or via RS-232 for integration into professional control systems.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| AV Interface | HDMI® | Interface Standard | HDMI® 2.0 |
| Supports Bandwidth | 18 Gbps | Max Resolution | 4096x2160@60Hz 4:4:4 8bit with HDR |
| HDCP Support | 2.2 | Supported Audio | Audio Pass-through, Dolby Atmos |
| IR Support | 30-60kHz | CEC Support | - |
| Serial Interface | - | LED / LCD Display | - |
| Control | IR, Push Button | Special Features | EDID Management |
| Input | 4 x HDMI® (Female) | Output | 4 x HDMI® (Female) |
| Control Port | USB Micro-B (Female) | Power Connector | 5.5/2.1mm DC socket |
| Dimensions (WxHxD) | 220x105x19mm (8.66x4.13x0.75in) | Housing Material | Metal |
| Nett Weight | 0.535kg (1.81lb) | Operating Temp | 0°C - 40°C (32°F - 104°F) |
| Storage Temp | -20°C - 60°C (-4°F - 140°F) | Humidity | 20 - 90% (non-condensing) |
| Power Requirement | 12VDC 2.5A | Colour | Black |
| Packaging Type | Carton box | Packaging Dimensions | 301x61x235mm (11.85x2.4x9.25in) |
| Gross Weight | 1.35kg (2.98lb) | Warranty (Years) | 2 |
| Product Compliance | CE, FCC, RoHS, REACH, California Proposition 65 | Package Contents | HDMI® Matrix, IR Remote, Multi-Country PSU (EU, UK, US & AUS), Lindy Manual |
| No. | 38152 | EAN | 4002888381529 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
