Lindy 500m Fibre Optic DVI-D Dual Link Extender | 38106
SKU: 38106
£110.32 (Excl. VAT)
- Description
- Specifications
- Downloads
-

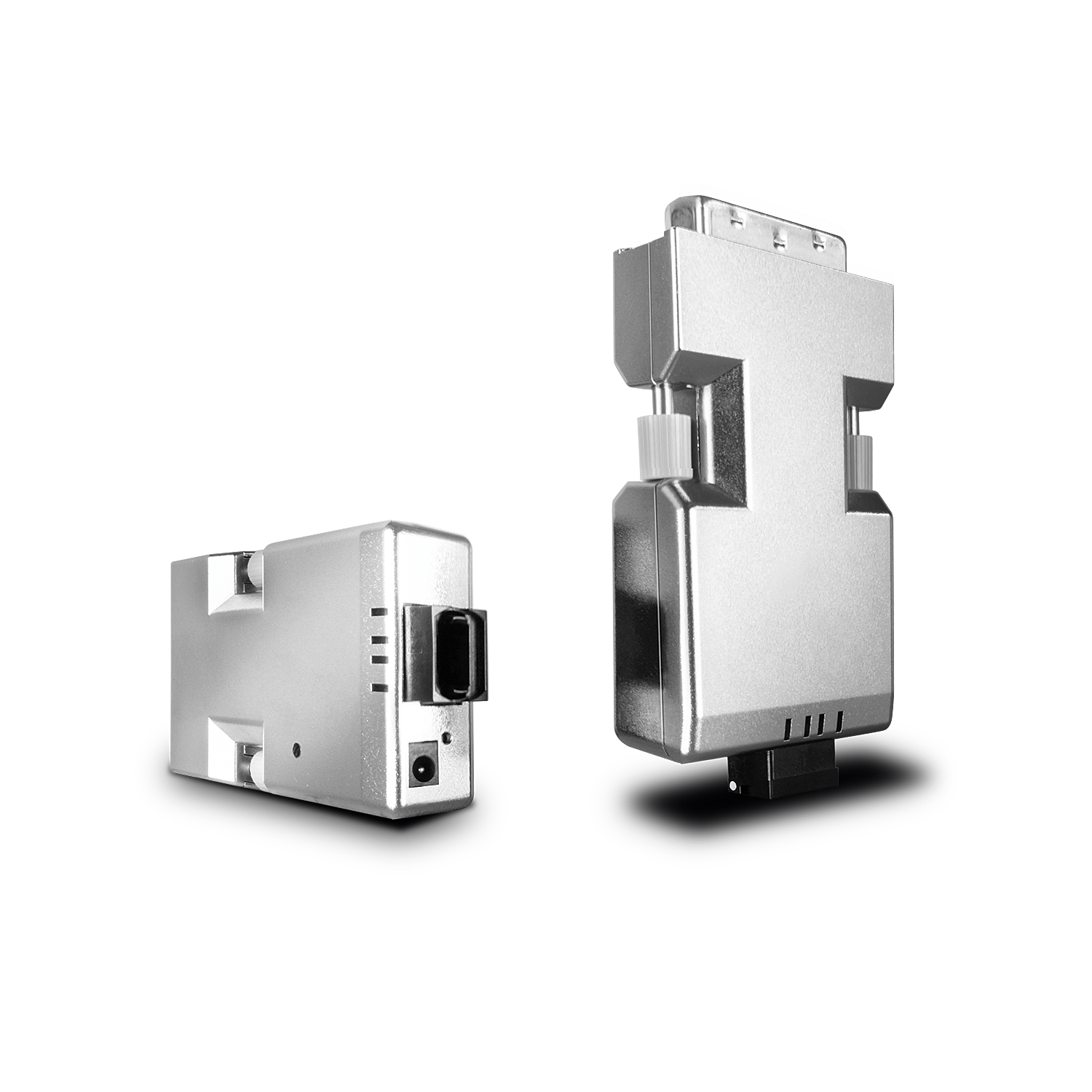

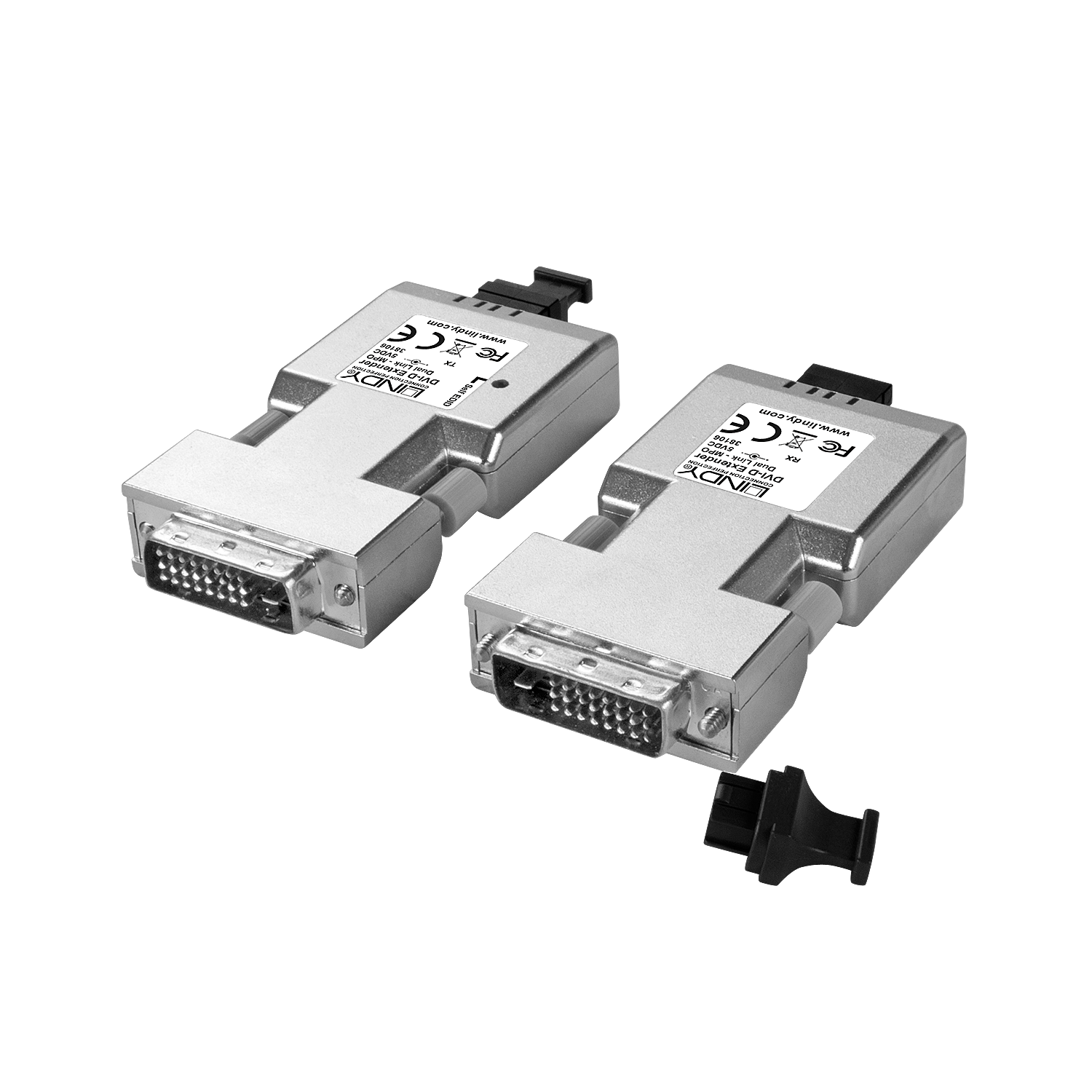

Lindy 500m Fibre Optic DVI-D Dual Link Extender | 38106
Easy to set up and install this compact Fibre Optic DVI-D Dual Link Extender is a cost effective, high quality solution for sending DVI-D signals up to 500m without any compression or degradation over MPO Multimode cable.
Unlike other solutions, this extender uses just a single fibre cable to reach such great lengths. The system comprises of transmitter and receiver modules that connect directly to the digital source & display via DVI-D. The modules are then connected using a single, MPO fibre optic cable (not included).
Please note - We recommend using 50/125µ or 62.5/125µ MPO multimode fibre cable. Please contact Technical Support for further advice.Package Contents
1 x Transmitter Unit
1 x Receiver Unit
2 x multi country 5V 1A power supplies
LINDY Manual -
Category Specification AV Interface DVI-D Interface Standard DVI-D 2.0 (Dual Link) Supported Bandwidth 9.9 Gbps Maximum Distance 500m (1640.4ft) Maximum Resolution 2560x1600@60Hz HDCP Support - EDID Pass Through - Supported Audio - Separate Audio Ports - IR Support - CEC Support - Serial Interface - Transmission Protocol - Transmission Medium 1 x MPO Laser Class Class 1 Wavelength 850nm Chipset - Special Features Self-EDID learning Connectors Transmitter Input DVI-D (Male) Transmitter Output MPO (Female) Receiver Input MPO (Female) Receiver Output DVI-D (Male) Bidirectional Ports - Power 3.5/1.35mm DC socket Physical Properties Dimensions (WxDxH) 40x70x15mm (1.57x2.76x0.59in) per unit Housing Material Metal Net Weight 0.1kg (0.22lb) per unit Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 65°C (-4°F - 149°F) Humidity 10 - 75% RH (non-condensing) Power Requirements 5VDC <150mA (TX) / 5VDC 250mA (RX) Colour Silver Miscellaneous Packaging Type Carton Box Packaging Dimensions 260x170x70mm (10.24x6.69x2.76in) Gross Weight 0.8kg (1.76lb) Warranty (Years) 2 Certifications CE, FCC, RoHS & REACH Package Contents Contents Transmitter unit, Receiver unit, 2x Multi-Country Power Supplies (EU, UK, US & AUS), Lindy manual Purchasing Information No. 38106 EAN 4002888381062 -
Description Downloads Manual Download
