Easy to set up and install the compact LINDY LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included).

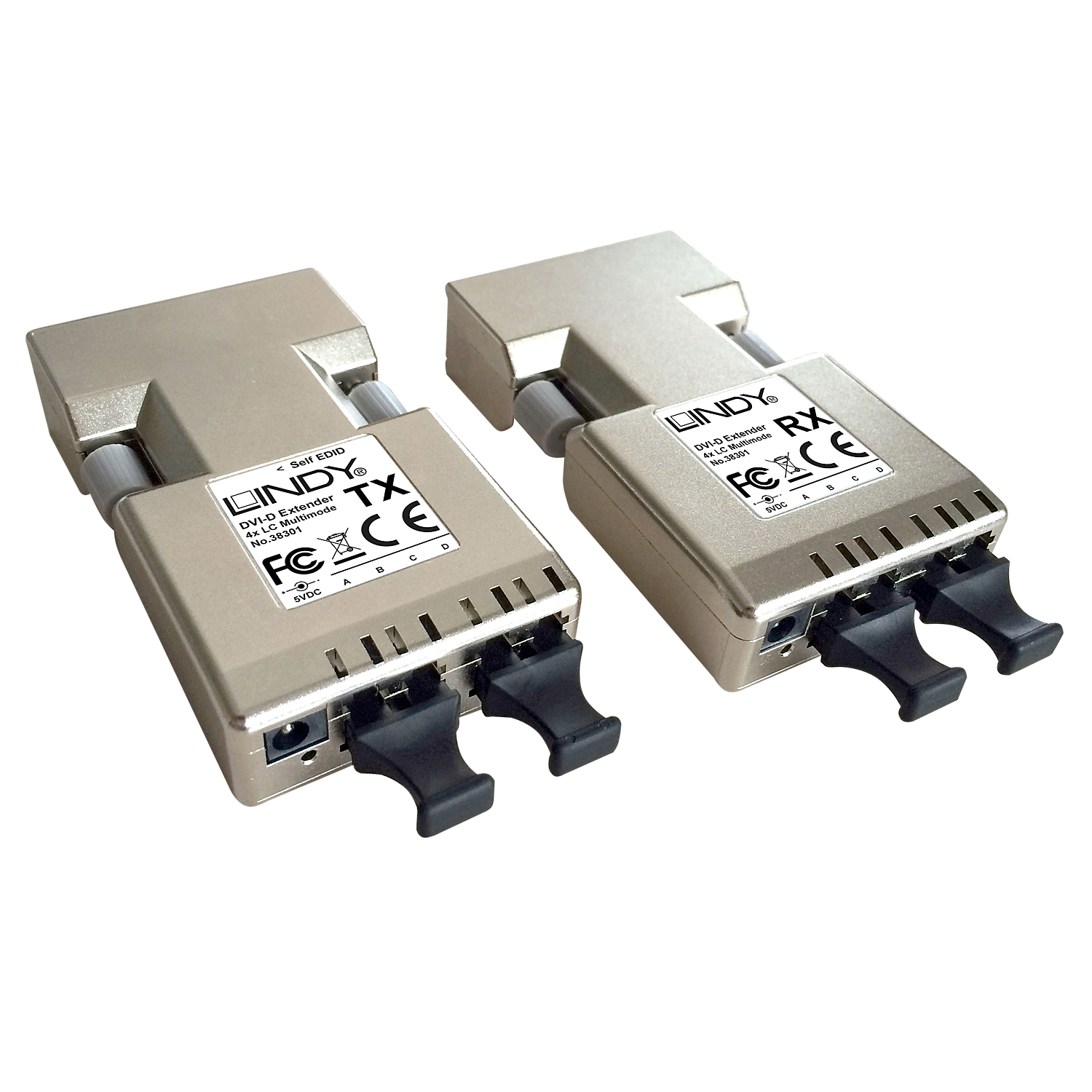

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using two, standard 'off the shelf' LC Duplex Fibre cable fibre optic cables (not included).
Package Contents
1 x Transmitter Unit
1 x Receiver Unit
1 x Multi-country PSU for Receiver, 5VDC, =1A, with Adapters for US/EUR/UK/AUS
LINDY manual
| Feature | Details |
|---|---|
| AV Interface | DVI-D |
| Interface Standard | DVI-D 2.0 (Single Link) |
| Supported Bandwidth | 4.95 Gbps |
| Maximum Distance | 500m (1640.4ft) |
| Maximum Resolution | 1920x1200@60Hz |
| HDCP Support | - |
| EDID Pass Through | - |
| Supported Audio | - |
| Separate Audio Ports | - |
| IR Support | - |
| CEC Support | - |
| Serial Interface | - |
| Transmission Protocol | - |
| Transmission Medium | 2 x LC Duplex (50/125µm) |
| Laser Class | 1 |
| Wavelength | 850nm |
| Chipset | - |
| Special Features | Self-EDID learning |
| Transmitter Input | DVI-D (Male) |
| Transmitter Output | 2 x Duplex LC (Female) |
| Receiver Input | 2 x Duplex LC (Female) |
| Receiver Output | DVI-D (Male) |
| Bidirectional Ports | - |
| Power | 3.5/1.35mm DC socket |
| Dimensions WxDxH | 40x70x15mm (1.57x2.76x0.59in) per unit |
| Housing Material | Metal |
| Net Weight | 0.1kg (0.22lb) per unit |
| Operating Temperature | 0°C - 70°C (32°F - 158°F) |
| Storage Temperature | -20°C - 85°C (-4°F - 185°F) |
| Humidity | 10 - 75% RH (non-condensing) |
| Power Requirements | 5VDC <200mA per unit |
| Colour | Silver |
| Packaging Type | Carton Box |
| Packaging Dimensions | 185x140x55mm (7.28x5.51x2.17in) |
| Gross Weight | 0.53kg (1.17lb) |
| Warranty (Years) | 2 |
| Product Compliance | CE, FCC, RoHS, REACH, TAA |
| Package Contents | Transmitter unit, Receiver unit, Multi-Country Power Supply (EU, UK, US & AUS), Lindy manual |
| Purchasing Information | No.: 38301, EAN: 4002888383011 |
| Description | Downloads |
|---|---|
| Manual | Download |
