Lindy 50m Cat.6 DVI-D Single Link, USB & Audio KVM Extender - 39377
SKU: 39377
£138.86 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Lindy 50m Cat.6 DVI-D Single Link, USB & Audio KVM Extender - 39377

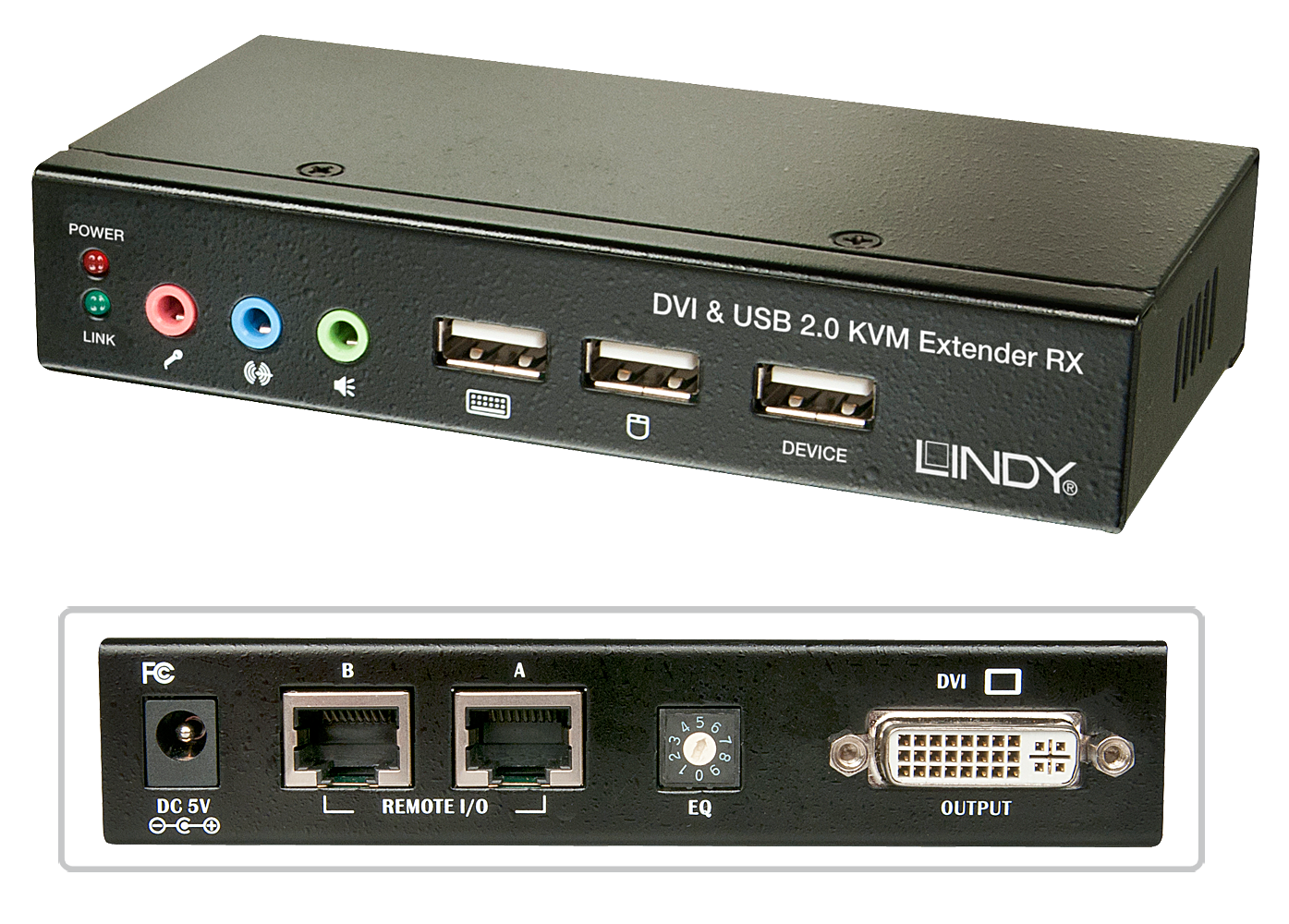

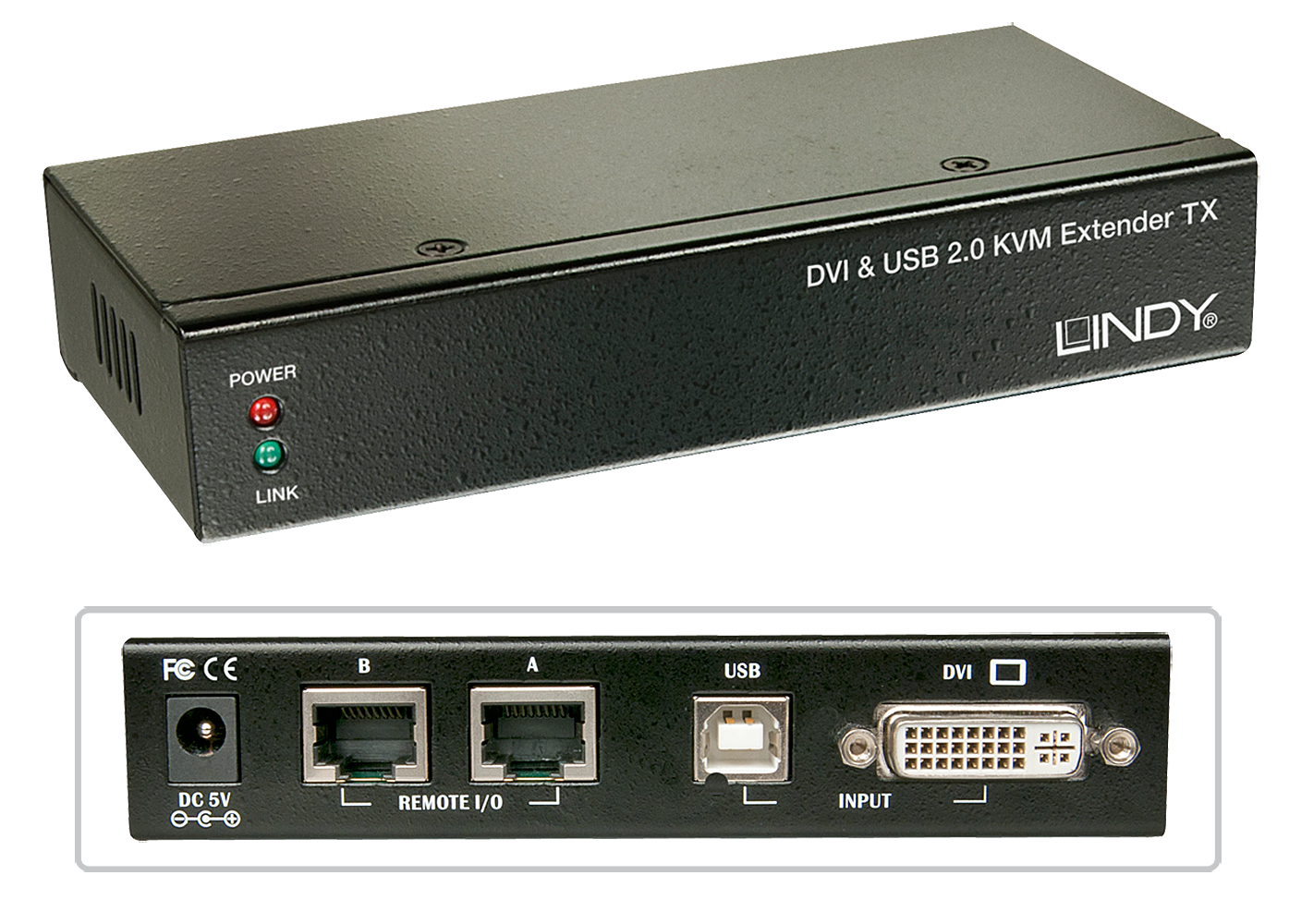

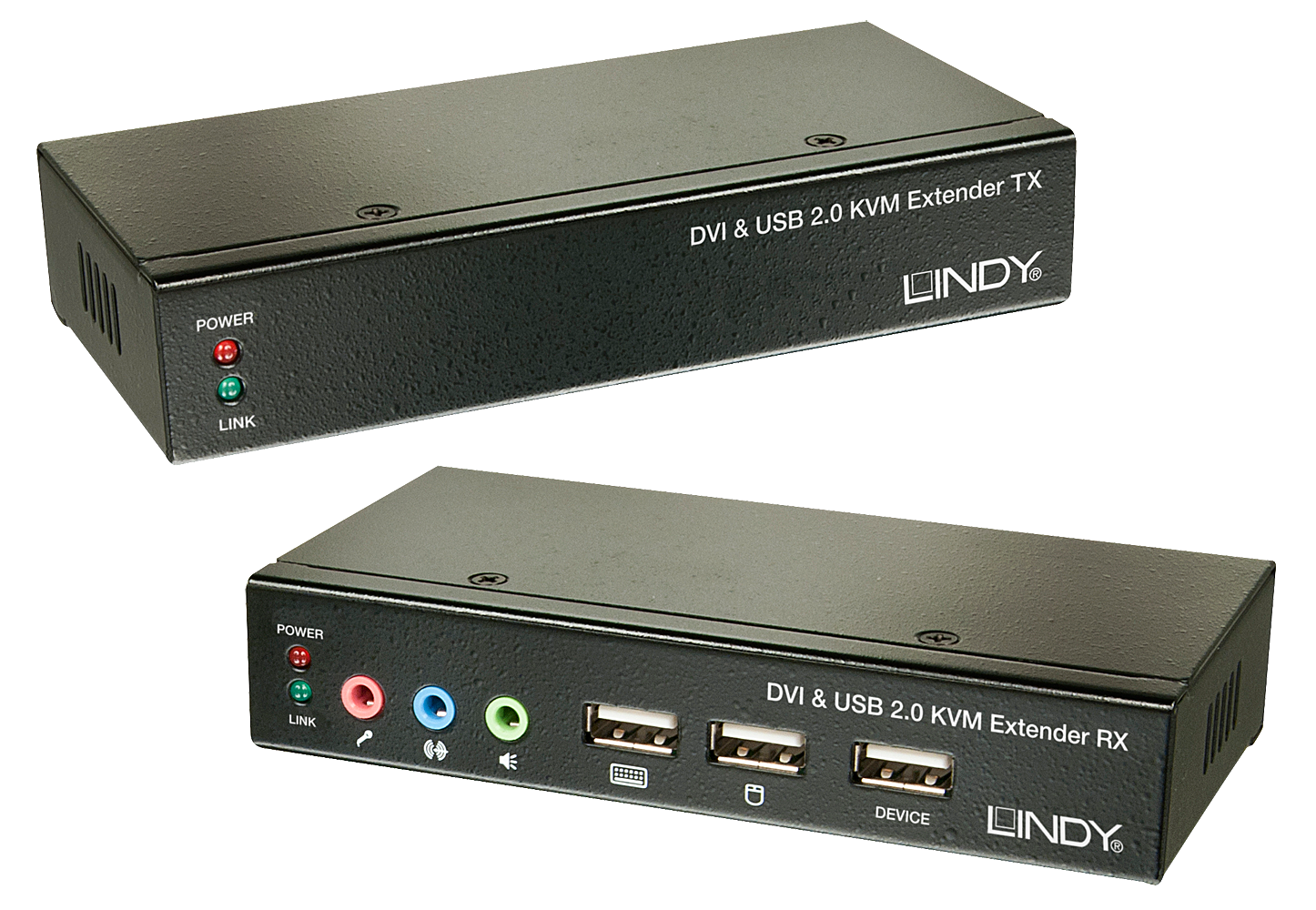

The Lindy Cat.6 DVI-D Single Link, USB & Audio KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 50m using two Cat.6 RJ45 cables. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1920x1080, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit, the transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect a USB 2.0 device or add a USB hub to connect additional USB peripherals such as storage or printers.To adjust video signal, you can rotate the EQ switch on the rear panel of the receiver unit while an inbuilt USB to Audio converter allows users to connect speakers, microphones and a line-in interface.
To get the best performances, Lindy suggest using two identical Cat.6 Solid Core cables.
This extender provides a simple plug & play installation, no additional drivers required, great for both professional and first time users.
Extends DVI-D, USB and Audio up to 50m using two Cat.6 cables
Supports DVI Single Link resolutions up to 1920x1200
Supports USB keyboard and mouse & an additional USB 2.0 device
Easy, user friendly installation - no software required
2 year warranty
-
Category Detail Specifications AV Interface DVI-I Console Interface USB Interfaces Standard DVI-D Single Link, USB (HID), USB 2.0 Supported Bandwidth 165MHz Maximum Distance 50m (164.04ft) Maximum Resolution 1920x1200@60Hz HDCP Support 1.4 Supported Audio 2CH Audio supported over USB converter Separate Audio Ports 3 x 3.5mm (Female) Transmission Protocol - Transmission Medium 2 x Cat.6 Laser Class (only for Fibre) - Wavelength (only for Fibre) - Special Features - Connectors Transmitter KVM Interfaces DVI-I (Female), USB Type B (Female) Transmitter Extension Port 2 x RJ45 Receiver Console Interface DVI-I (Female), 3 x USB Type A (Female), 3 x 3.5mm (Female) Receiver Extension Port 2 x RJ45 Bi-directional Ports - Other Interfaces - Power 5.5/2.5mm DC socket Physical Properties Dimensions (approx.) WxDxH 130x70x170mm (5.12x2.76x6.69in) (each unit) Housing Material Metal Net Weight 0.33kg (0.73lb) (each unit) Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 70°C (-4°F - 158°F) Humidity 10 - 80% RH (non-condensing) Power Requirements 5VDC 2A Colour Black Miscellaneous Packaging Type Carton Box Packaging Dimensions 205x135x180mm (8.07x5.31x7.09in) Gross Weight 1.2kg (2.65lb) Warranty (Years) 2 Certification CE, FCC, RoHS & REACH Package Content Transmitter Unit Receiver Unit 1 x DVI-D cable, 1.2m 1 x USB Type A/B cable, 1.2m 1 x USB DC cable, 1.5m 1 x Multi-Country Power Supply (EU, UK, US, AUS) Lindy Manual Purchasing Information No. 39377 EAN 4002888393775 - 39377 : User Manual
